Yokomo RD 1.0 “Rookie Drift” 1/10 2WD RWD Drift Car Kit

Yokomo RD1.0 – Entry Level Rear Wheel Drive Drift Car Kit

The Yokomo RD1.0 “Rookie Drift” 1/10 2WD RWD Drift Car Kit is designed to be an easy way to build and learn RC drift chassis. Based on the YD-2Z chassis, this kit allows you to choose your own motor/ESC combo to best suit your driving surface and style. The adjustability enables you to refine the suspension to your needs. Get ready for some entry level sideways fun with the Yokomo RD1.0!

This chassis kit is built using double wishbone suspension that is supported by oil-filled dampers and drift-specific springs. The extreme steering angle allows for maximum control, even at deep drift angles. The 3-gear transmission aids in response and optimizes the weight balance. The motor plate can be mounted in multiple positions to change the center of gravity (CG). Using the YD-2 chassis allows for many option parts to be installed to enhance performance.

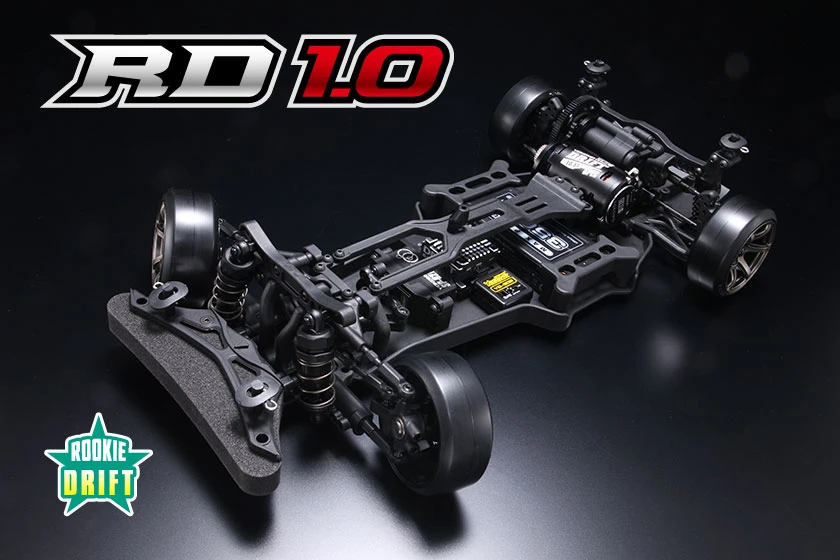

NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:

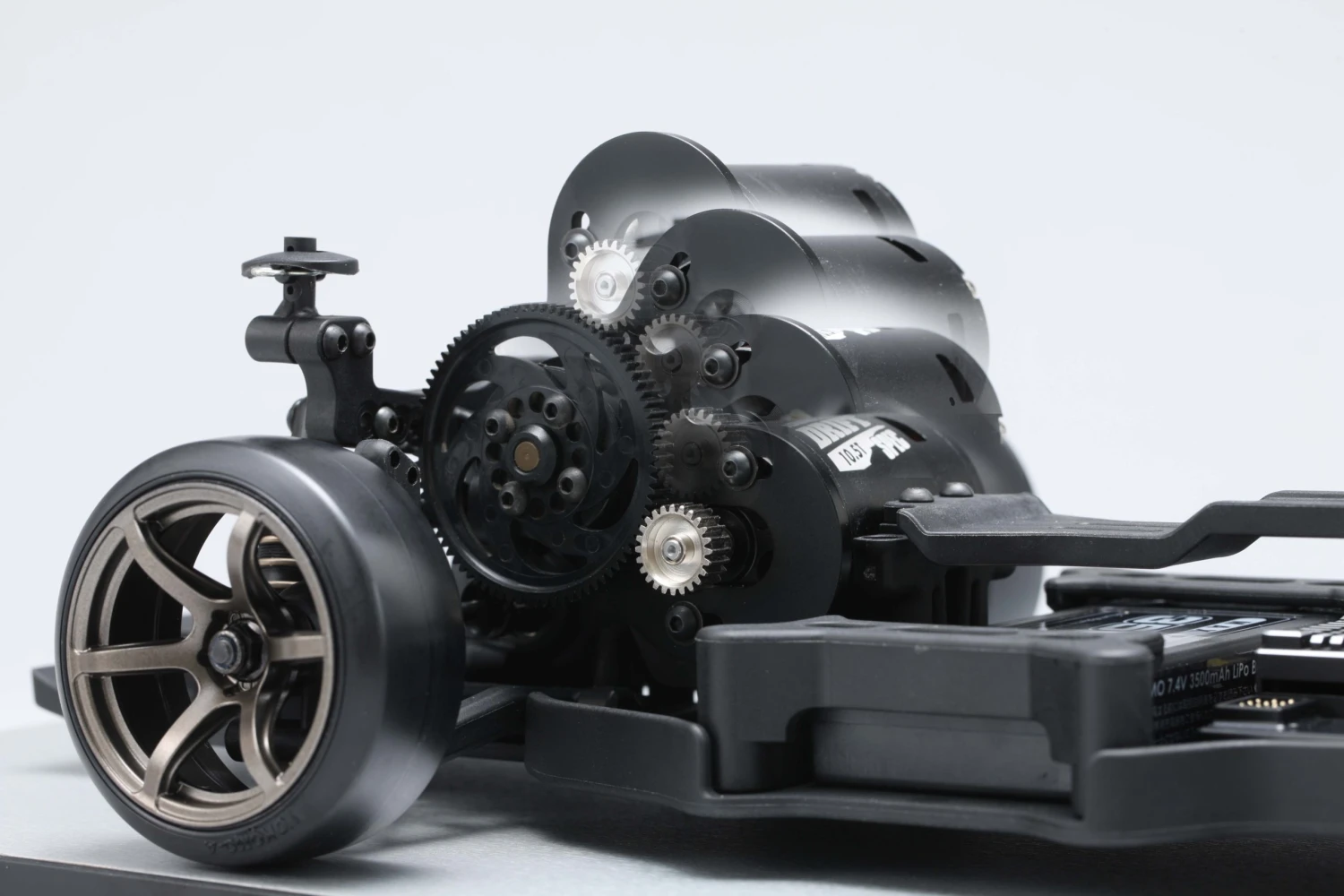

3-gear rear transmission

3-part closed type Gearbox

Resin integrated front bulkhead

4-wheel independent double wishbone suspension

Front short suspension arm

High performance vehicle height adjustable oil damper

Resin one-piece main chassis

13-step adjustable aluminum motor mount

RWD exclusive high Angle steering system

49mm bone rear universal shaft

LS rear lower suspension arm

Large rear diffuser

Specifications:

Length: 16.73in (425mm)

Width: 7.79in (198mm)

Wheelbase: 10.07in (256mm)

Secondary reduction ratio: 1:2.6

Includes:

(1) Yokomo RD1.0 1/10 RWD Drift Car Kit

Needed to Complete:

2-Channel Transmitter with Receiver

1/10 540 Motor

Compatible ESC

Steering Servo

Drift Gyro

Shorty Pack LiPo

Compatible Battery Charger

Drift Wheels and Tires

200mm Touring Car or Drift Body

Polycarbonate Paint for Body

Tools for Assembly
