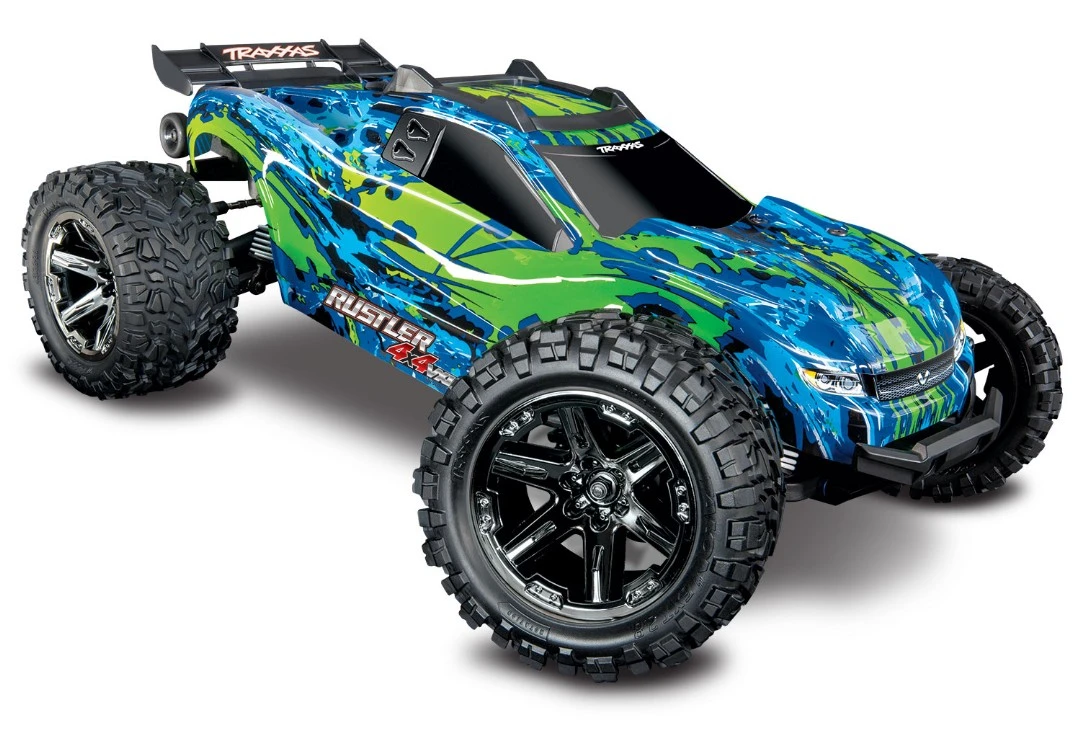

Traxxas Rustler VXL Brushless 1/10 RTR 4×4 Stadium Truck – Green

THE RC STADIUM TRUCK REDEFINED
The all-new Rustler� 4X4 VXL is a hard-charging wheelie machine that captures the speed and classic style of the number-one-selling Rustler and injects it with brutal 4-wheel drive performance, increased durability, and even more fun! Bury the throttle and the Rustler 4X4 VXL launches its front wheels skyward as it shreds the ground underneath. Beneath the sleek clipless body, the heavy-duty driveline delivers extreme Velineon� brushless horsepower. The larger Talon� EXT wheels and tires provide versatility and grip for any terrain, from backyard trails to concrete skate parks. Rustler 4X4 VXL destroys convention to become the new performance and fun standard for 4X4 stadium trucks!

ALL-NEW CHASSIS
The all-new low-CG chassis positions the weight low for aggressive handling. The wheelbase has been lengthened 20mm for the perfect balance of stability and quick response. Brushless Velineon power flows through a larger Revo�-Spec slipper clutch and new extreme heavy-duty driveshafts to ensure performance and strength.

SELF-RIGHTING
The Rustler 4X4 VXL uses Traxxas� patented Self-Righting feature to keep the fun going, even when you get carried away with the wheelies or land that big trick upside down. Simply press a button on the TQi transmitter and, in most circumstances*, the Rustler 4X4 VXL will be back on its wheels in just seconds and ready for more action!

CLIPLESS BODY MOUNTING
Similar to the flagship E-Revo, the Rustler 4X4 VXL uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. The sleek, aerodynamic body features a rugged internal structure and external rollover protection for long life and Traxxas-Tough� durability.

INNOVATION
The Rustler 4X4 VXL is packed with innovative engineering, even in the smallest details, to deliver a powerful and tough truck that�s all about speed, durability, and performance.

DETAILS
Details make the difference when Traxxas engineers set their focus on making the performance and durability gains that make Rustler 4X4 VXL such a huge standout for high-speed fun.

TRUCK SPECS

Length: 18.78 inches (477mm)

Width: 12.94 inches (329mm)

Ground Clearance: 1.1 inches (27mm)

Weight: 5.12lbs (2.32 kg)

Height: 6.35 inches (161mm)

Wheelbase: 11.62 inches (295mm)

Front Shock Length: Long

Rear Shock Length: XX-Long

Tires (pre-glued): 4.5� x 2.3� (114mm x 58mm) Talon� EXT

Wheels: 2.8 inches (71mm) Black Chrome

Speed Control: VXL-3s�

Motor (electric): Velineon� 3500 Brushless

Transmission: Single-speed

Overall Drive Ratio: 13.97:1

Differentials: Sealed, 2-gear

Chassis Structure / Material: Composite tub

Brake Type: Electronic

Drive System: Shaft driven 4WD

Steering: Bellcrank with integrated servo saver

Radio System: TQi� 2.4GHz 2-ch transmitter with TSM receiver

Servo: Waterproof

Top Speed (optional gearing): 65+ mph with 3-cell LiPo and 20/54 gearing

Skill Level: 1

Battery Compartment: 162mm x 50mm x 25mm*42mm with optional battery strap (sold separately)

MOTOR SPECS

type: Velineon 3500kV sensorless brushless

Weight: 9.24oz (262g)

Length: 2.20 inches (56mm)

Diameter: 1.41 inches (36mm)

Connector Type: 3.5mm bullet

ESC SPECS

Input Voltage (cells): 4.8 � 11.1V (4�9 cells NiMH), 2S�3S LiPo

Case Size: 2.19� (56mm) x 1.54� (39mm) x 1.3� (33mm)

Weight: 3.84oz (109g)

BEC Voltage: 6.0 V

Reverse Delay: Yes, with lockout

Thermal Protection: Two-stage thermal shutdown

Ports: Auxiliary fan

FEATURES:

VXL-3s� Waterproof Electronic Speed Control

Three Programmable Drive Profiles:

-Sport Mode � Forward / Brake / Reverse

-Race Mode � Forward / Brake

-Training Mode� � 50% Forward / Brake / 50% Reverse (patented)

Traxxas EZ-Set� one-button setup

Large heat sink

Built-in two-stage low-voltage detection for LiPo batteries

NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)

LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Velineon� 3500kV Brushless Motor

Ultra high-temperature sintered Neodymium magnets

Optimized for power and efficiency in 1/10th scale vehicles

Low-maintenance, unique Traxxas design

Efficient, high-speed ball bearings

Precision-balanced rotor

3500kV

Brilliant blue-anodized finish

Up to 65+ mph with 3S LiPo battery

Traxxas Stability Management� (TSM)

Improves straight-line acceleration and braking on low-traction surfaces

Maintains steering composure to allow throttle-on powerslides

Never dulls throttle or slows the truck

Adjusts from off to 100% assistance from the transmitted


TQi� 2.4GHz High Output Radio System

TQi 2-channel transmitter

Automatically stores and loads settings for up to 30 Traxxas Link-enabled models

Programmable multi-function knob

Adjustable steering and throttle percentage (dual rates)

Adjustable steering and throttle sensitivity (exponential)

Adjustable steering and throttle endpoints

5-channel micro receiver with fail-safe security

Patented waterproof receiver box with easy-access plug


Clipless ProGraphix� Body

Easy one-handed removal

Reinforced inner cage

Strong oversized latch

Rugged roof rollover protector

Molded composite plastic wing


Chassis

Low-CG design for responsive handling

Modular composite tub design

Latching battery hold-down

Reinforced integrated wheelie bar

High-approach front bumper to climb curbs


Suspension

Adjustable toe and camber links

New impact-resistant suspension arm composite

Oil-filled Ultra Shocks

Rugged front and rear shock towers

White powder-coated progressive springs


Steering

Chassis-mounted servo

Dual bellcrank design with integrated servo saver


Drivetrain

New extreme heavy-duty driveshafts

Oil-filled steel gear front and rear differentials

Large 32-pitch gearing

Torque Control� heavy-duty slipper clutch with aluminum pads

Anodized-aluminum center driveshaft


Wheels and Tires

Large 2.8� black chrome wheels

2.8� Talon� EXT tires

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

What�s In The Box:

Rustler 4X4 VXL with Velineon� VXL-3s and 3500kV motor

Quick Start Guide

TQi� 2.4GHz radio system

High-quality maintenance tools

What You�ll Need:

Batteries

Rustler 4X4 VXL requires a single NiMH or LiPo battery.

Charger

Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter
