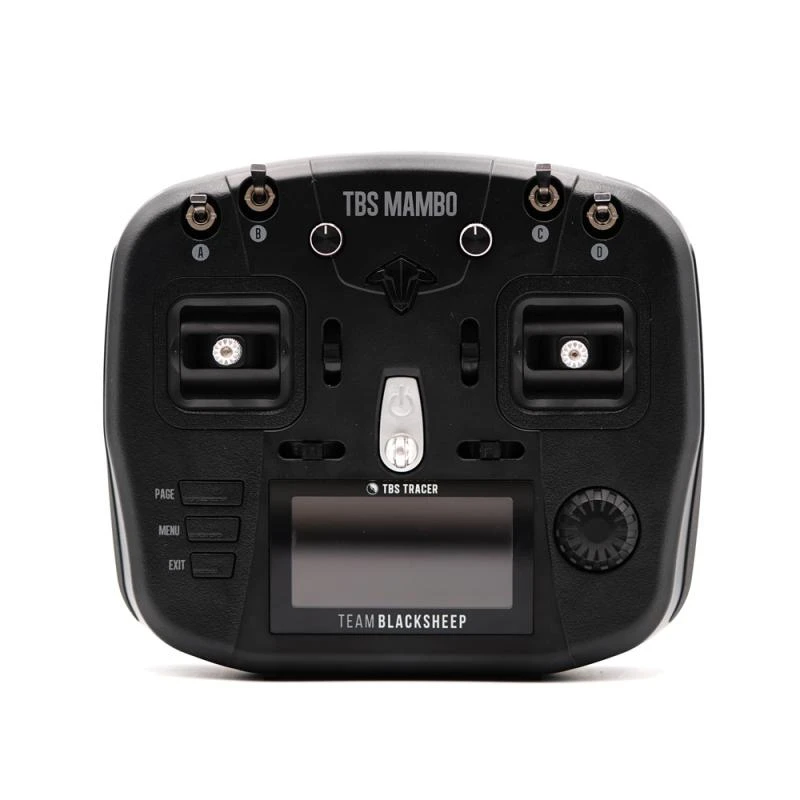

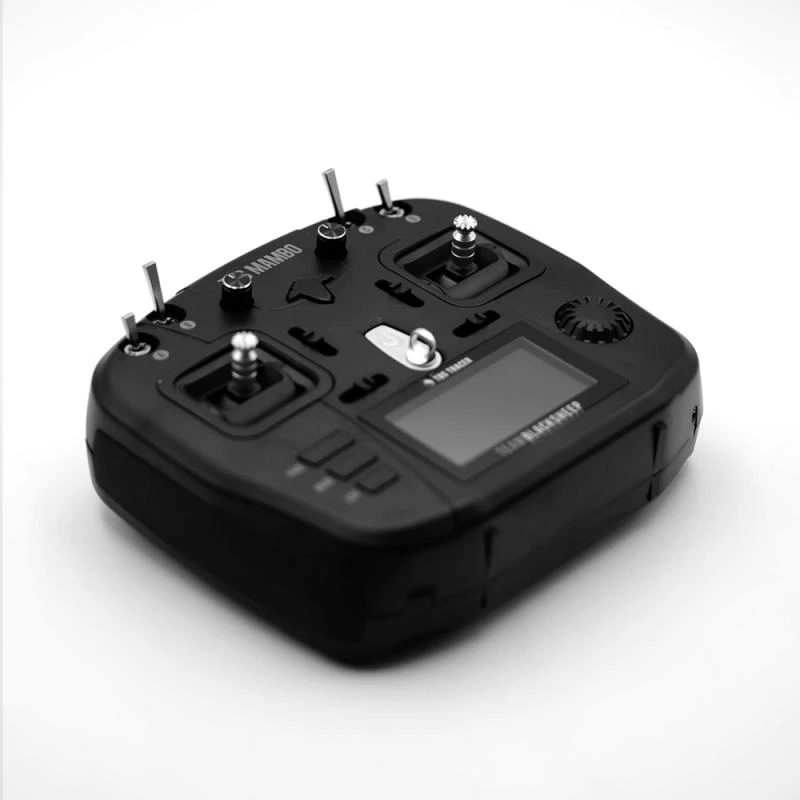

TBS MAMBO – FPV RC RADIO DRONE CONTROLLER

The TBS Mambo follows in the footsteps of the Tango 2, but sets a new focus: larger screen, traditional form factor with switches and potentiometers, JR module bay, replaceable batteries and trim buttons!

A CLASS ON ITS OWN
Team BlackSheep has redefined the portable remote control with the TBS Tango 2. Now we’re back with one of the most popular requests: a compact full-size remote! The TBS Mambo follows in the footsteps, but focuses on all of the things the Tango 2 tries not to have: a larger screen, traditional form factor with switches and potentiometers, JR module bay, replaceable batteries and trim buttons!

But do not fear: we haven’t made a cookie-cutter remote! With the built-in antenna (external antenna available as optional add-on), the 2-position and momentary gamepad buttons, and TBS Tracer built-in, we’ve accomplished a few “firsts” that put this radio into a class on its own!

TRACER INSIDE
The first radio with TBS Tracer built in. And it fits your existing TBS Crossfire module through the JR bay! TBS Tracer is the world’s lowest latency radio link, and builds upon the rock-solid reputation of the TBS Crossfire code base. With the continued development and expansion of the TBS ecosystem, pilots will remain on the bleeding edge of capabilities paired with the ease of use and overall robustness that TBS products are known for.

1.6ms end to end latency

250Hz refresh rate

Long range capable

High telemetry throughput for Mavlink and long range missions

TBS Cloud connectivity

FEATURES

TBS Tracer built-in

CRSF V3 protocol support for lowest latency and most direct response of any
remote control available

Range of up to 25km / 15mi

Built-in antenna for ultimate ruggedness

External antenna available as add-on

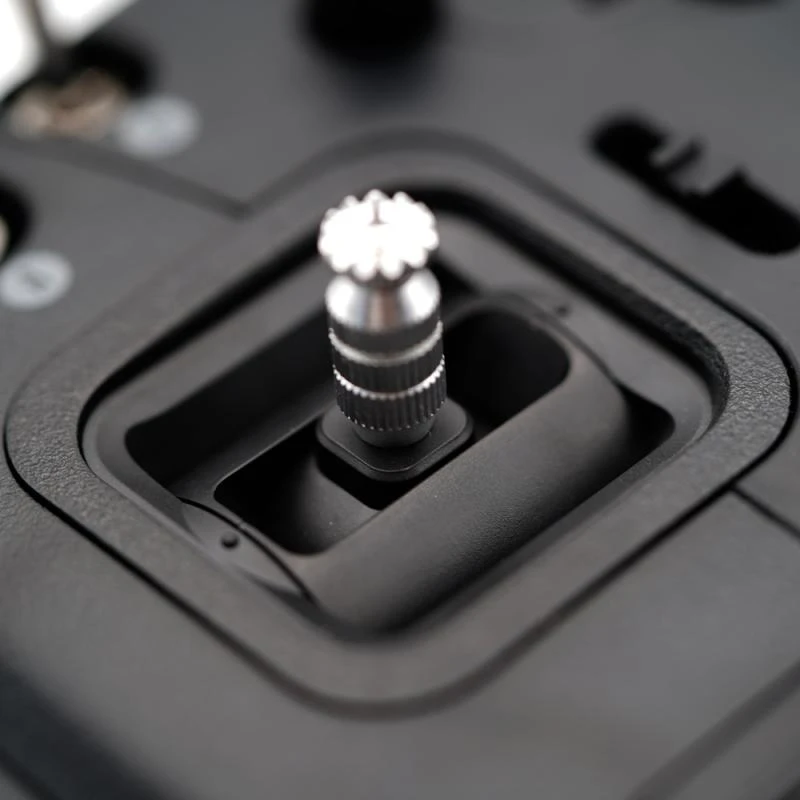

Full size, ball bearing hall sensor gimbals

Configurable resistance and tension

Adjustable throttle & pitch throw (+/- 10 degrees)
Spare spring set included for lower tension

Ergonomic shell design with grippy rubber edges

4x 3-position switches

2x potentiometer with center notch

1x 2-position switches

1x momentary button

4x digital trim buttons

Perfectly balanced lanyard mount

Up to 12 channels supported

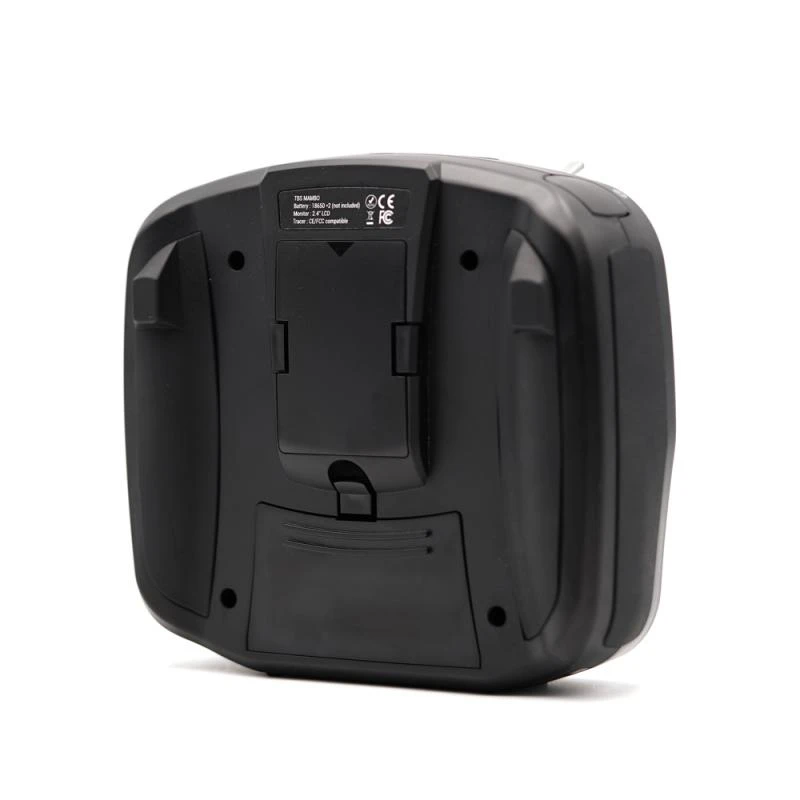

Parallel 18650 x 2 (not included!) with USB-C 2A charging (2.5 hours for full charge)

Speech audio output with audio jack & haptic vibration alert

Open Source remote control operating system (FreedomTX, temporary fork of OpenTX)

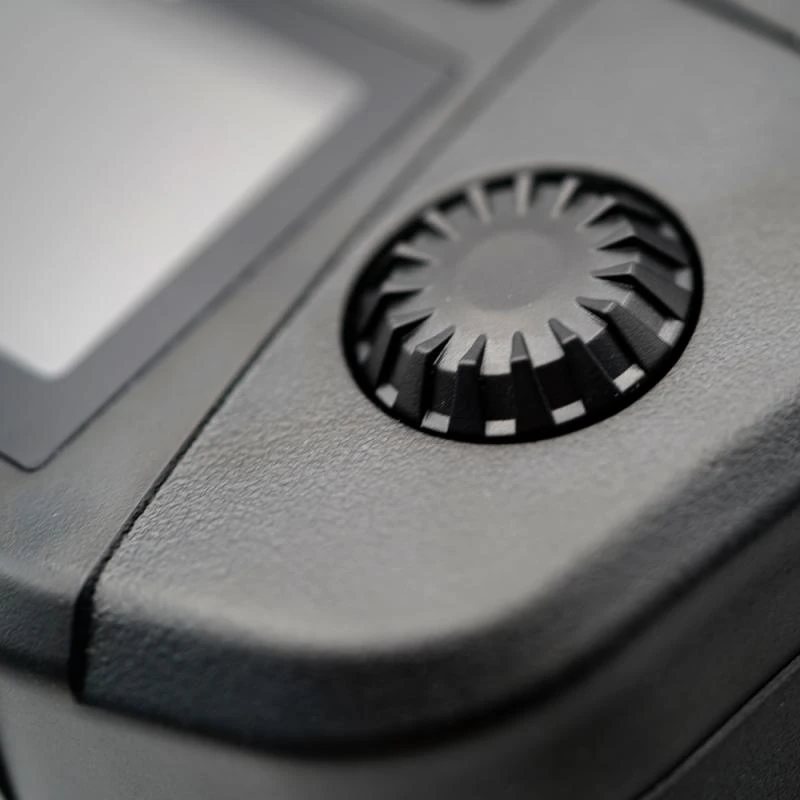

Rocker dial and 3 button menu for super simple navigation

High resolution (128*64) black & white LCD screen w/ backlight

100+ model memory with included SD-card

TBS Cloud compatible

SPECIFICATION

Weight: 565g

Battery: 2 x 18650

Audio: 1W speaker & 3.5mm headphone jack

Display: 3.5” LCD panel (128 x 64)

Antenna: Embedded antenna

Switches: 4 x 3pos | 1 x 2pos | 1 x Momentary

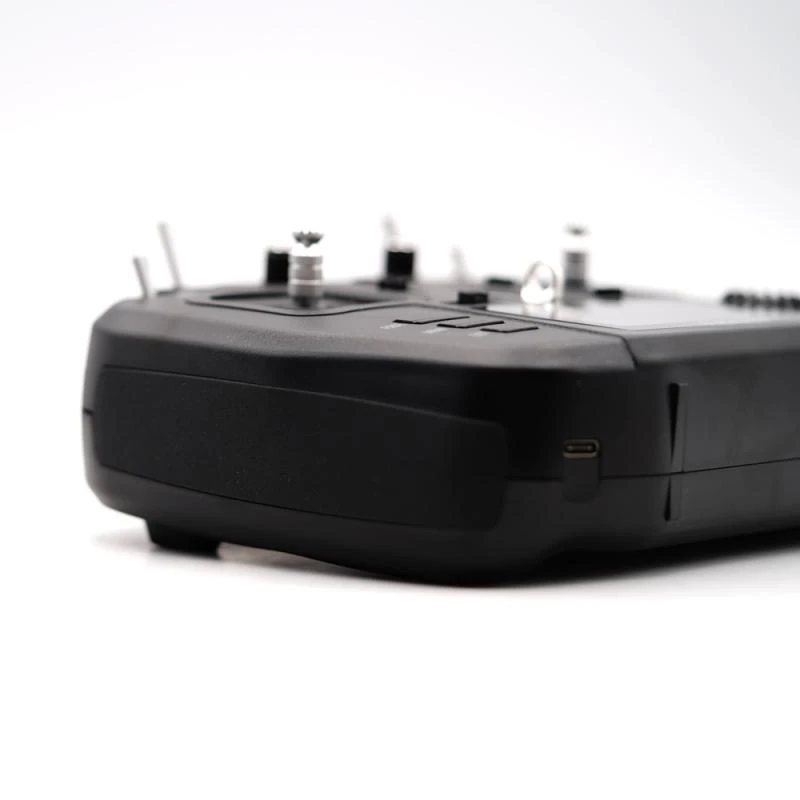

USB-C Port: Battery charging (5V, 2A), Firmware upgrades & Simulator / HID

TBS MAMBO INCLUDES

1 x TBS Mambo remote control

1 x Springs Set (Lower Tension)

2 x Throttle limitation screws (with allen key)
