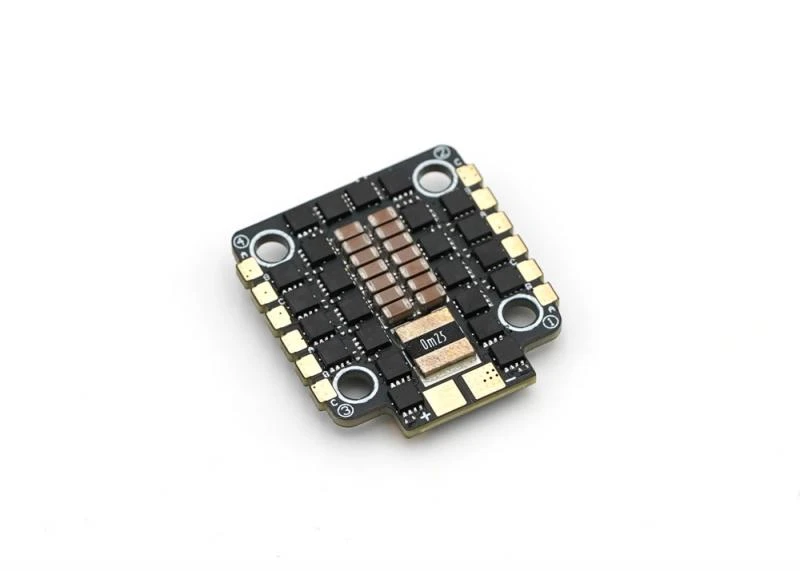

SPEDIX IS25 2-5S BLHELI_S 4IN1

High reliability achieved by PCB design and manufacturing process. Eliminated the possibilities of internal breakage in manufacture and application, greatly improved reliability and survival rate.

SPECIFICATIONS

Continuous Current: 25 amps

Burst Current: 35 amps?10 S

Input Voltage: 2-5 Cell LiPo

BEC: No

Current Detection: Yes

Dimensions: 29x32x5mm

Mounting pattern: 20x20mm

Mounting Holes: 3.7mm (M3 shoulder washers included)

Firmware: BLHeli_S(QH-15)

Input signal: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300 &

Dshot600

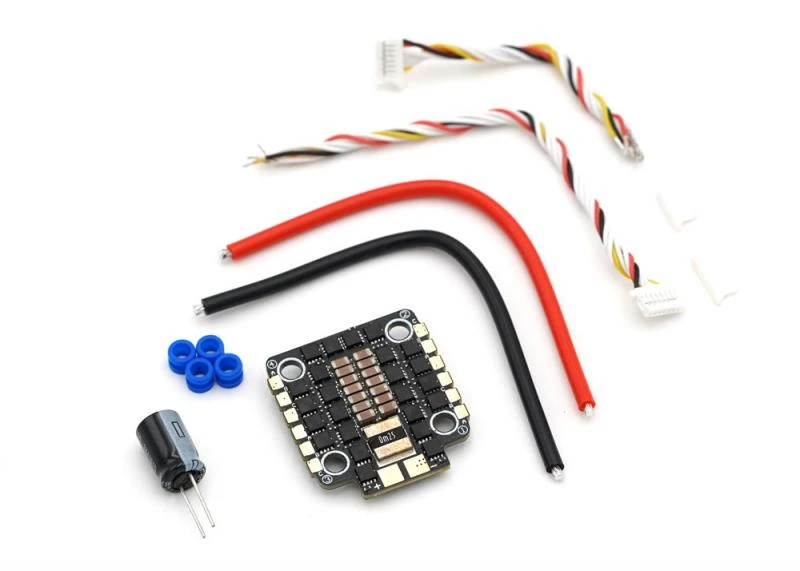

INCLUDES

1x 25amp 4in1 ESC

10cm red & black 16AWG wire pre-soldered

10x M3 shoulder washers (8 required, 2 spare)

25v 330?F capacitor

2x 1mm JST-SH 8-pin connectors

1x Datasheet

NOTICE

If 5S is used, it’s recommended to solder the included capacitor.

The amperage meter scale needs to be set to 200 for the current sensor to work.
