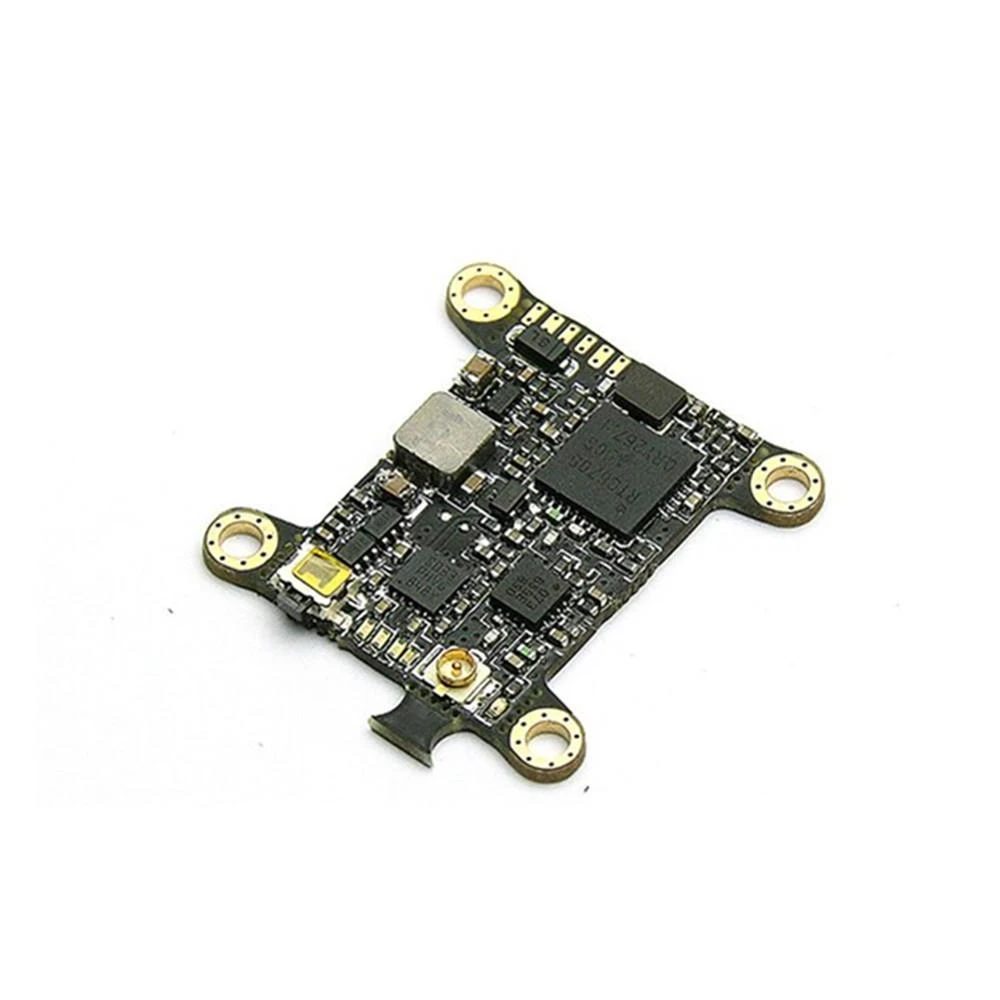

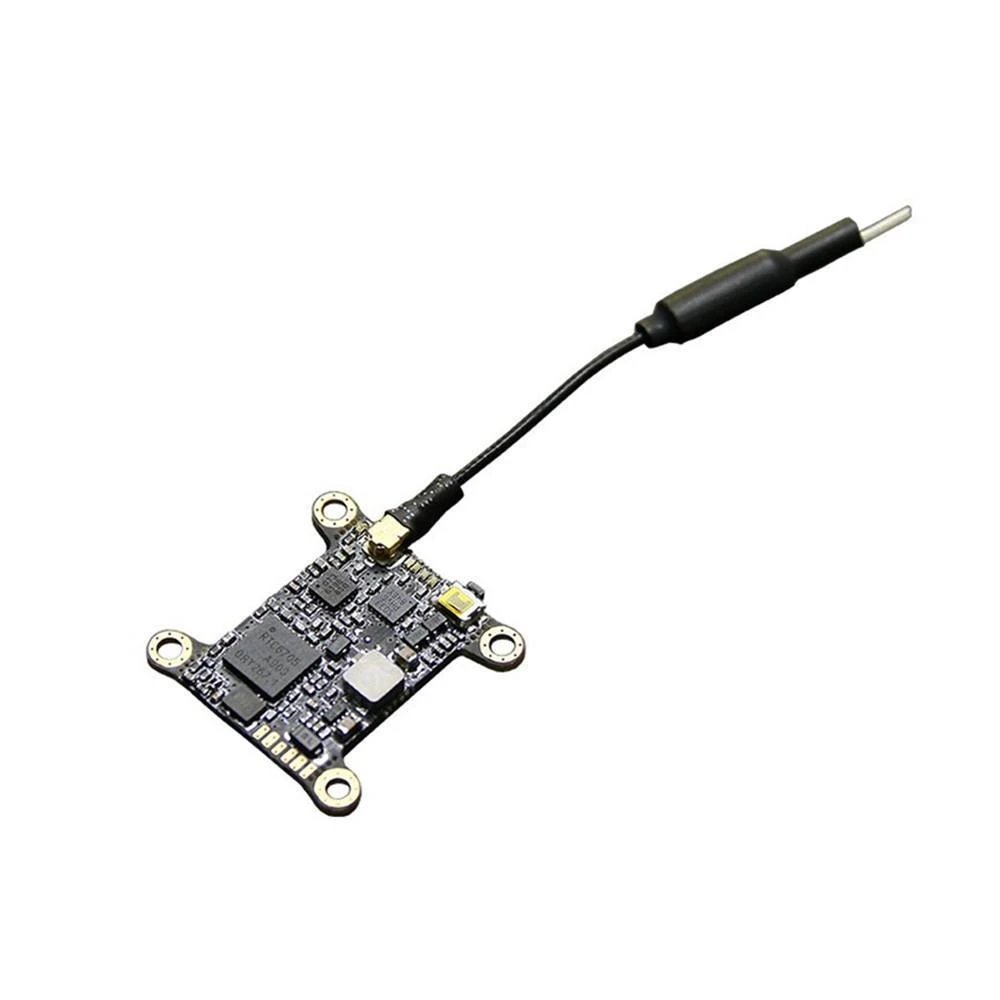

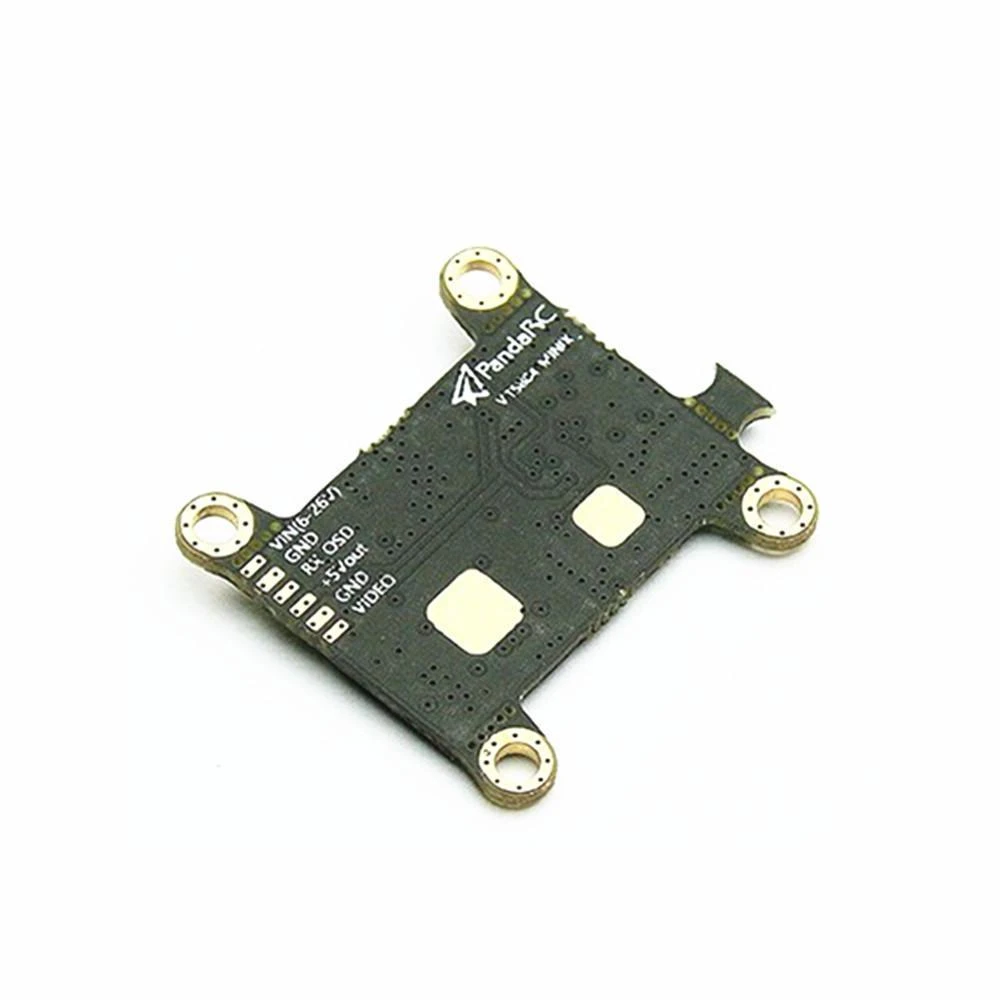

PandaRC VT5804 Mini X 20×20 5.8GHz 25-400mW VTX – U.FL

PandaRC has many options available for reliable and affordable 5.8GHz VTX, featuring different sizes, connectors, and output power levels. This lightweight version features an U.FL connector and 20×20 mounting holes.

Features

The output power is stable and the transmission distance is long: > 0.5km@25mW, > 1km@200mW, > 1.5km@400mW (original antenna)

6-stop transmission power switching: 0 mW/25 mW/50 mW/100 mW/200 mW/400 mW

Support OSD interface to adjust transmission frequency and power

Output 16 frequency points, including group A and group R

Fast frequency locking and no disturbance to peers when switching on.

Self-checking function of output power

Full video format: NTSC/PAL

The input voltage range is wide and the power consumption is low: 6V-26V, 12V/240mA@400mW

Small size: 24mm * 24mm * 3mm, installation hole 20mm * 20MM (4-M2)

Light weight: 3g (without antenna)

Specifications

Input Voltage : 6-26V

Connector: U.FL

Size: 24x24x3mm

Mounting Dimensions: 20×20

Weight: 3g

Includes

1x PandaRC VT5804 Mini X 20×20 5.8GHz 25-400mW VTX – U.FL
