Lemon Rx DSMX Compatible PPM 8-Channel Diveristy Antenna Receiver

Original price was: $29.90.Current price is: $20.93.

SKU: C25OB 8298 Category: Electronics

Get the Best for Less
Free Shipping Worldwide
Green products, guaranteed.
Your questions, our prompt answers.

Description
Reviews (0)

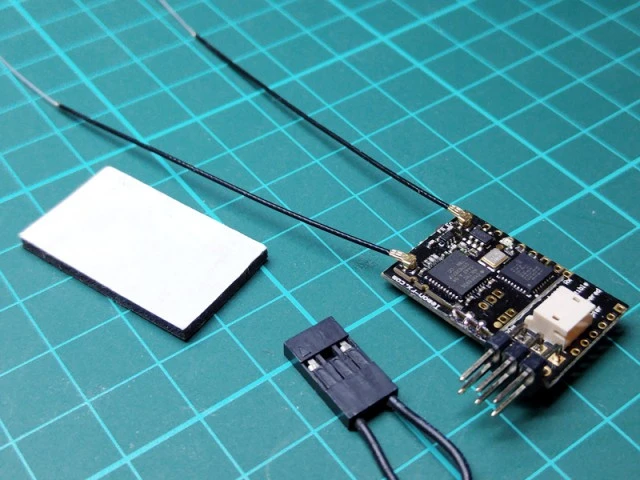

Type: DSMX Compatible PPM 8-Channel diversity antenna receiver
Number of Channel: 8 (PPM signal)
Modulation: DSMX Compatible (Also DSM2 backward Compatible)
Band: 2.4 GHz
Dimension: 25(L) x 35(W) x 7(H) mm
Weight: 2.87 grams
Voltage Range: 3.45 – 7.02V

RCgroups discussion
http://www.rcgroups.com/forums/showthread.php?t=1773138

Complete user manual for download (PDF)
Click to download Lemon Rx User Manual.pdf

Below is the quick online reference manual or additional information about the product. Please download the above pdf for a complete, detailed user manual.

Highlight

FailSafe option via press of a button to guranteed the highest level of safety even in the event of RF signal loss

3 microprocessors based system to ensure the highest performance available

Designed especially for Copter high current drain application.

How dual antennas work (showing stabilizer diveristy antenna module)
An independent processor monitors an incoming signal and choose the appropriate antenna for reception. This allows 2 different location for installing the antennas along with different orientation. Satellite is no longer needed for receiver diversity. This greatly reduces weight with increased overall reliability in comparison to the use of a primary receiver with satellite receiver.

Lemon Rx DSMX Compatible PPM 8-Channel Diveristy Antenna Receiver -Toys Model Store dual%20antenna%20theory

Understanding the receiver (showing single antenna version)

Lemon Rx DSMX Compatible PPM 8-Channel Diveristy Antenna Receiver -Toys Model Store DSCN2495

Lemon Rx DSMX Compatible PPM 8-Channel Diveristy Antenna Receiver -Toys Model Store ppm2%20p

Lemon Rx DSMX Compatible PPM 8-Channel Diveristy Antenna Receiver -Toys Model Store ppm1p

Setup Instruction
Note: It is highly recommend user to enable FailSafe. Some copters’ controller does not have fail-safe system implemented. At the case where the quad copter has flown very far away from the transmitter (eg. 2 km away from transmitter for Aerial photography application), RF signal may have faded due to far distance. FailSafe allows the receiver to output default signal when signal is lost to keep the quad copter flying until signal is recovered again.

Binding Setup
1) Plug bind plug to the receiver.
2) Provide power to the unit.
3) Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver.
4) Upon successful binding and if FailSafe do not wish to be set, remove bind plug upon binding.

Setting Failsafe
Step 1: Start by binding the receiver to the transmitter in the normal way.
Step 2: Proceed as follows to set failsafe (see video: https://www.youtube.com/watch?v=FyW1v12dv_k)
1) Ensure that transmitter and receiver are turned on.
2) Insert bind plug into the receiver (Note: to set failsafe, bind plug is applied only when the receiver is turned on).
3) Set transmitter controls to the desired failsafe positions.
4) Press the side pushbutton to memorize failsafe settings.
5) Observe that the green light at the end of the receiver turns on to indicate failsafe is set. (Repeat step 4 will cause the LED to turn off which means failsafe is disabled).
6) Remove bind plug.
7) Disconnect the power for at least 2 seconds and then reconnect the power again.
8) Test failsafe by turning off the transmitter.

Pulse Sequence
The PPM pulse sequence is in the following order:
Throttle Aileron Elevator Rudder Gear Aux1 Aux2 Aux3
