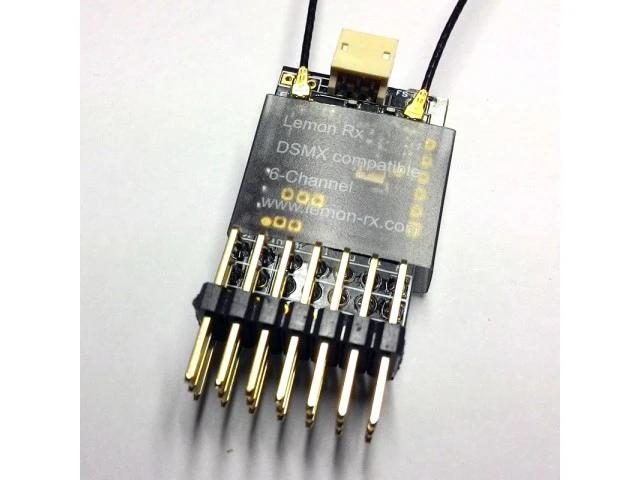

Lemon Rx DSMX Compatible 6-Channel Receiver With Diversity Antenna

Original price was: $17.99.Current price is: $12.59.

SKU: C25OB 8302 Categories: Electronics, Radio Equipment, Receivers

Get the Best for Less
Free Shipping Worldwide
Green products, guaranteed.
Your questions, our prompt answers.

Description
Reviews (0)

Specification

Type: DSMX Compatible Full Range Receiver with Diversity Antenna

Number of Channel: 6

Modulation: DSMX Compatible (Also DSM2 backward Compatible)

Band: 2.4 GHz

Dimension: 25(L) x 18(W) x 11(H) mm

Weight: 4.7 grams

Voltage Range: 3.45 – 10.2 V

RCgroups discussion

http://www.rcgroups.com/forums/showthread.php?t=1773138

Complete user manual for download (PDF)
Click to download Lemon Rx User Manual.pdf

Below is the quick online reference manual or additional information about the product. Please download the above pdf for a complete, detailed user manual.

How dual antennas work

An independent processor monitors an incoming signal and choose the appropriate antenna for reception. This allows 2 different location for installing the antennas along with different orientation. Satellite is no longer needed for receiver diversity. This greatly reduces weight with increased overall reliability in comparison to the use of a primary receiver with satellite receiver.

Photo showing below is the diversity receiver for end-pin stabilizer. The same diversity receiver is also used in this product.

Lemon Rx DSMX Compatible 6-Channel Receiver With Diversity Antenna -Toys Model Store dual%20antenna%20theory

Highlight
– True diversity dual antennas with independent processor for monitoring singal on both antennas
– Antennas extended for carbon fuselage / metalic structure installation
– FailSafe for all channels via press of a button
– DSMX Satellite port

Understanding the receiver (Showing DSMX 6-channel non-diversity receiver)

Lemon Rx DSMX Compatible 6-Channel Receiver With Diversity Antenna -Toys Model Store 3

Setup Instruction

Binding
1) Plug bind plug to the receiver.
2) Provide power to the unit. LED flashes quickly.
3) Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
4) Remove bind plug.

Failsafe Enable (Video showing 10-Channel receiver)
Video:https://www.youtube.com/watch?v=FyW1v12dv_k
1) Plug bind plug to the receiver.
2) Provide power to the unit.
3) Plug the side pushbutton for memorize current position in Failsafe mode.
4) Green light will turn on at the bottom of the receiver to indicate Failsafe is successfully enabled.
5) Remove bind plug.

Failsafe Disable (Video showing 10-Channel receiver)
Video:https://www.youtube.com/watch?v=xpb1tvBvA2E
1) Rebind the receiver without pressing the side pushbutton will disable the Failsafe mode.
2) Green light off indicates Failsafe disabled.
