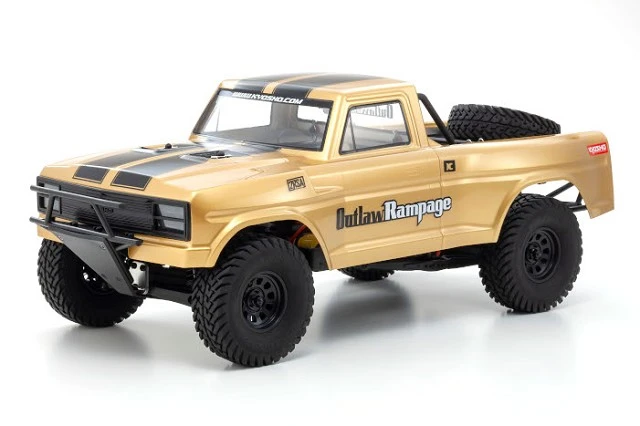

Kyosho 34363T2 Outlaw Rampage Pro GOLD

Realistic 2WD truck delivers the optimal combination of style and performance for the perfect introduction to RC.

The OUTLAW RAMPAGE PRO readyset with a realistic roll cage adds more scale-oriented look and performance to the new concept full-scale 2WD truck. The mechanism based on the actual truck gives a new driving feeling and brings more fun to drive R/C cars than ever. With a new chassis designed from the ground up, the chassis features double wishbone suspension on the front with a link system on the rear in combination with the long stroke high volume aerated shocks to deliver a standard of performance worthy of a 2WD trophy truck. Heavy-duty drive system exhibits high durability and reliability with it’s 32 pitch gear set up and slipper clutch to soak up load changes to the drive chain. With a power center combination consisting of the “G15” brushed motor and Vortex WP Brushed ESC 45A, the performance of the Outlaw Rampage is matched by it’s stunning 1970-80’s trophy truck style with pre-cut and painted body. Whether it’s the rough road or no road at all, the Outlaw Rampage Pro readyset puts the ultimate R/C experience in your hands.

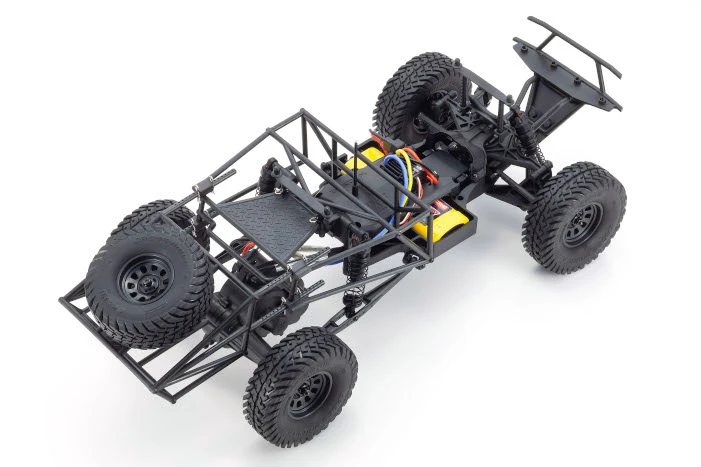

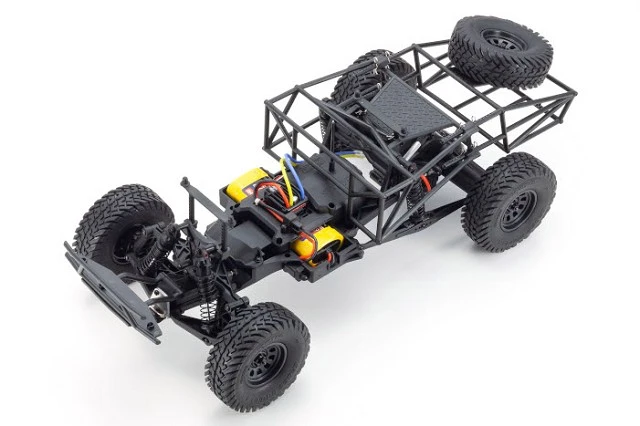

The chassis is worthy of the 2WD trophhy truck motif. Solid rear axle differential with link rear end system delivers smooth suspension and traction for superior performance.

Two chassis mounting positions for the rear links allow setup to suit different driving conditions. It is also designed to be used with shorter links for future developments.

Long suspension arms on the front double wishbone suspension deliver high traction and stability. It reflects real car mechanics, as does the rear link suspension.

Large capacity aeration shocks (non bladder) enable a long suspension stroke in combination with the front and rear suspension.

The tires feature an original tread pattern to deliver performance and style that matches the appearance of the scale body. Tires are fixed to the 3-piece wheel structure with screws so no gluing is required.

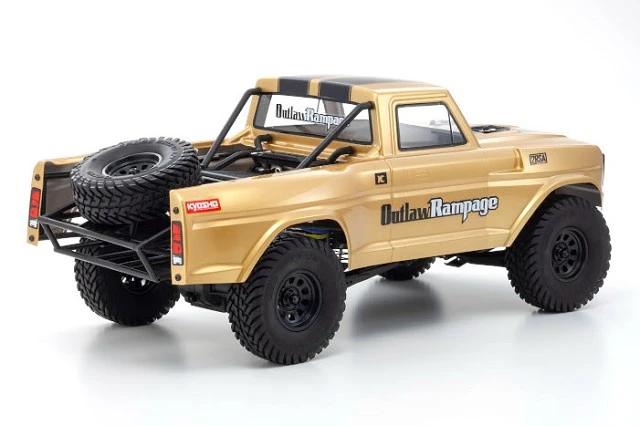

With the addition of the previously optional rear roll cage, performance and tuning options have been increased. As well as a more “scale” look.

32-pitch counter gear and gear diff inside the gearbox provide added strength. Adjustable slipper clutch is equipped with a 48 pitch spur gear.

Easy battery removal is possible with the lever lock battery closure. Radio plate with connector holder allows connection or disconnection with a single hand.

Ready Set Contents

Pre-assembled chassis installed with R/C unit

Factory finished body with coloring and painted

Syncro KT-231P+ transmitter

TEAM ORION VORTEX WP Brush 45A ESC

G15 brushed motor

Hex wrench

Cross wrench

Required For Operation

4XAA batteries for transmitter

Battery and charger for chassis

Technical Data

Length 561mm (with body)

Width 262mm (with body)

Height 231mm (with body)

Wheelbase 335mm

Tread (F/R) 204mm/204mm

Tires (F/R) 108×38mm

Gear Ratio 12.65:1

Motor 15 turn 540 type (G15 motor)

Weight 2,400g approx.
