Iflight SucceX Micro F4 V2.1 15A 2-4S Flight Tower System (MPU6000,ESC Plugs)

PRODUCT DESCRIPTION

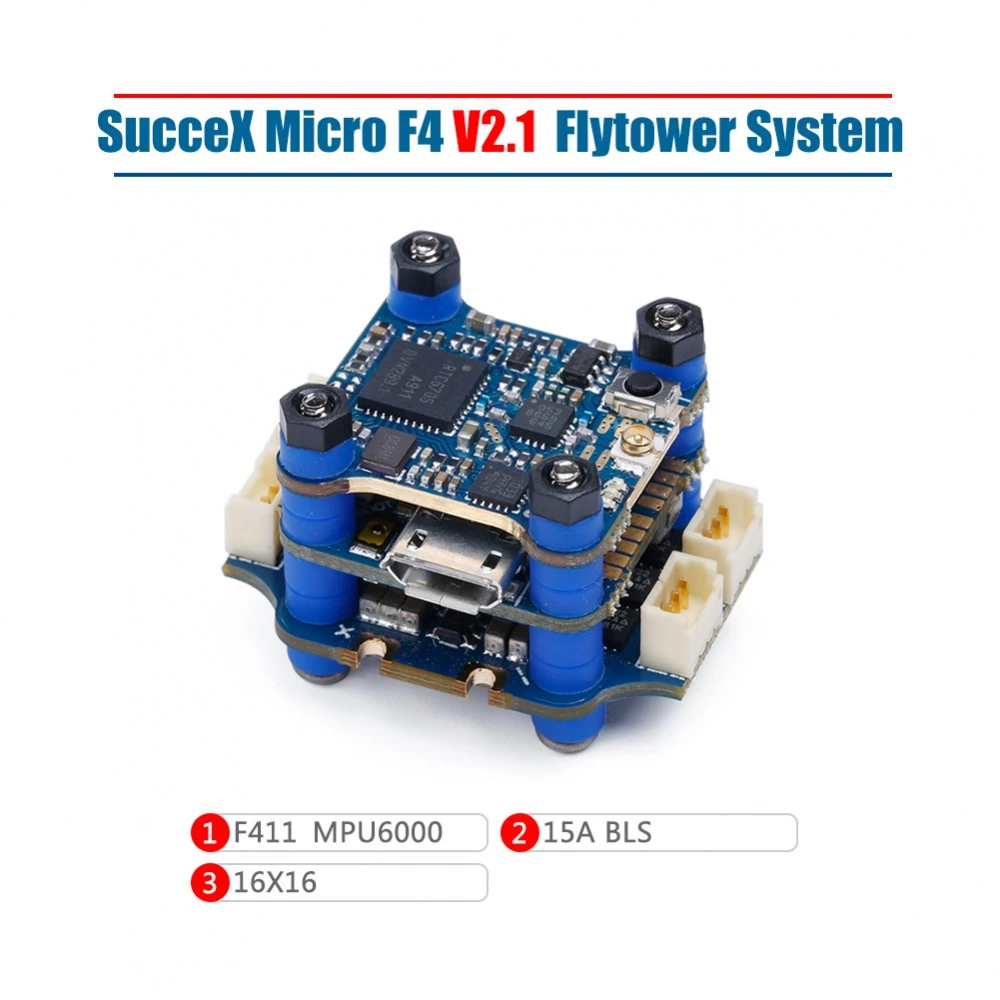

SucceX Micro F4 V2.1 Flight Controller

-STM32F411

-Input voltage 2-4S LIPO

-Gyro: MPU6000

-2x UART ports

-4x motor outputs

-Betaflight OSD :AT7456E

-Blackbox FLASH: 8MB

-BEC 5V 2.5A cont.

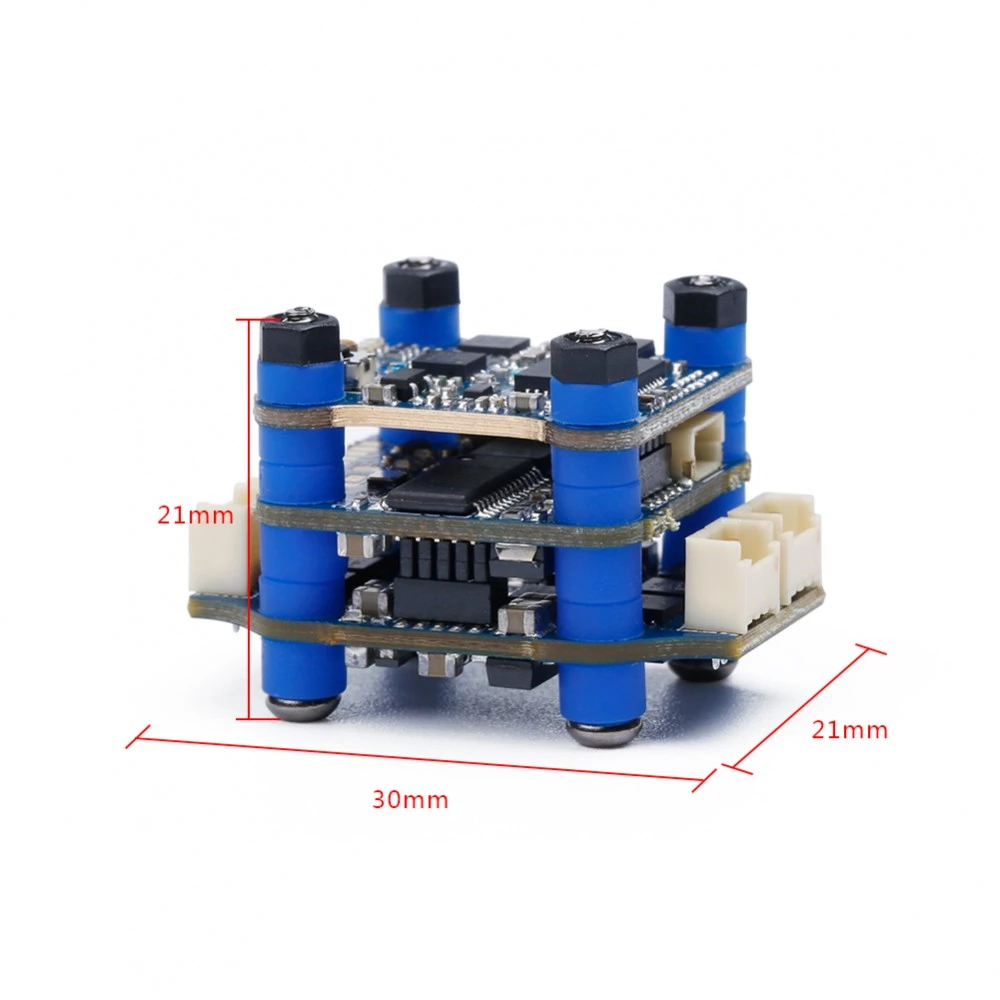

-Size: 21mm*21mm

-Mounting holes distance: 16*16mm

-Weight: 2.5g

-Firmware: IFLIGHT_F411_PRO

NOTE: F.PORT protocol RX input support, telemetry not supported.

SucceX Micro 15A 4-in-1 ESC(w/plug)

-Firmware: G-H-30 BLS 16.7

-BLHeliSuite: https://github.com/blheli-configurator/blheli-configurator/releases

-Input voltage : 2-4S LIPO

-Continuous current: 15A

-MCU: BB21F16G

-BEC: NO

-Current sensor: yes

-ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.

-Size: 30mm*22mm

-Mounting hole 16*16mm

-Weight: 3.6g

5.8G 200mW Micro VTX

-Power: PIT/25/100/200mW

-Antenna interface: IPEX (UFL)

-VTX protocol : IRC Tramp

-Size: 17mm*27mm

-Mounting holes: 16*16mm

-Weight: 1.6g

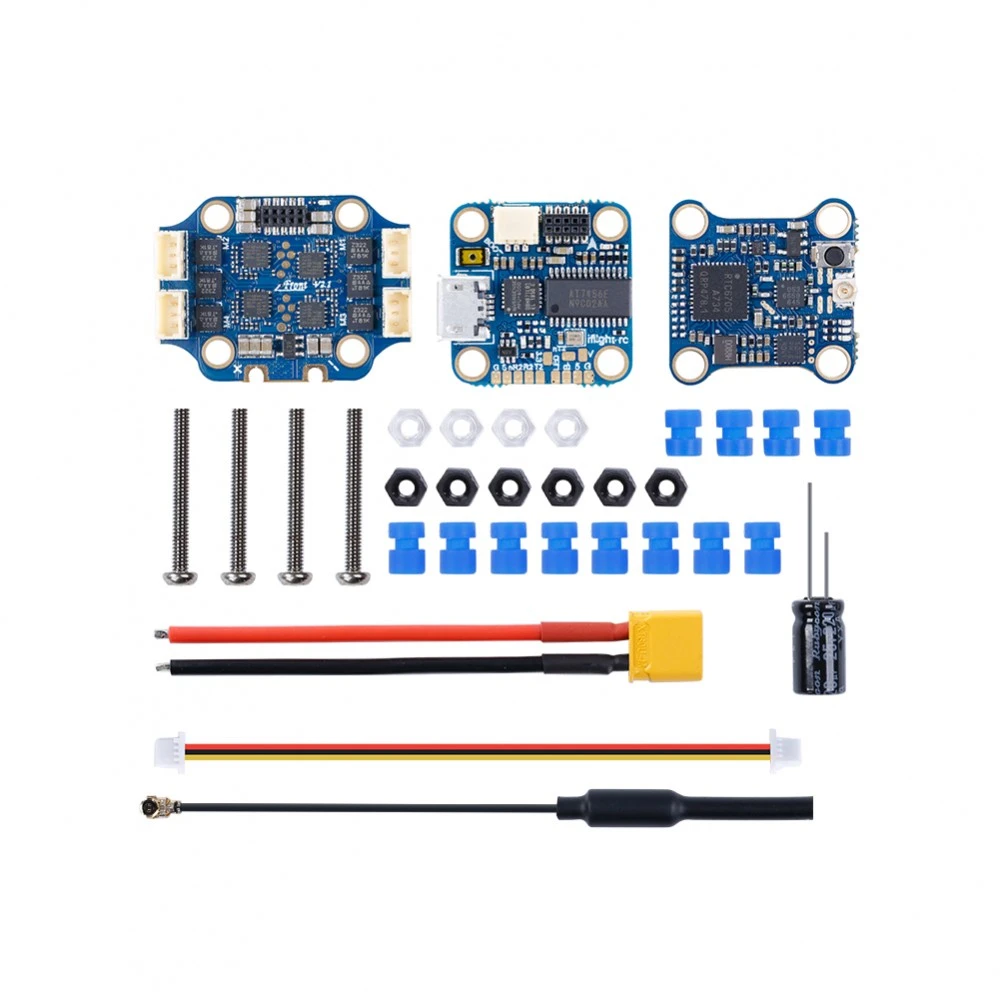

Package Included:

1 x SucceX Micro F4 V2.1 Flight controller (M3 hole)

1 x SucceX Micro 15A Brushless ESC (w/plugs,M3 hole)

1 x PIT/25/100/200mW VTX (M3 hole)
