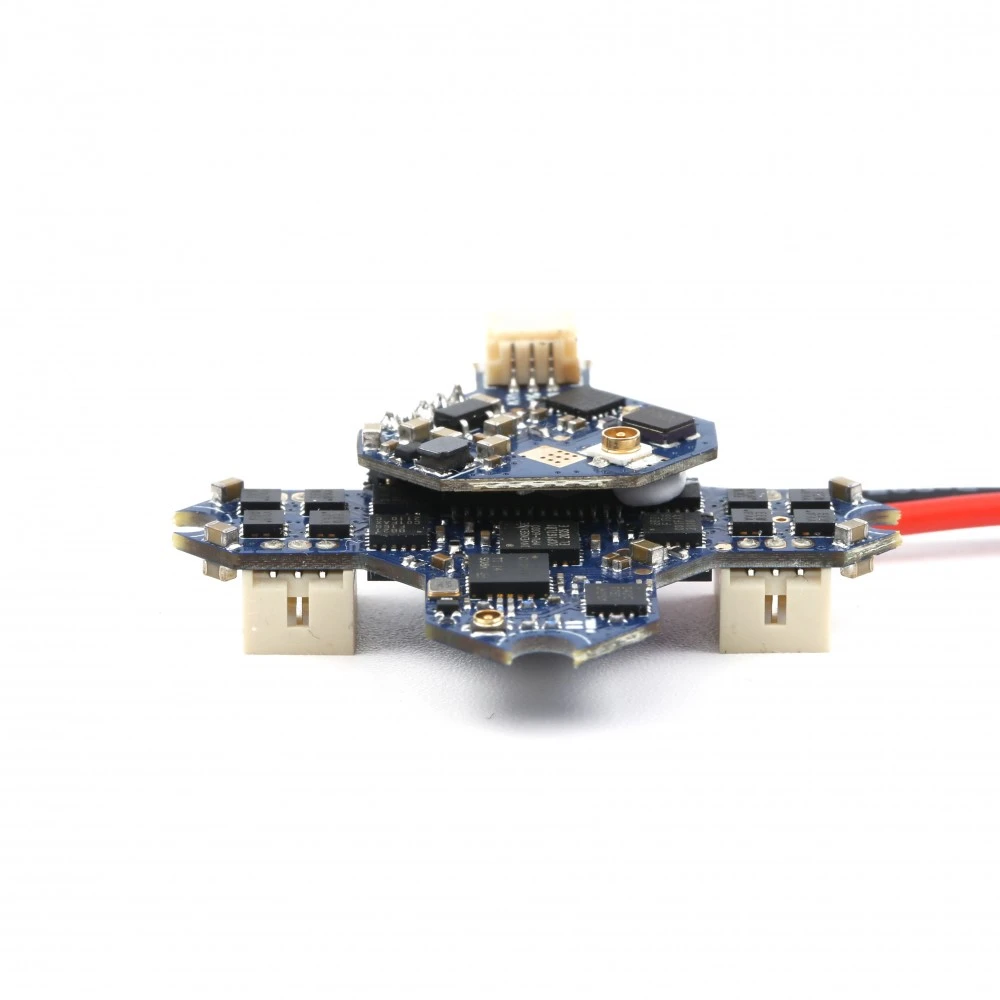

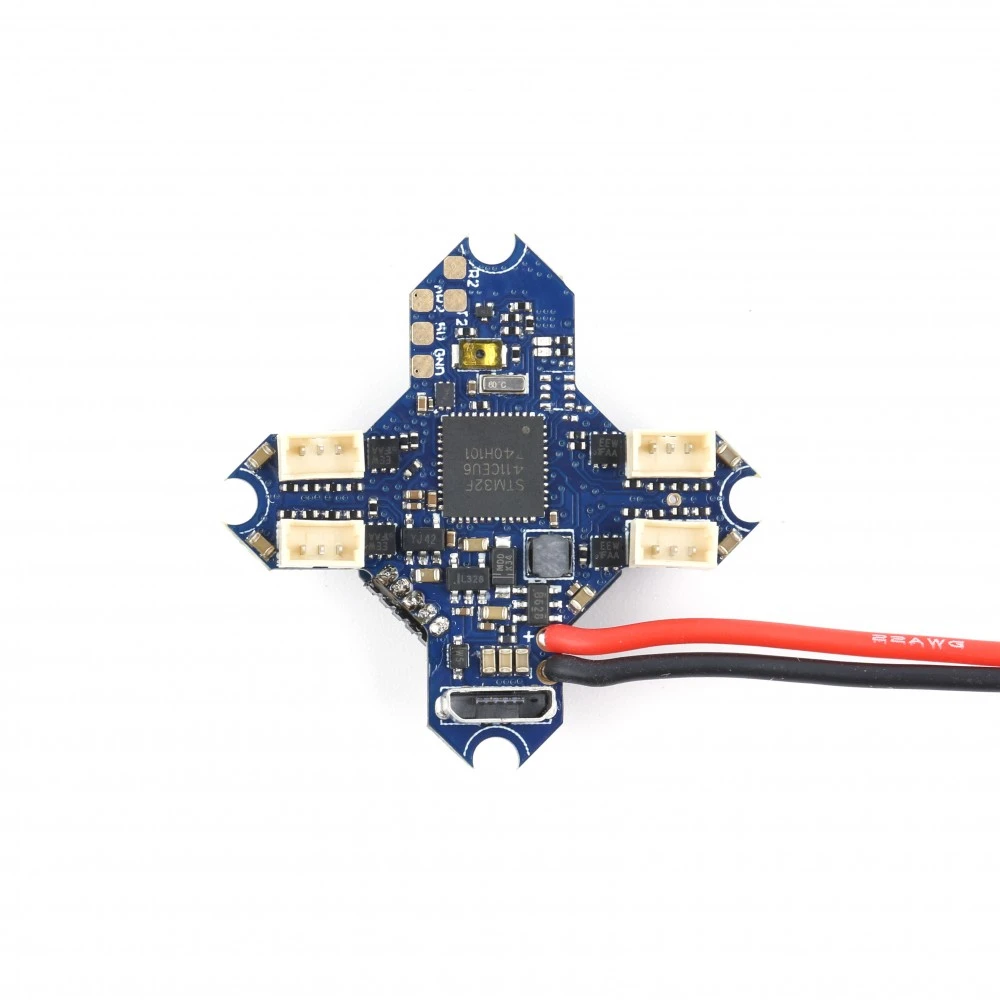

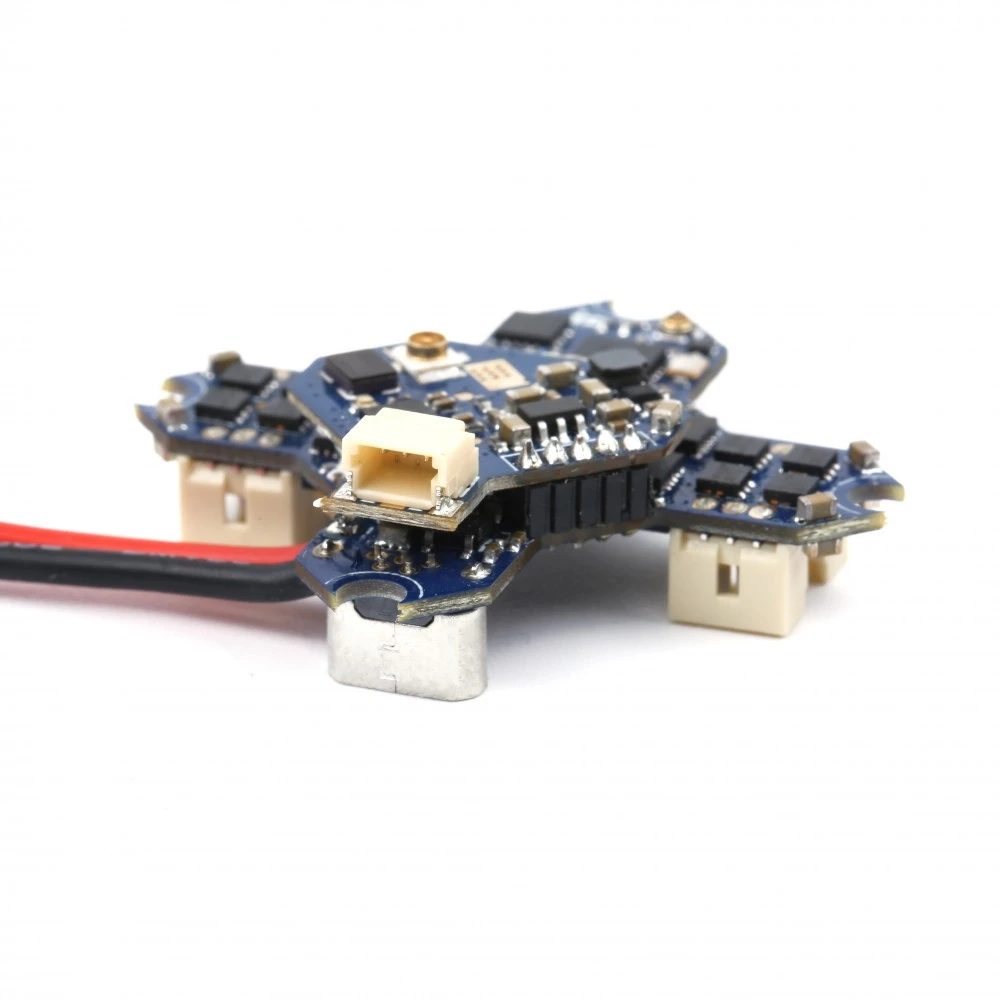

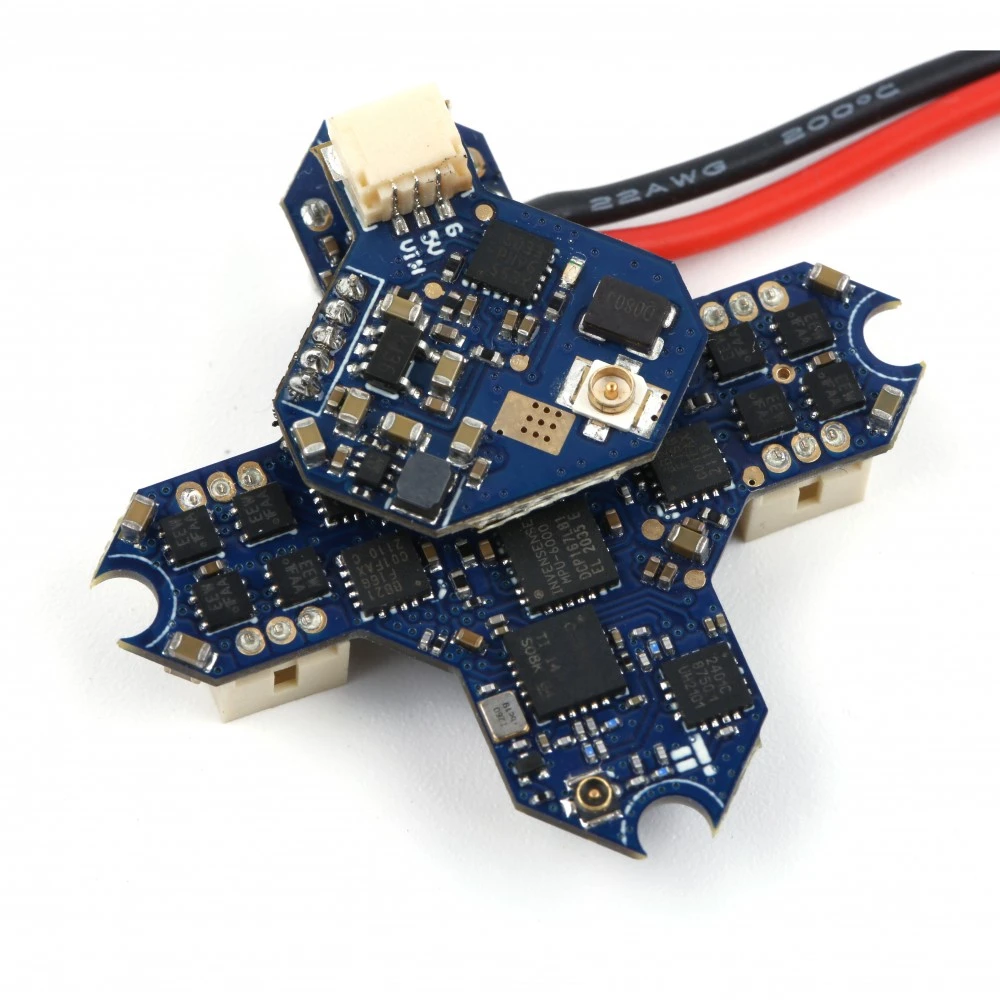

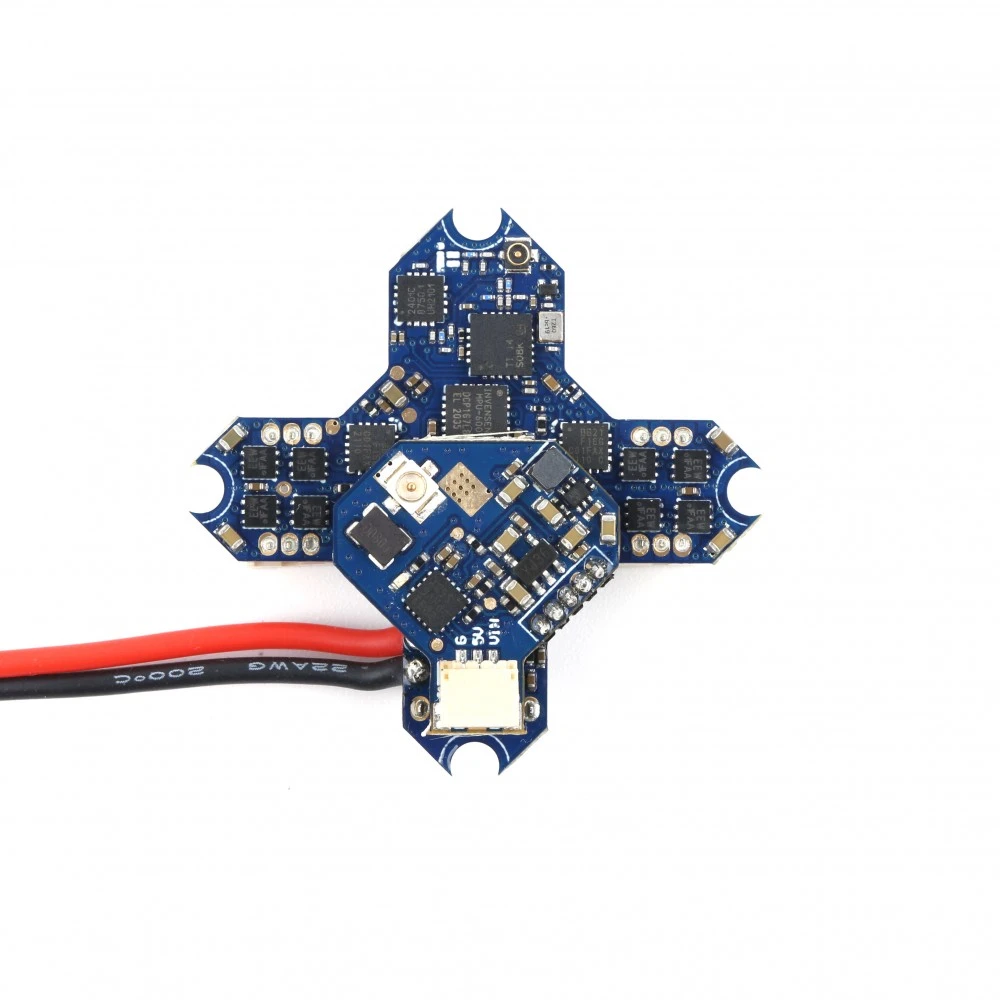

Iflight SucceX F4 V2 1S 5A AIO Whoop Board With Built-in D8 Receiver

TOP FEATURES:

Power supply: 1S

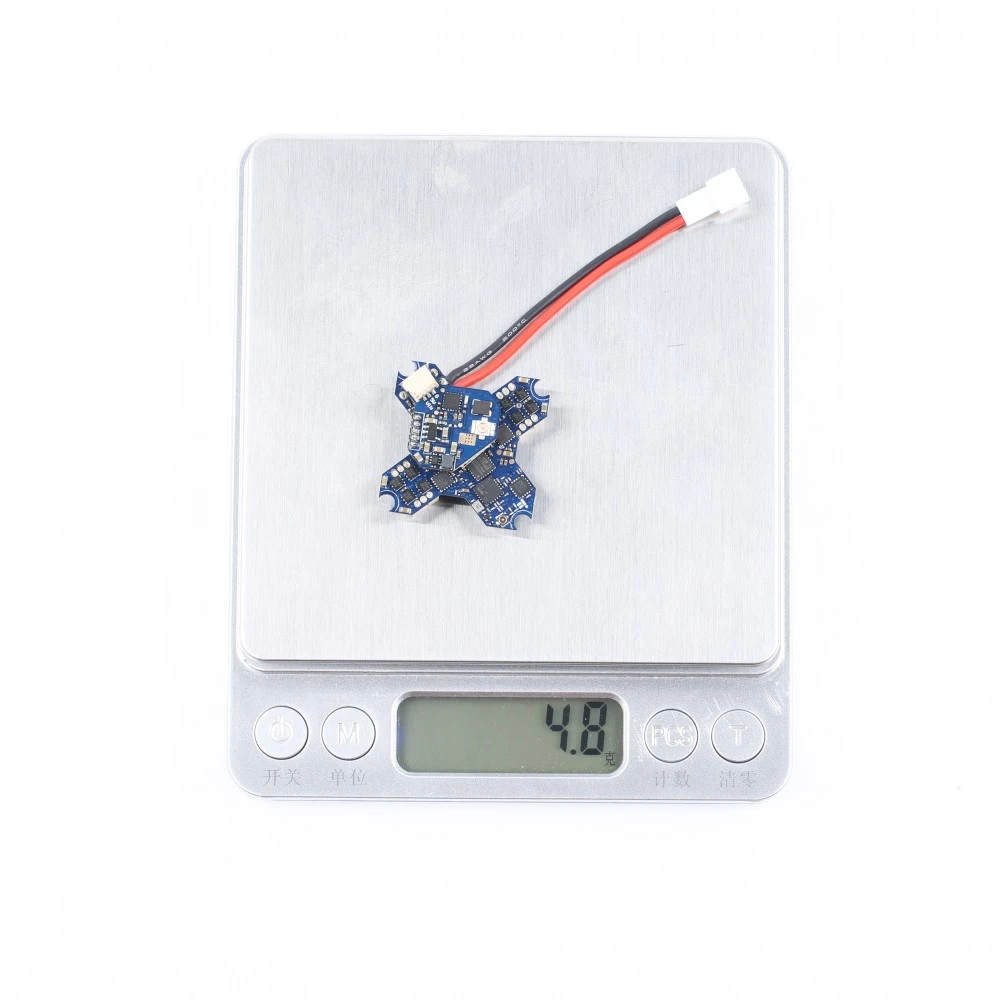

Super light only 4.8g

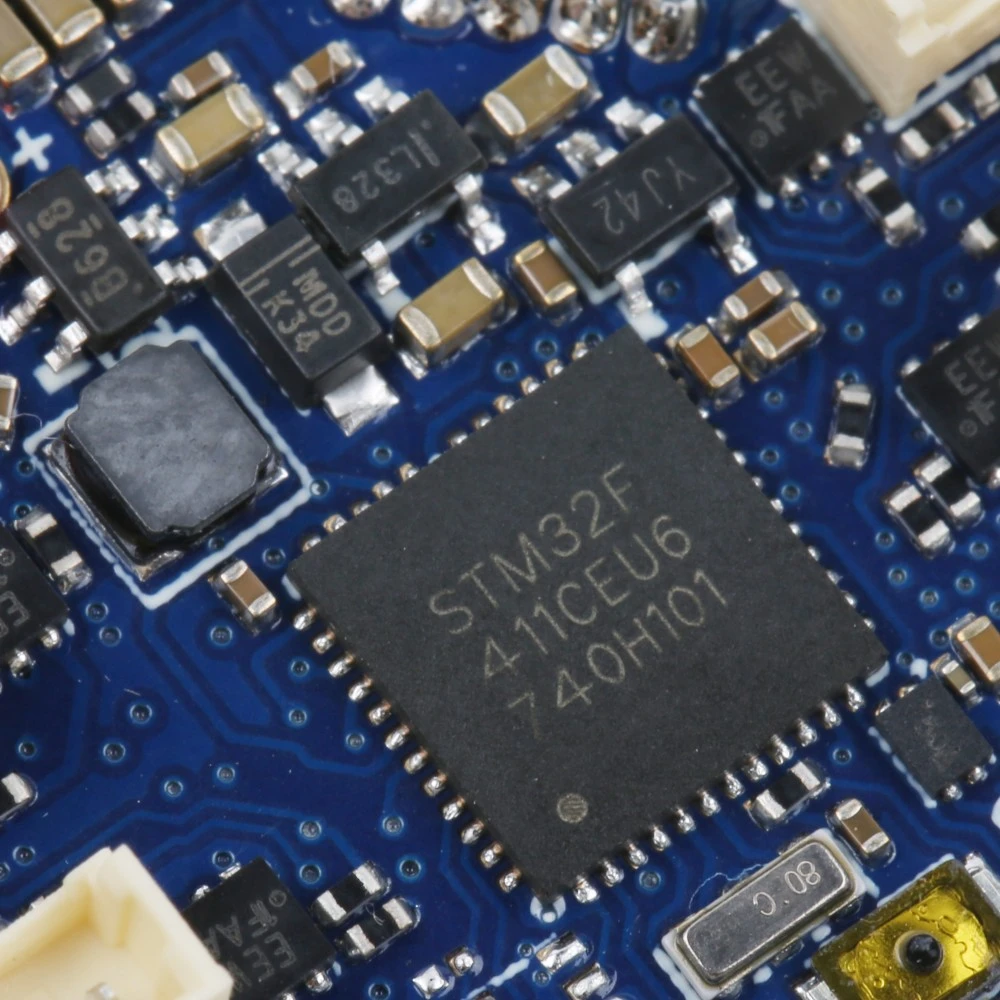

MCU?STM32F411

Gyro: MPU6000

Support BLHeliSuite programmable

5A continuous current

Built-in VTX

Built-in D8 Receiver

FC // SucceX-1S Whoop AIO Board

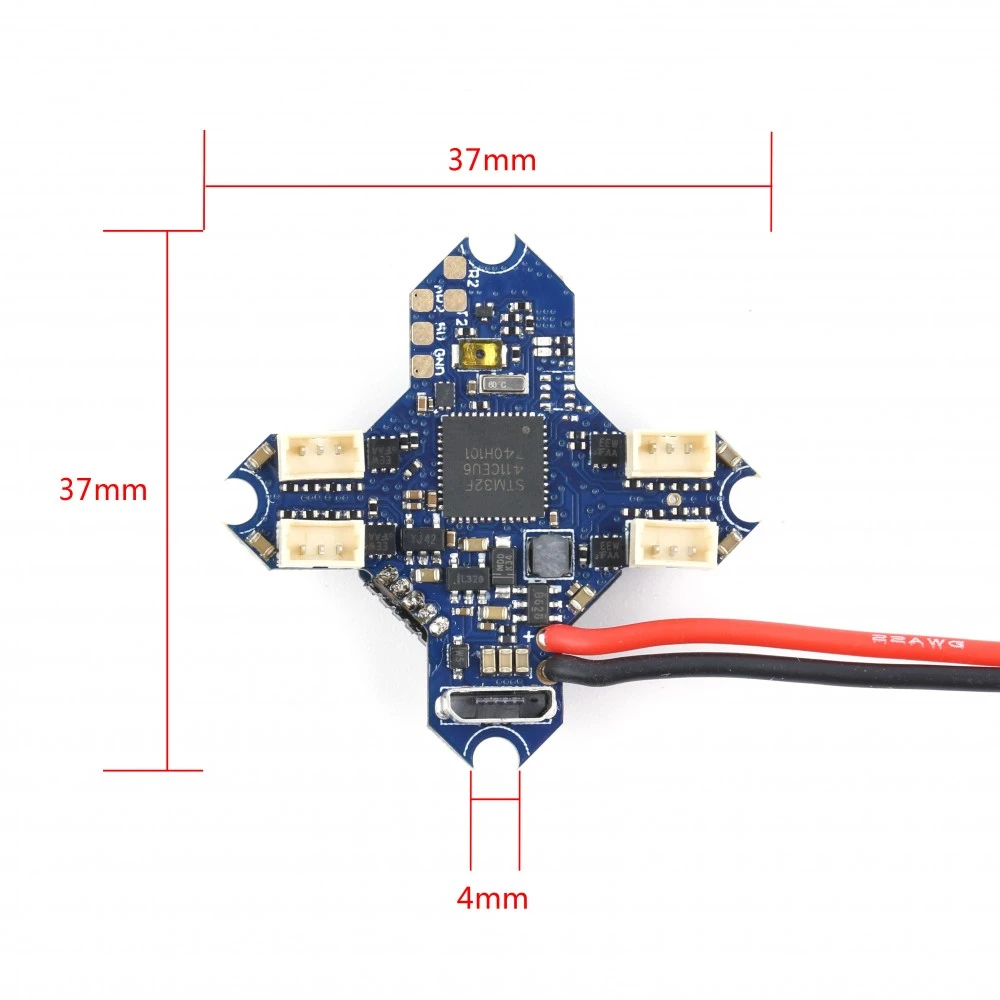

Size?29*29mm

Mounting pattern: 25.5*25.5mm/?3mm ?half-hole)

Connector?Micro-USB

Weight: 4.8g (with power cable, VTX, and VTX antenna)

MCU?STM32F411

Gyro?MPU6000

Blackbox?no

BEC output?5V 1.2A

INA pad?n uart2

Barometer?no

FC Firmware?MatekF411RX

NOTE: F.PORT protocol RX input support, telemetry not supported.

ESC // 5A

Current: 5A continuous and peak 6A

Current scale: 400

Input?1S

Signal Support: Dshot?Oneshot?Multishot

Current sensor?yes

BLHeli?BLHeli-S

ESC Telemetry?no

ESC Firmware?O_H_05 16.8

VTX?

Input voltage: 5V

Channels: 48CH

Power: PIT/25/50mW

Connector: UFL/IPEX

Protocol: Smart audio

Package Includes:

1 x SucceX F4 V2 1S 5A Whoop F4 AIO Board V2 (MPU6000)

1x Whip antenna
