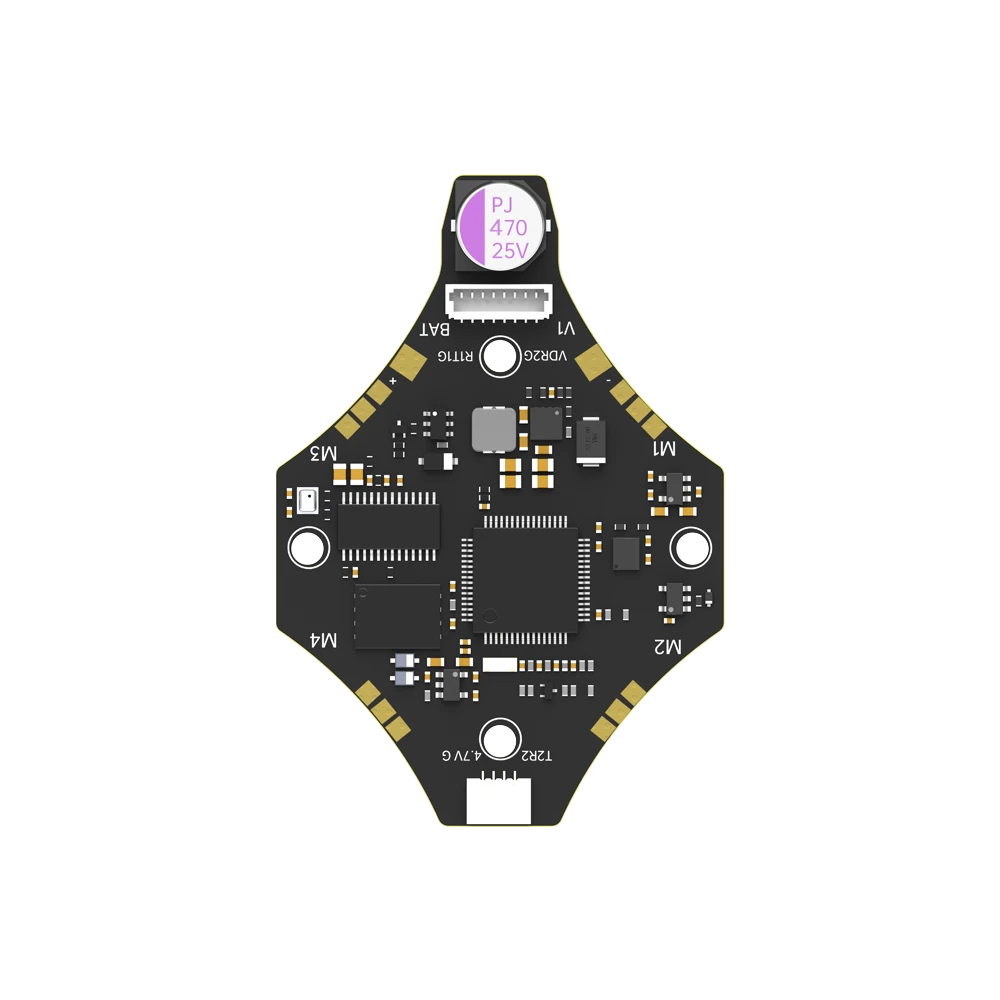

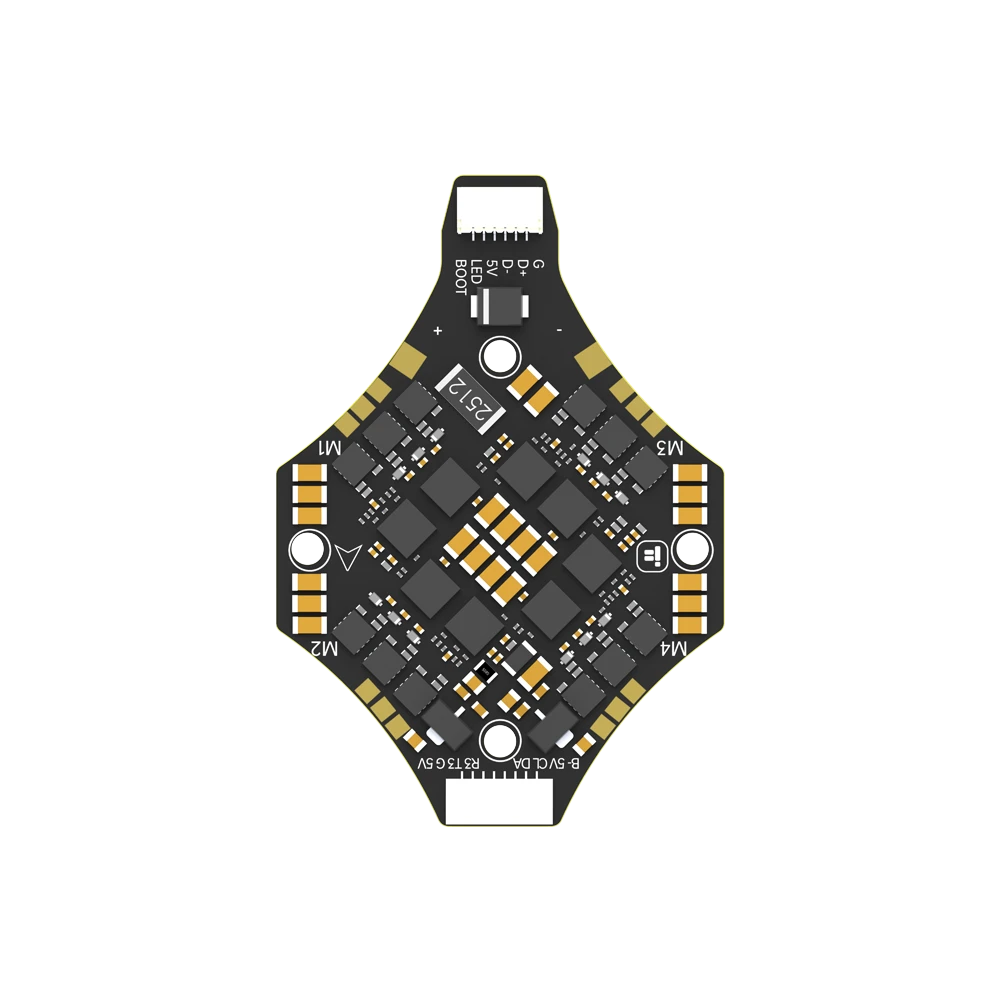

Iflight Defender 25 F7 AIO

Compability

1. This AIO without OSD Chip, it made for Defender 25 HD VTX only.

2. Bigger size than the BLITZ Whoop BGA F7 AIO.

Description

This is new generation F7 AIO designed for Defender 25. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work. Solder your motor wires on and let’s go!

Highlights

Pass-through DJI O3 and Caddx Vista/Polar Connector

MCU: STM32F745, 216MHz

Gyro: ICM42688P

OSD: NO

Blackbox: 32MB Onboard Flash

Gyro: DPS310

Weight: 12.8g±0.2g

FC Specifications

MCU: STM32F745

Gyro: ICM42688P

Blackbox: 32MB Onboard Flash

BEC output: 5V 2.5A

WS2812 LED Strip: Yes

Buzzer: Yes

Barometer: DPS310

Connector: SH1.0 to Type-C adapter

OSD: N/A (HD VTX version)

FC Firmware?IFLIGHT_BLITZ_F7_AIO

Mounting pattern: 25.5*25.5mm ?3mm

Dimensions: 32.5*32.5mm

Input voltage: 2-4S, support LIHV battery

Smartaudio / IRC Tramp VTX protocol supported

ESC Specifications

ESC MCU: STM32G071

Driver: FD6288

Input voltage: 2-4S Support LIHV battery

Output current: 20A, peak value 30A (10 seconds)

ESC firmware: IFLIGHT_BLITZ_G071_01

Current sensor: ratio 200 (1/10mV/A)

BEC: NO

ESC Telemetry: Yes?PCB routed, set UART6 for telemetry?

Bidirectional DShot: Yes

Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Package included

1 x Defender 25 BLITZ F7 AIO

1 x Capacitor 470uF/35V (Onboard)

1 x XT30U Male 18AWG cable 70mm

1 x 1.0-7P cable 50mm-28mm

1 x 1.0-7P cable 50mm

4 x M2 silicon grommets
