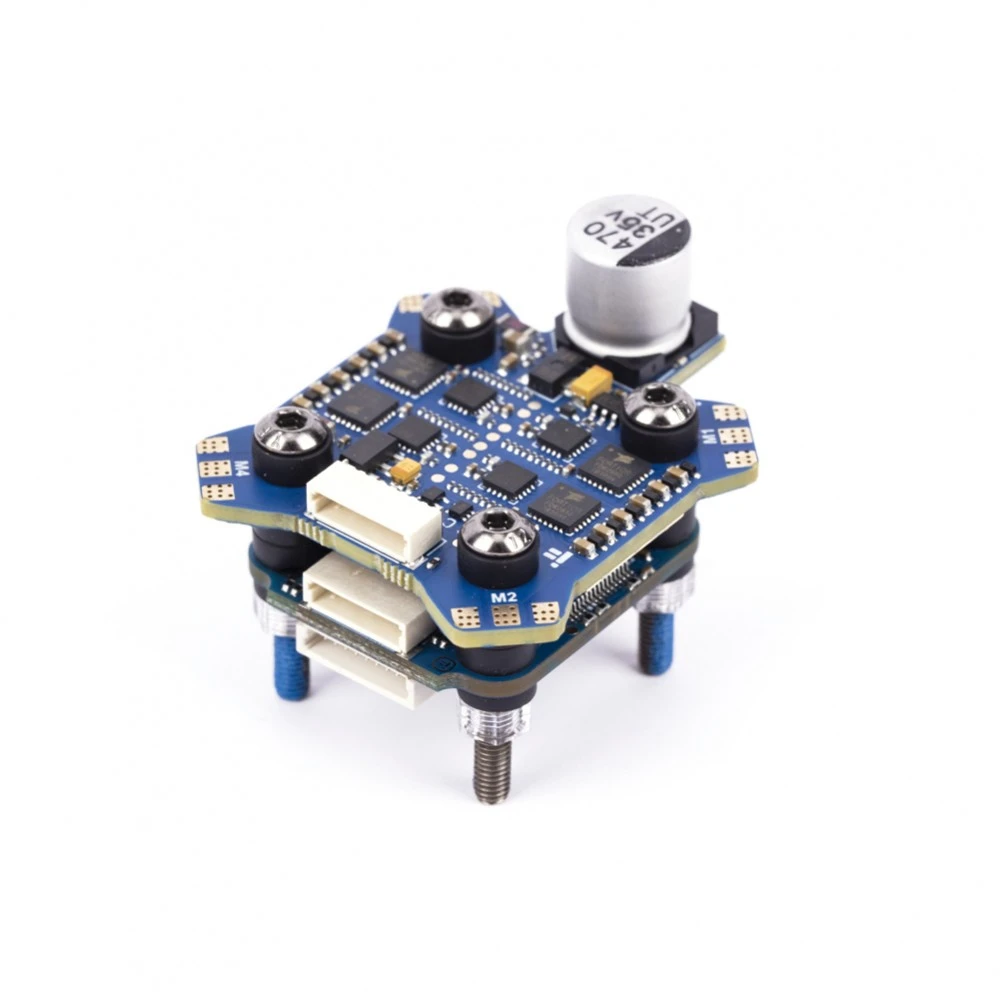

Iflight BLITZ Mini F4 Stack (Mini F4+55A ESC 4-in1)

FC // BLITZ Mini F4 Flight Controller

Top Features:

– Improved circuit design, better components and lower electrical noise!

– DJI HD VTX Connector (Plug-and-Play / No soldering required)

– FC indicator LEDs for visual debugging

SPECS:

– MCU?STM32F405

– GYRO?MPU6000

– BARO: NO

– BETAFLIGHT OSD: IFLIGHT OSD ?AT7456E)

– BLACKBOX: 16MB

– UARTS: 6

– I2C SERIAL: SDA / SLA PADS

– SMARTAUDIO / IRC TRAMP VTX PROTOCOL SUPPORTED

– LED CONTROLLER: YES

– BEEPER PAD: YES

– FIRMWARE TARGET : IFRC-IFLIGHT_BLITZ_F405

– MOUNTING?20*20MM/?4

– DIMENSIONS?30.5*27MM

– WEIGHT?5.0G

WIRING SUGGESTION:

– UART 1 FOR VTX HD / ANALOG

– UART 2 FOR A RECEIVER

– UART 3/4 FOR GPS OR OTHER SENSORS THAT REQUIRE A SERIAL PORT

– UART 6 FOR ESC TELEMETRY

TIPS

1. F405 MCU HAS NOT INNER INVERTER

2. SBUS?CRSF?ELRS?IBUS?DSM ETC… CAN BE CONNECTED TO ANY UNUSED UART_RX, WE SUGGEST YOU CONNECT TO UART_RX2

3. FRSKY SMARTPORT, TRAMP & SMARTAUDIO CAN BE CONNECTED TO ANY UNUSED UART_TX, WE SUGGEST YOU CONNECT TO UART_TX1

4. F.PORT CAN BE USED, NEED TO BE CONNECTED TO UART_TX2 AND SETUP THE INNER INVERTER

ESC // BLITZ MINI E55S 4-IN-1 2-6S ESC

Specification:

– Mounting Holes: 20*20mm/?4mm

– Weight: 11.3g

– Supports 2-6S lipo input

– MCU?BB21

– Constant: 55 Amps

– Burst: 60 Amps

– Current sensor: Yes

– BEC: No

– Current rate: 100

– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

– Target: QH-50 16.7

– Dimension: 35*42mm

Package included:

– 1pc x BLITZ Mini F4 Flight Controller

– 1pc x BLITZ Mini E55S 4-IN-1 2-6S ESC

– 1SET X SILICON GROMMETS

– 1SET X WIRE HARNESS FOR F4 FLIGHT CONTROLLER
