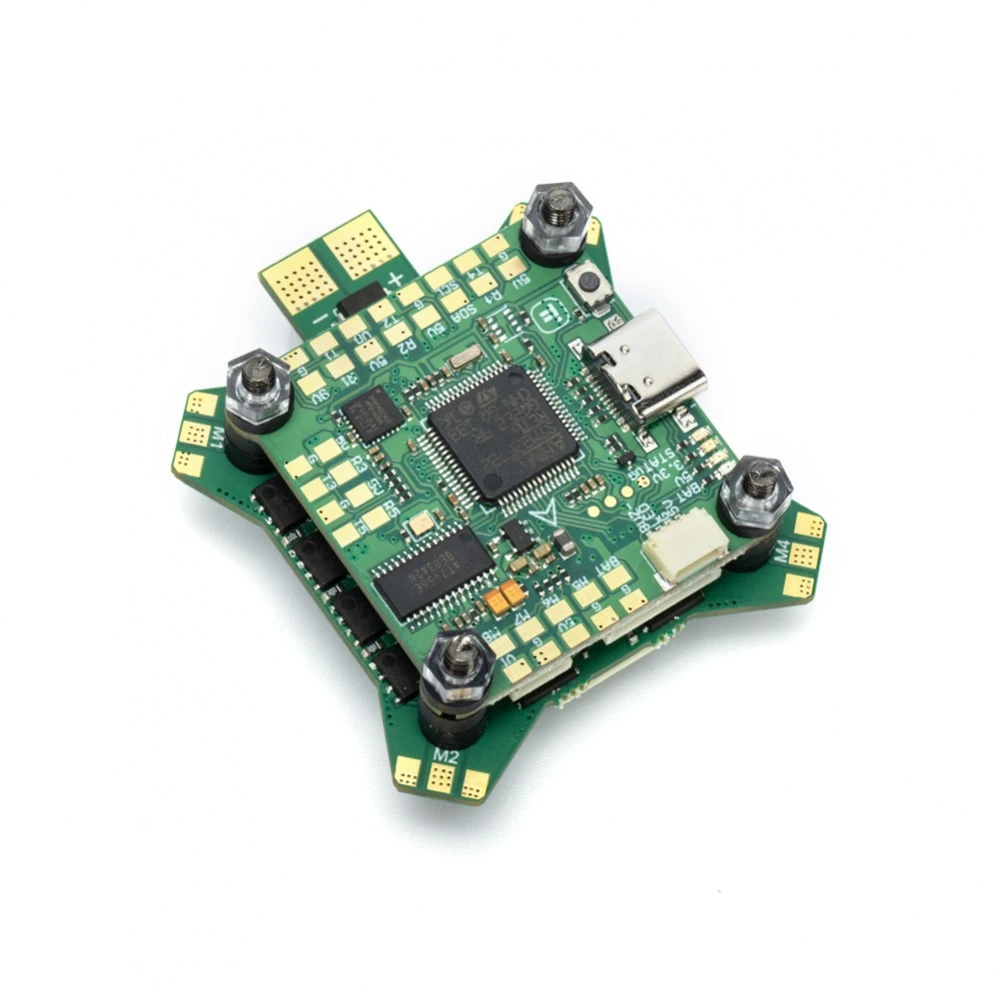

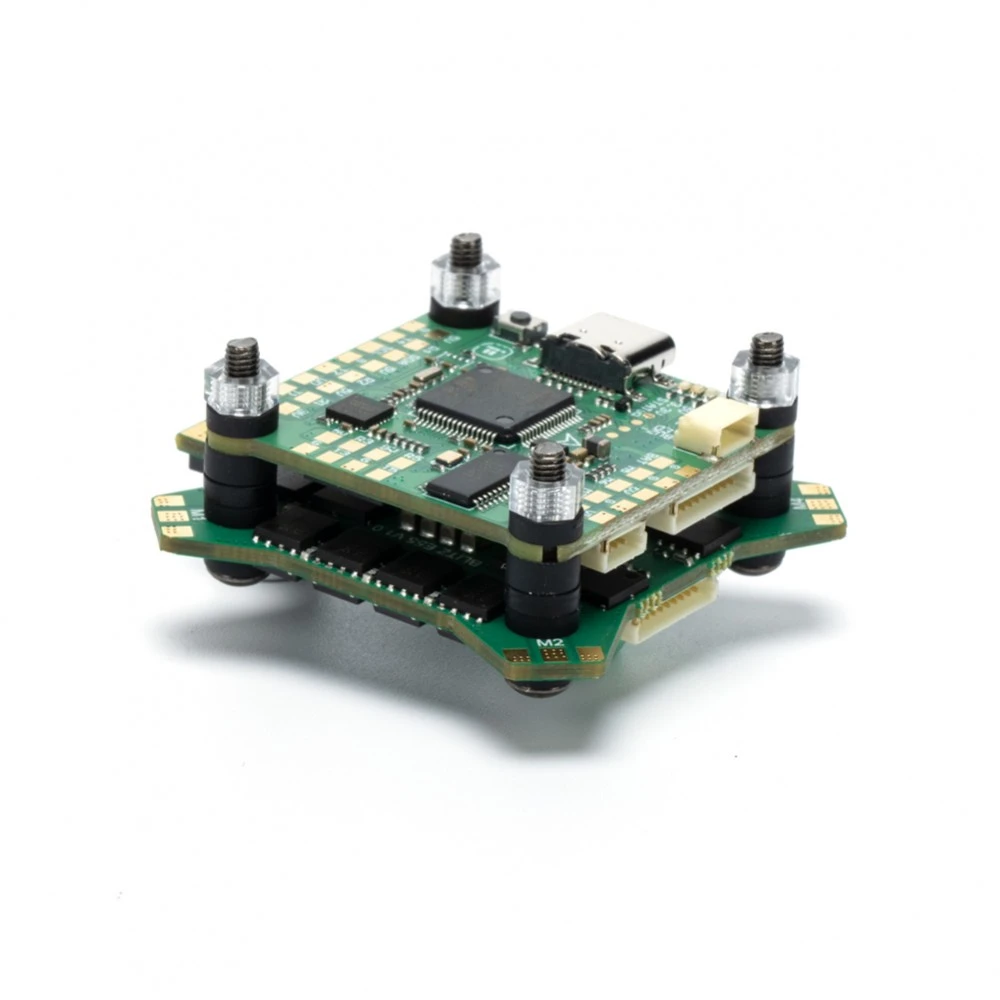

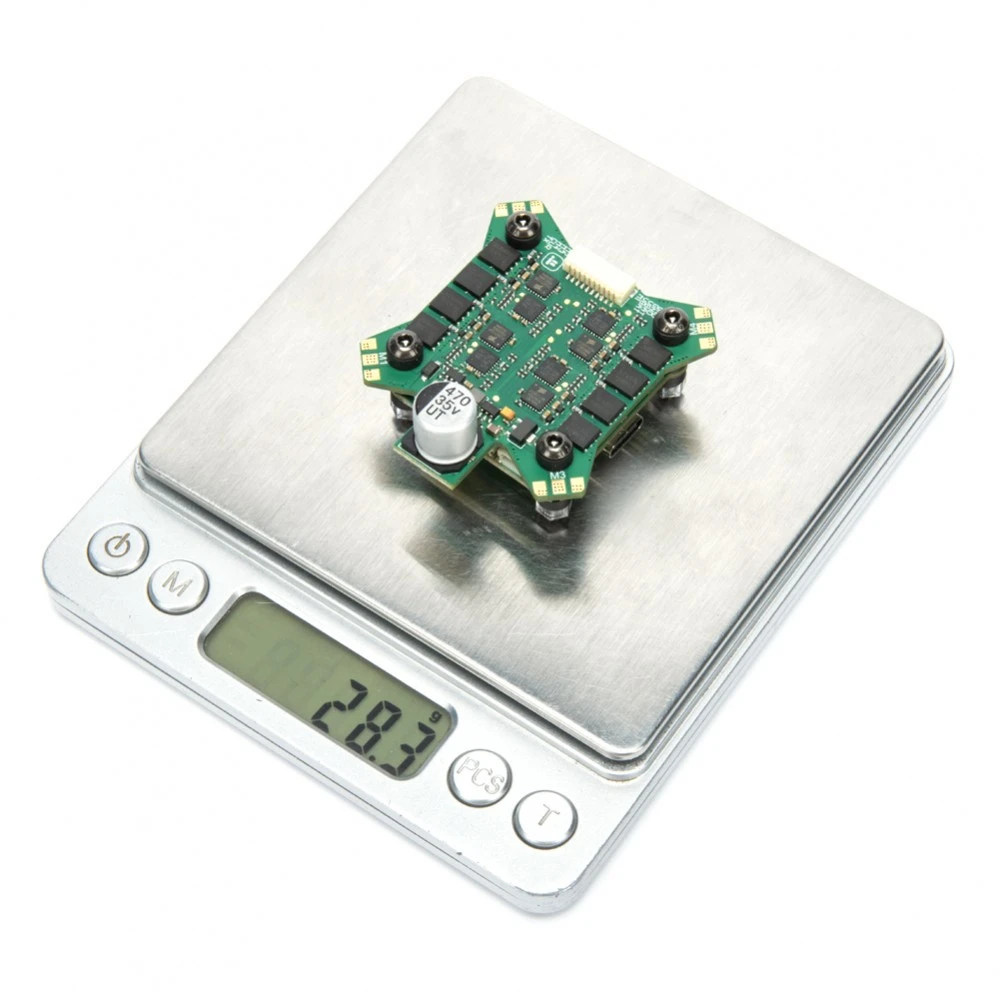

Iflight BLITZ F7 Stack (F7 V1.1 + 55A 4in1 ESC)

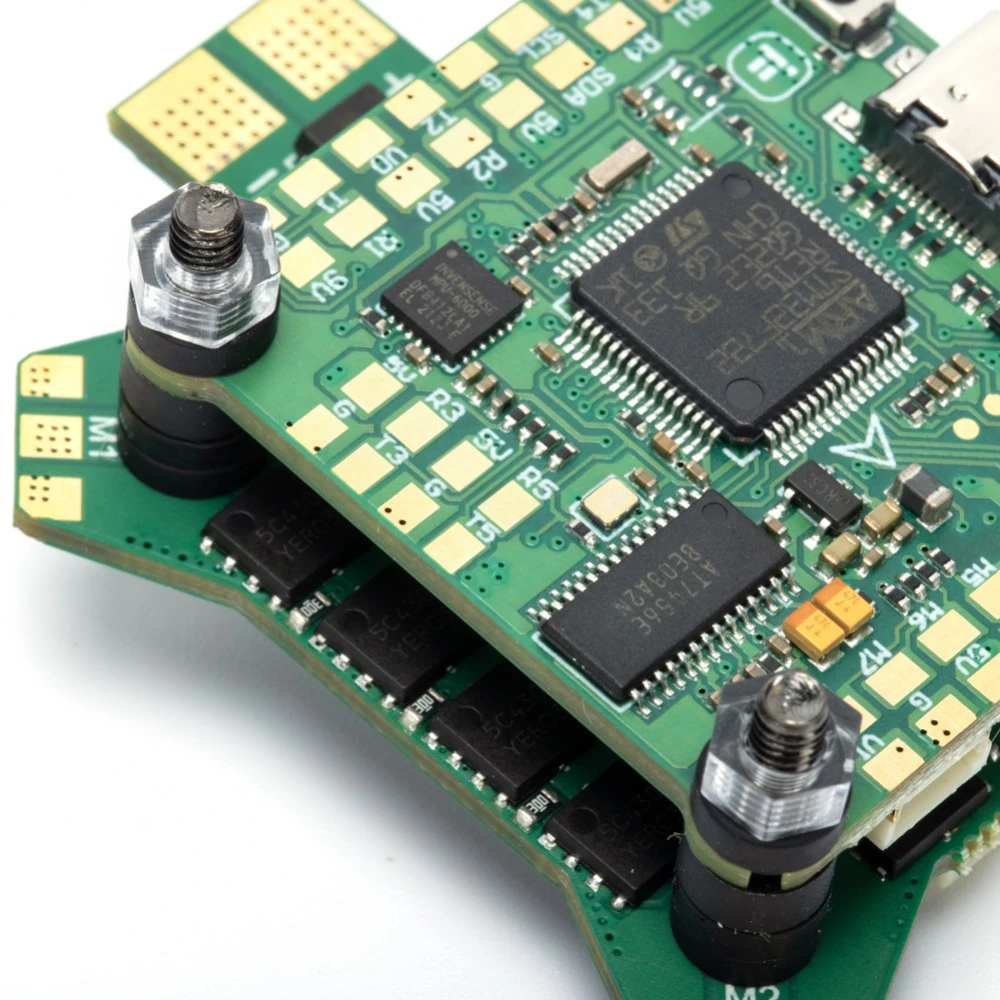

FC // BLITZ F7 V1,1 Flight Controller

Top Features:

– Improved circuit design, better components and lower electrical noise!

– DJI HD VTX Connector (Plug-and-Play / No soldering required)

– FC indicator LEDs for visual debugging

– With LC filter

Changelog:

– 2022/Feb: Version updated to V1.1 / Gyro changed to Bosch BMI270 due to availability & price issues with MPU6000.

Specifications:

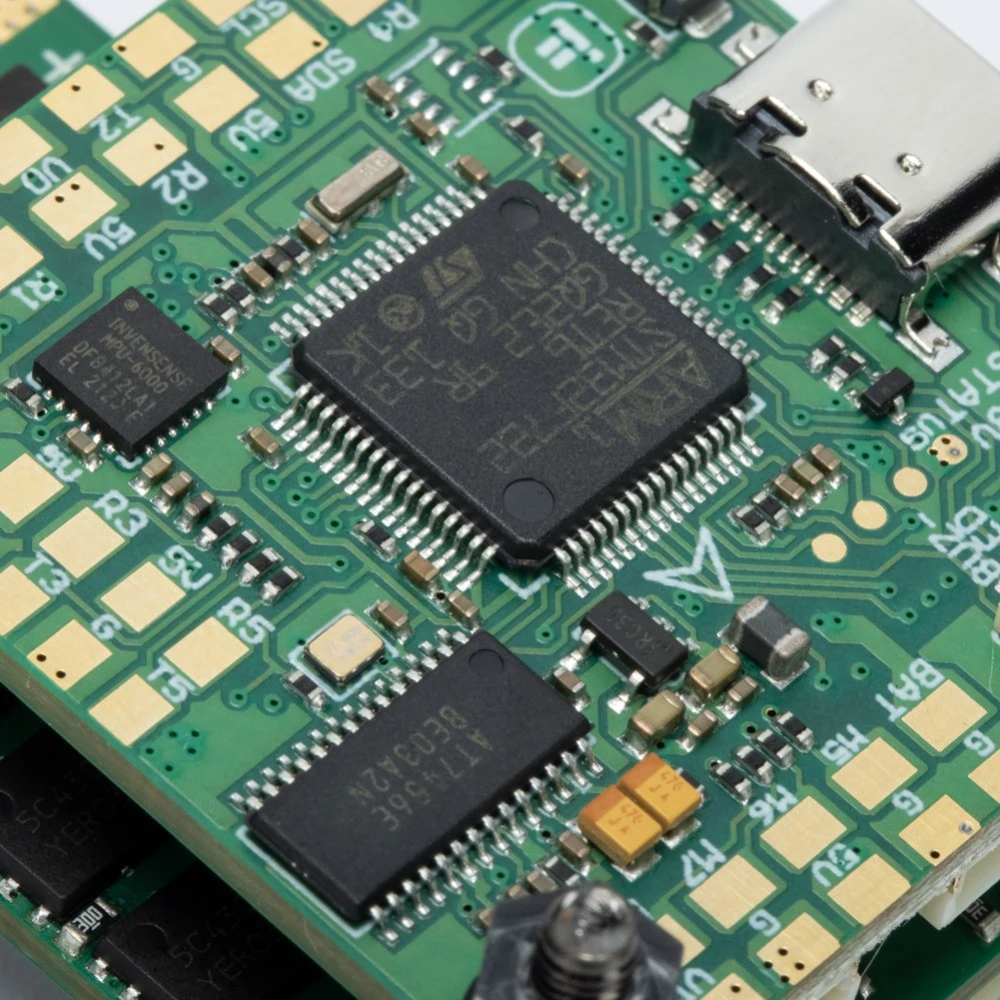

MCU: STM32 F722

Gyro: BMI270

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A

Wiring suggestion:

– UART 1 for VTX HD / Analog

– UART 2 for a Receiver

– UART 3/4/5 for GPS or other sensors that require a serial port

– UART 6 for ESC Telemetry

Tips

1. F722 MCU has an inner inverter.

2. SBUS?CRSF?ELRS?IBUS?DSM ETC… can be connected to any unused UART_RX?we suggest you connect to Uart_RX2

3. Frsky SmartPort?Tramp & Smartaudio can be connected to any unused UART_TX?we suggest you connect to Uart_TX1

4. F.port can be connected to any unused UART_TX?we suggest you connect to Uart_TX2

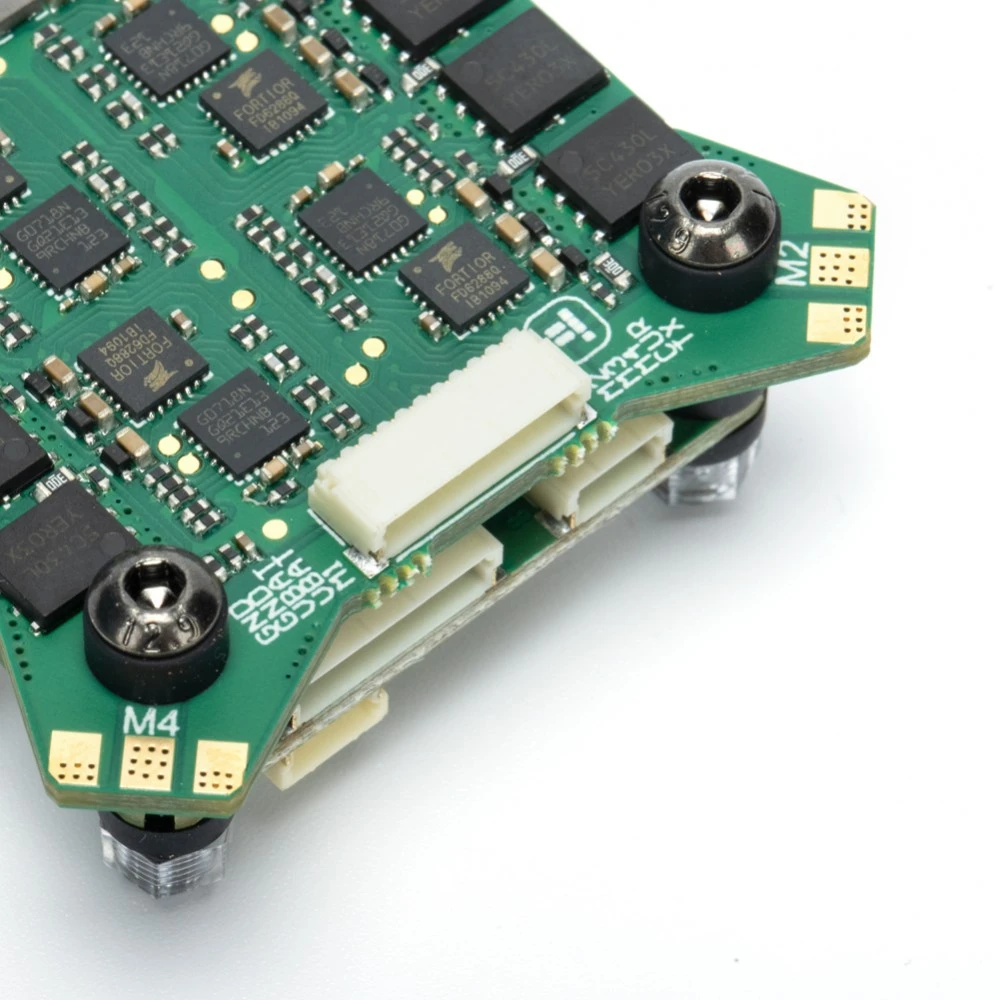

ESC // BLITZ E55 4-IN-1 2-6S 55A ESC

Specification:

– Mounting Holes: 30.5*30.5mm/?4mm

– Weight: 15.3g

– Supports 2-6S lipo input

– MCU?G071

– Constant: 55 Amps

– Burst: 65 Amps

– Current sensor: Yes

– BEC: No

– Current rate: 200

– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

– Target: IFLIGHT_BLITZ_G2

PACKAGE INCLUDED:

– 1PC X BLITZ F7 V1.1 FLIGHT CONTROLLER

– 1PC X BLITZ E55S 4-IN-1 2-6S ESC

– 1SET X SILICON GROMMETS

– 1SET X WIRE HARNESS FOR F7 FLIGHT CONTROLLER
