Iflight BLITZ F7 Stack (F7 V1.1 + 45A 4in1 ESC)

PRODUCT DESCRIPTION

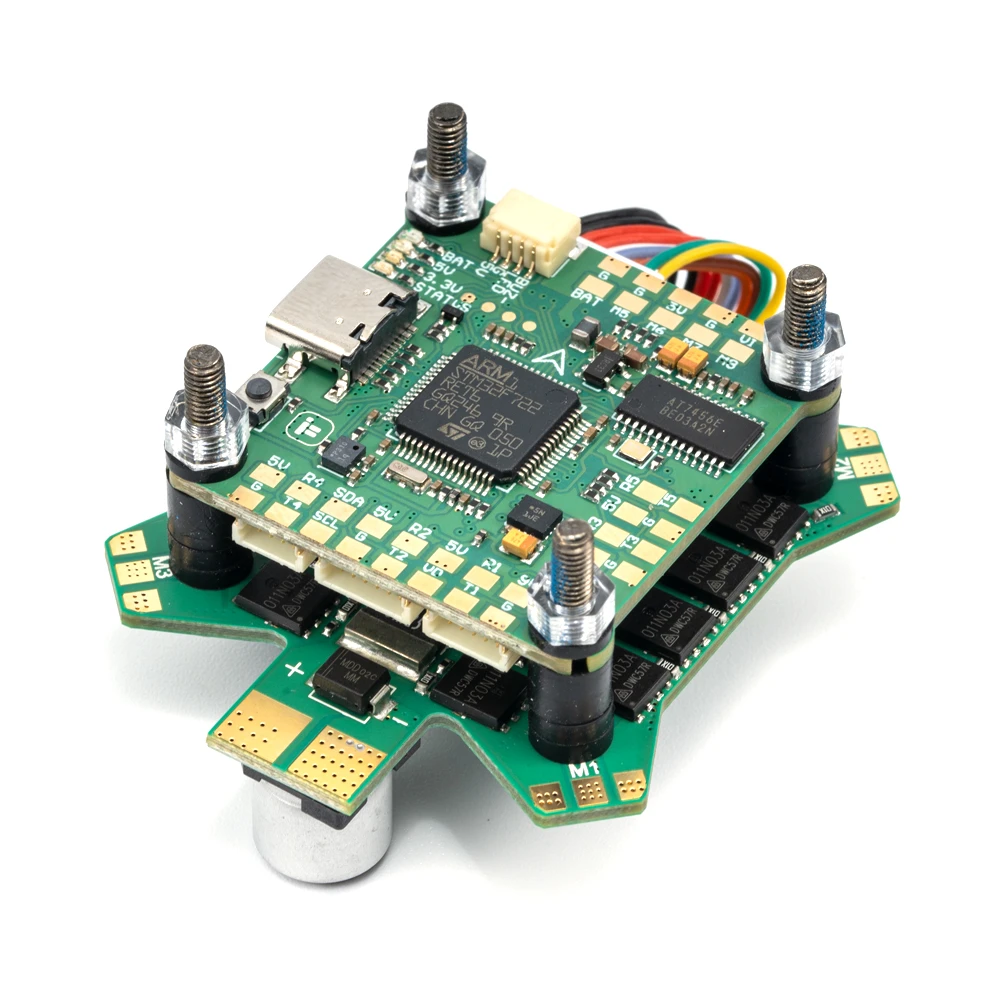

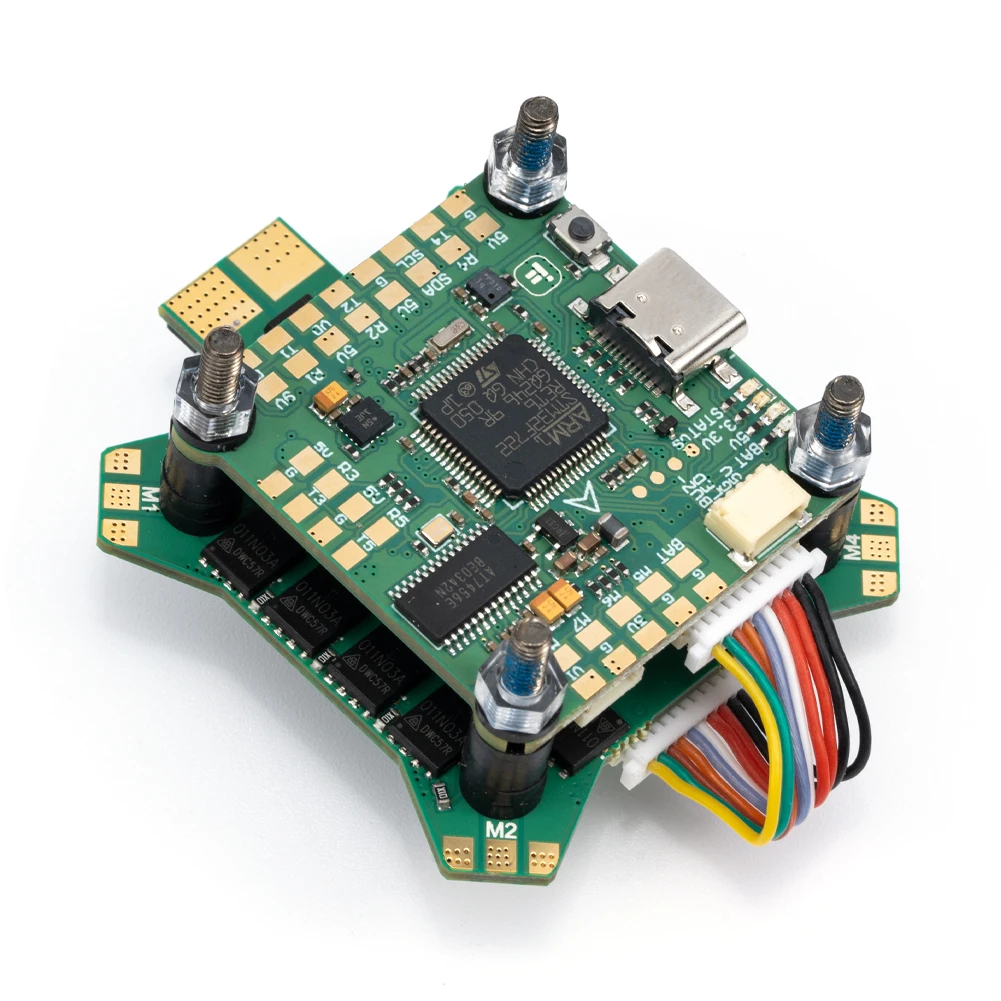

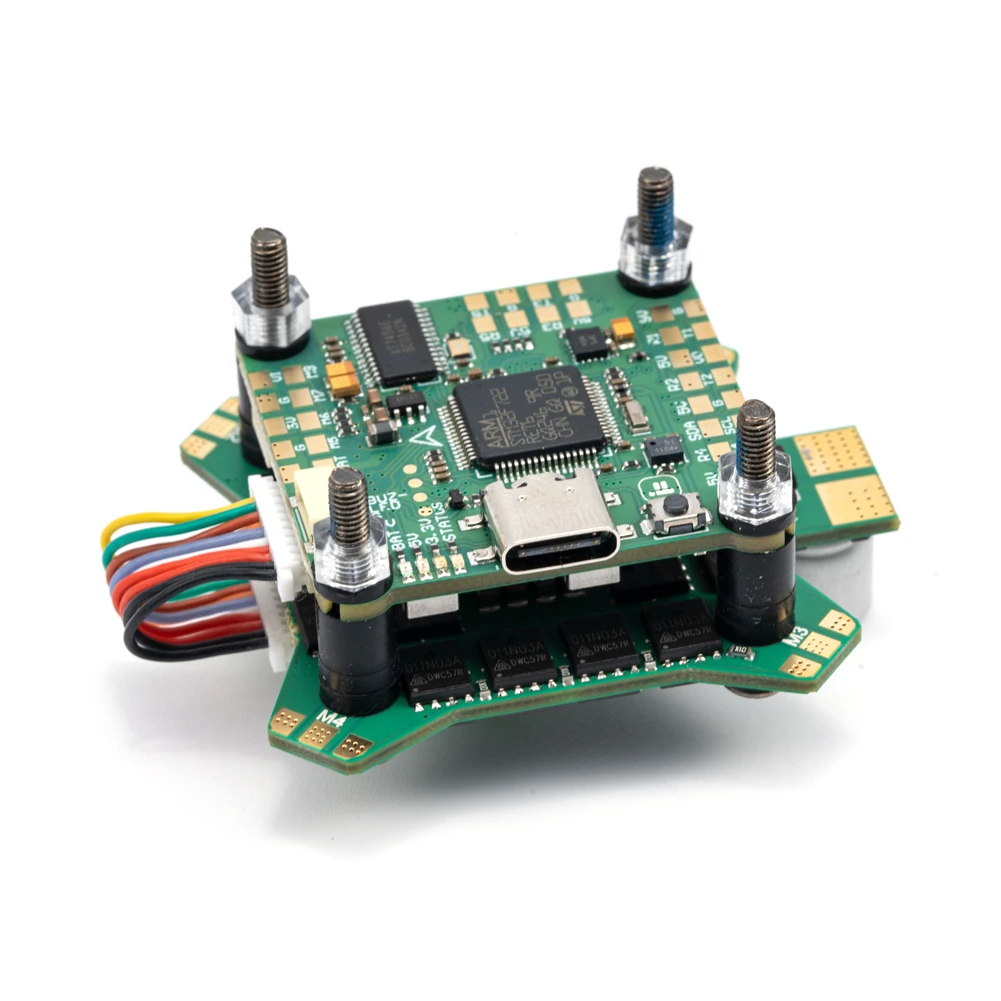

FC // BLITZ F7 V1,1 Flight Controller

Top Features:

– Improved circuit design, better components and lower electrical noise!

– DJI HD VTX Connector (Plug-and-Play / No soldering required)

– FC indicator LEDs for visual debugging

– With LC filter

Specifications:

MCU: STM32 F722

Gyro: BMI270

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

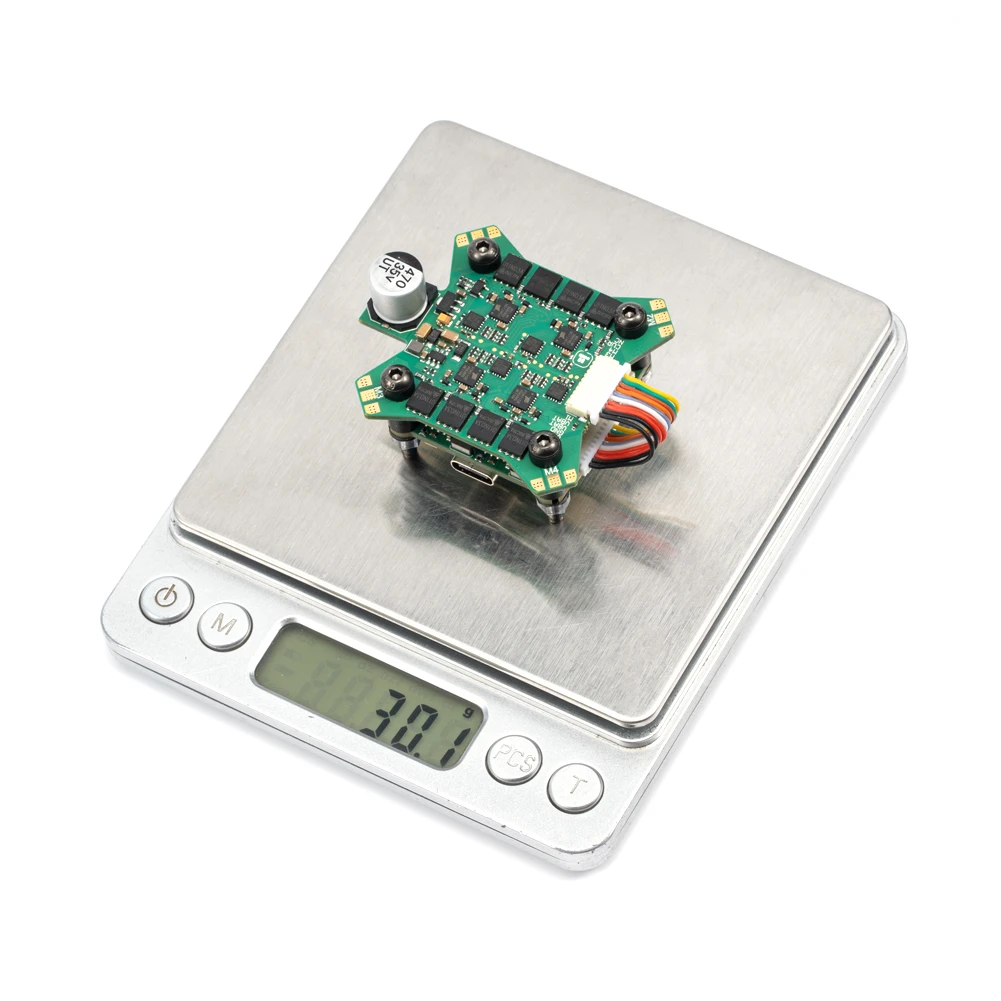

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A

Wiring suggestion:

– UART 1 for VTX HD / Analog

– UART 2 for a Receiver

– UART 3/4/5 for GPS or other sensors that require a serial port

– UART 6 for ESC Telemetry

Tips

1. F722 MCU has an inner inverter.

2. SBUS?CRSF?ELRS?IBUS?DSM ETC… can be connected to any unused UART_RX?we suggest you connect to Uart_RX2

3. Frsky SmartPort?Tramp & Smartaudio can be connected to any unused UART_TX?we suggest you connect to Uart_TX1

4. F.port can be connected to any unused UART_TX?we suggest you connect to Uart_TX2

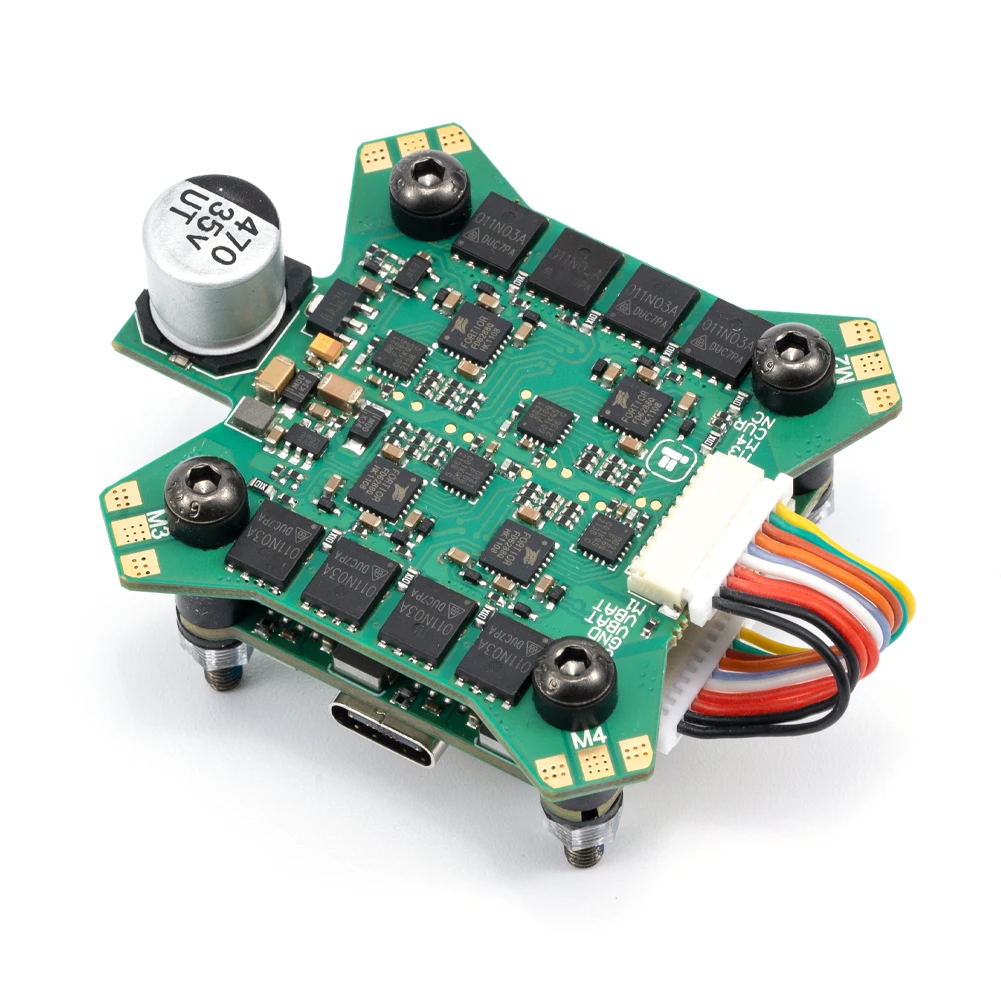

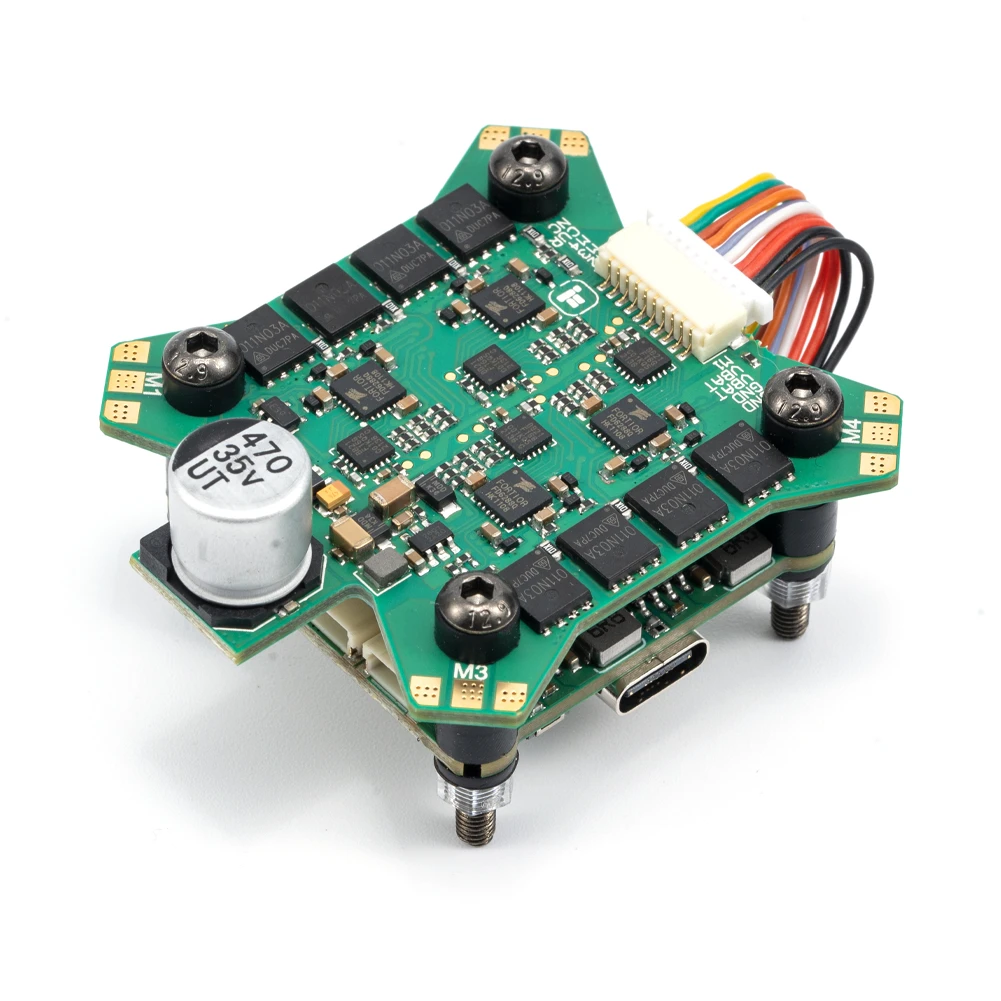

ESC // BLITZ E45 4-IN-1 2-6S 45A ESC

Specification:

– Supports: DShot150/300/600/MultiShot/ OneShot etc.

– Mounting Holes: 30.5*30.5mm/?4mm

– Supports 2-6S lipo input

– Telemetry Output: NO

– Target: Q-H-25 16.7

– Current sensor: Yes

– Constant: 45 Amps

– Current rate: 200

– Burst: 55 Amps

– Weight: 14.7g

– MCU: BB21

– BEC: NO

PACKAGE INCLUDED:

– 1PC X BLITZ F7 V1.1 FLIGHT CONTROLLER

– 1PC X BLITZ E45S 4-IN-1 45A 2-6S ESC

– 1SET X SILICON GROMMETS

– 1SET X WIRE HARNESS FOR F7 FLIGHT CONTROLLER
