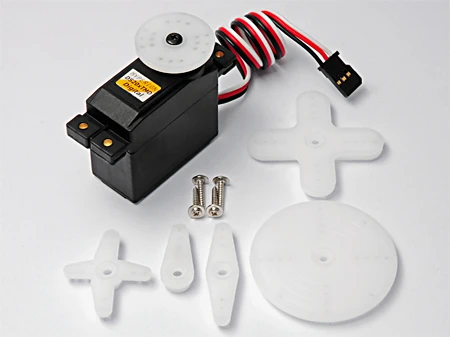

HYPERION ATLAS DS20X SMD CORELESS DIGITAL SERVO

NEW! Hyperion MaxPrecision ATLAS CORELESS DIGITAL SERVOS, Fully-Programmable by USB Adapter, with superstrong All-Metal Gears and Double Ball Bearings!!

These are simply the best servos you can buy at any price, and a great value too.
Perfect centering, Top AND Bottom ball bearings, tough Metal gear trains, Digital torque and precision, and full programmability all put the “control” back in your Radio Control!
Fully programmable for Speed, Deflection, Centering, REVERSE, and more.

Spec

Weight 18.0g

Speed sec/60 deg 4.8v/6.0 0.18/0.15

Dynamic torque Kg/cm 4.8/6.0v 4.0/4.5

Holding torque Kg/cm 4.8v/6.0v 8.0/9.0

Dimensions mm 31.5×9.5×32.7

Gear Train Primary Material Metal

Bearing Double ball

Operating Temp -10 to +60 Degree C

Current Drain (4.8V) 6.0mA / 170mA

Current Drain (6.0V) 6.0mA / 200mA

Stall Current (4.8V) 750mA

Stall Current (6.0V) 900mA

Minimum Input Voltage 3.5V under load

Maximum Input Voltage unloaded 7.3V / loaded 6.3V

Connector Wire Gauge 25AWG

Connector Wire Length 60mm

Connector Wire Strand Count 30EA
