Sale!

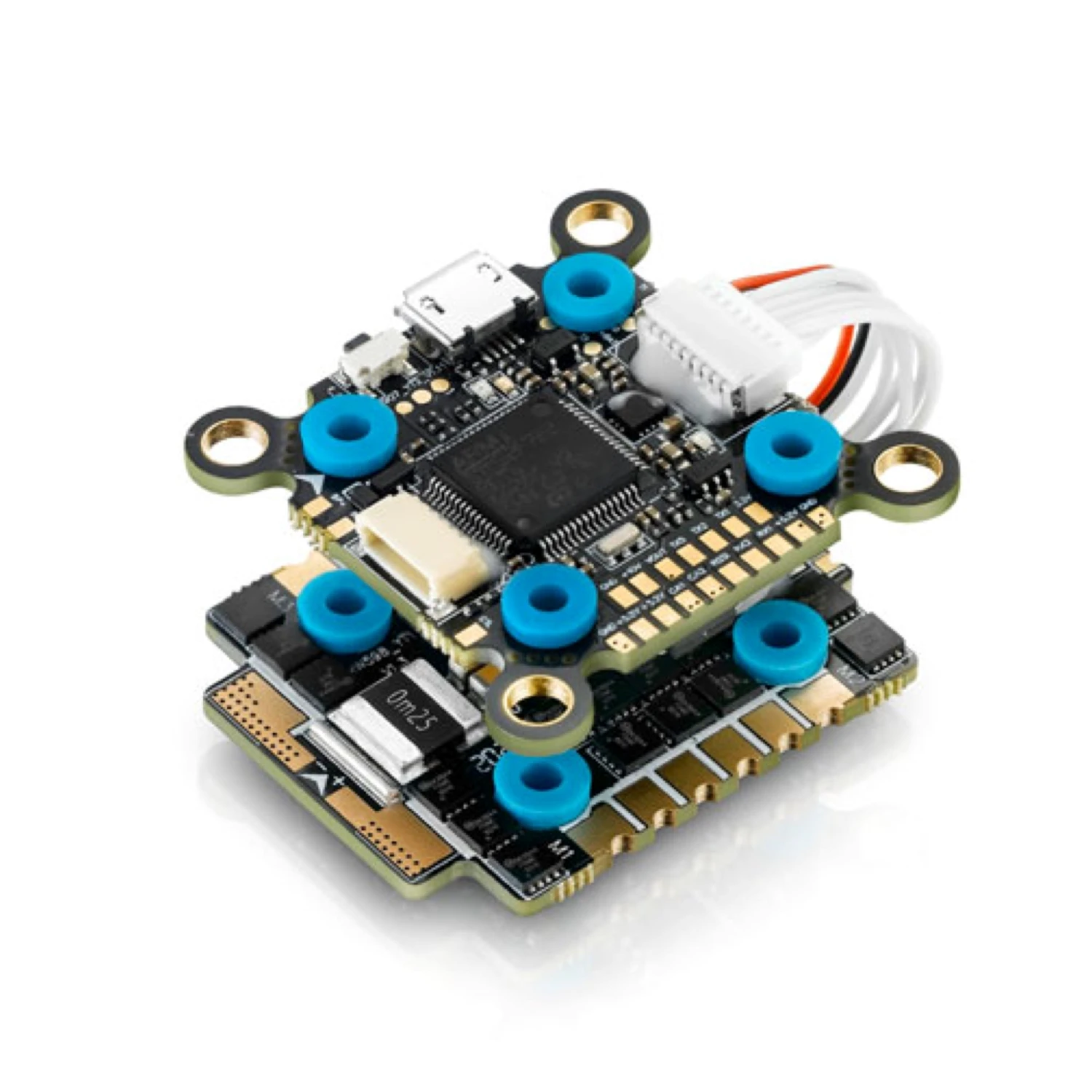

HOBBYWING XRotor FPV Stack (Combo 40A 4in1 ESC & F7 FC)

Original price was: $124.99.Current price is: $87.49.

SKU: C25OB 14144 Categories: 20x20 FC, Flight Controllers, MultiRotors

Get the Best for Less
Free Shipping Worldwide
Green products, guaranteed.
Your questions, our prompt answers.

Description
Reviews (0)

Features

FC // HobbyWing XRotor Flight Controller F7

Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.

Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.

DJI image transmission system port equipped with corresponding flat cable

Supports bidirectional DShot digital throttle communication.

Unique installation design and shock absorption structure.
On-board large capacity Flash memory chip.

On-board 5V & 12V dual BEC circuit.

On-board Pit Switch module.

ESC // HobbyWing XRotor Micro 40A 4-in-1 ESC

All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.

The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5-25us).

Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.

High-performance 32-bit microprocessor with a running frequency of up to 48MHz for an excellent performance.

BLHeli_32 firmware is the third generation BLHeli.

Unique Soft Mounts

Specifications:

FC // HobbyWing XRotor Flight Controller F7

Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc

Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL

Mounting Holes: Convertible 20x20mm / 30.5×30.5mm

Programming via: Betaflight/Cleanflight-configurator

Firmware: HOBBYWING_XROTORF7CONV
