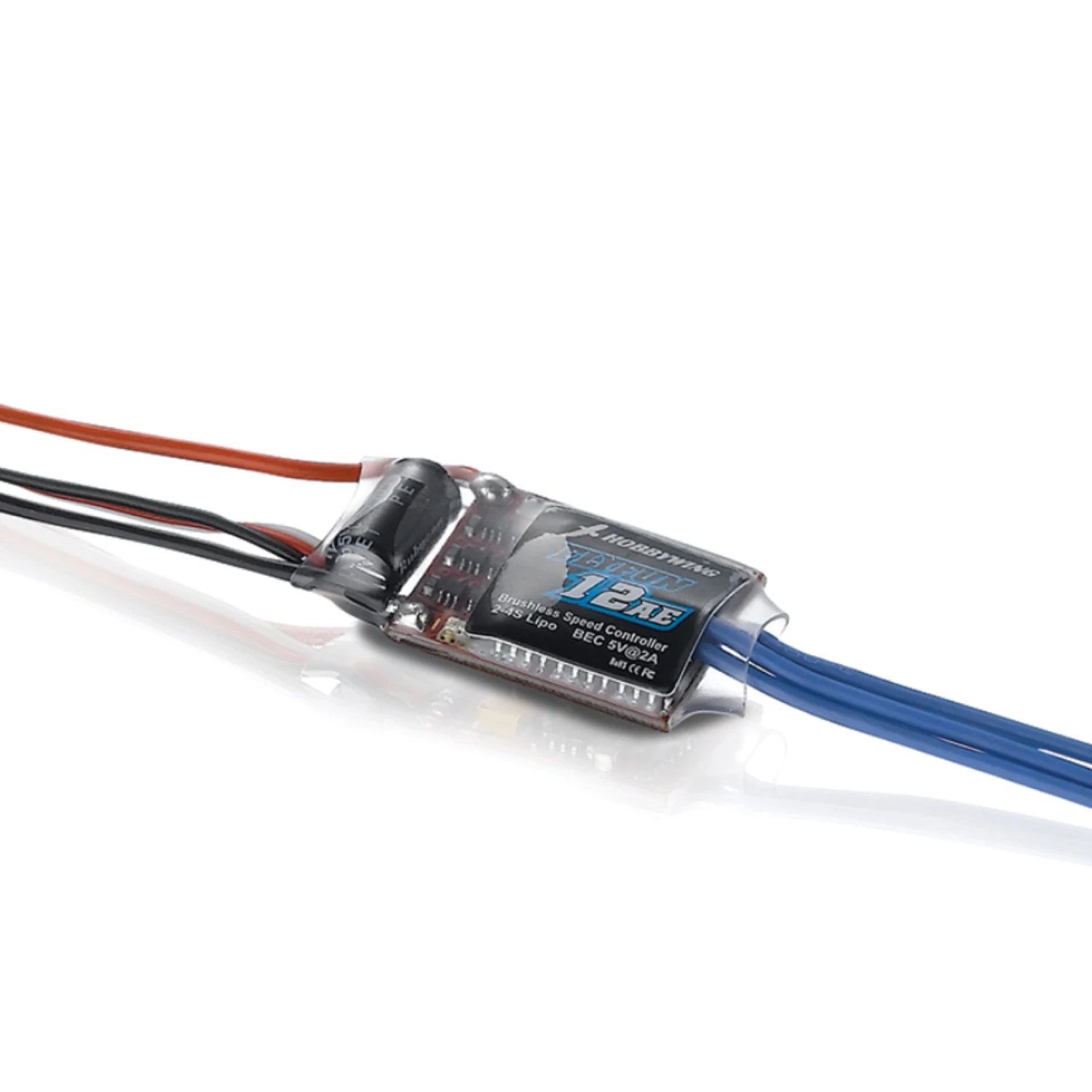

HOBBYWING FLYFUN 12AE (2-4S)

Specifications

1.1 Output: Continuous 12A, Burst 15A up to 10 Secs. PWM is 16KHz

1.2 Input Voltage: 2-4 cell lithium battery or 5-12 cell NiCd/NIMh battery.

1.3 BEC: 2A / 5V (Linear mode).

1.4 Max Speed: 210,000rpm for 2 Pole BLM, 70,000rpm for 6 pole BLM, 35,000rpm for 12 pole BLM.

(BLM: BrushLess Motor)

1.5 Size: 32mm (L) * 24mm (W) * 10mm (H).

1.6 Weight: 13g.

2 Features

2.1 Safety Arming Feature: Regardless of the throttle stick position, the motor will not spin after battery is connected.

2.2 Throttle Calibration: Throttle range can be configured to provide the best throttle linearity. Fully compatible with all available transmitters.

2.3 Programmable Items:

Brake Setting: brake enabled / brake disabled.

Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).

Low Voltage Protection Mode (Cutoff Mode): Gradually reduce the output power / Cutoff the output power.

Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.

Start Mode: normal / soft / very soft.

Timing: low / medium / high.

Reset: reset all programmable items to their default settings.

2.4 Full Protection Features: Low voltage cutoff protection / Over-heating protection / Throttle signal lost protection.

3 Advantages

3.1 Military standard capacitor with extremely low resistance decreases unwanted RF noise during flying.

3.2 Extreme low resistance PCB helps create super current endurance capability.

3.3 Microprocessor uses a separate voltage regulator IC, with great anti-jamming capability.

3.4 Compatible with Hobbywing’s Program Card (purchase separately)
