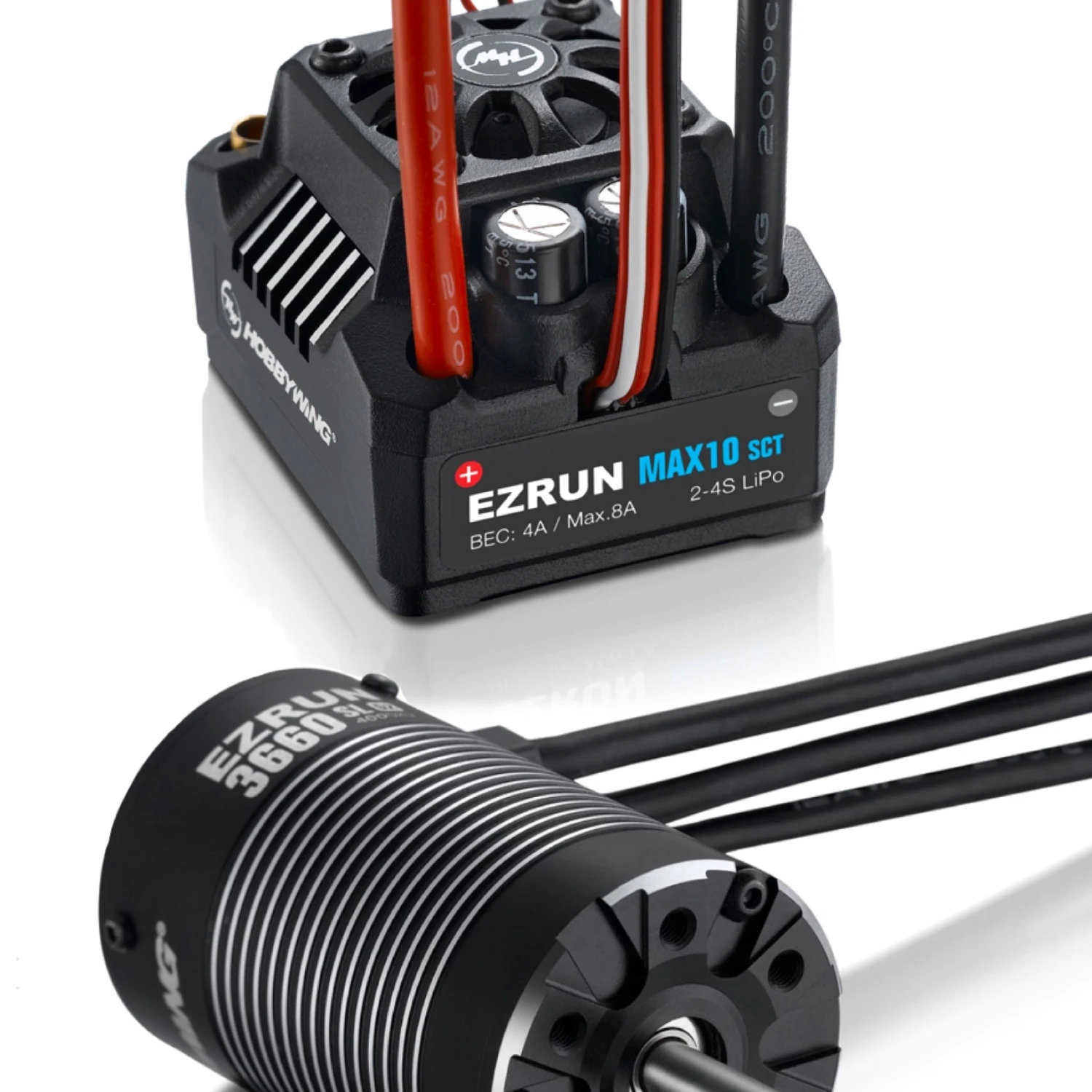

HOBBYWING EZRUN MAX10 SCT-B (3660SL 4000kv) 2-3S

What’s in the box?

1 x Ezrun Max10 SCT ESC (XT90 Power Plug)

1 x Ezrun 3660 SL brushless motor

1 x Steel Pinion Gear

Supportive accessories (double side tape, etc)

EZRUN 3660 SL G2 Brushless motor

Ezrun Series 3660 SL G2

KV 4000

P/n 30402650 30402651 30402652

LiPo 2-3S

R. (?) 0.0060

No-load Current 5.7A

Motor Diameter & Length ?=36 / L=60

Shaft Diameter & Length?=5 / L=18.5

Steel Pinion Gear-Included 23T 5MM 48P

Pole 4

Weight (g) 268

Bearing size: Front / Rear D5*D11*t4

++ Important notes +++

“Minimum 70C suggested, lower C rating may be okay, however it will not provide the intended experience. Also, How Power Plugs must be used. The surface area of your plugs, must be “larger” than the wires installed or you will very likely have problems. TRX, “T Plug”, EC plugs, and “Deans” are not suggested for today’s upgraded electronics setups.”
