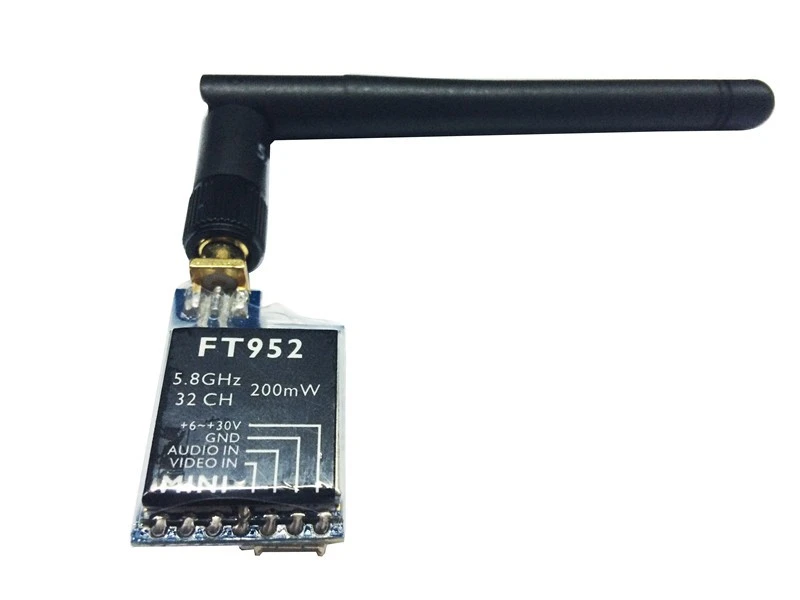

HeliStar 5.8G 200mw 32CH Super Mini Wireless Transmitter

Specification:

1 Transmitting Frequency: ISM 5.6GHz-5.95GHz 32 CH

2 Operating Voltage : +6.0V～+30.0V

3 Supply current : 110mA?10mA

4 Video Input Level: 1V?0.2Vp-p/75Ω

5 Audio Input Level: 0.5～2.0Vp-p/10KΩ

6 TV System: PAL/NTSC/SECAM (AUTO)

7 RF Output Power: 200mW(23dBm?0.5dBm)

8 Antenna Connector: SMA Connector

9 Weight: 9.9g

10 Dimensions (L x W x H): 30x20x8mm

11 Operating Temperature: -10℃～+85 ℃

Operating Frequency

5865MHz 5845MHz 5825MHz 5805MHz 5785MHz 5765MHz 5745MHz 5725MHz
5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz
5705MHz 5685MHz 5665MHz 5645MHz 5885MHz 5905MHz 5925MHz 5945MHz
5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz

Features

32 Channel ;

200mW RF Power output ;

Large input voltage range ;

Not affect by 2.4GHz R/C Radios ;

Mini size, light weight, easy to carry

Size: 30*20*8mm.

Note:

* The use and operation of this product in Canada and United States will require a HAM or Amateur radio license.

** The power level of this transmitter may be illegal in your country. Please check your local regulations and make sure you order this device only if you have the required licensing to use this product.

*** SN Hobbies cannot be held responsible for illegal use of this product.
