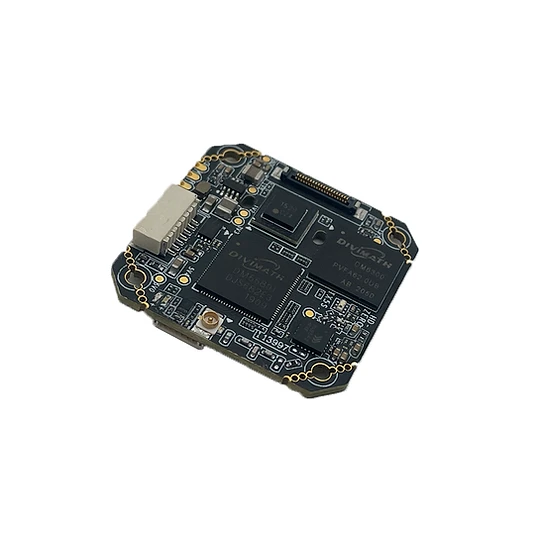

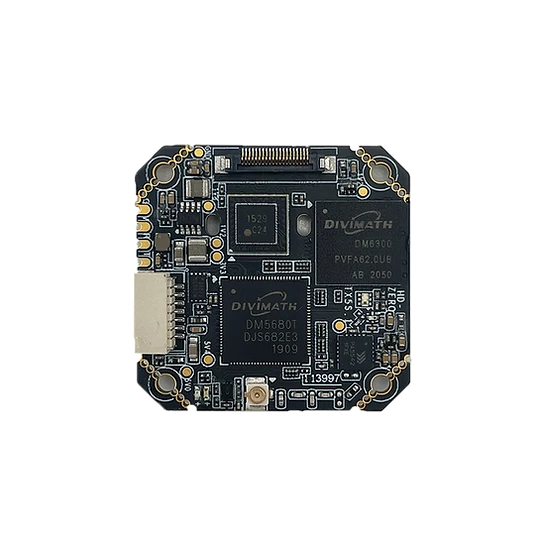

HDZero Whoop VTX

The HDZero Whoop VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.

Specifications

Model:
HDZero Whoop

SKU:

HDZ3110

Frequency:

5.8G

Resolution Default:

1280*720@60fps

RF power:

25mw/200mw

RF Connector:

U.FL

Interface:

4 lane MIPI CSI YUV422

Video Connector:

20 Position 0.30mm Pitch

Size:

32.5mm x 32.5mm x 7mm

Weight:

5.4g

Power:

410mA@12V

power input:

7V-26V(2S-6S)

Mounting:

25.5mm*25.5mm,M2 clearance hole

Includes

HDZero Whoop VTX * 1;

Power/ Uart Cables * 4?
