HDZero Race V2 VTX

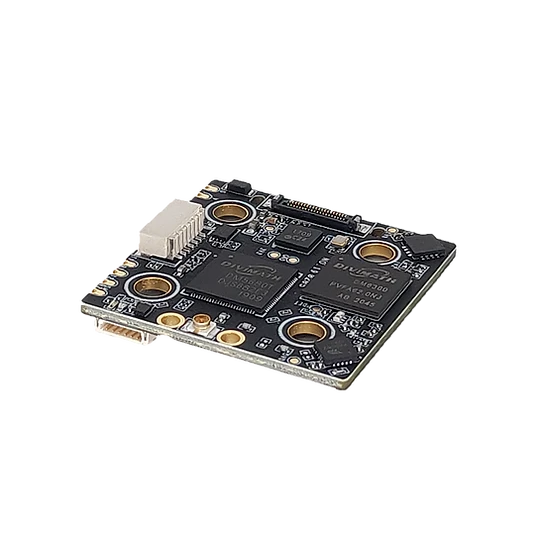

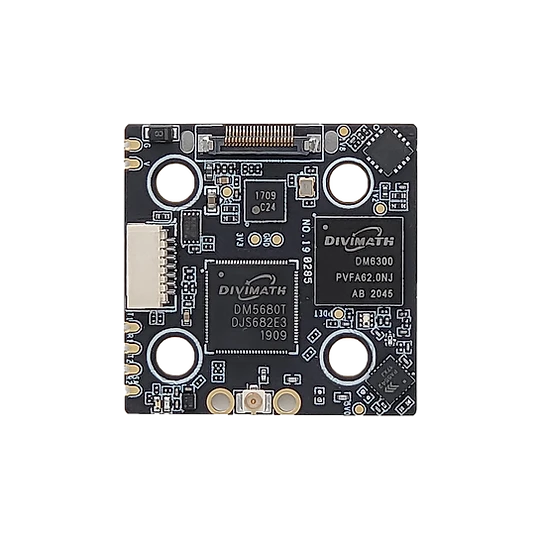

The HDZero Race VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 200mw on 5.8GHz. It works with the Shark Byte RX5.1 goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera.

Specifications

Model:

HDZero Race V2

SKU?

HDZ3140

Frequency:

5.8G

Resolution Default:

1280*720@60fps

RF power?

25mw/200mw

RF Connector:

Secured U.FL

Interface:

4 lane MIPI CSI YUV422

Video Connector:

20 Position 0.30mm Pitch

Size:

34mm x 34mm x 6mm

Weight:

5.9g

Power:

410mA@12V

power input?

7V-26V(2S-6S)

Mounting?

20mm x 20mm M4 with rubber grommets

Includes

HDZero Race V2 VTX * 1;

Power/ Uart Cables * 5

Zip ties * 4

Rubber Grommet (M4 to M3) * 6

Rubber Pad * 6

u.FL Antenna Retention Screws * 4/Nut * 4/Plate * 1
