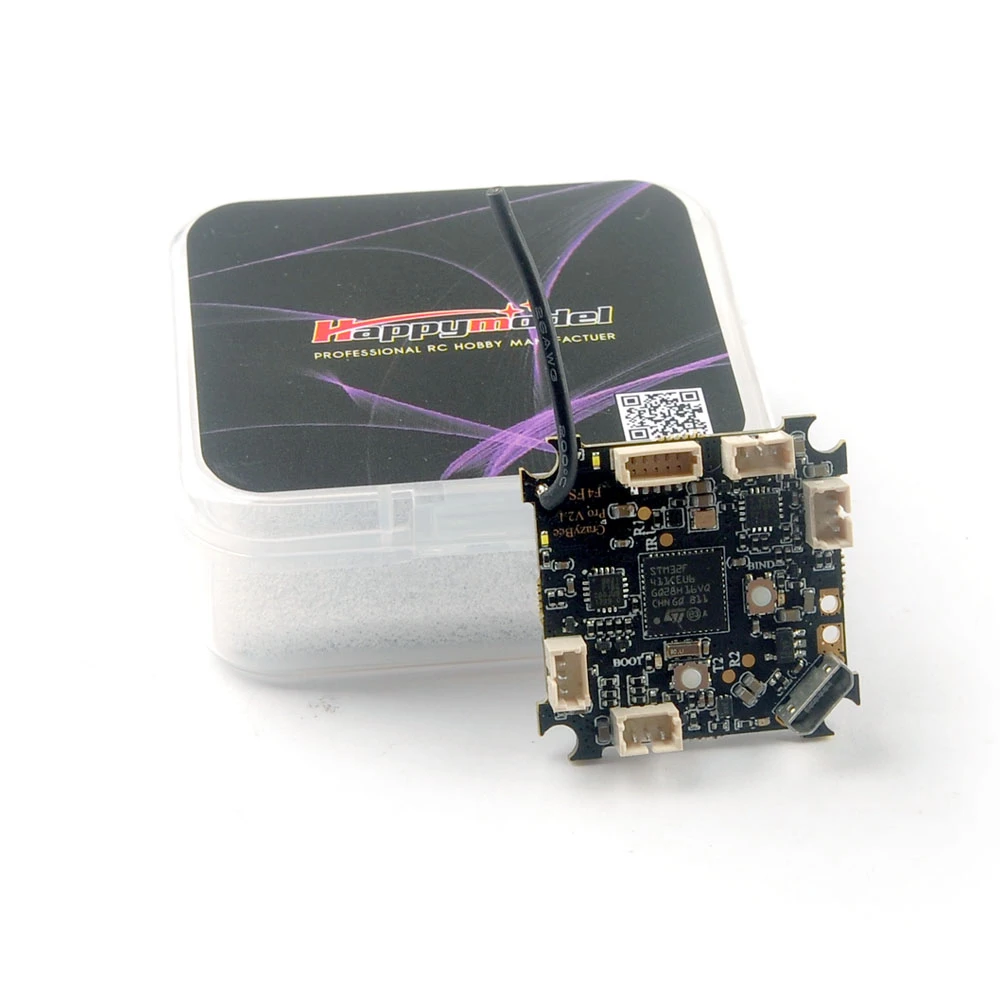

Happymodel Sailfly-X Crazybee F4 Pro V2.1 1-3S Flight Controller - FRSKY

Happymodel Sailfly-X Crazybee F4 Pro V2.1 1-3S Flight Controller – FRSKY

Original price was: $41.99.Current price is: $29.39.

SKU: C25OB 11041 Categories: , ,
  • Get the Best for Less
  • Free Shipping Worldwide
  • Green products, guaranteed.
  • Your questions, our prompt answers.

Happymodel Sailfly-X Crazybee F4 Pro V2.1 1-3S Flight Controller – FRSKY

Package include:

  • Crazybee F4 PRO V2.1 flight controller x1
  • XT30 Pigtail x1
  • 5pin-5pin SH1.0 Plug ( used for connect with Whoop_vtx or Diamond_vtx) x1
  • 2x 1s PH2.0 Serial connect power wire x1
  • Rubber damping balls set x1


    Flight controller

  • (Frsky version) CRAZYBEE F4FR PRO V2.1 Firmware target: CrazybeeF4FR
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: MPU-6000(SPI connection)
  • Board size: 28.5 * 28.5MM
  • Power supply: 2-3S battery input (DC 7.4-13V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) EU-LBT support
  • Built-in Betaflight OSD(SPI Control)
  • Built-in Current meter Max 28A
  • Current meter scale set to 1175
  • Built-in 5V 1A BEC with LC filter
  • Built-in voltage detection


    Onboard 4in1 ESC

  • MCU upgraded to EFM8BB21
  • Power supply: 2-3S LiPo/LiPo HV (7.4v/13v)
  • Current: 5A continuous peak 6A (5 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: S_H_50_REV16_7.Hex
  • Default protocol: DSHOT600


    Frsky receiver Version

  • SPI BUS receiver
  • Frsky D8/D16 switchable
  • Compatible both Non EU and EU-LBT transmitter Channels: 8ch or 16ch
  • EU-LBT support(need to update betaflght v4.0 date 2019-04-11)
  • Failsafe support
  • No ground interference ( Transmitter and receiver 1 m from the ground): 300m

    Happymodel Sailfly-X Crazybee F4 Pro V2.1 1-3S Flight Controller - FRSKY -Toys Model Store crf4 v21

    Happymodel Sailfly-X Crazybee F4 Pro V2.1 1-3S Flight Controller - FRSKY -Toys Model Store crf4 v211
