Happymodel Mobula7 1S SPI FRSKY V2 Micro FPV Whoop Drone

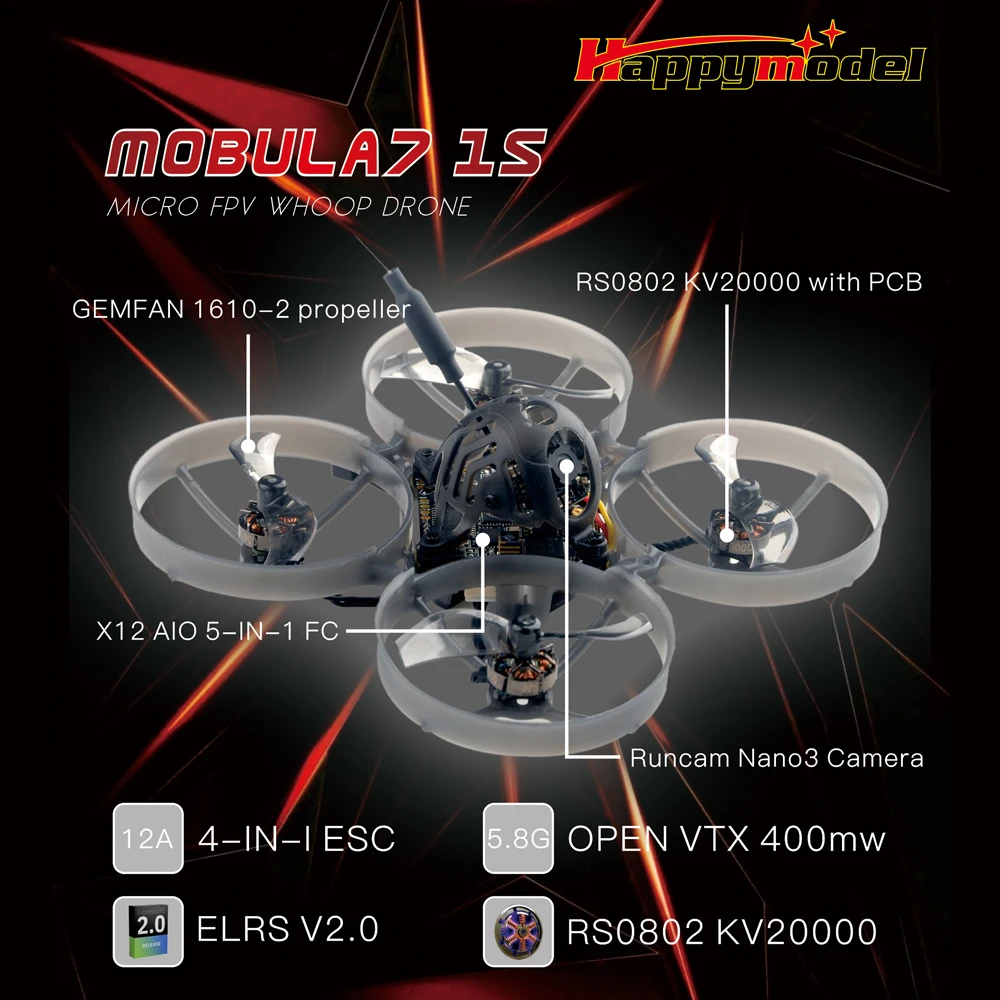

We’re glad to launched our new Mobula7 drone , this time the 75mm whoop based on 1s power. Thanks to the new AIO flight controller and the new third-generation RS0802 brushless motor, the new Mobula7 1s Will be the best choice in the whoop season.

The world first 5-IN-1 AIO flight controller with ExpressLRS 2.0 , OPENVTX(up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD coming out recently. This is amazing flight controller for Brushless whoop. You could get unbelievable RX and VTX range by using this flight controller.

The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.

New onboard OpenVTX , max power up to 400mw, provide RCE and PIT mode, it was very useful for race event.

Features:

VTX Power up to 400mw

ELRS V2.0 Support

NEW RS0802 KV20000 motors

Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera

Smooth and powerful

Compatible for 1S Lipo/LIHV

Recommend 1S 450mah/550mah/650mah battery(Not include)

Specifications:

Brand Name: Happymodel

Item Name: Mobula7 1S 75mm Micro FPV whoop drone

Wheelbase: 75mm

Size: 99mm*99mm*40mm

Weight: 24g

Receiver:

SPI Frsky D8/D16 not compatible with EMAX E6 radio

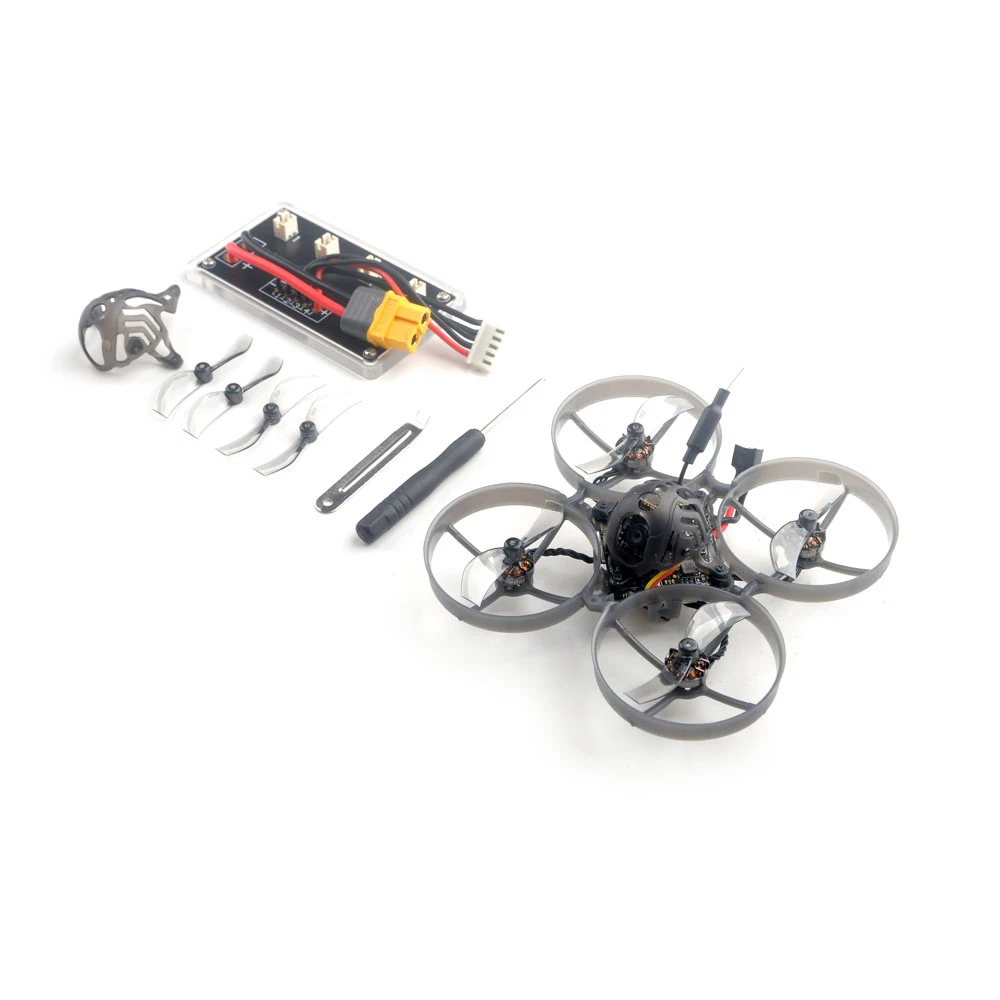

Package includes:

Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame) 1

X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver 1

RS0802 KV20000 brushless motor 4

Gemfan 1610-2 bi-blade propellers(4cw+4ccw) 1

Runcam Nano3 1/3 CMOS 800TVL camera 1

Onboard 5.8G Openvtx 0mw~400mw VTX 1

1S parallel charging board 1

Propeller disassemble tool 1

Extra camera canopy 1

Spare parts specifications:

Motor

Mode: RS0802 KV20000

Configu-ration:9N12P

Stator Diamter:8mm

Stator Length:2mm

Shaft Diameter:?1.5mm

Motor Dimension(Dia.*Len):?10.5mm*13.5mm

Weight(g):2.0g

No.of Cells(Lipo):1S only

Propellers

Weight:0.24g

Material:PC

Pitch:1 inchProps Dia:40mm

Center Thickness:5mm

Center Hole Dia:1.5mm

Flight controller

X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU6000 or ICM20689 or BMI270(SPI connection)

Mount hole size: 25.5mm*25.5mm

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 12A(each) Blheli_S 4in1 ESC

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G OpenVTX 0mw~400mw

Built-in ExpressLRS 2.4G,Frsky D8/D16

Built-in voltage detection

Built-in current sensor

Onboard 4in1 ESC

Power supply: 1S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: Z_H_30_REV16_7.HEX

Default protocol: DSHOT300

Support Bluejay firmware

When use Blujay firmware with 48khz, should set startup power to 1100/1200

Onboard Frsky SPI D8/D16 receiver Version

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 modelChannels: 8ch

No ground interference ( Transmitter and receiver 1 m from the ground):
200meterFailsafe support

Onboard Frsky SPI D8/D16 receiver Version

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 modelChannels: 8ch

No ground interference ( Transmitter and receiver 1 m from the ground):
200meterFailsafe support

Onboard 5.8g OPENVTX

Firmware version: OPENVTX

Smartaudio v2.1

PIT Mode support

RCE Mode support

Channels:48ch

Transmitting Power: 0/RCE/25mw/100mw/400mw

Power supply: DC 5V

Current (5v): 650ma (400mw)

Runcam Nano3

Model: RunCam Nano 3

Image Sensor: 1/3? CMOS

Horizontal Resolution: 800TVL

Lens : 2.1mm(M8) FOV 150°

Signal System: NTSC

S/N Ratio: >50dB

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: [email protected]

D-WDR: Auto

Day/Night: Color

Power:DC 3-5.5V

Current: 110mA@5V [email protected]

Housing Material: ABS

Net Weight: 1.2g

Dimensions: L14mm*W14mm*H9mm
