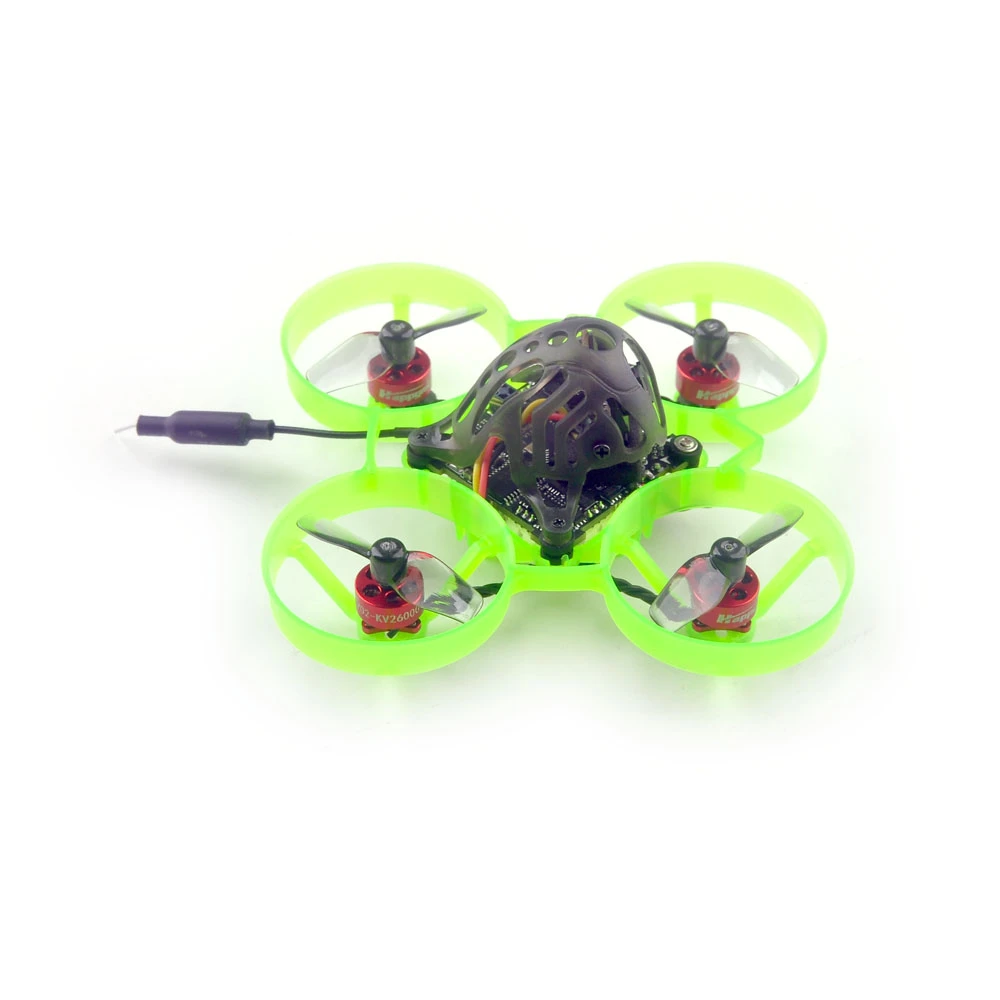

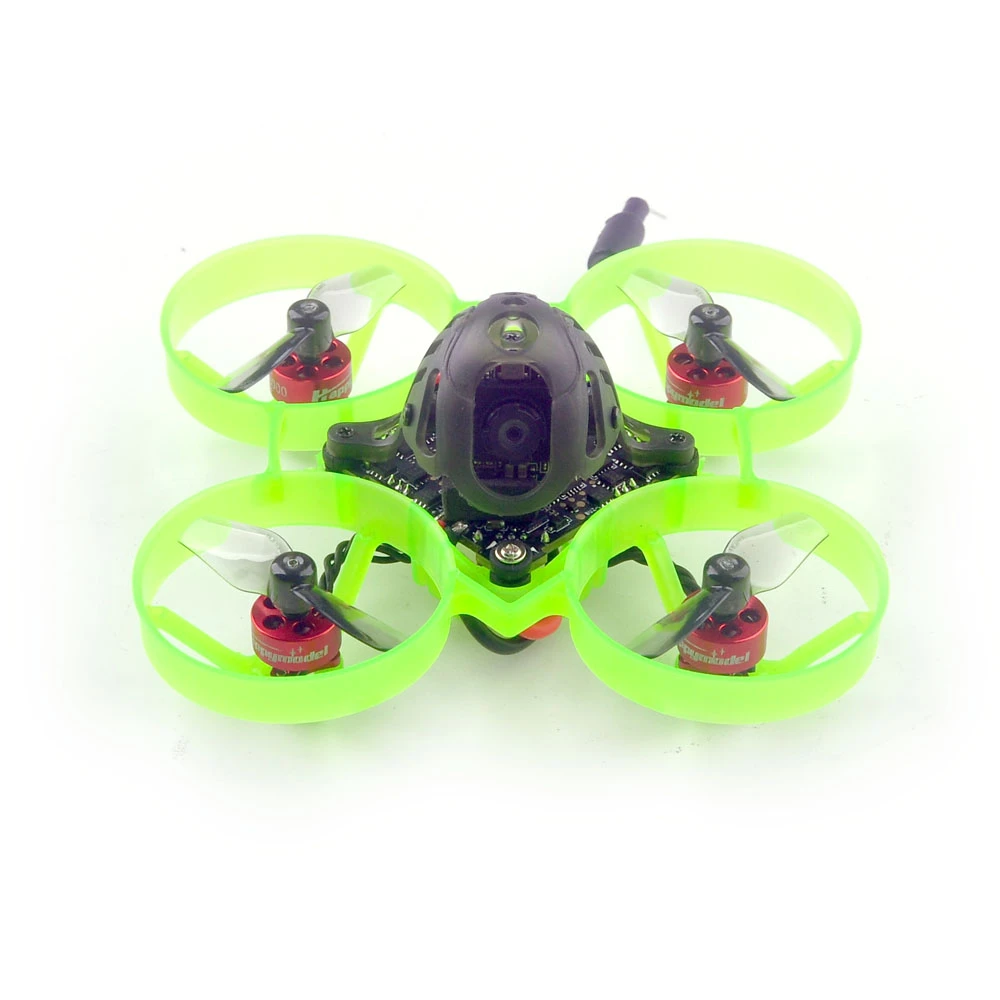

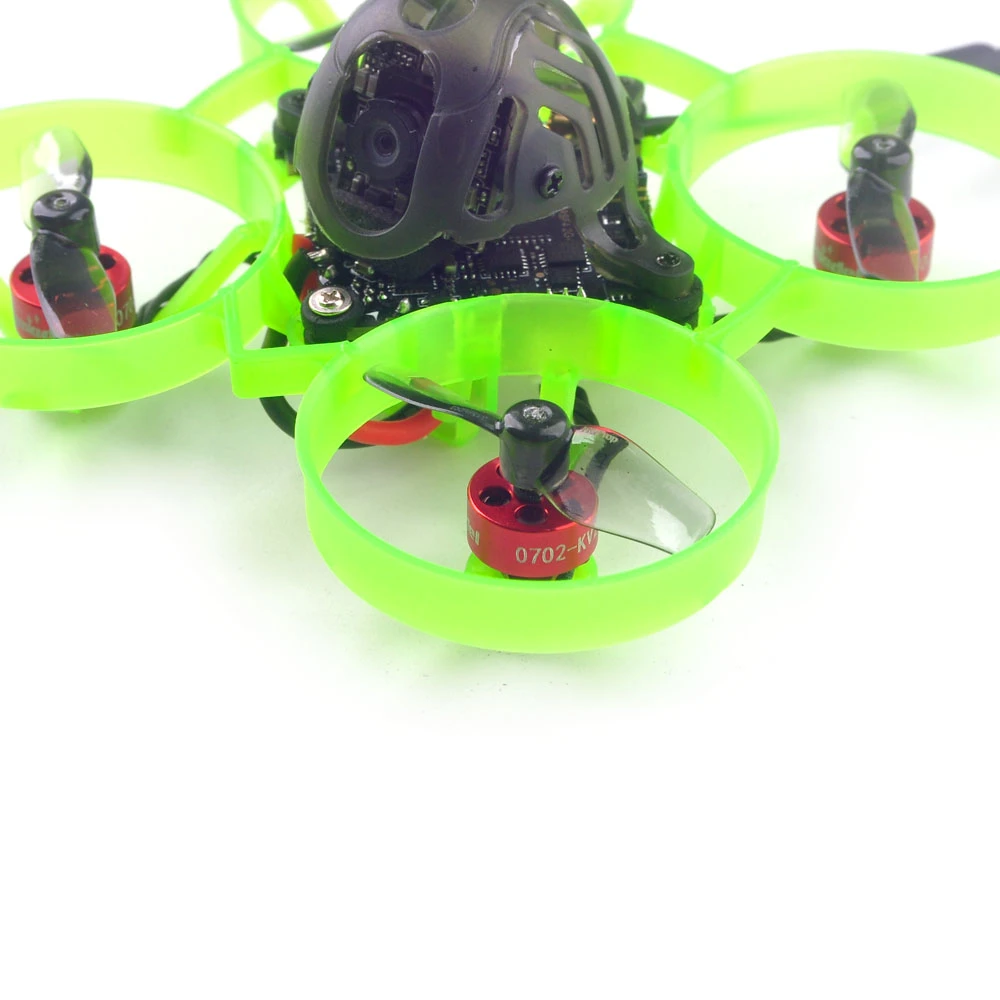

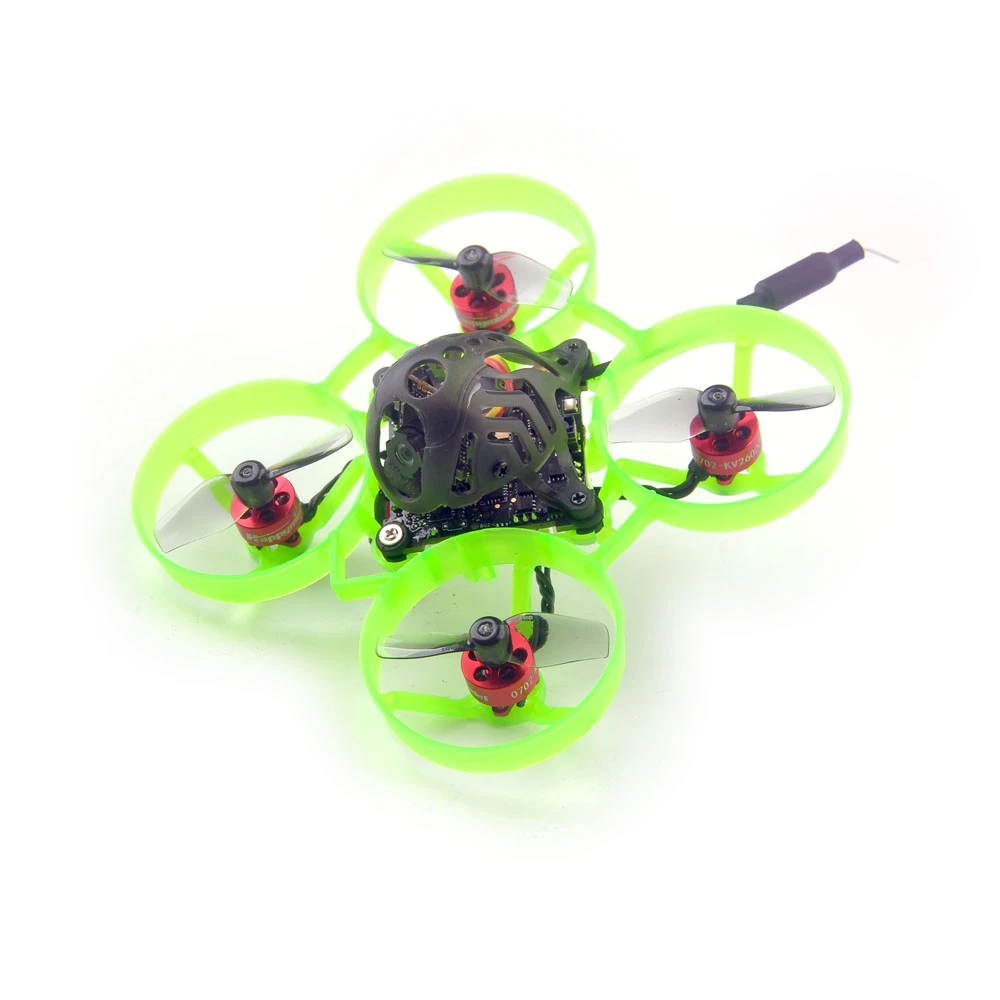

HAPPYMODEL Mobula6 ELRS 1S 0702 26000kv 2.4ghz 65mm Brushless FPV Whoop Drone

Update log:
Mobula6 ELRS 2.4Ghz version comes with Updated ELRSF4 2G4 V3.1 flight controller since 25th Feb

V3.1 Version flight controller Updated

MPU6000 changed to ICM20689 because of MPU6000 discontinued

Onboard VTX changed to OPENVTX support 0mw~400mw

Pre-install Betaflight firmware which support ELRS V2.0 TX firmware

ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. We�re sure this would be a good option for you in the Tiny Whoop Season.

Features:

AIO Flight controller with ELRS Receiver and 5.8G VTX

Super light 1S 65mm Brushless whoop only 18.7g

Equipment with the lightest brushless motors-SE0702 only 1.46gram

Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera

Smooth and powerful

Compatible for 1S Lipo/LIHV

Specifications:

Brand Name: Happymodel

Item Name: Mobula6 ELRS 1S 65mm Brushless whoop drone BNF version

Wheelbase: 65mm

Size: 80mm*80mm*37mm

Weight: 18.7g

Receiver:

2.4GHz ExpressLRS SPI receiver

Mobula6 ELRS 2.4G

Flight controller ELRS F4 2G4

Firmware target CRAZYBEEF4SX1280

Built-in ExpressLRS receiver

Built-in Dshot ESC 5A

Receiver antenna plug SMD ceramic antenna

Onboard VTX power 25mw~200mw

Brushless Motor 0702 KV26000

Propeller HQPROP 31mm Bi-blade

Battery 1s 300mah Lipo battery

Package includes:

Mobula6 1S 65mm whoop Drone Frame x 1

ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver x 1

SE0702 KV26000 brushless motor x 4

HQPROP 31mm bi-blade propellers(4cw+4ccw) x 1

Runcam Nano3 1/3 CMOS 800TVL camera x 1

Onboard 5.8G 25mw~200mw VTX x 1

1S 300mah 30C LiHV Battery x 4

1S Lipo/LIHV USB Charger x 1

Propeller disassemble tool x 1

Spare parts specifications:


Motor

Mode: SE0702 KV26000

Configu-ration:9N12P

Stator Diamter:7mm

Stator Length:2mm

Shaft Diameter:?1mm

Motor Dimension(Dia.*Len):?9.5mm*14mm

Weight(g):1.46g

No.of Cells(Lipo):1S only

Propellers

HQprop31mmx2

Center Thickness:5mm

Prop Disk Diameter:31mm

Center Hole Inner diameter:1.0mm

Weight:0.2g

Flight controller

ELRS F4 2G4 flight controller V3.1 built-in SPI expresslrs 2.4G receiver
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in ExpressLRS 2.4G receiver

Built-in 5V 1A BEC

Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_7.HEX

Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

RF Frequency: 2.4GHzAntenna : SMD antenna

Telemetry output Power: 12dBmReceiver protocol: SPI ExpressLRS

Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module ExpressLRS version 1.0.0 or 1.0.1 both compatible

Onboard 5.8g VTX

Output power: 25mw~200mw

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 channels

With Race bandSmartaudio ready

Runcam Nano3

Model: RunCam Nano 3

Image Sensor: 1/3? CMOS

Horizontal Resolution: 800TVL

Lens : 2.1mm(M8) FOV 160�

Signal System: PAL/NTSC Non Switchable

S/N Ratio: >50dB

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: [email protected]

D-WDR: Auto

Day/Night: Color

Power:DC 3-5.5V

Current: 110mA@5V [email protected]

Housing Material: ABS

Net Weight: 1.2g

Dimensions: L14mm*W14mm*H9mm

Lipo Battery

Capacity:300mAh

Voltage:3.8v

Continuous Discharge Rate: 30C

Size: 57mmx12mmx7mm

Weight: 8gConnector: PH2.0
