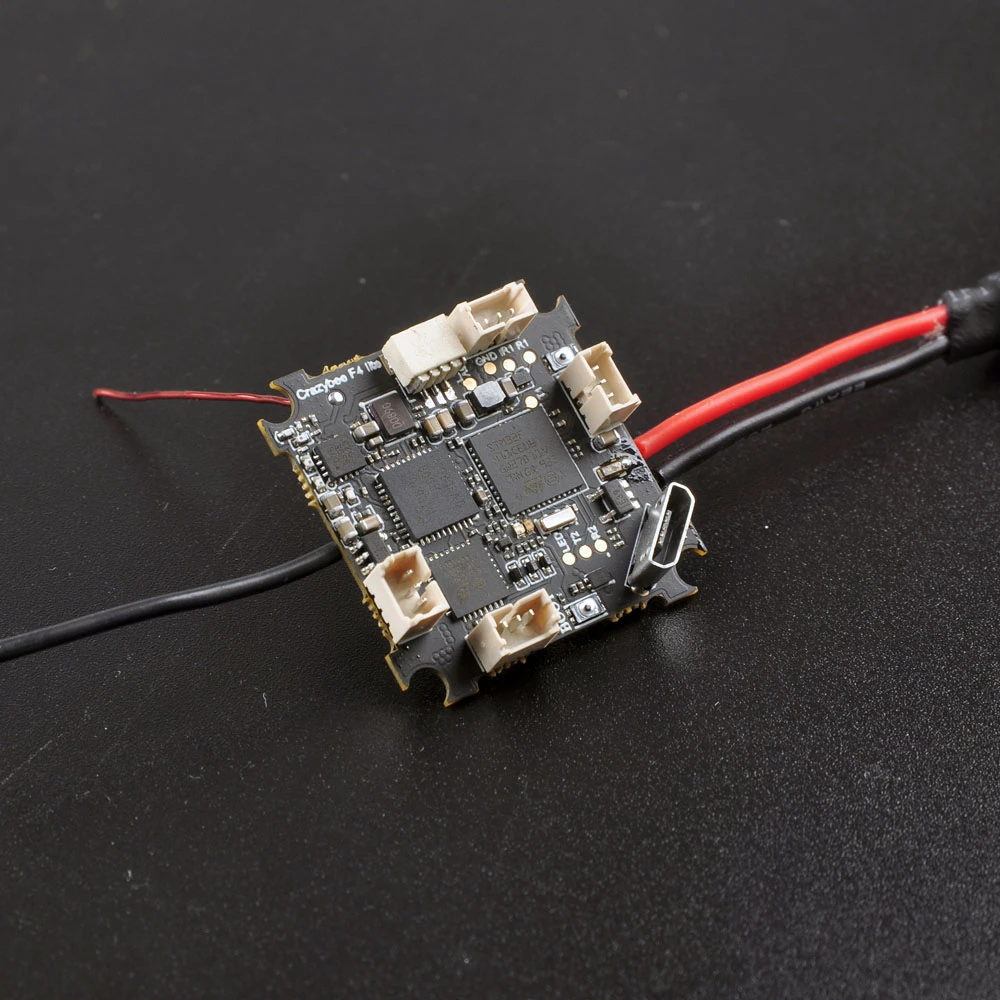

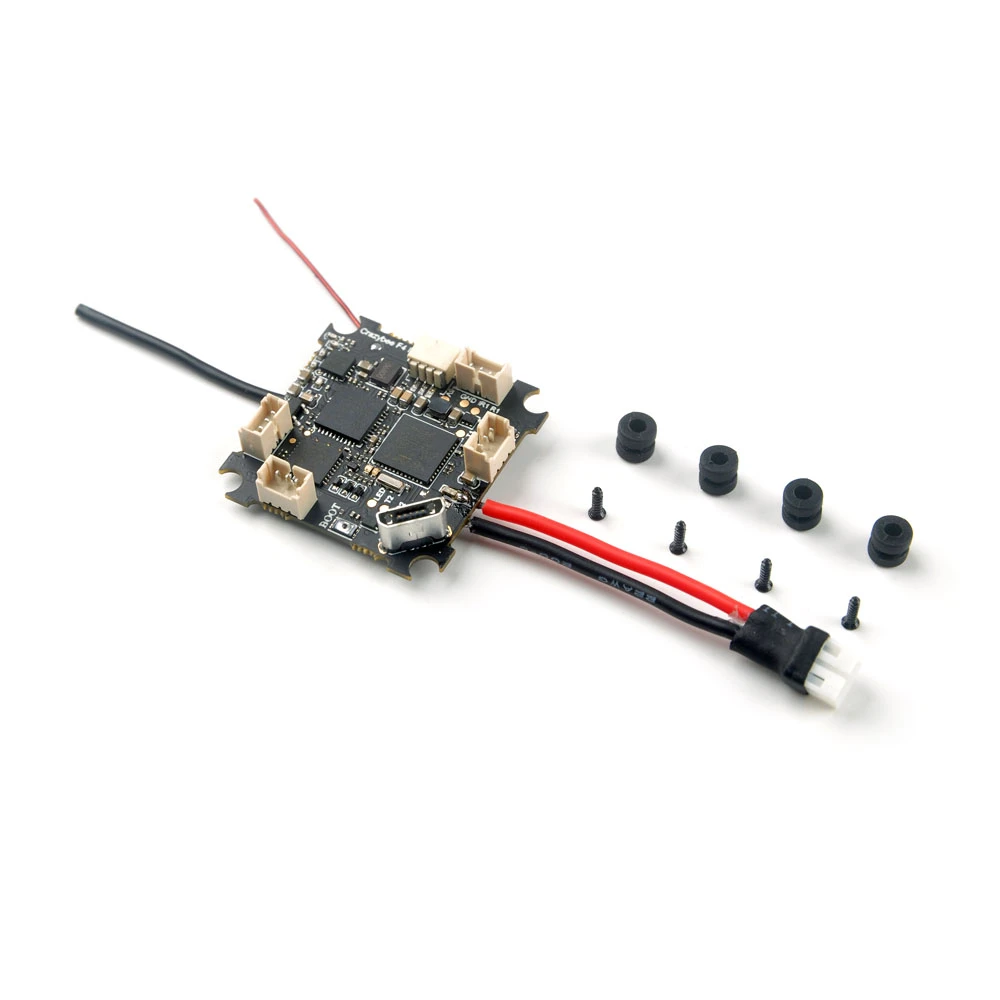

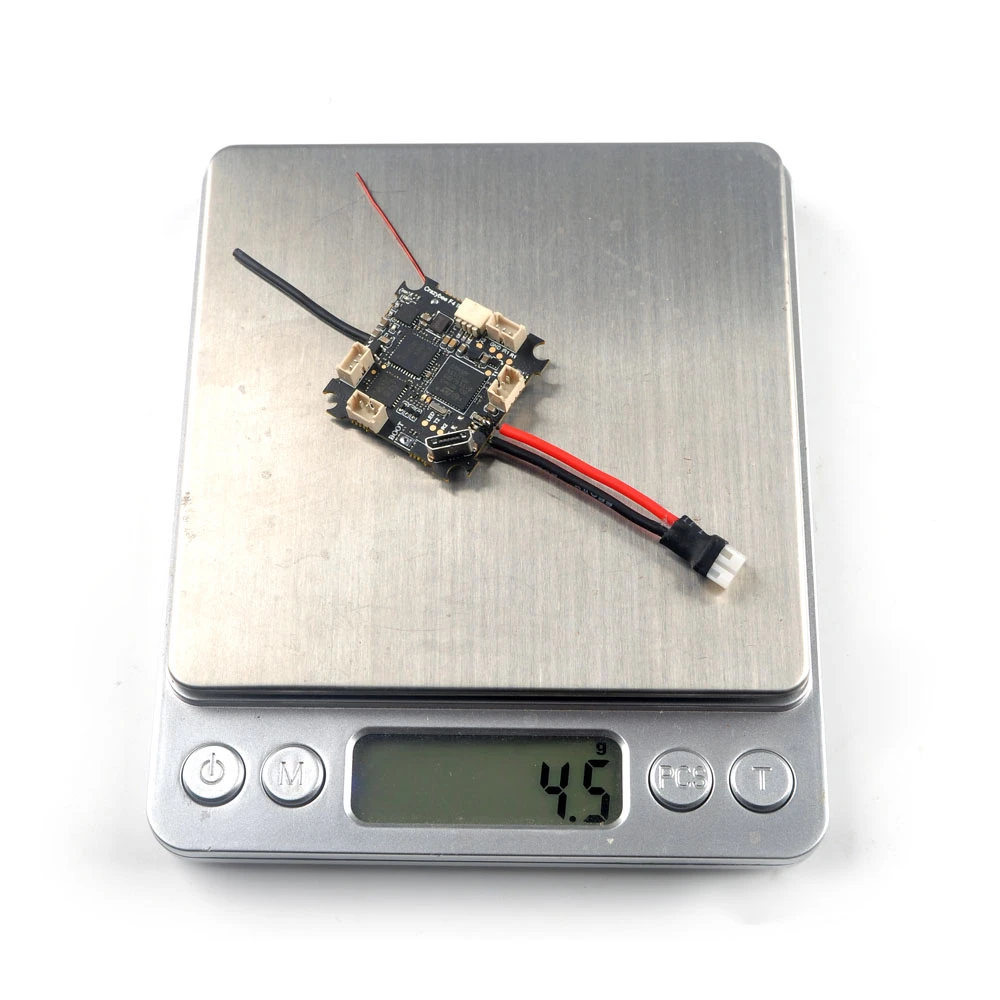

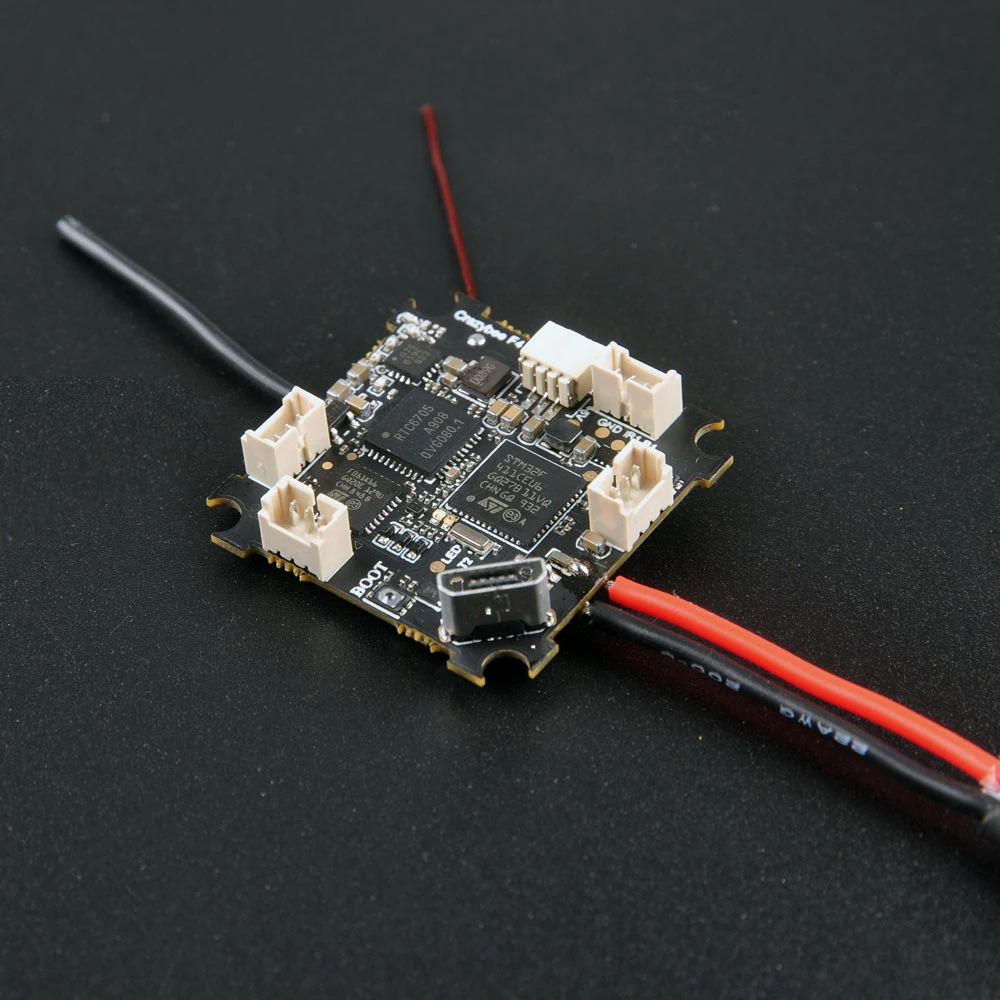

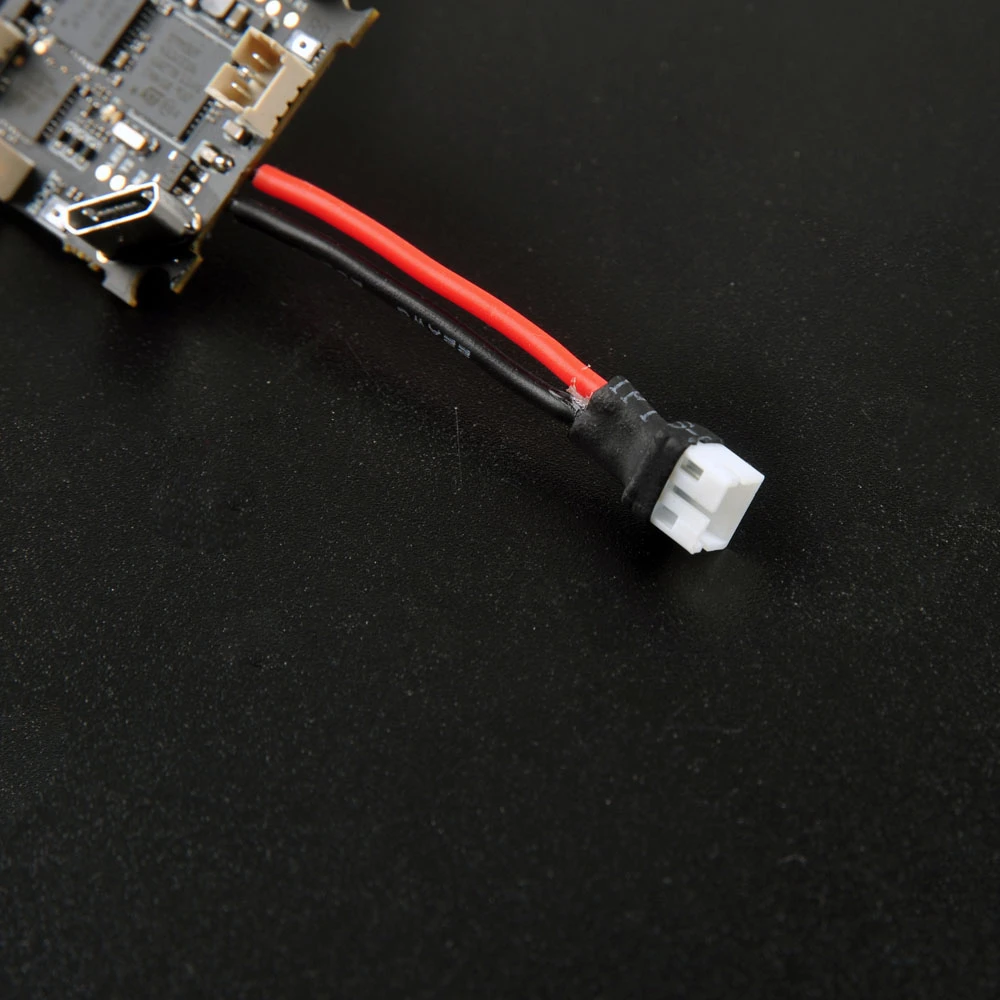

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 2

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 3

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 4

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 5

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 6

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 7

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 8

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller - Image 9

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Toys Model Store 2 1Mobula6

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Toys Model Store 4 1Mobula6

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Toys Model Store 10Mobula6

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Toys Model Store 7 1Mobula6

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Toys Model Store 1 1Mobula6

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Toys Model Store 3 1Mobula6

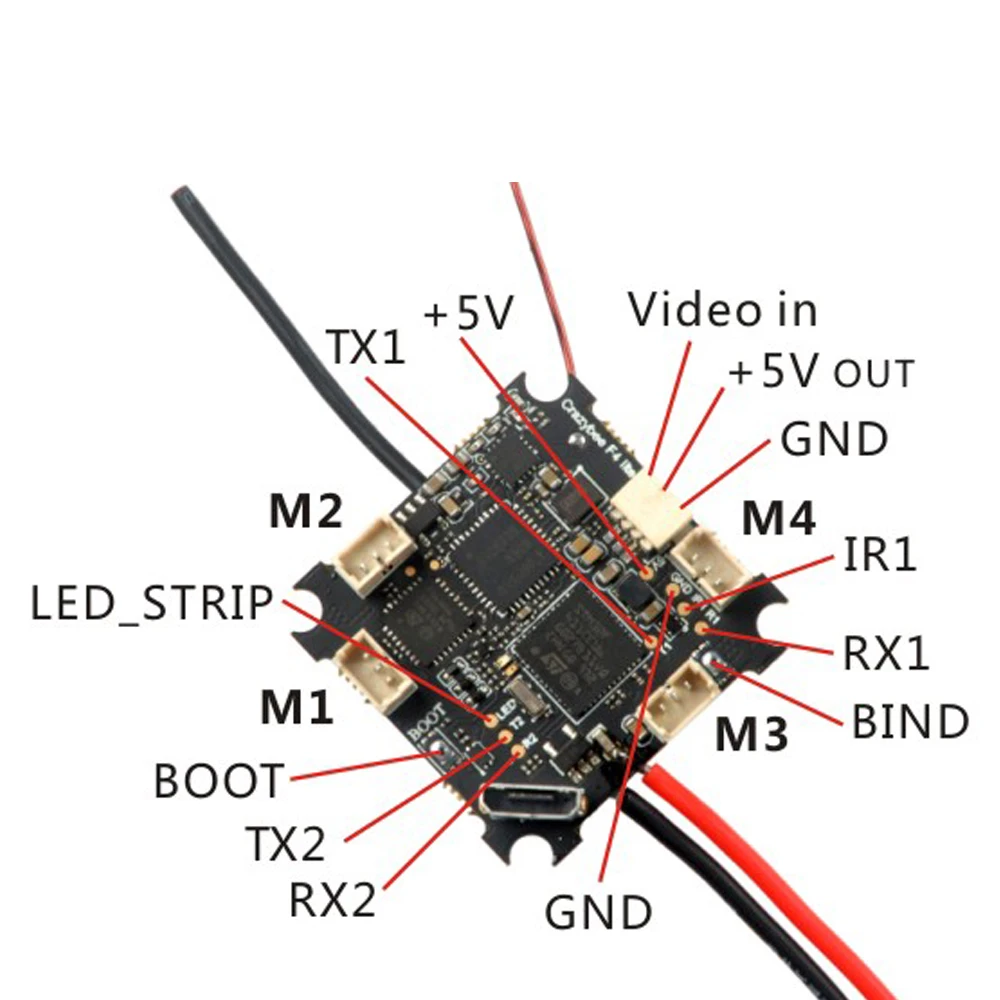

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Toys Model Store Bottom view newMobula6

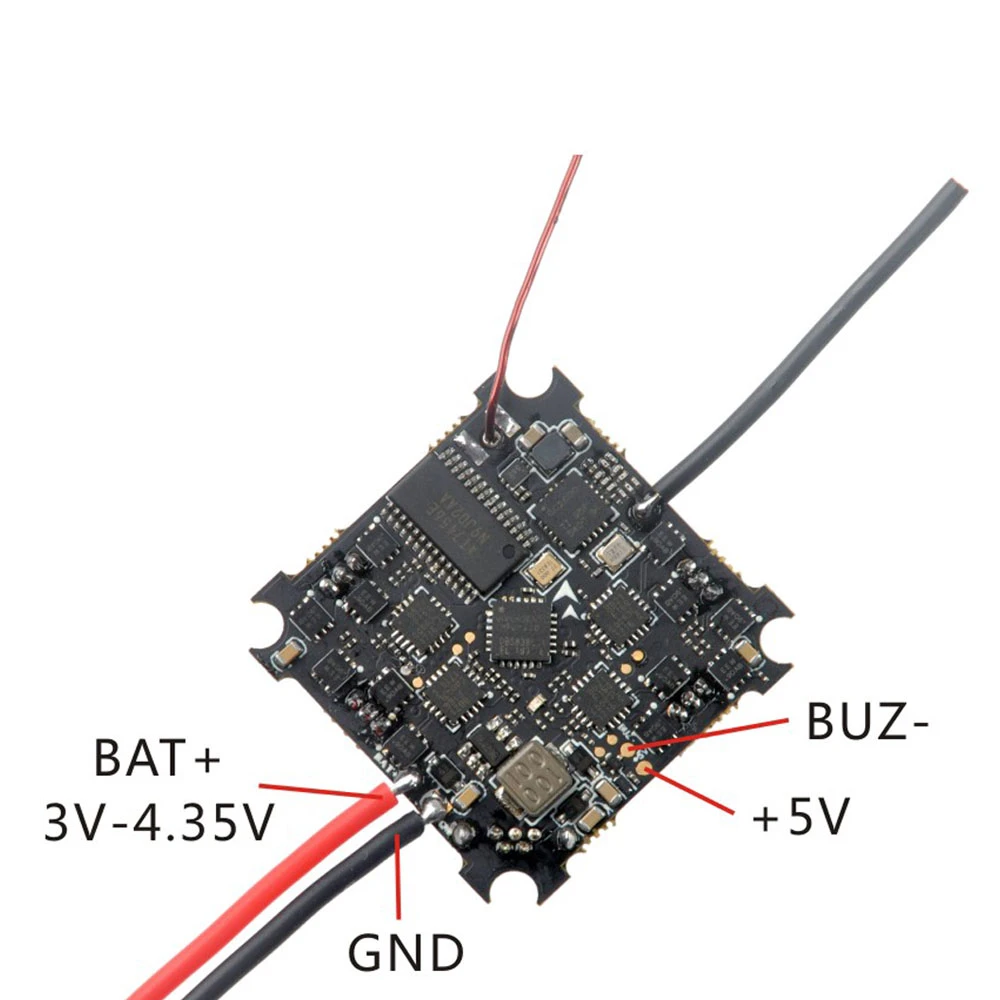

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Toys Model Store Top viewMobula6

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller

Original price was: $59.99.Current price is: $41.99.

SKU: C25OB 11549 Categories: 25x25 FC Whoop, Flight Controllers, MultiRotors

Get the Best for Less
Free Shipping Worldwide
Green products, guaranteed.
Your questions, our prompt answers.

Description
Reviews (0)

SPECS:

Flight controller

(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky receiver

Built-in 5V 1A BEC

Built-in voltage detection

Onboard 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_7.HEX

Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 model

Channels: 8ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Failsafe support

Onboard 5.8g VTX

Output power: 25mw

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 channels

With Race band

Smartaudio ready

Happymodel Mobula6 Crazybee F4 Lite FrSky 1s 4in1(FC/ESC/RX/VTX) Flight Controller -Toys Model Store Bottom view newMobula6
