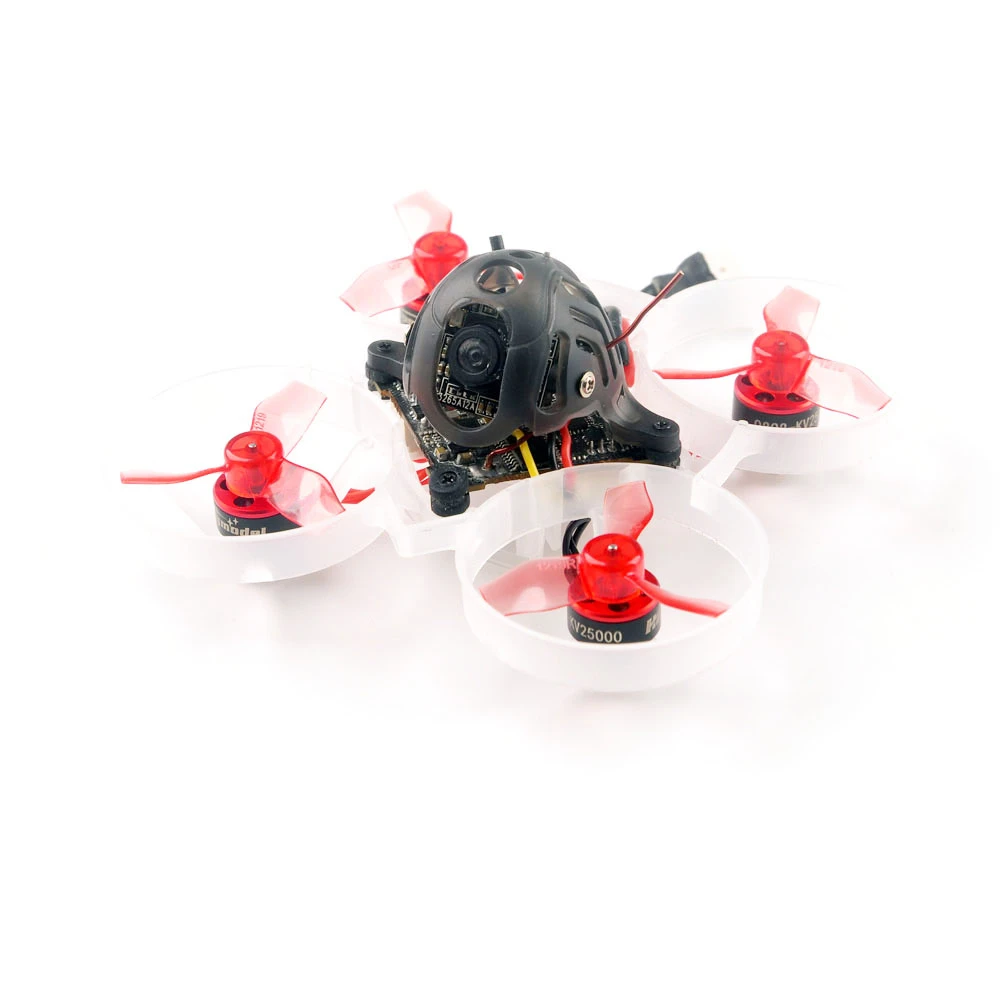

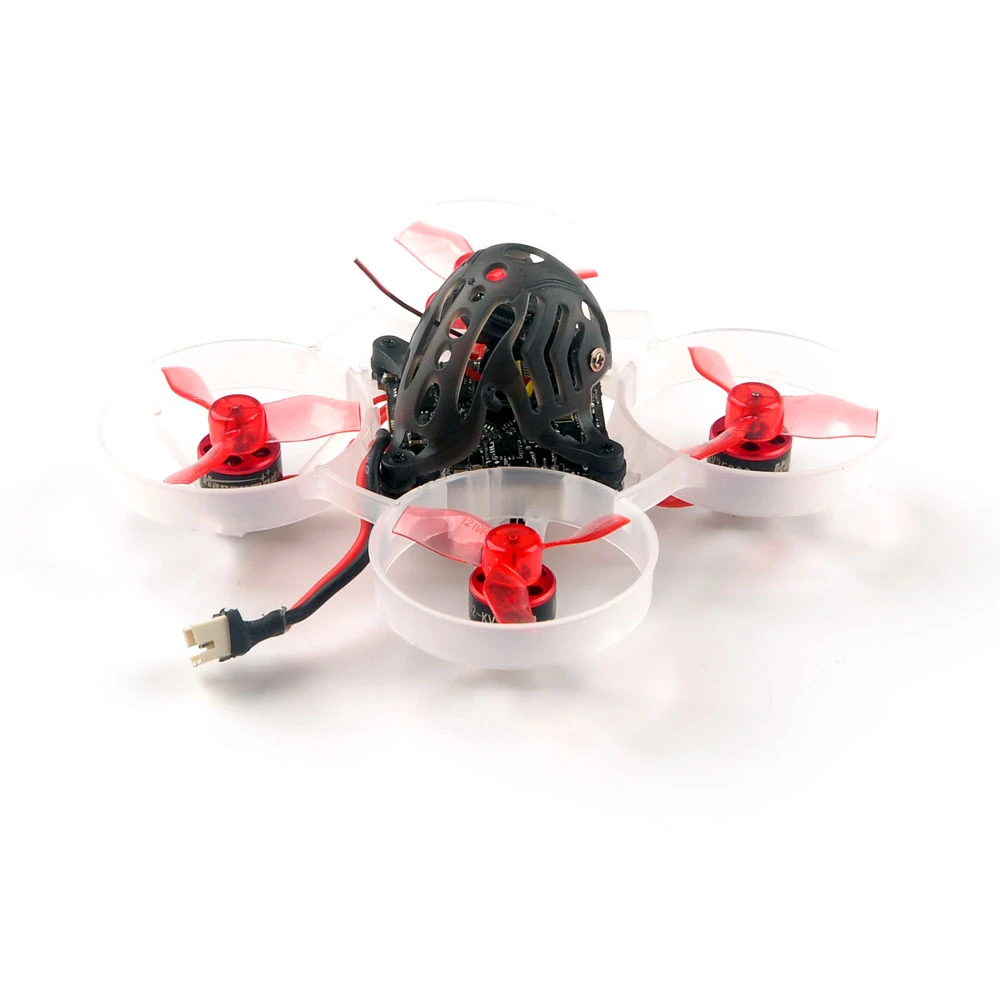

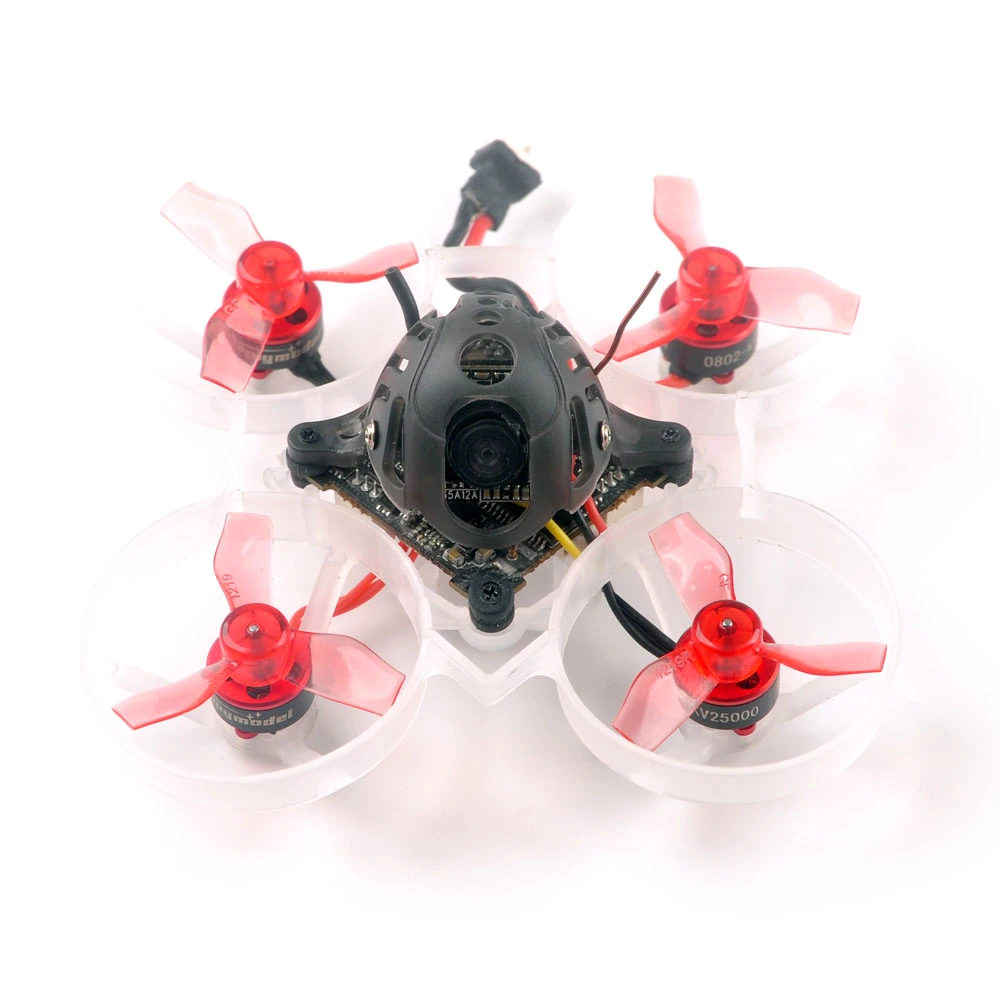

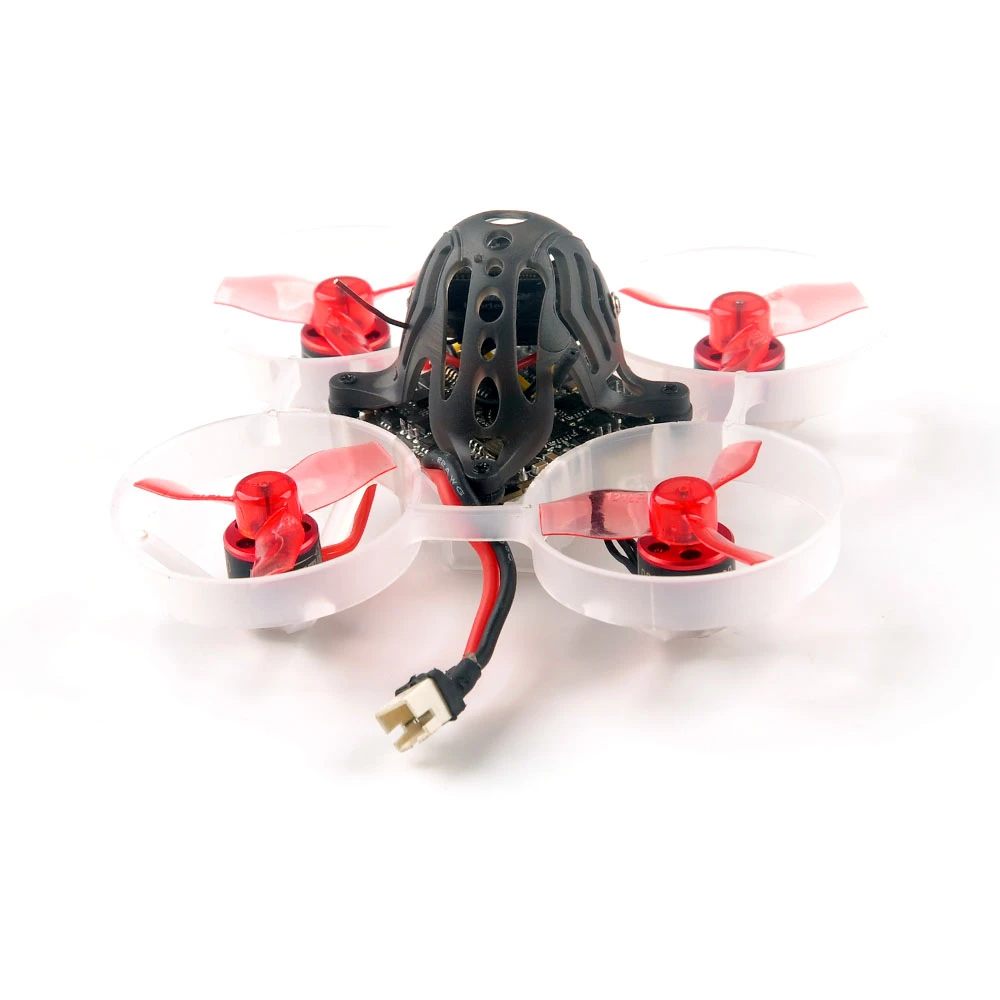

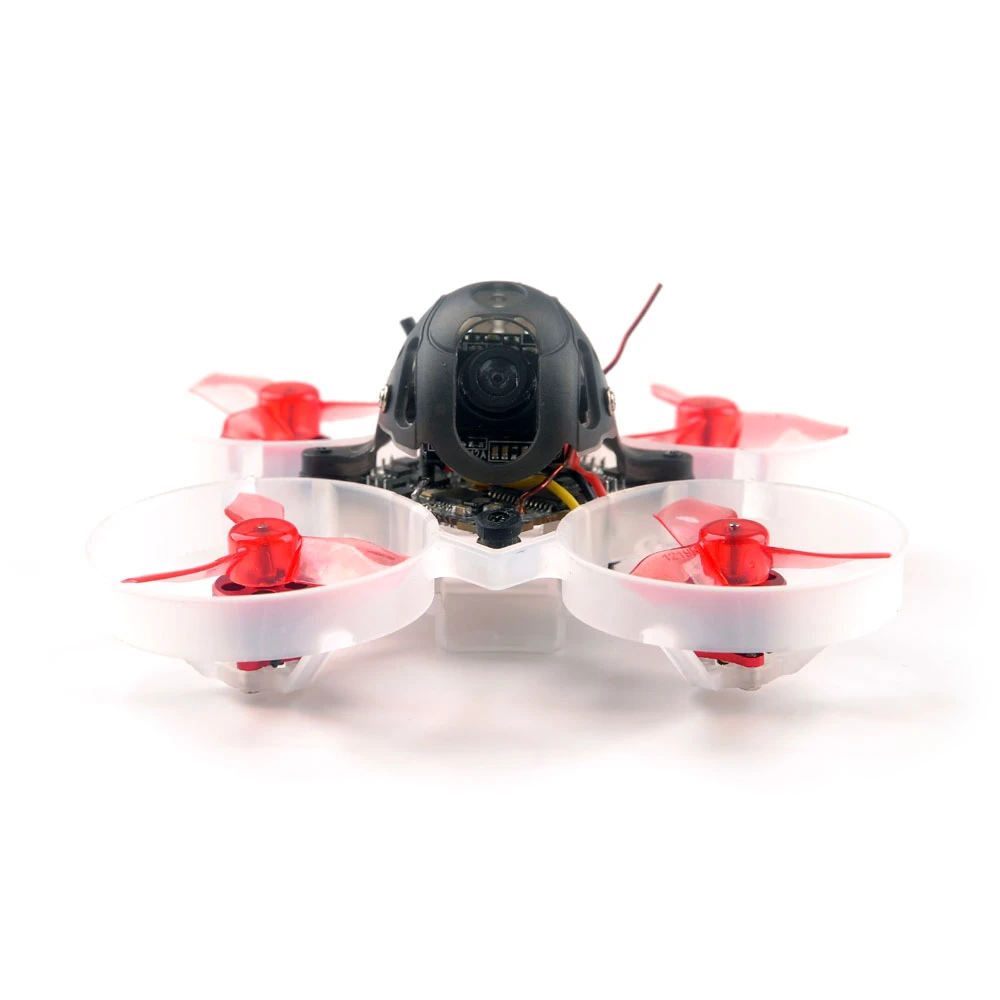

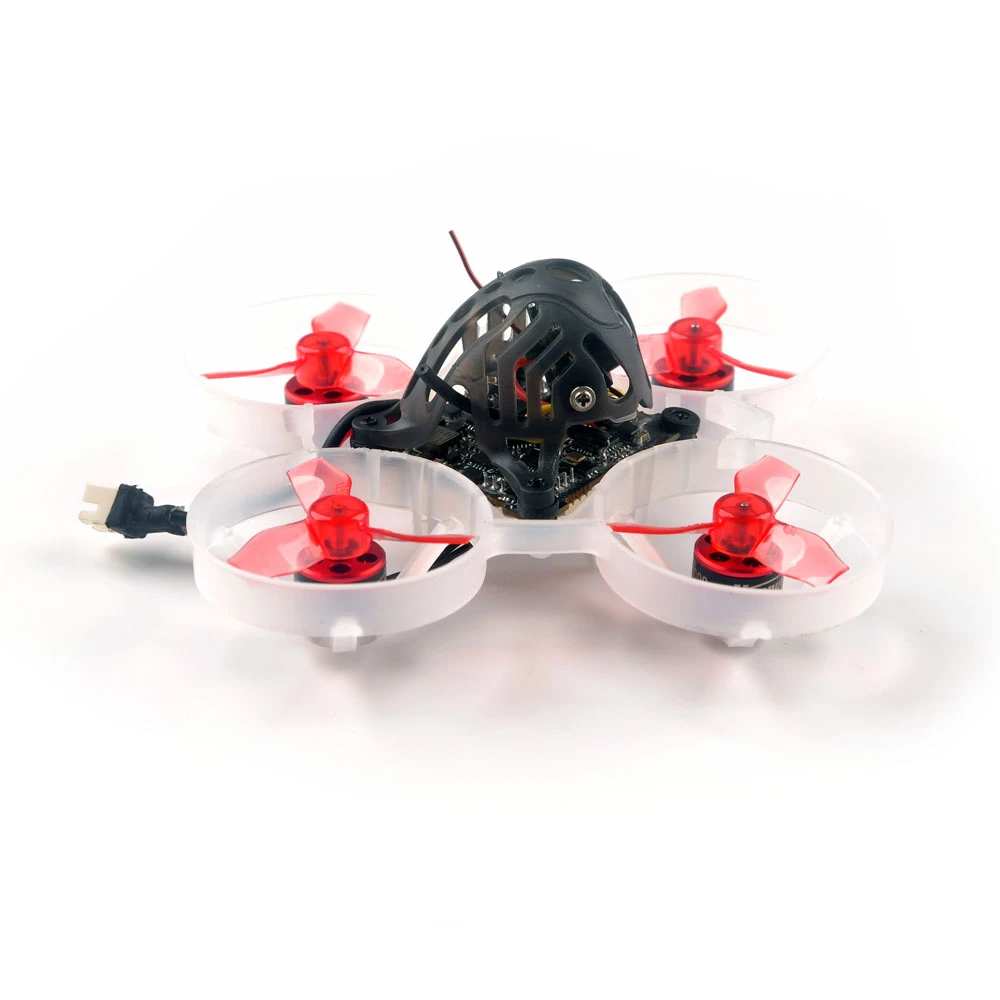

Happymodel Mobula6 1S 65mm Brushless Whoop Regular Edition – FRSKY

Original price was: $103.84.Current price is: $72.69.

SKU: C25OB 11521 Categories: ,
  • Get the Best for Less
  • Free Shipping Worldwide
  • Green products, guaranteed.
  • Your questions, our prompt answers.

Features:

  • AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX
  • Extreme light 1S 65mm Brushless whoop only 20g
  • Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
  • Smooth and powerful
  • Compatible for 1S Lipo/LIHV
  • Camera Angle adjustable


    Specifications:

  • Brand Name: Happymodel
  • Item Name: Mobula6 1S 65mm Brushless whoop drone BNF version
  • Wheelbase: 65mm
  • Size: 80mm*80mm*37mm

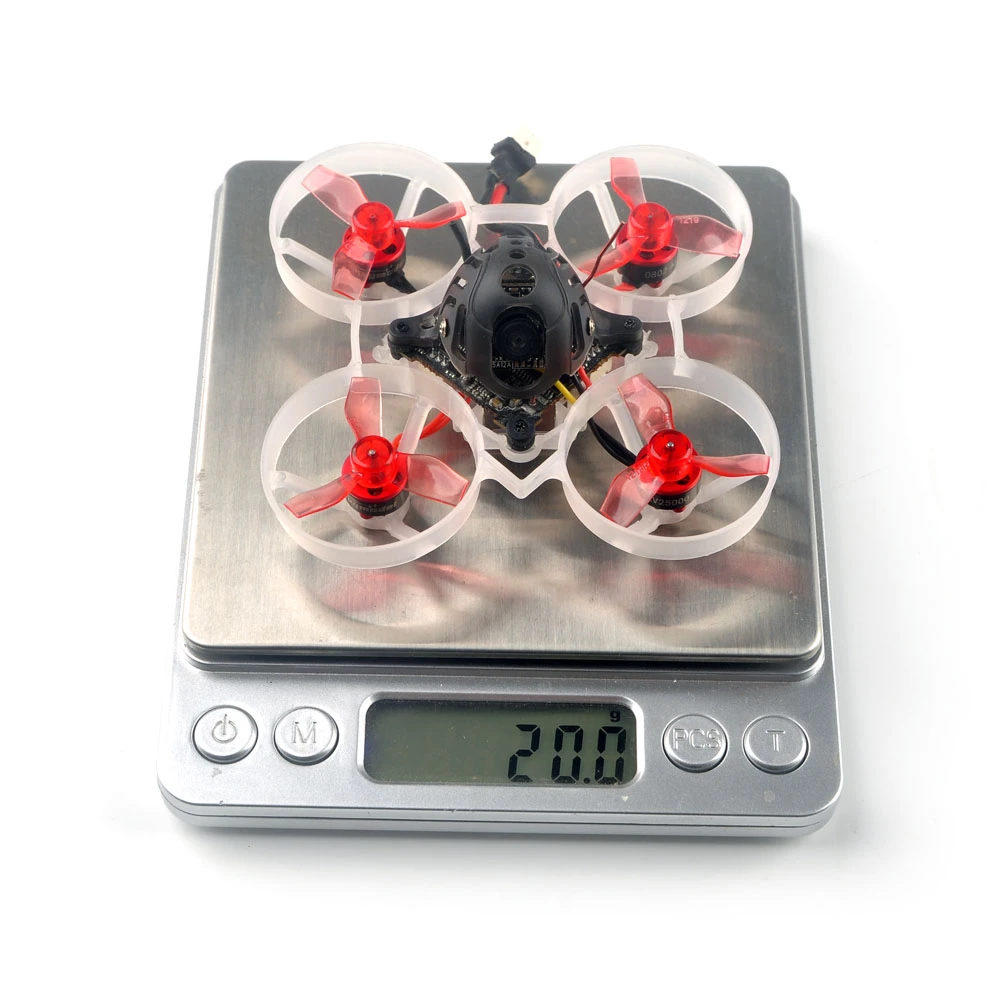

  • Weight: 20g
  • Receiver option:
  • Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
  • Motor speed : SE0802 KV19000(Regular Edition)

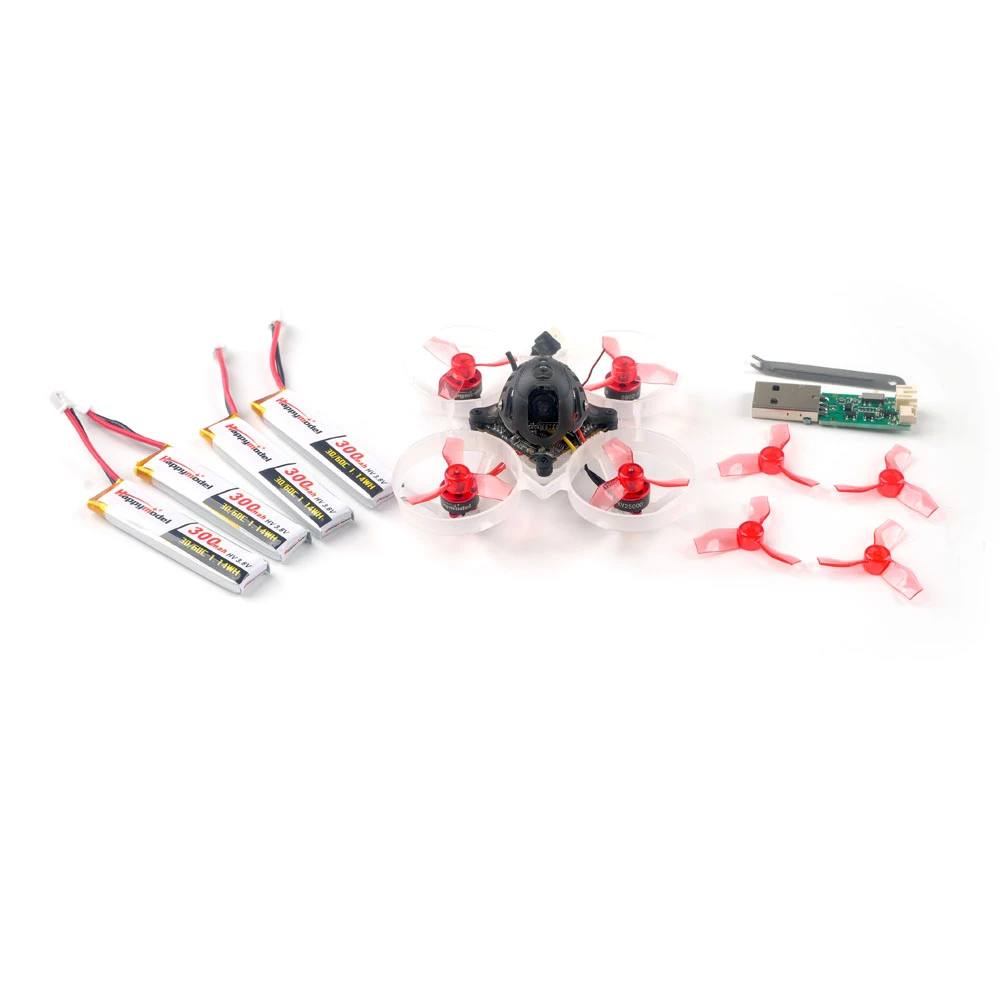

    Package includes:

  • 1x Mobula6 1S 65mm whoop Drone Frame
  • 1x SPI Receiver: Crazybee F4 Lite FC built-in Frsky SPI D8 RX
  • 4x SE0802 KV19000 brushless motor
  • 1x Gemfan 1219-3 Propellers(4cw+4ccw)
  • 1x Runcam Nano3 1/3 CMOS 800TVL camera
  • 1x 5.8G 25mw 40ch vtx (Flight controller built-in)
  • 4x 1S 300mah 30C LiHV Battery
  • 1x 1S Lipo/LIHV USB Charger
  • 1x Propeller disassemble tool


    Spare parts specifications:

  • Motor: SE0802 19000KV
  • Configu-ration:9N12P
  • Stator Diamter:8mm
  • Stator Length:2mm
  • Shaft Diameter:?1mm
  • Motor Dimension(Dia.*Len):?10.5mm*14.9mm
  • Weight(g):1.9g
  • No.of Cells(Lipo):1S only
  • Propellers Gemfan 1219-3
  • Center Thickness:5mm
  • Prop Disk Diameter:31mm
  • Center Hole Inner diameter:1.0mm
  • Weight:0.28g

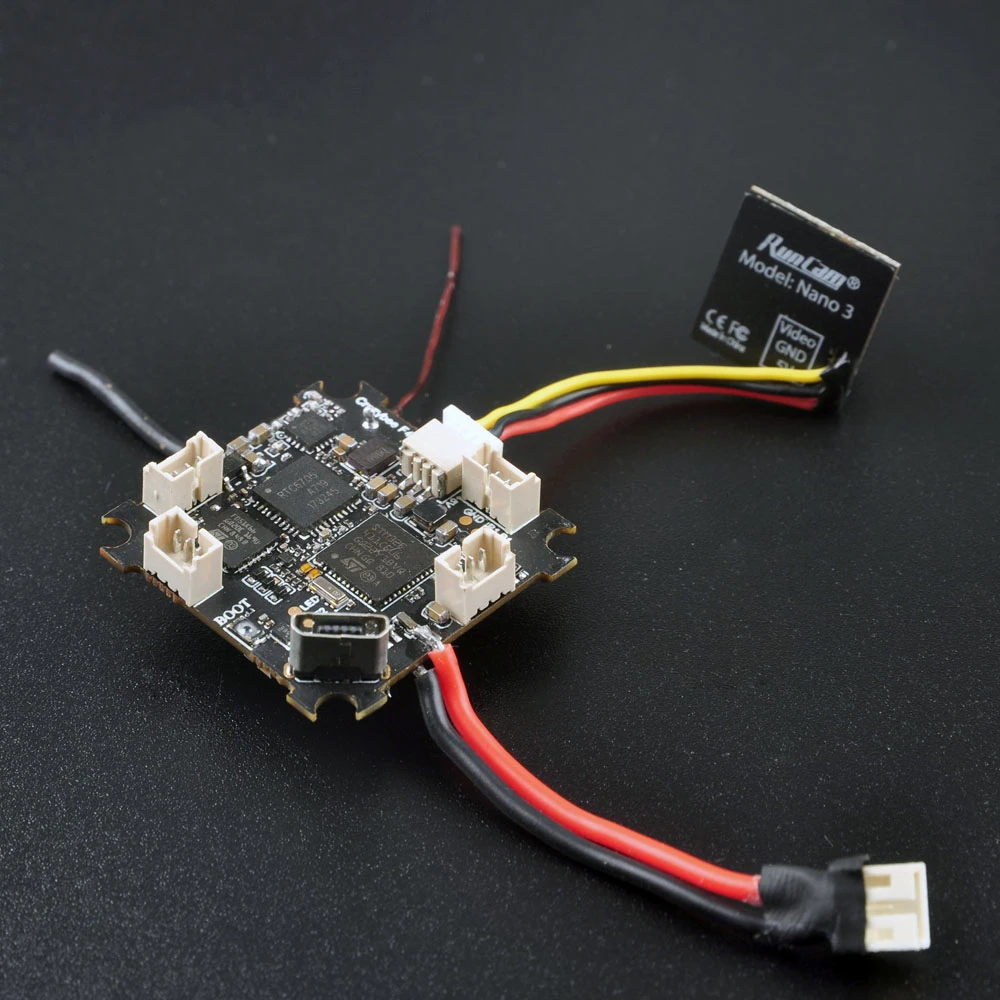

    Flight controller

  • (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: MPU-6000(SPI connection)
  • Board size: 28.5 * 28.5MM
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G VTX
  • Built-in SPI Frsky/Flysky receiver
  • Built-in 5V 1A BEC
  • Built-in voltage detection


    Onboard 4in1 ESC

  • MCU upgraded to EFM8BB21
  • Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_REV16_7.HEX
  • Default protocol: DSHOT600


    Onboard Frsky SPI D8 receiver Version

  • SPI BUS receiver Frsky D8 compatible
  • Compatible Non EU transmitter D8 modelChannels: 8ch
  • Failsafe support
  • No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m


    Onboard 5.8g VTX

  • Output power: 25mw
  • Frequency: 40CH
  • Input voltage: 3.3V 5.5V
  • Current consumption: 300mA(type)
  • Frequency: 5.8GHz 5bands 40 channels
  • With Race bandSmartaudio ready


    Runcam Nano3

  • Model: RunCam Nano 3
  • Image Sensor: 1/3? CMOS
  • Horizontal Resolution: 800TVL
  • Lens : 2.1mm(M8) FOV 160�
  • Signal System: NTSC
  • S/N Ratio: >50dBElectronic Shutter Speed: Auto
  • Auto Gain Control (AGC): Auto
  • Min. Illumination: [email protected]
  • D-WDR: Auto
  • Day/Night: Color
  • Power:DC 3-5.5V
  • Current: 110mA@5V [email protected]
  • Housing Material: ABS
  • Net Weight: 1.2g
  • Dimensions: L14mm*W14mm*H9mm


    Lipo Battery

  • Capacity:300mAh
  • Voltage:3.8v
  • Continuous Discharge Rate: 30C
  • Size: 57mmx12mmx7mm
  • Weight: 8gConnector: PH2.0
