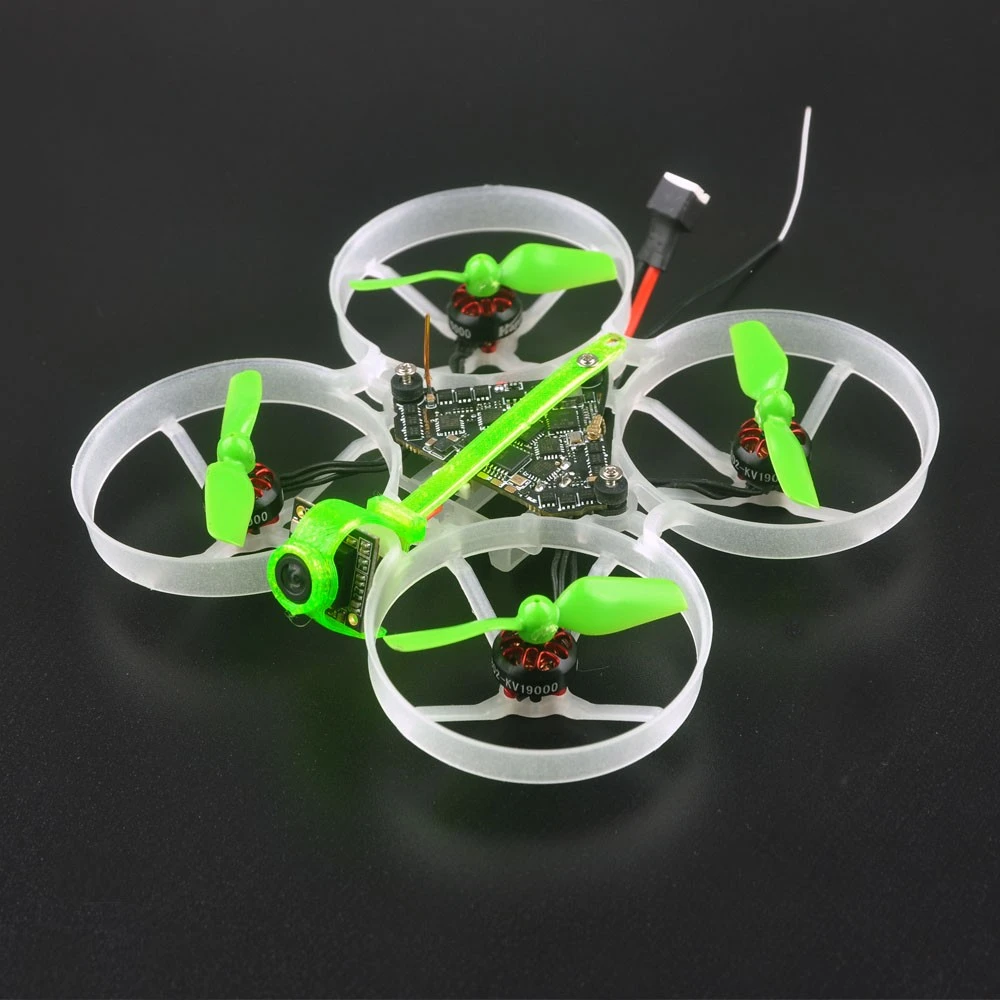

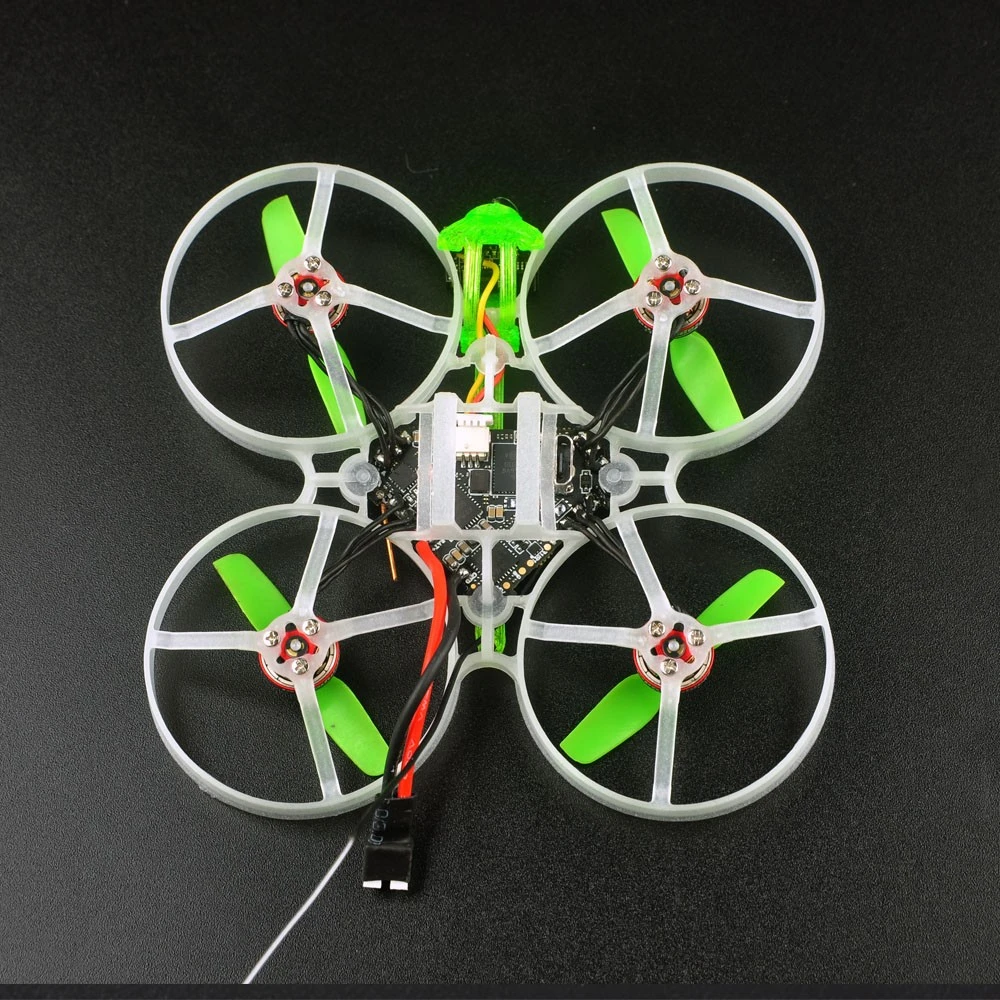

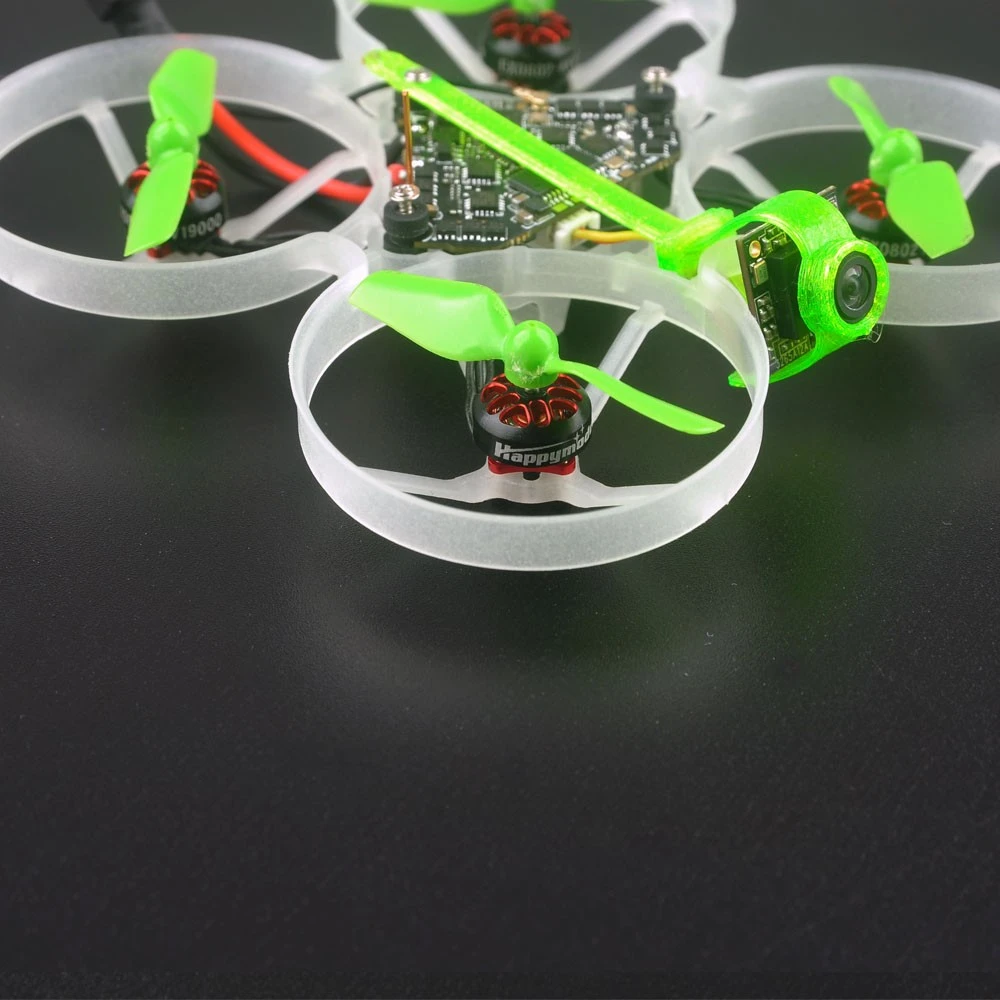

Happymodel Moblite7 Ultralight 1S 75mm Brushless Whoop – BNF SPI Flysky

Introducing the Moblite7 Ultralight FPV Brushless Whoop! Made in collaboration with FPV pilot “Mr Shutterbug,” this whoop is one of the lightest 75mm drone in the market! The Moblite7 features the RunCam Nano3, Onboard SPI Frsky D8 Receiver, DiamondF4 FR FC, 5A BLheli_S 4-in-1 ESC, 5.8GHz VTX, and more! This mini and lightweight whoop (75mm) will take you to hard-to-get places!

Features

The lightest 1s 75mm brushless whoop

Powerful and efficiency

The lightest 1s AIO 5IN1 F4 flight controller

New Unibell EX0802 brushless motors
VTX power switchable 25mw~200mw

Low profile Canopy design

Specifications

Brand Name: Happymodel

Item Name: Moblite7 1S 75mm ultra-light brushless whoop

Wheelbase: 75mm

Size: 97mm*97mm*25mm

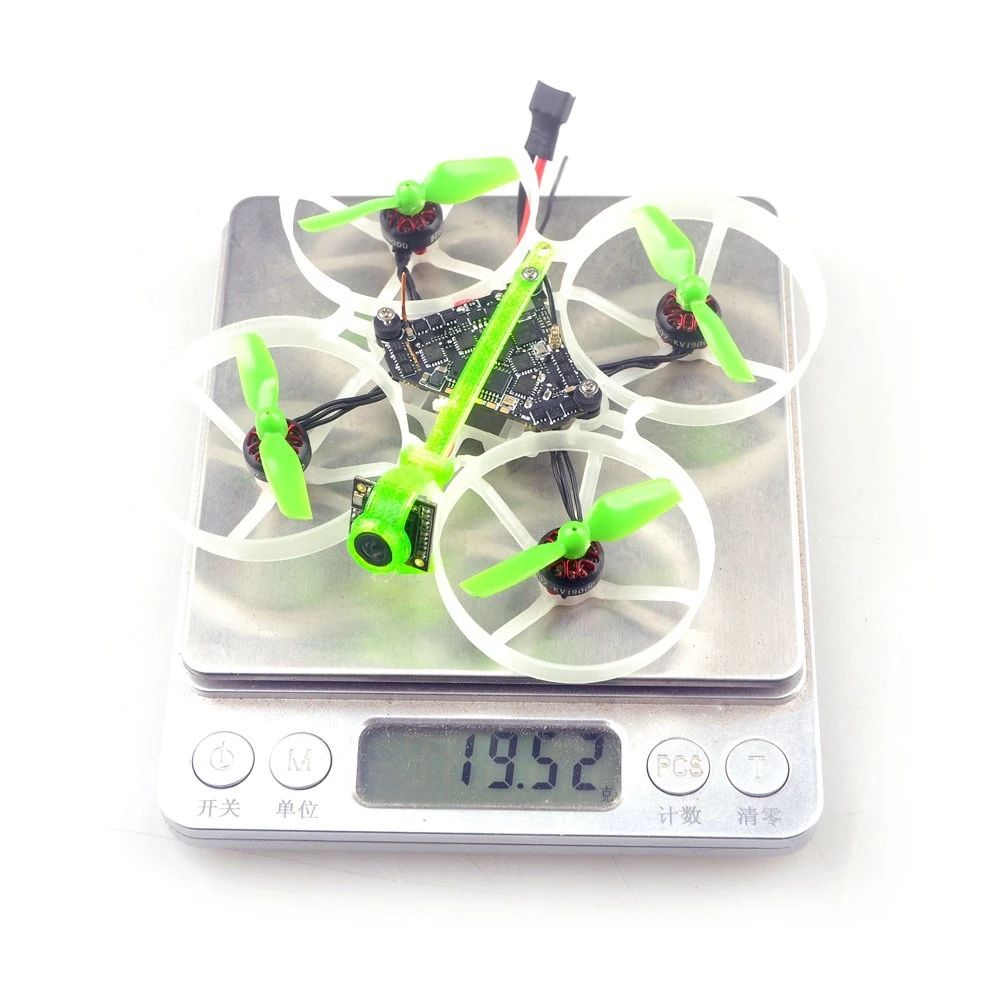

Weight: 19.5g (without battery)

Weight:36g(with Original 1s 650mah Lipo battery )

Motor

Mode: EX0802 19000KV

Configu-ration:9N12P

Stator Diamter:8mm

Stator Length:2mm

Shaft Diameter:?1mm

Motor Dimension(Dia.*Len):?10.5mm*14.9mm

Weight(g):1.7g

No.of Cells(Lipo):1S only

Flight Controller

(Flysky SPI RX version)DiamondF4 FS FC Firmware target: CrazybeeF4FS

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)
Original whoop size compatible

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky/Flysky receiver

Built-in 5V 1A BEC

Onboard 4-in-1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_50_REV16_8.HEX

Default protocol: DSHOT600

Onboard Flysky SPI receiver Version

SPI BUS receiver

Protocol: AFHDS and AFHDS-2A Switchable

Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard 5.8GHz VTX

Output power: 25mw~200mw switchable

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 channels(include Race band)

Smart audio ready

Runcam Nano3

Model: RunCam Nano 3

Image Sensor: 1/3? CMOS

Horizontal Resolution: 800TVL

Lens : 2.3mm(M6.5) FOV 140°

Signal System: PAL/NTSC Non-Switchable

S/N Ratio: >50dB

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: [email protected]

D-WDR: Auto

Day/Night: Color

Power: DC 3-5.5V

Current: 110mA@5V [email protected]

Housing Material: ABS

Net Weight: 1.2g

Dimensions: L14mm*W14mm*H9mm

Lipo Battery

Capacity:650mAh

Voltage:3.8v

Continuous Discharge Rate: 30C

Instantaneous discharge rate: 60C

Size: 60mmx18mmx8mm

Weight: 16g

Connector: PH2.0

Includes

1 x 75mm Frame (Mobula7 frame)

1 x Option2: DiamondF4 FS built-in SPI Flysky receiver

4 x EX0802 KV19000 Unibell brushless motor

1 x HQPROP 40MMX2 propeller(4cw+4ccw)

1 x Runcam Nano3

1 x Built-in 5.8G 40ch 25mw-200mw VTX

2 x 1s 650mah Lipo battery

1 x Propeller disassemble tool

1 x Screwdriver

1 x Happymodel Carry case
