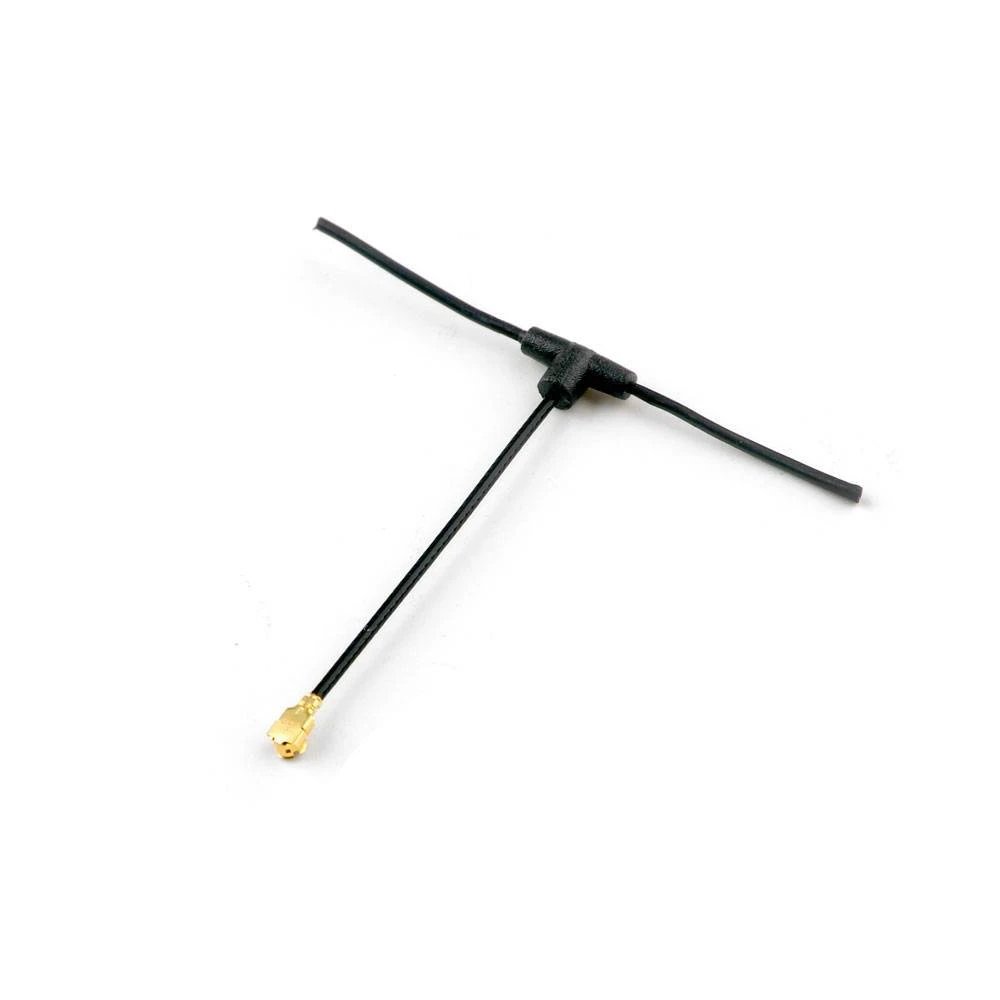

Happymodel ELRS EP1 RX 2.4GHz Antenna – 40mm

This Happymodel ExpressLRS (ELRS) Omnidirectional U.FL Antenna is for the EP1 RX 2.4GHz Nano series receiver. The EP1 RX has an open-source program based on ExpressLRS. Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV Racing and Long Range FPV. These are very suitable for Tiny whoops because of the ultra-light and Nano size!

Note: This is the antenna only. The EP1_RX is sold separately.

Features

Designed by Jye Smith on the ExpressLRS development team.

Omnidirectional

Specifications

Antenna length: Optional 40mm (Regular)

Peak Gain Position (Theta): 180.00

Upper Hem. Efficiency (%): 39.93

Lower Hem. Efficiency (%): 41.54

Peak Gain Position (Phi): 330.00

Efficiency ThetaPol (%): 20.90

Efficiency PhiPol (%): 60.56

Frequency (MHz): 2400.0

Compatability: EP1_RX

Antenna width: 52mm

Efficiency (dBi): -0.89

Efficiency (%): 81.46

Directivity (dB): 5.12

Connector: U.FL

Gain (dBi): 2.23

Includes

1x Happymodel ExpressLRS EP1 RX 2.4GHz Omnidirectional U.FL Antenna (40mm)
