Happymodel Diamond F4 FR 5-in-1 AIO Flight Controller W/ Built-In ESC, VTX, Receiver - SPI Frsky

Happymodel Diamond F4 FR 5-in-1 AIO Flight Controller W/ Built-In ESC, VTX, Receiver - SPI Frsky - Image 2

Happymodel Diamond F4 FR 5-in-1 AIO Flight Controller W/ Built-In ESC, VTX, Receiver - SPI Frsky - Image 3

Happymodel Diamond F4 FR 5-in-1 AIO Flight Controller W/ Built-In ESC, VTX, Receiver - SPI Frsky - Image 4

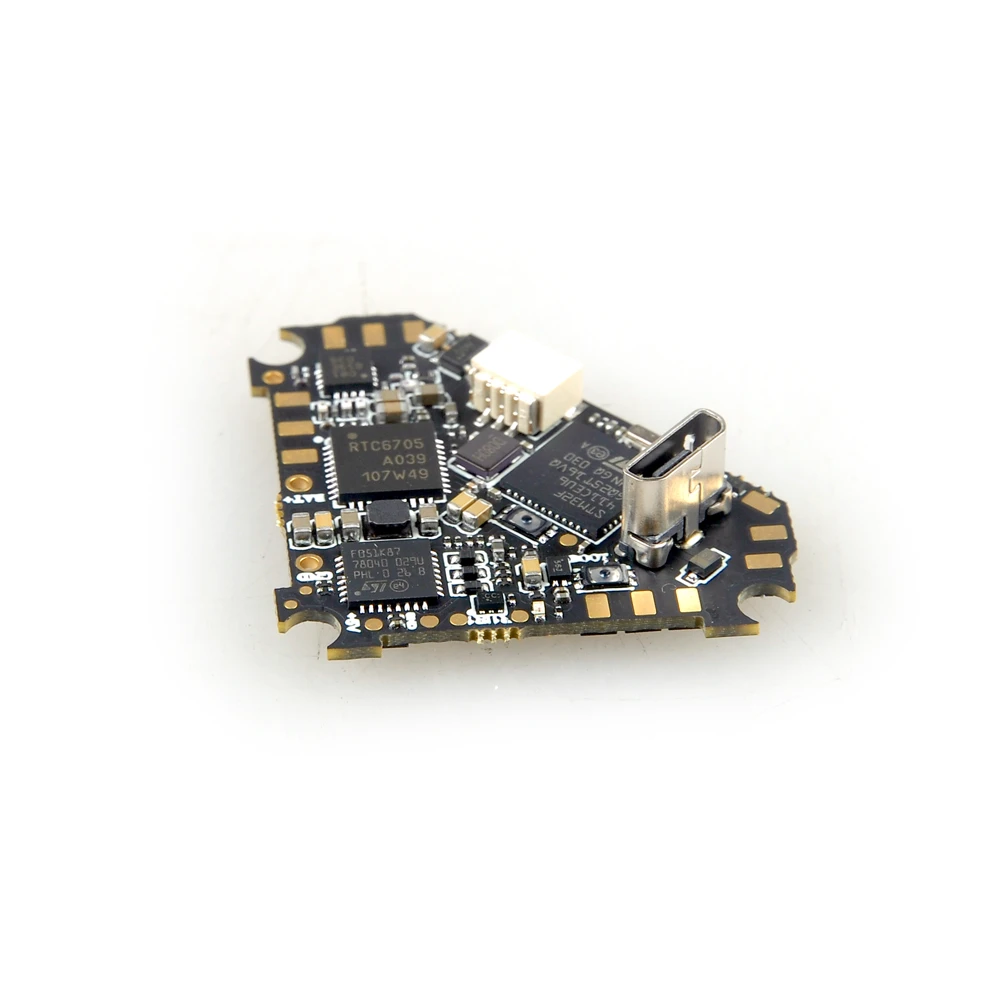

Happymodel Diamond F4 FR 5-in-1 AIO Flight Controller W/ Built-In ESC, VTX, Receiver - SPI Frsky -Toys Model Store diamondf42 1

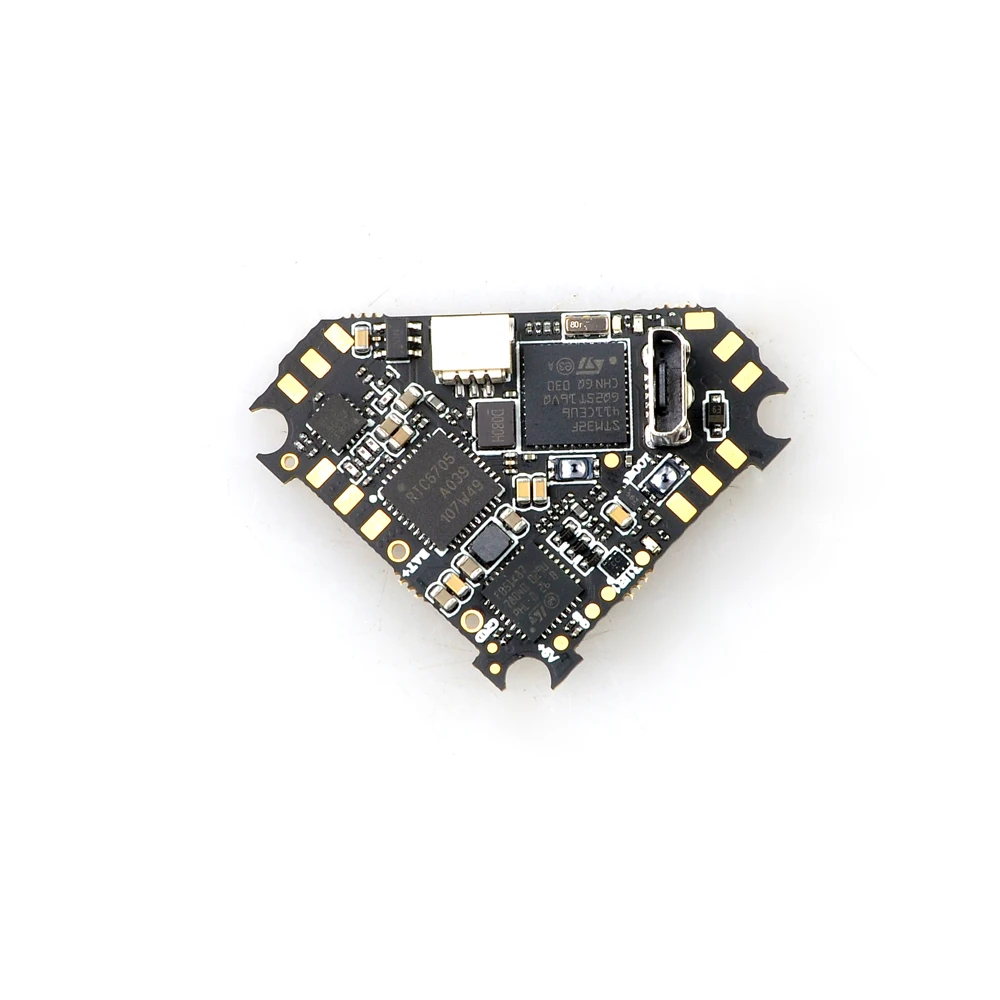

Happymodel Diamond F4 FR 5-in-1 AIO Flight Controller W/ Built-In ESC, VTX, Receiver - SPI Frsky -Toys Model Store diamondf43 1

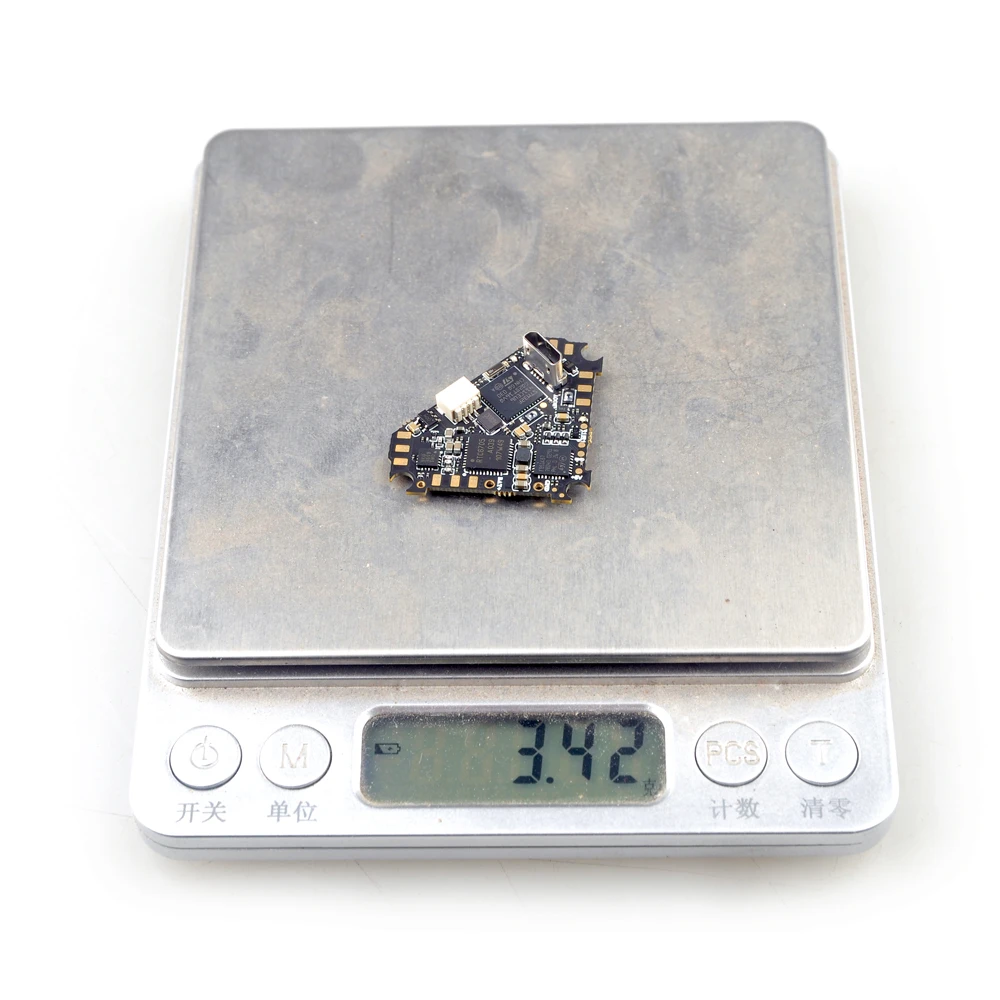

Happymodel Diamond F4 FR 5-in-1 AIO Flight Controller W/ Built-In ESC, VTX, Receiver - SPI Frsky -Toys Model Store diamondf44 1

Happymodel Diamond F4 FR 5-in-1 AIO Flight Controller W/ Built-In ESC, VTX, Receiver – SPI Frsky

Original price was: $62.99.Current price is: $44.09.

SKU: C25OB 12798 Categories: 25x25 FC Whoop, Flight Controllers, MultiRotors

Get the Best for Less
Free Shipping Worldwide
Green products, guaranteed.
Your questions, our prompt answers.

Description
Reviews (0)

Happymodel Diamond F4 FR 5-in-1 AIO Flight Controller W/ Built-In ESC, VTX, Receiver - SPI Frsky -Toys Model Store diamondf4Frsky

This flight controller is inspire from Happymodel Official Pilot “Angry Don FPV“

Flight controller

(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Original whoop size compatible

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Betaflight OSD(SPI Control)

Built-in 5.8G VTX

Built-in SPI Frsky/Flysky receiver

Built-in 5V 1A BEC

Onboard 4in1 ESC

MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_8.HEX

Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

SPI BUS receiver Frsky D8 compatible

Compatible Non EU transmitter D8 modelChannels: 8ch

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard 5.8g VTX

Output power: 25mw~200mw switchable

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 300mA(type)

Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready
