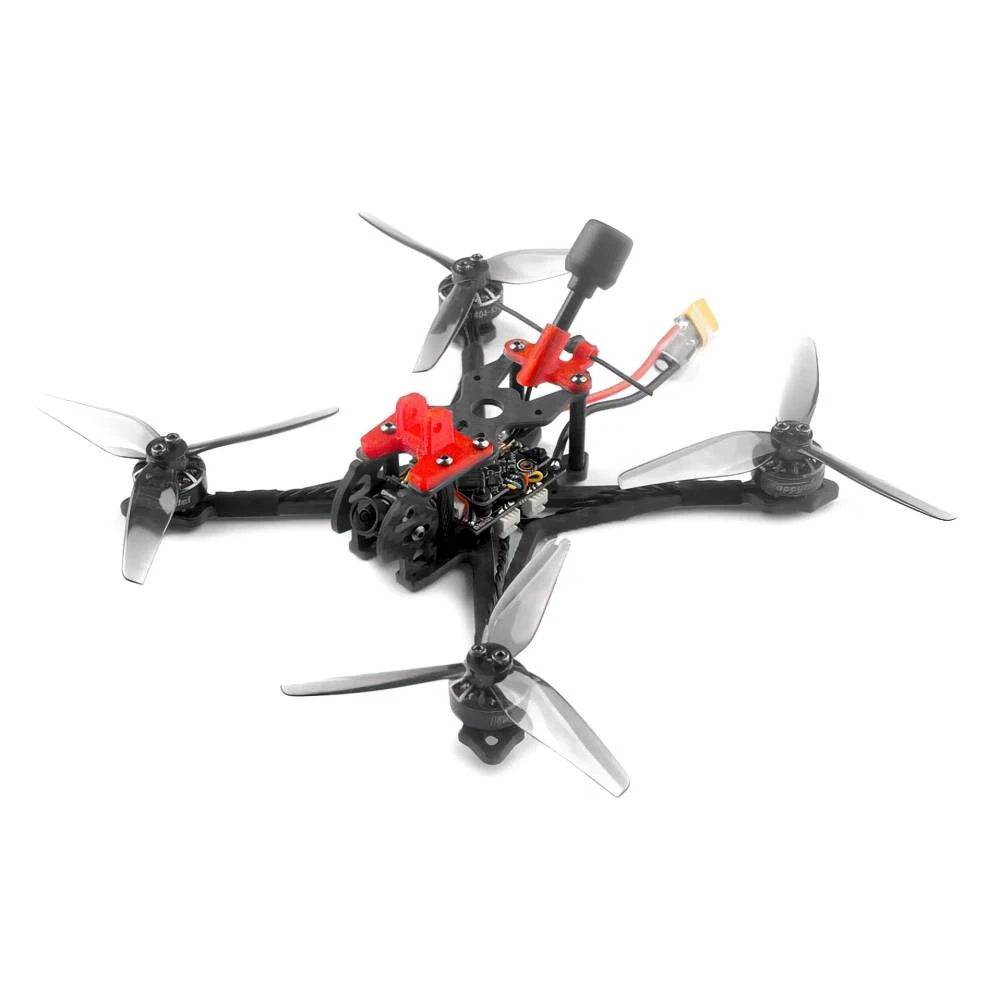

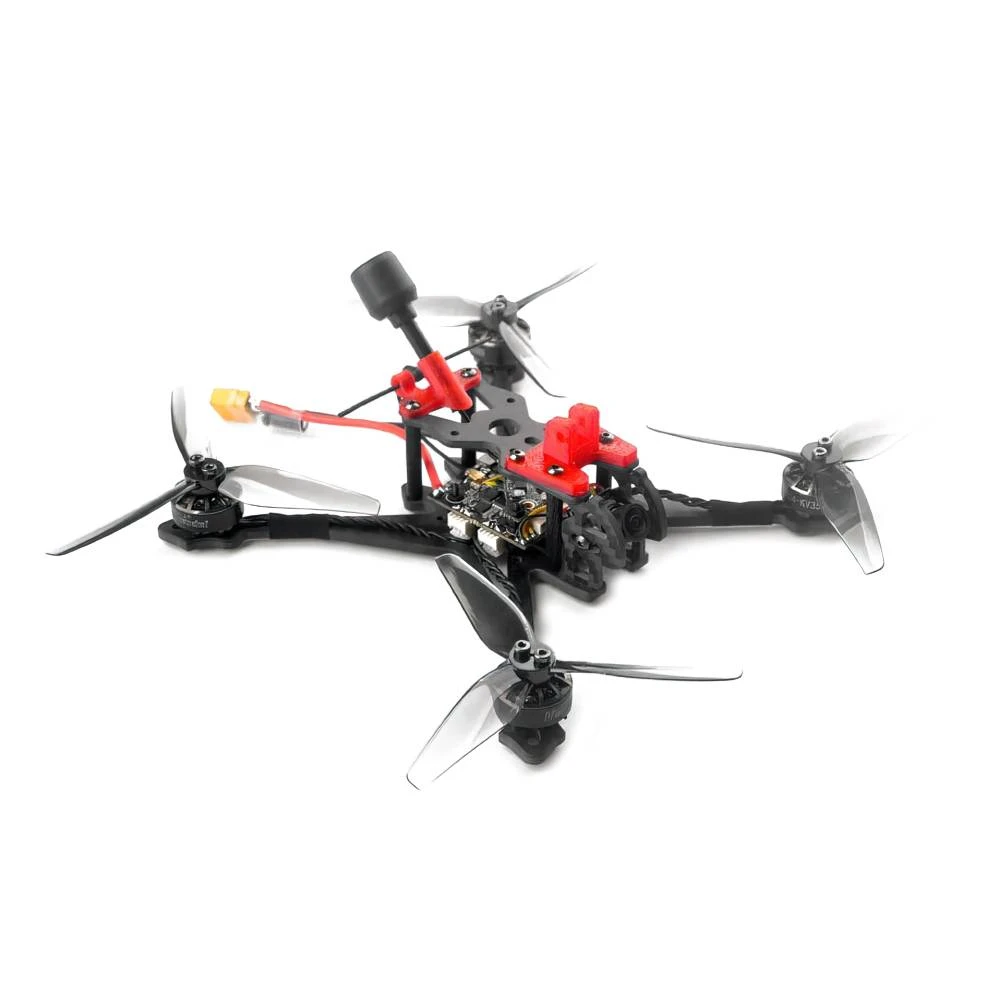

Happymodel Crux35 4S Analog Freestyle Racing Drone W/ Caddx Ant Camera – BNF FRSKY

The Happymodel Crux35 Analog is an ultra-lightweight 3.5″ drone by Happymodel is an excellent micro racing drone that comes with the CrazyF411 flight controller, EX1404 brushless motors, and the CaddxAnt FPV Camera. The HQPROP 3.5-inch three-blade propellers ensure the largest thrust-to-weight ratio.

Receiver options: Integrated SPI ELRS or SPI FrSky D8/D16

Note: SPI FrSky version comes with Betaflight 3.5.7 firmware in order to get a better RSSI range. Bind code is “Frsky_bind” in the CLI Command.

Features

Integrated Frsky SPI D8/D16 receiver

Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone

High efficiency EX1404 power system

Analog video transmission

Supports 3-4S battery

Specifications

Receiver option: SPI Frsky D8/D16 (S-FHSS compatible)

Size: 130mmx130mmx45mm (without propellers)

Flying time: 9min~15min 4s 750mah battery

Weight: Crux35 Analog 87gram

Product name: Crux35 Analog

Camera option: Caddx Ant

Wheelbase: 150mm

Brand: Happymodel

CADDX ANT CAMERA

Model: Caddx Ant – 1200TVL 1.8mm FPV Nano Camera (14×14)

Electronic Shutter: PAL: 1/50~100, 000; NTSC: 1?60~1000, 000

Dimensions: 14*14mm (with a bracket to 19*19mm)

TV System: NTSC & PAL (Changeable)

Image Sensor: 1/3″ CMOS Sensor

Min. Illumination: [email protected]

Horizontal Resolution: 1200TVL

Work Temperature: -20C~+60C

S/N Radio: >52dB (AGC OFF)

Wide Power Input: DC 3.7-18V

Work Humidity: 20%~80%

Synchronization: Internal

Auto Gain Comtrol: Yes

Video Output: CVBS

WDR: Global WDR

Image: 16:9 or 4:3

Weight: 2g (N.W.)

Menu: Support

DNR: 3D DNR

Lens: 1.8mm

Color: Black

BLC: Yes

OVX303 5.8Ghz VTX

Transmitting Power: 0/RCE/25mw/100mw/300mw

Weight: 1.5gram without antenna

Current (5v): 650ma (300mw)

Frequency: 5.8G 40CH

Power supply: DC 5V

Model: OVX303

CrazyF411 FC

Power supply: 2-4S battery input (DC 8V-17V)

Built-in Frsky D8/D16 SPI receiver built-in 2.4G Power Amplification

Built-in voltage detectionFirmware target: MATEKF411RX

Built-in 20A(each) Blheli_S 4in1 ESC Dshot600 ready

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Built-in Betaflight OSD(SPI Control)

Board size: 28.5 * 28.5MM

Built-in Current meter

Built-in 5V 1.5A BEC

ONBOARD ESC

Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)

Factory firmware: O_H_5_REV16_8.HEX

Support BLHeliSuite programmable

MCU upgraded to EFM8BB21

Default protocol: DSHOT300

Onboard SPI Frsky 2.4GHz receiver (Frsky Version)

SPI BUS receiver

Frsky D8/D16/EU-LBT/, Futaba S-FHSS switchable on Betaflight

Channels: 8ch/16chDual antenna

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 400m

PROPELLERS

Propeller Diameter: 3.5 inch

Material: PolyCarbonate

Hub Thickness:4.7mm

Hub Diameter: 10mm

Shaft :1.9/1.5/1.9mm

Adaptor Rings: NO

Weight: 1.5g

Blades : 3

Pitch: 2

MOTORS

Motor Dimension(Dia.*Len):?15mm*15mm

Shaft Diameter: ?1.5mm

Configurration:9N12P

Stator Diamter:14mm

KV options: KV3500

Stator Length:4mm

Model: EX1404

Weight(g):9g

Recommended (Not Included)

Battery: 4S 750mAh or maximum 4S 1100mAh

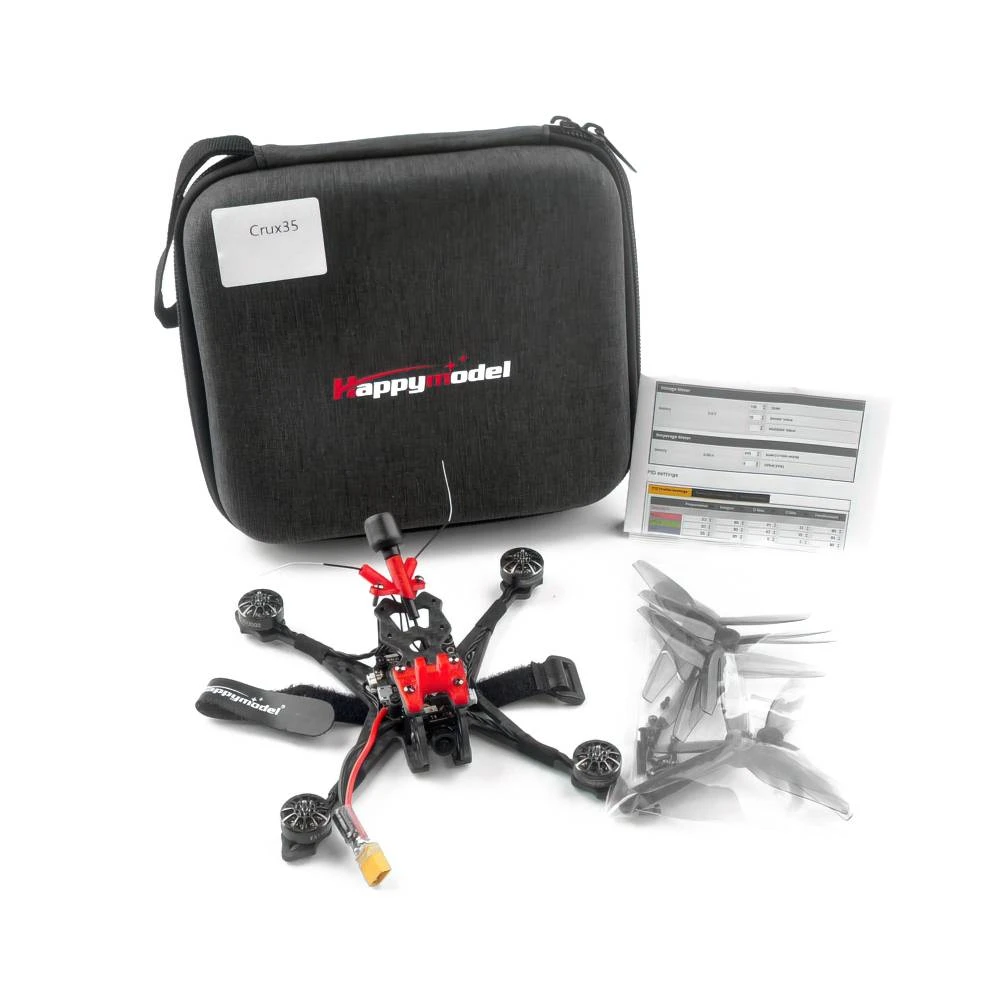

Includes

1X Happymodel Crux35 4S Analog Freestyle Racing Drone w/ Caddx Ant Camera (FRSKY)
