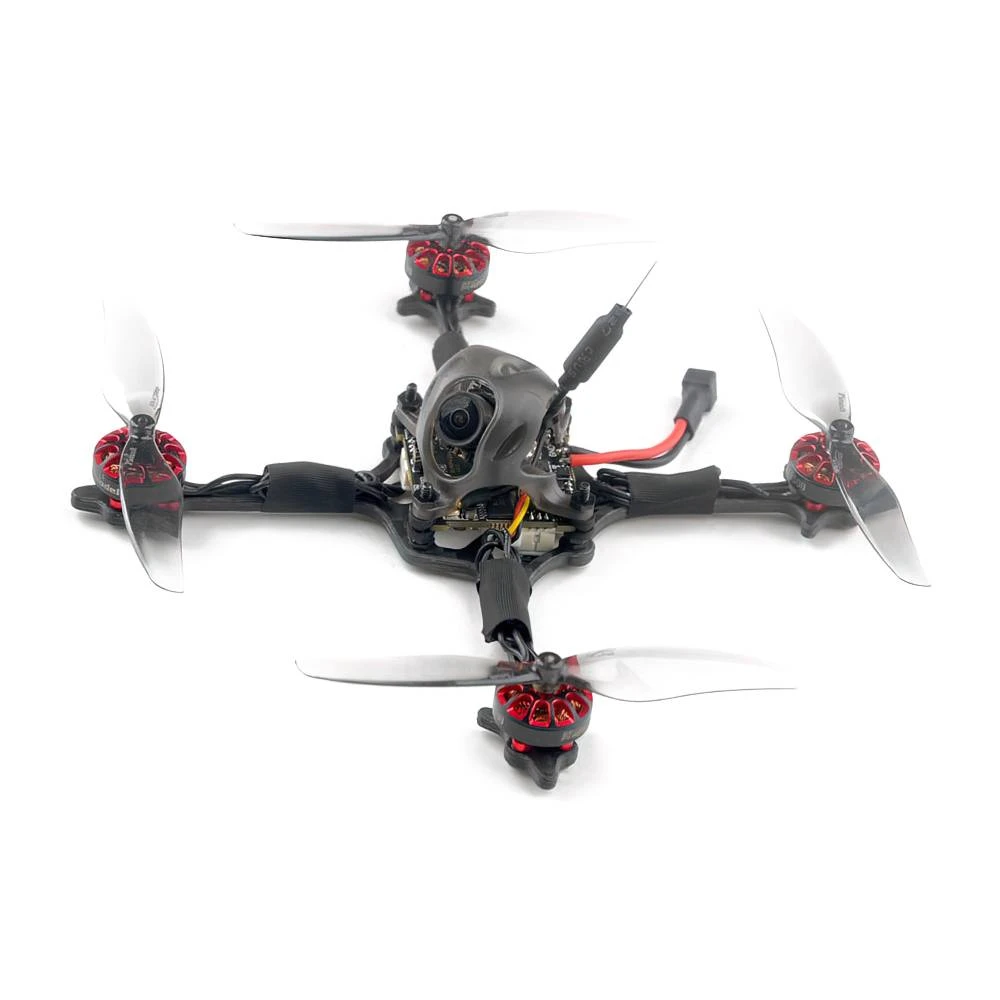

Happymodel Crux3 1S Toothpick FPV Racing Drone – BNF ELRS

The Happymodel Crux3 ELRS 1S Toothpick is an excellent micro racing drone that comes with the Crazybee flight controller, EX1202.5 brushless motors, ELRS, and the Caddx Ant Camera to give you a great flying experience!

Note: Action Cameras are not included.

Features

AIO Crazybee flight controller with ELRS Receiver and 5.8GHz VTX

Compatible with Insta360 Go 2/ Caddx Peanut Camera

New 1202.5 11500KV brushless motor

40g 1S Brushless Toothpick drone

Caddx Ant Camera

Specifications

Size: 97x97x35mm (without propellers)

Weight: 40g (without battery)

Wheelbase: 115mm

ONBOARD SPI EXPRESSLRS 2.4GHz RECEIVER

Can be bound with All ExpressLRS 2.4GHz TX module, ExpressLRS firmware need 1.0.0 or the latest

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

Receiver protocol to flight controller: CRSF

Telemetry output Power: 12dBm

Antenna: SMD antenna

RF Frequency: 2.4GHz

ONBOARD 4-IN-1 ESC

Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)

Factory firmware: O_H_5_REV16_7.HEX

Support BLHeliSuite programmable

MCU upgraded to EFM8BB21

Default protocol: DSHOT300

CADDX ANT 1200TVL CAMERA

Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000

Dimensions: 14*14mm(with a bracket to 19*19mm)

TV System: NTSC or PAL Switchable

Image Sensor: 1/3″ CMOS Sensor

Min. Illumination: [email protected]

Work Temperature: -20?~+60?

Horizontal Resolution: 1200 TVL

Wide Power Input: DC 3.7-18V

S/N Ratio : >52dB (AGC OFF)

Synchronization: Internal

Auto Gain Control: YES

Video Output: CVBS

WDR: Global WDR

DNR: 3D DNR

Lens: 1.8mm

IMAGE: 4:3

Weight: 2g

BLC: YES

CRAZYBEE FLIGHT CONTROLLER

Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Power supply: 1S battery input (DC 2.9V-4.35V)

Built-in SPI ExpressLRS 2.4GHz receiver

Firmware target: CRAZYBEEF4SX1280

Sensor: MPU-6000(SPI connection)

Built-in Betaflight OSD(SPI Control)

Built-in 5V 1A BECFlight controller

Original whoop size compatible

Built-in 5.8G VTX

EX1202.5 11500KV MOTOR

Motor Dimensions: ?14*14.5mm

Shaft Diameter: ?1.5mm

Stator Diameter: 12mm

Stator Length: 2.5mm

No.of Cells (Lipo): 1S

Configuration:9N12P

Weight: 4.4g

ONBOARD 5.8G 40CH 25/200mW VTX

Output power: 25mw~200mw switchable

Frequency: 5.8GHz 5bands 40 channels

Current consumption: 300mA (type)

Input voltage: 3.3V 5.5V

Smart audio ready

Frequency: 40CH

With Race band

GEMFAN 75mm PROPELLERS

Center Hole diameter:1.5mm

Center Thickness:5mm

Prop Diameter:75mm

Pitch:0.9in

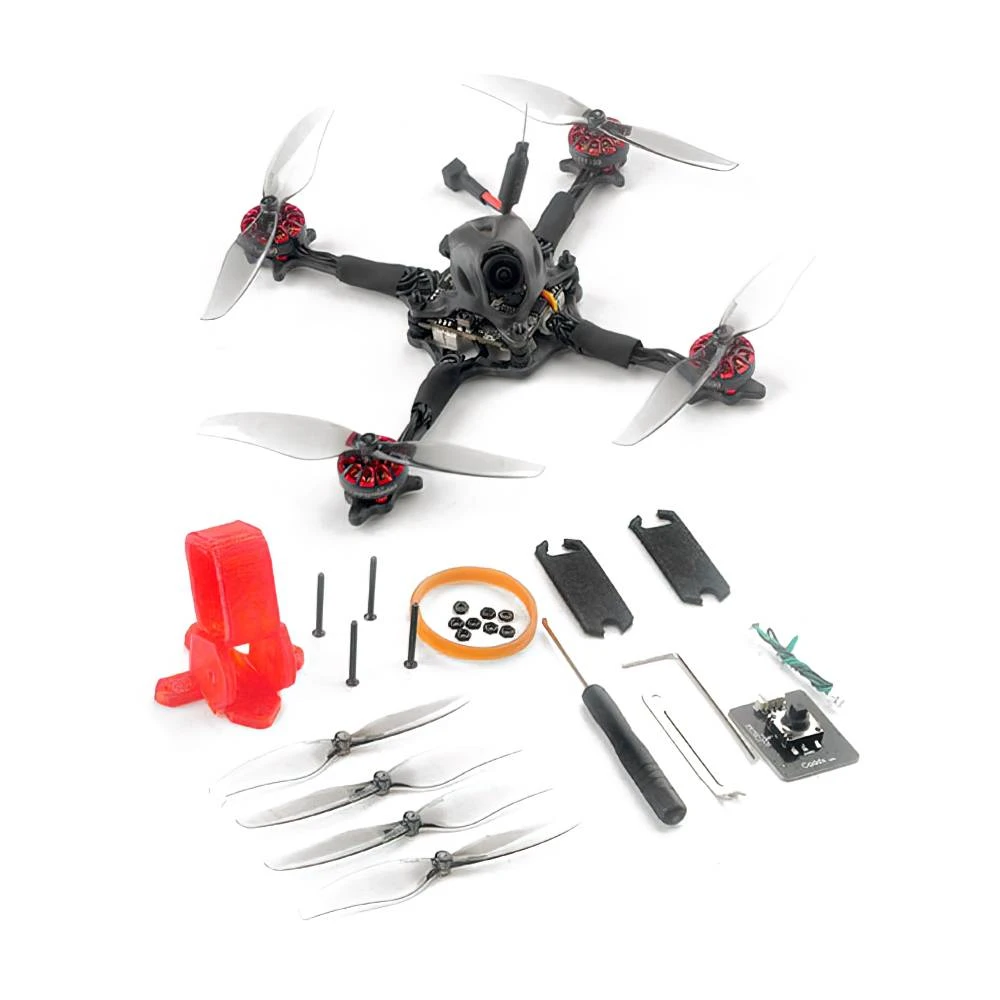

Includes

1 x Happymodel Crux3 ELRS 1S Toothpick FPV Racing Drone – BNF

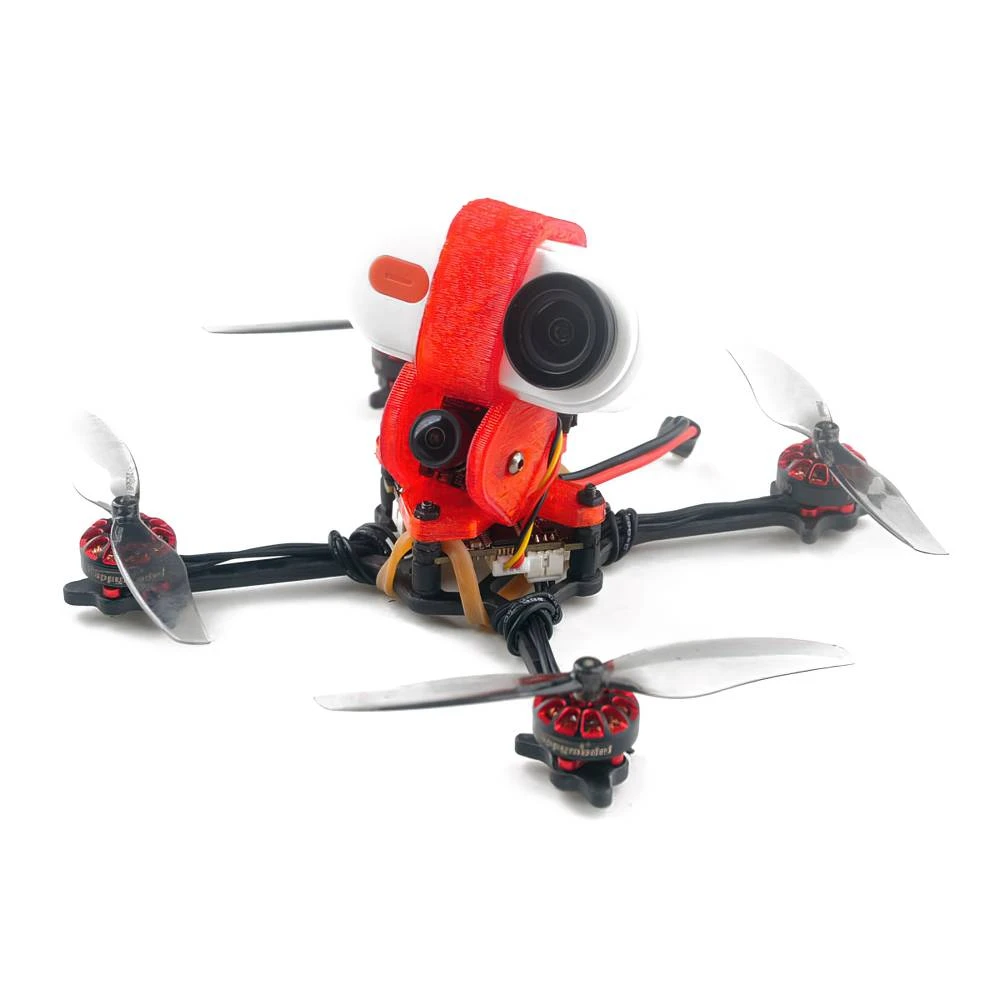

1x 3D Printed Camera Mount (Insta360 Go 2/Caddx Peanut)

1x Happymodel Zippered Carrying Case

2x Gemfan 75mm Propellers (Set of 4)

1x Caddx 5D OSD Menu Board

1x Accessories Kit
