GOKU Versatile F4 5-IN-1 1S AIO W/250mw VTX , OSD , 25.5X25.5 – NO RX

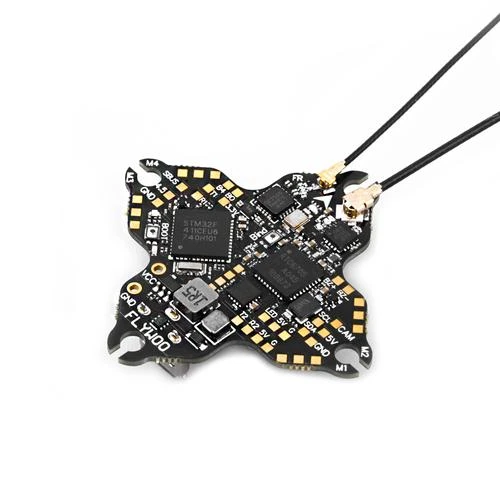

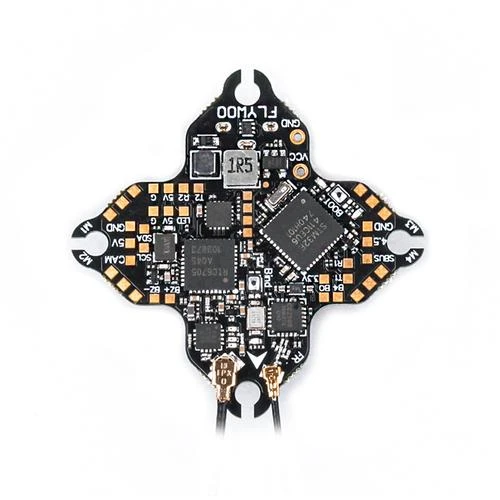

The GOKU Versatile F4 5-IN-1 AIO is another versatile and highly integrated circuit board in the GOKU Versatile series! Built-in 250mw VTX ?1S 5A ESC? OSD? SPI receiver, 3 serial ports? I2C functionality and 2XWS2812 LEDs . Reasonable layout makes it easier for you to build . You only need to choose the motor, frame, camera, propeller ? everything else all packed into a compact whoop board.

Highlights :

Built-in 250mw vtx, 1S 5A ESC, OSD and SPI Frsky receiver

Opened 3 serial ports and 12C functionality

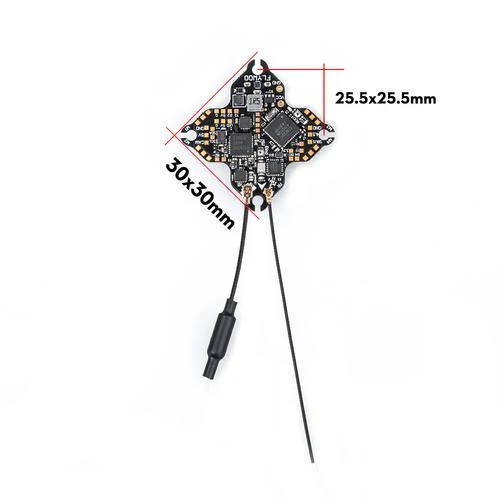

Mounting Pattern: 25x25mm, M2

Ultra light weight 4g

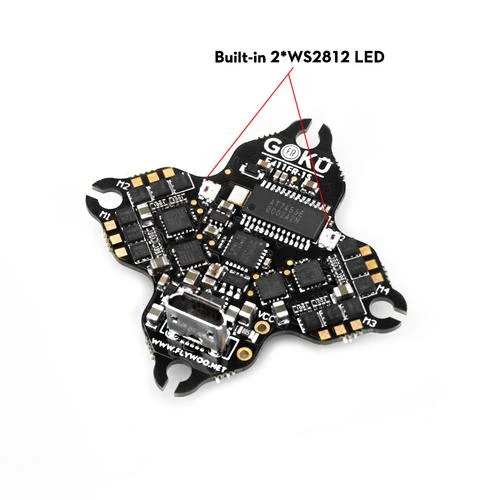

Built-in 2XWS2812 LEDs

Reasonable layout , easy to build

Can work with different RX at the same time

Specifications

Flight Controller

MCU: STM32F411CEU6

GYRO: MPU6000

UARTS: 1/2

Soft serial port?1

I2C: SCL/SDA

BEC: 5V

Input Voltage: 1S ( 4.35v)

Firmware: FLYWOOF411FR

Mounting: 25x25mm, M2

Onboard 4in1 ESC

MCU: EFM8BB21

Power supply: 1S LiPo/LiPo HVCurrent: 5A

Firmware: BLHeli_S

Factory firmware: O_H_5_REV16_8.HEX

Default protocol: DSHOT 150/300/600

Onboard 5.8g VTX

Output power: 25mw~250mw switchable

Frequency: 40CH

Frequency: 5.8GHz 5 bands 40 channels(include Race band) IRC ready

Q&A :

1? Betaflight Firmware target: FLYWOOF411FR

2?INAV Firmware target: FLYWOOF411FR

3? GOKU Versatile F4 5-IN-1 AIO Wiring Diagram : ( LINK )

4?Onboard 5.8g VTX TABLE : ?LINK?

5?Betaflight Firmware (LINK )
