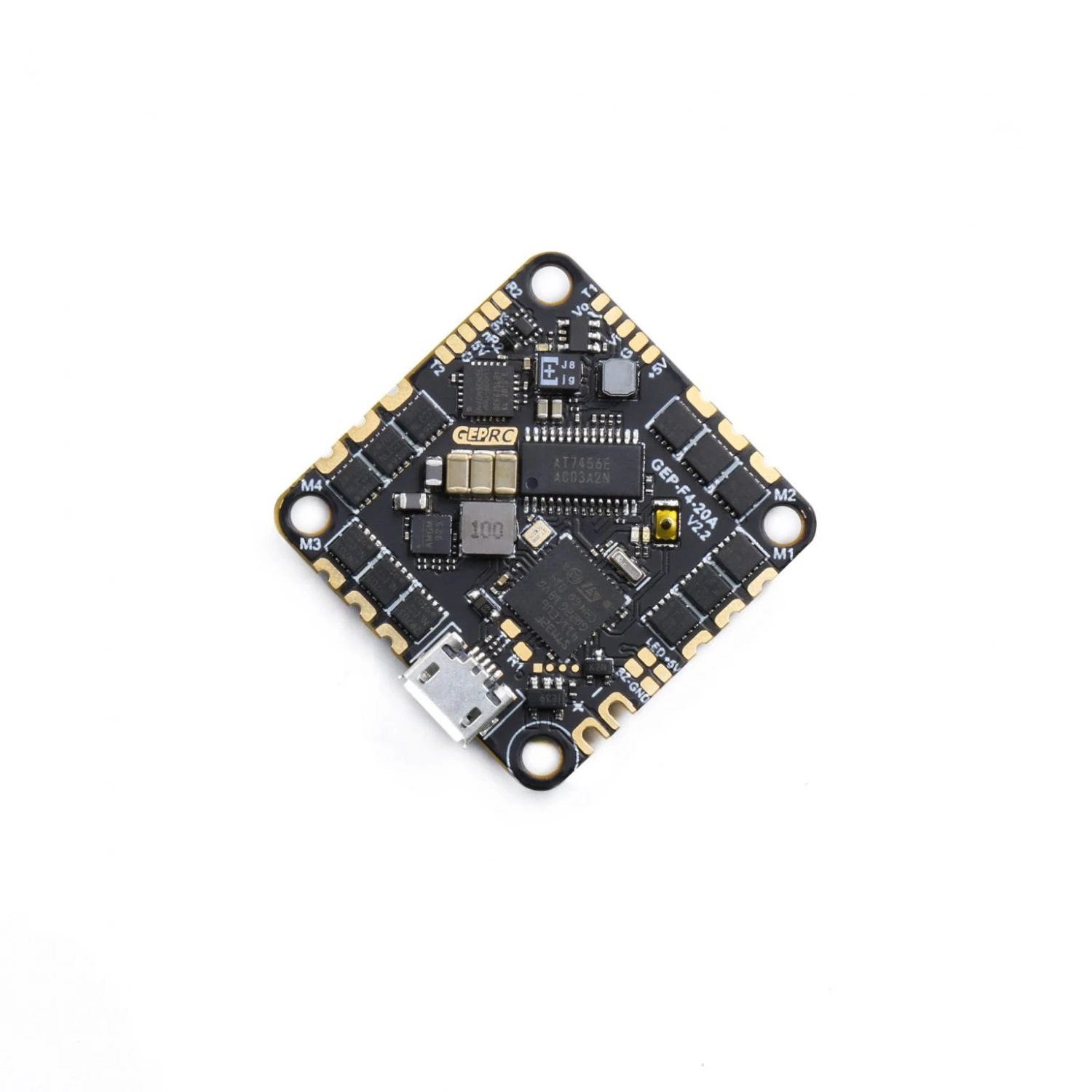

GEPRC GEP-20A-F4 AIO

Strong performance, cont.current 20A, burst current 30A

BLhelis_S 20A, maximum support 4S battery,Built-in current sensor

Compatible with 12xx-15xx motor installation, with 3?-5? size propeller

STM32F411 flight control, Super-high Running Frequency

MPU6000 gyroscope

External Buzzer : Support

LED Control : Support



Designed with silica gel shock absorbing column, it can reduce the high frequency vibration caused by frame and motor, allowing the flight control to operate in a noiseless environment
The overall weight is about 7.3g

The new high performance AIO brushless FC, GEP-20A-F4 was added to the toothpick drone

Compared with the previous 12A version, the new GEP-20A-F4 can achieve a continuous current of 20A and a burst current of 30A.Maximum 4S battery support, recommended to use 12xx-15xx motor, with 3?-5? size blade.This GEP-20A-F4 has strong flight performance, OSD input, extremely light weight, let your new toothpick to build a higher flight performance through the aircraft.

Specifications:

Model Name:GEP-20A-F4

MCU: STM32F411

IMU: MPU6000 gyro/accelerometer (SPI)

FC Firmware target:MATEKF411

OSD: BetaFlight OSD w/ AT7456E chip

Baro:NO

Current Monitoring : Support

Betaflight OSD : Support

External Buzzer : Support

LED : Support

USB Port: MicroUSB

BEC Output: 5V@1A

Integrated LC Filter

ESC MCU: 8BB21F16G

Continuous current: 20A

Peak current: 30A

Input voltage:2-4s lipo

Supports Dshot600 ,Oneshot,Multishot

Current meter: 210

Target: G_H_30

Size: 32x32mm board,26.5mm mounting holes (M2)

Installing Hole: 26.5×26.5mm, M2

Receiver Support:

Frsky XM/XM+/R-XSR

Futaba Receiver

DSM/DSMX

FlySky Receive

TBS Crossfire Receiver

AC900

Most receivers that support SBUS

Feature:

Strong performance, cont.current 20A, burst current 30A

BLhelis_S 20A, maximum support 4S battery,Built-in current sensor

Compatible with 12xx-15xx motor installation, with 3?-5? size propeller

STM32F411 flight control, Super-high Running Frequency

MPU6000 gyroscope

External Buzzer : Support

LED Control : Support

Designed with silica gel shock absorbing column, it can reduce the high frequency vibration caused by frame and motor, allowing the flight control to operate in a noiseless environment

The overall weight is about 7.3g

MANUAL.pdf

Include?

– 1 x GEP-20A-F4

– 1 x Power cable

– 8 x screw

– 4 x Soft silicone
