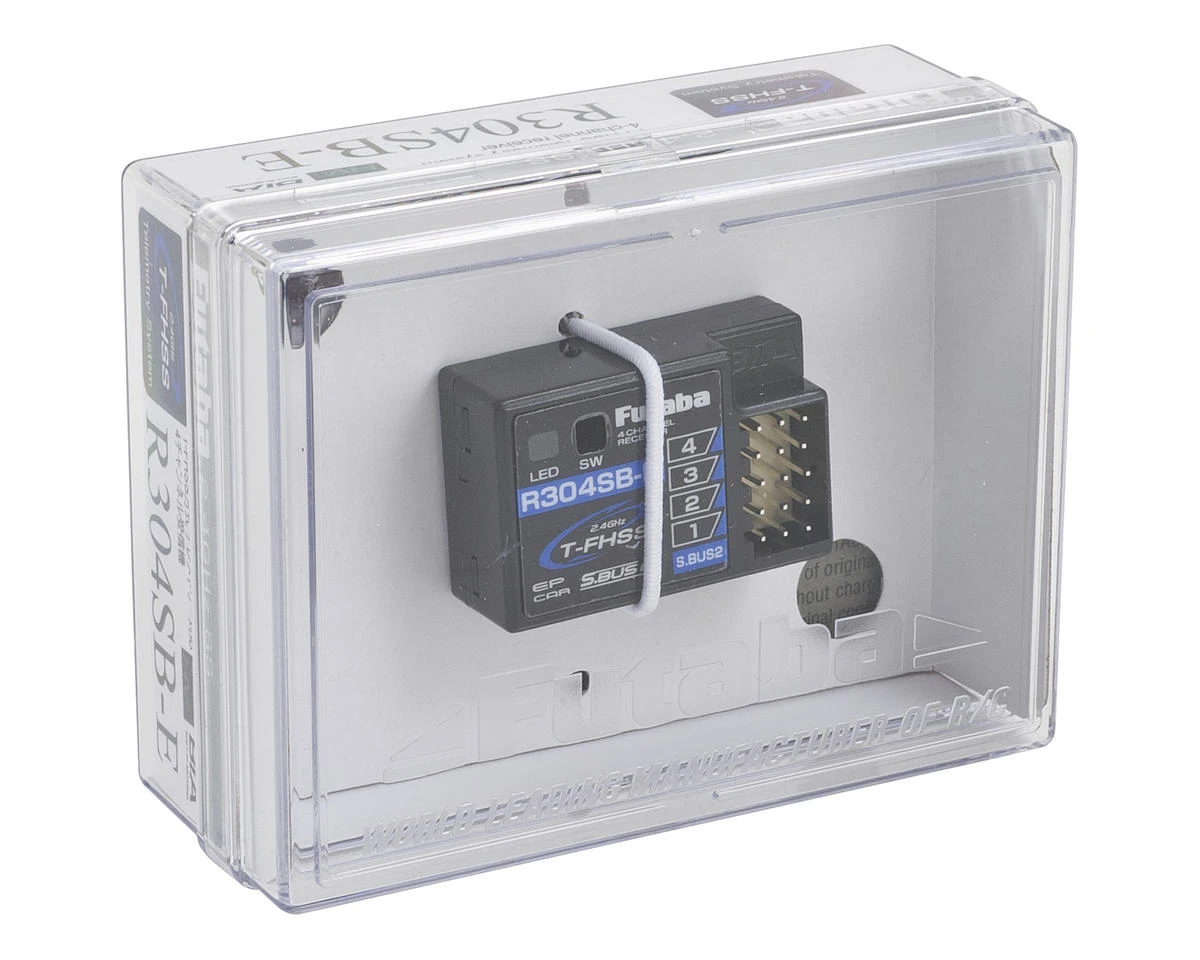

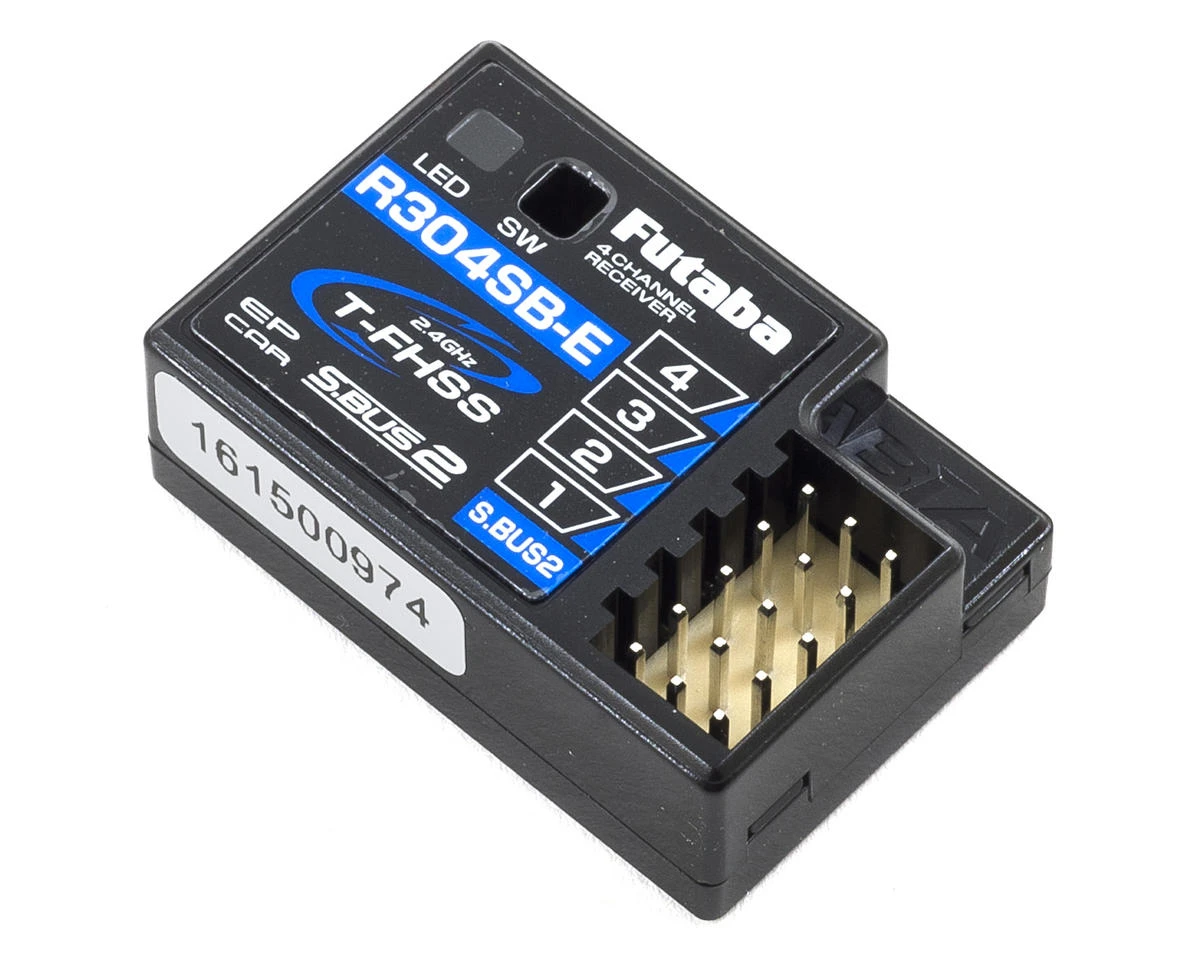

Futaba R304SB-E T-FHSS 4-Channel Telemetry 2.4GHz Receiver (EP Only)

The Futaba R304SB-E T-FHSS 4-Channel Telemetry 2.4GHz Receiver is only compatible with Futaba T-FHSS telemetry compatible transmitters. The R304SB-E is very similar to the R304SB (FUTL7680) in that they both feature 4-channels, both feature S.Bus2, both are Telemetry enabled and both cost roughly the same price.

However, the two receivers differ in two fundamental areas: this R304SB-E is only intended for electric vehicles and features the benefit of having a non-exposed built-in antenna. The R304SB is compatible with electric/nitro/gas applications and the antenna is fully exposed.

NOTE:
The R304SB-E receiver is recommended for electric powered models only. This is NOT recommended for use with nitro or gas powered models.
Not compatible with the Futaba FHSS, S-FHSS, FASSTest or FASST transmitters.

Features:

T-FHSS System

Telemetry Enabled

4-Channels

Built-in Hidden Antenna

Electric Vehicle Use Only

Specifications:

Futaba System: T-FHSS

S.Bus2: Yes

Channels: 4

Range: 70m (230ft) (at best conditions)

Power Requirement Rated Voltage: 4.8-7.4V

Usable Voltage: 3.5-8.4V

Size: 1.38×0.91×0.33″ (35.1×23.2×12.5mm)

Weight: 0.23oz (6.7g)

Number of Ports: 5

PWM Output: 4

SBUS Ports: 0

SBUS2 Ports: 1

FASST: No

Telemetry: Yes (T-FHSS)

S-FHSS: No

High Speed: Yes

High Voltage: Yes

Connector: J (STND)

Range: Only for Electric Powered Car Models

NOTE:

The R304SB-E receiver is recommended for electric powered models only. This is
NOT compatible with nitro or gas powered models.

Not compatible with the Futaba S-FHSS, FHSS, FASSTest or FASST transmitters.
