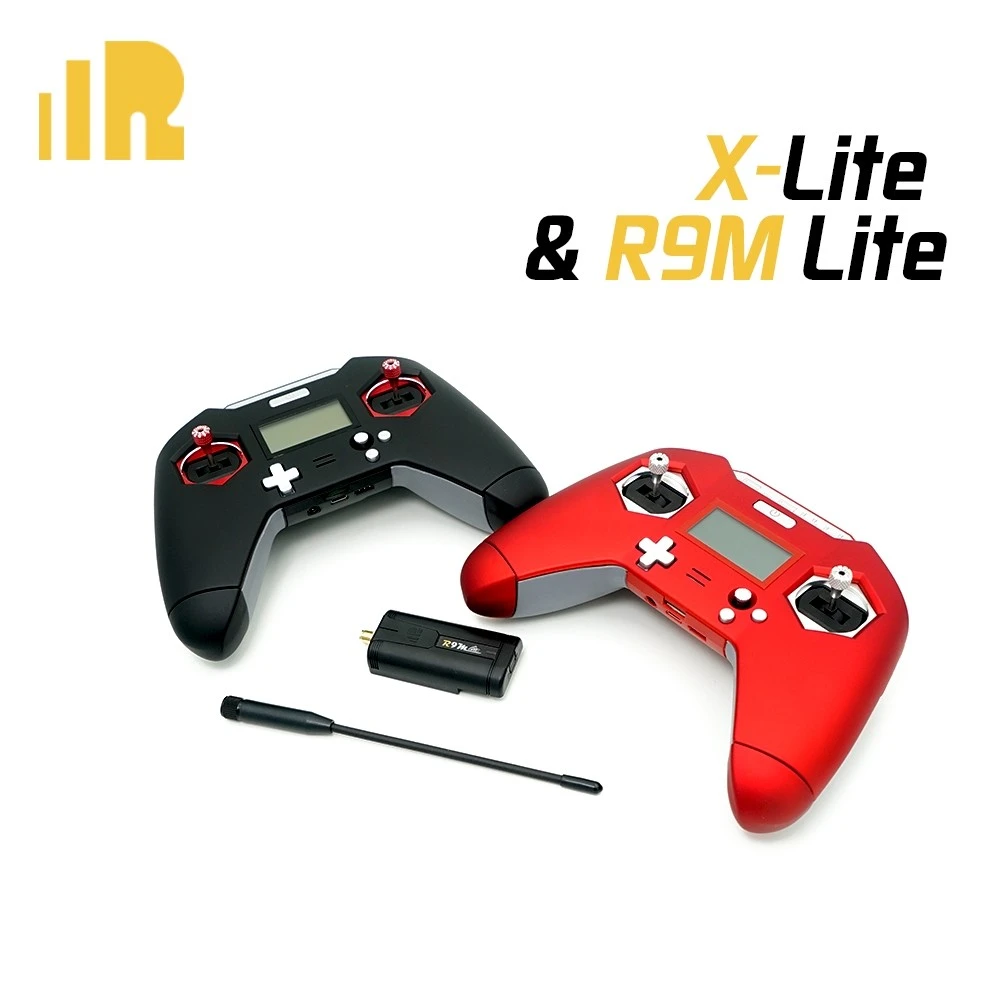

FrSky Taranis X-Lite (Red) And R9M Lite Combo

SPECIFICATION

● Number of Channels: 16 channels

● Weight: 308g/ 376g (with battery)

● Operating Voltage Range: 6.0 ~ 8.4V

● Operating Current: [email protected]

● Operating Temperature: -20 ~ 60℃

● Backlight LCD resolution: 128*64

● Model Memory: 60 models (extendible by Micro/TF card)

FEATURES

● Ergonomic and compact design

● M12 Lite gimbal

✧ High accuracy hall sensor gimbal

✧ Mode conversion adjustments accessible without disassembly

✧ CNC machined gimbal pedestal

● High-speed internal and external module digital interface

✧ Internal: 450K, External: 420K

✧ Super low latency (Total latency 20ms, lowest to 12ms)

✧ Compatible with new lite type external modules (R9M Lite, MPM Lite, etc.)

● Installed open source operating system– OpenTX

● Haptic vibration alerts and voice speech outputs (Headset jack and inbuilt speaker)

● Internal antenna and external antenna connector

● 128*64 outdoor readable backlight LCD

● Smart Port, Headset jack, Micro SD card slot and Micro USB Port (*Charging function unsupported.)

● The easily accessible battery compartment uses replaceable 18500 Li-ion batteries

(*Batteries Not Included)

(*Battery Information: Flat Top / Height: 50mm / Diameter: 18mm)

● Trims: The four-way navigation is the trim1 ~trim2, and it will act as trim3~trim4 with pressing on ‘SHIFT’ button

* Wireless function （Optional）

✧ Compatible with FrSky Free Link App

✧ Support wireless trainer system

（* Need additional parts or order specific model）

Includes

1 x X-Lite Radio Controller

1 x Manual sheet

1 x eva case

R9M Lite Description:
R9M Lite module is a 900MHz frequency system which is specially designed for FrSky Taranis X-Lite transmitter. This being the “Lite” version of the R9 series works perfectly with all receivers in the R9 series. In addition, it gets super low latency and high precision thanks to the upgraded digital interface and high-speed data transmission. The R9M Lite has the extreme performance with the ability to achieve long distances with one RF power output at 100mW.

Pls. flash the latest firmware version 180625: https://www.frsky-rc.com/r9m-lite/

SPECIFICATION

Dimension: 62.4mm × 30mm×14.5mm (L×W×H)

Weight: 20g

Number of channels: 16 channels

Operating Current: [email protected]

RF Operating Frequency: 900MHz/868MHz

RF Power (Non-EU): 100mW (with telemetry)

RF Power (EU): 25mW (with telemetry) /100mW (without telemetry)

RF Power (Flex): 100mW (with telemetry)

Compatibility: R9 series receivers

FEATURE

Firmware upgradable on Taranis X-Lite

Telemetry data transmission supported

Long Range, Low Latency and High precision RC system
