FATSHARK ATTITUDE V6

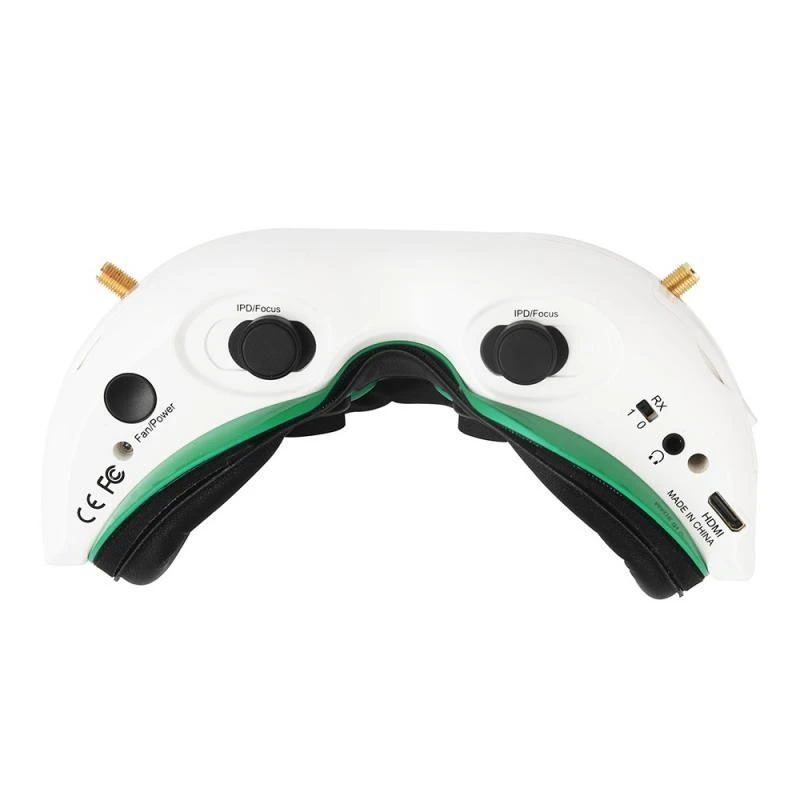

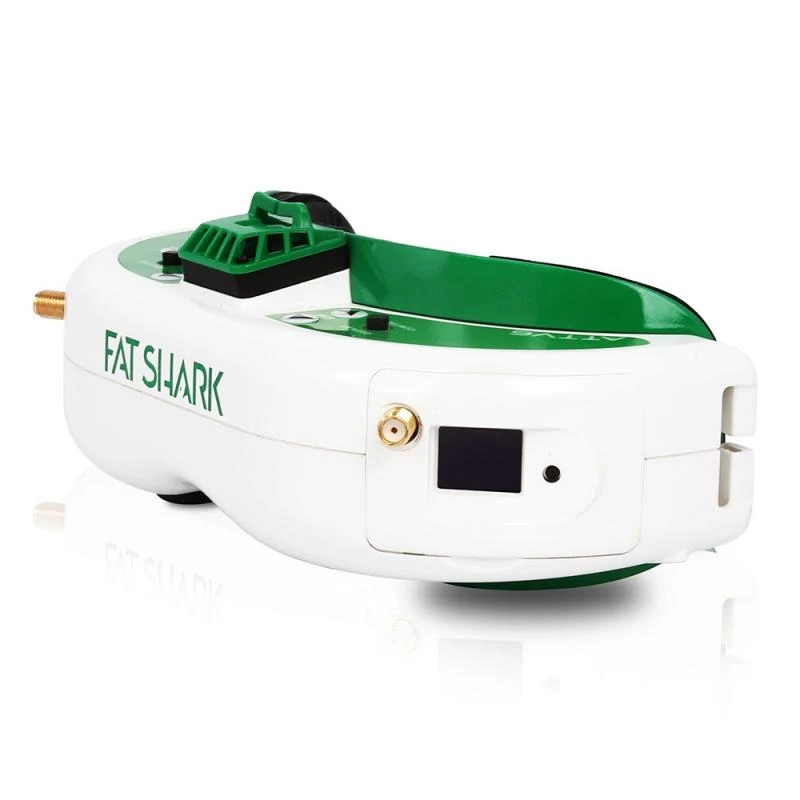

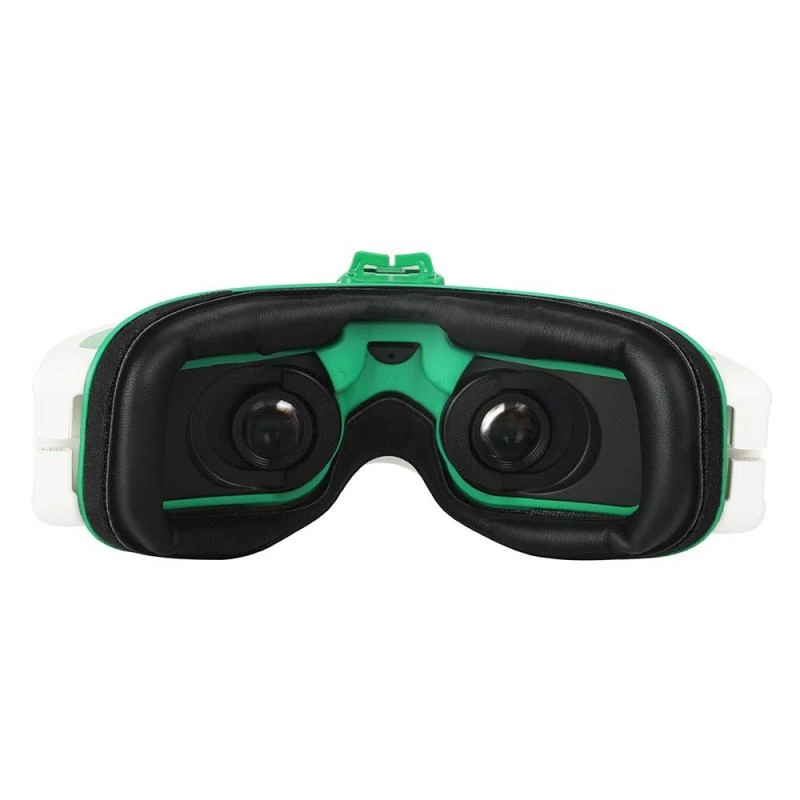

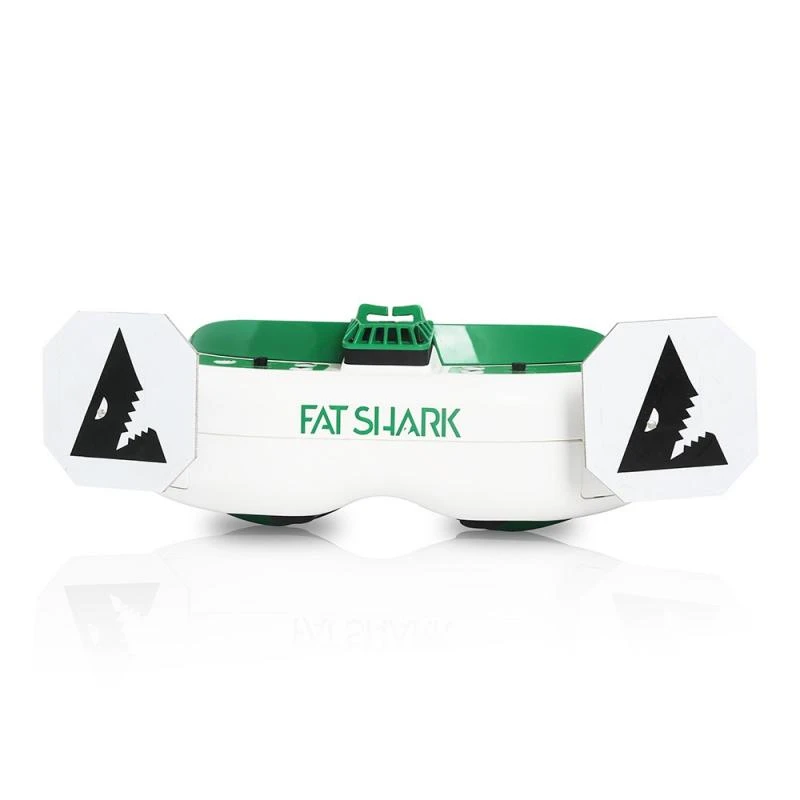

The Fat Shark Attitude V6 FPV Goggles (FSV1124). The modular UVGA LCOS FPV goggles with integrated DVR for analog recording.

The new Fat Shark Attitude V6 focuses on high definition with 1280 x 960 LCOS panels and adjustable diopters. In addition to the 39-degree field of view, the Attitude V6 has a selectable image ratio, an expanded display control menu, and a configurable power button. The Attitude V6 ships with analog diversity receivers and is fully compatible with the Shark Byte HD module future-proofing your FPV experience!

SPECIFICATIONS

OPTICS:

FOV (field of view): 39 degrees diagonal

IPD (interpupillary distance): 54 to 74 mm (adjustable)

Focus: +2 to -6 diopters (adjustable)

DISPLAY:

Two citizen 0.4� LCOS displays

Resolution 1280 X 960

NTCS/PAL auto selecting

AV Mode 4:3

AV Mode 16:9

HDMI Mode 16:9

AUDIO:

Stereo

USER CONTROLS:

Channel Selection

Volume Control

Mode Selection

Display Control (Brightness and Contrast)

DVR Control

Power Button / Fan Control

ELECTRICAL:

Power Supply: 7 � 13V input voltage (2S � 3S Supply)

Power Consumption: 320mA @ 7.5V input power (no RX module)

Analog DVR:MicroSD support to 32 GB

Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)

File playback (native recording, no codec support)

Upgradeable via SD card

BATTERY:

7.4V, 1.8A 18650 Battery Case

INTERFACE:

3.5mm AV in/out port

Power input port

3.5mm 3p earphone port

MicroSD

RF Module Bay

HT connector 3 pin internal connection

Power Button

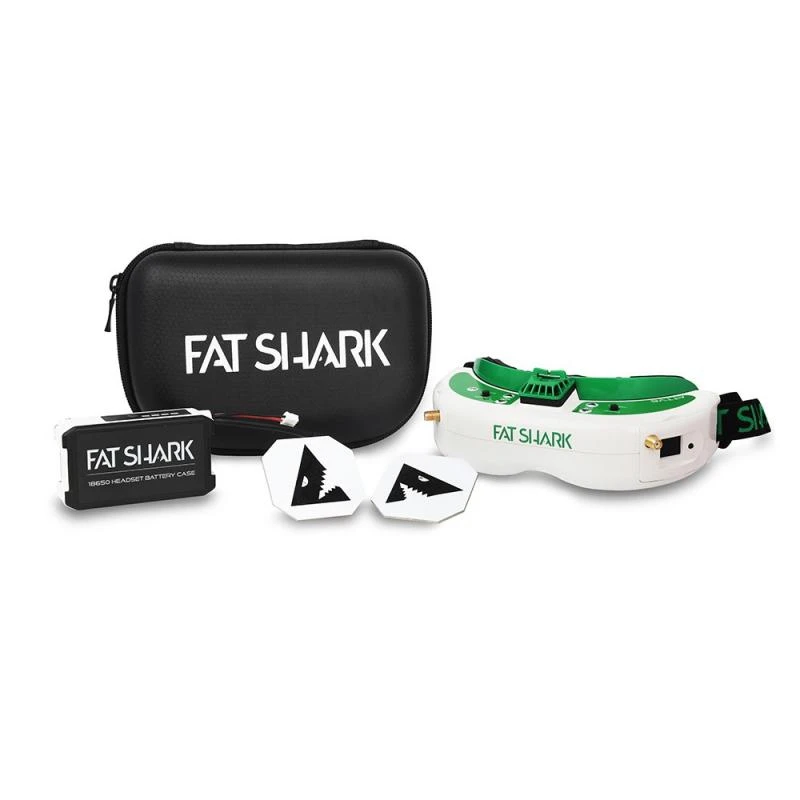

INCLUDES

1x Fat Shark Attitude V6 FPV Goggles

1x Carry Case

1x 18650 Headset Battery Case (batteries not included)

1x True Diversity OLED Receiver already installed in the headset

2x Patch Antennas
