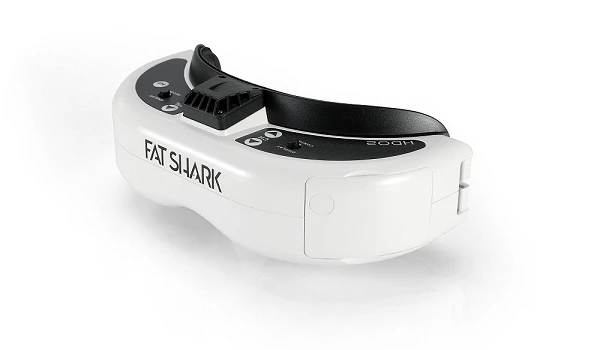

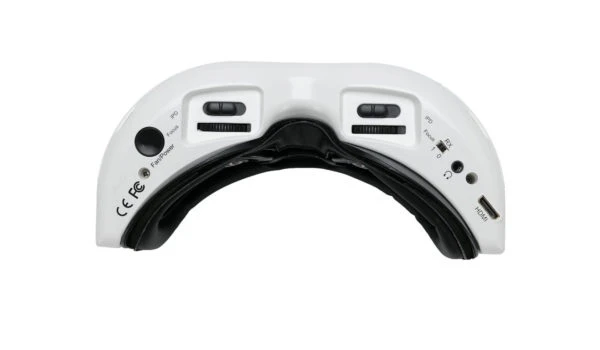

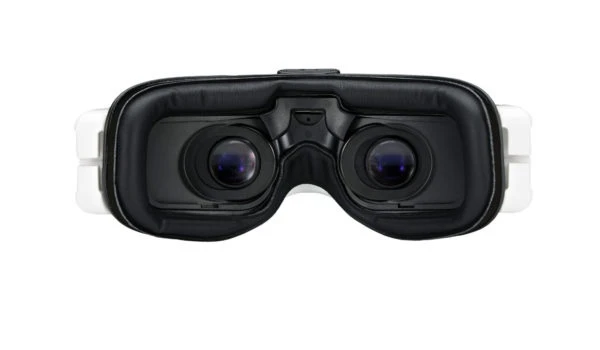

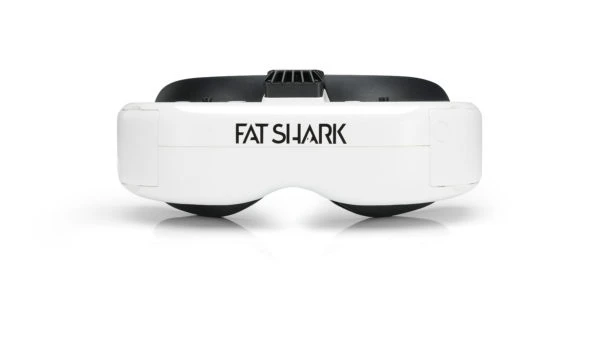

FAT SHARK DOMINATOR HDO2 OLED FPV GOGGLES

FAT SHARK DOMINATOR HDO2 OLED FPV GOGGLES - Image 2

FAT SHARK DOMINATOR HDO2 OLED FPV GOGGLES - Image 3

FAT SHARK DOMINATOR HDO2 OLED FPV GOGGLES - Image 4

FAT SHARK DOMINATOR HDO2 OLED FPV GOGGLES - Image 5

FAT SHARK DOMINATOR HDO2 OLED FPV GOGGLES - Image 6

FAT SHARK DOMINATOR HDO2 OLED FPV GOGGLES

Original price was: $308.00.Current price is: $96.99.

SKU: C25OB 11434 Categories: FPV Components, Goggles, Monitors, & DVR, MultiRotors

Get the Best for Less
Free Shipping Worldwide
Green products, guaranteed.
Your questions, our prompt answers.

Description
Reviews (0)

The Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.

SPECIFICATIONS AND MANUAL

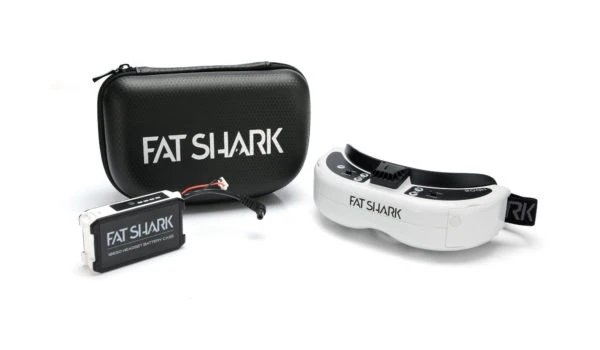

WHAT’S INCLUDED:

Zipper carry case with updated branding

Fat Shark 18650 Battery CaseThe Fat Shark 18650 pack with a row of stylish blue LED indicators allows you to visually check remaining capacity (4 levels) to prevent a sudden power/vision lost. It seats securely in the headset strap pocket. The soft silicone battery cable extends out of the top of the pack to avoid contact with head strap. Barrel connector cable features high strand count wire for flexibility and long life. Wire stress is minimized by the additional rubber gasket around the cable exit. 18650 Batteries are not included.

SPECIFICATIONS:
Optics:

FOV (field of view): 46 degrees diagonal

IPD (interpupillary distance): 54 to 74 mm (adjustable)

Focus: +2 to -6 diopters (adjustable)

Display:

Two Sony 0.5” OLED displays

Resolution 1280 x 960

NTCS/PAL auto selecting

AV Mode 4:3

AV Mode 16:9

HDMI Mode 16:9

Audio: Stereo

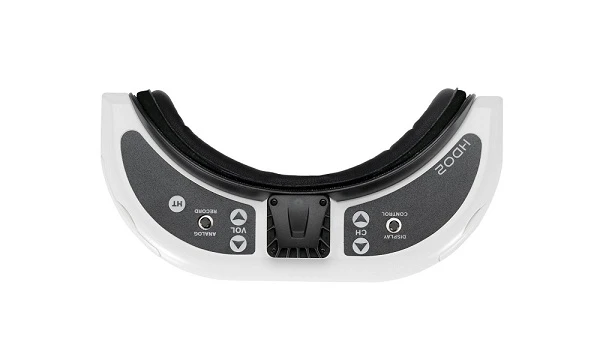

User Controls:

Channel Selection

Volume Control

Mode Selection

Display Control (Brightness and Contrast)

DVR Control

Power Button / Fan Control

Electrical:

Power Supply: 7 – 13V input voltage (2S – 3S Supply)

Power Consumption: TBD

Analog DVR: MicroSD support to 32 GB

Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)

File playback (native recording, no codec support)

Upgradeable via SD card

Battery: 7.4V, 1.8A 18650 Battery Case (optional))

Interface:

3.5mm AV in/out port

Power input port

3.5mm 3p earphone port

MicroSD

RF Module Bay

HT connector 3 pin internal connection

Power Button

Mechanical:

Ergonomic molded headset w/ adjustable headband

Dimensions: 169.2 x 80 x 45.5 mm

Weight: 206.8 g
