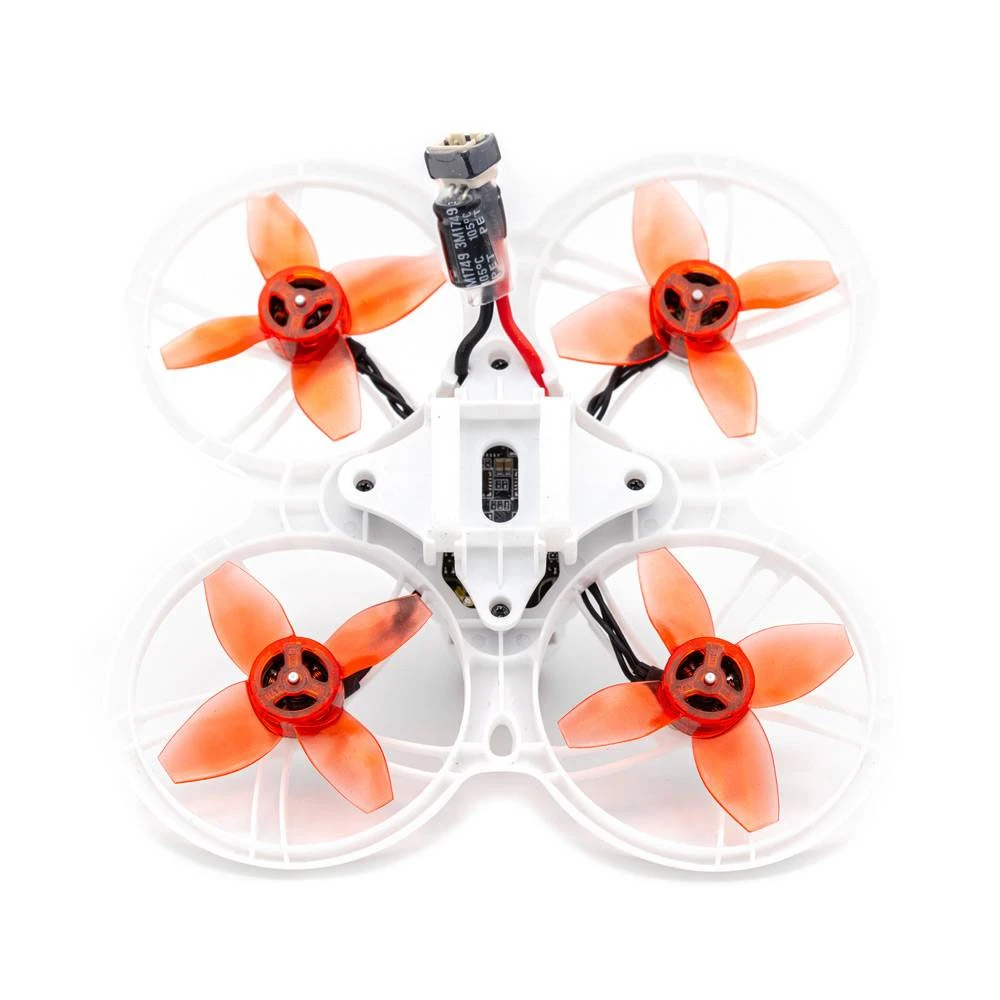

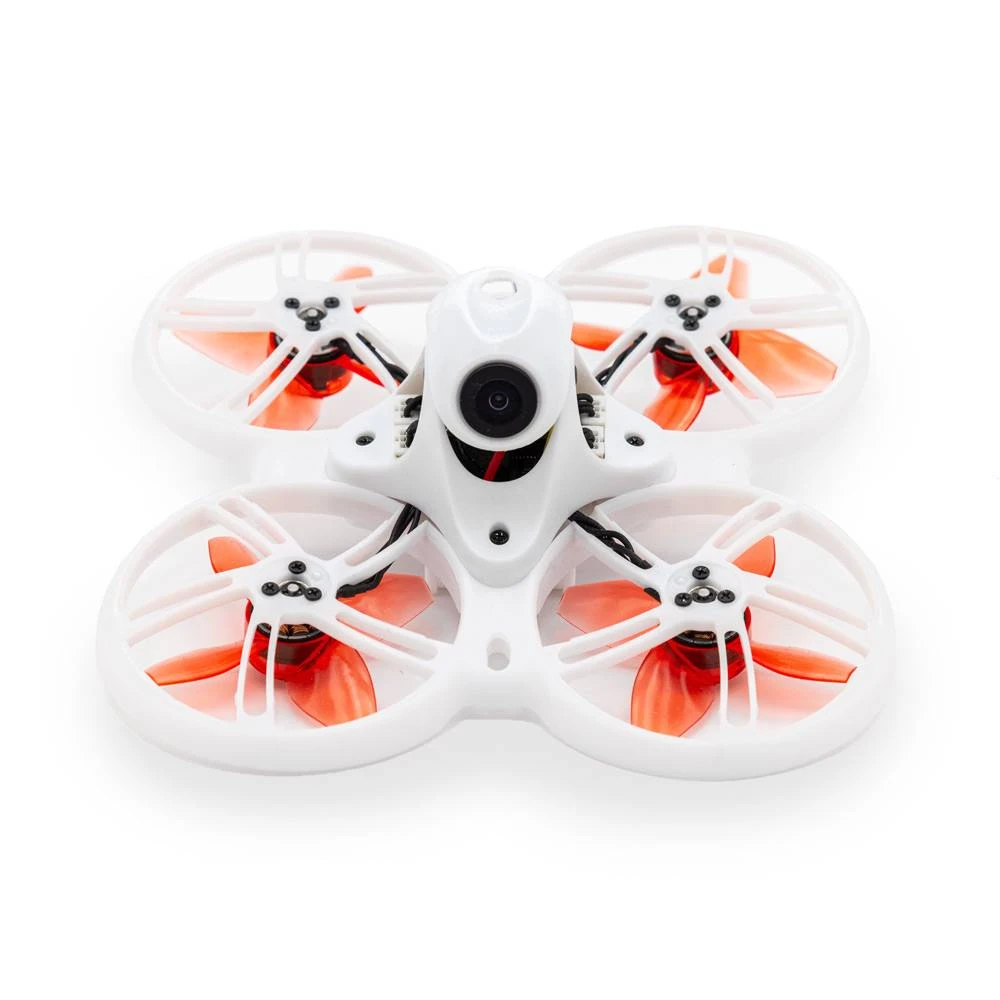

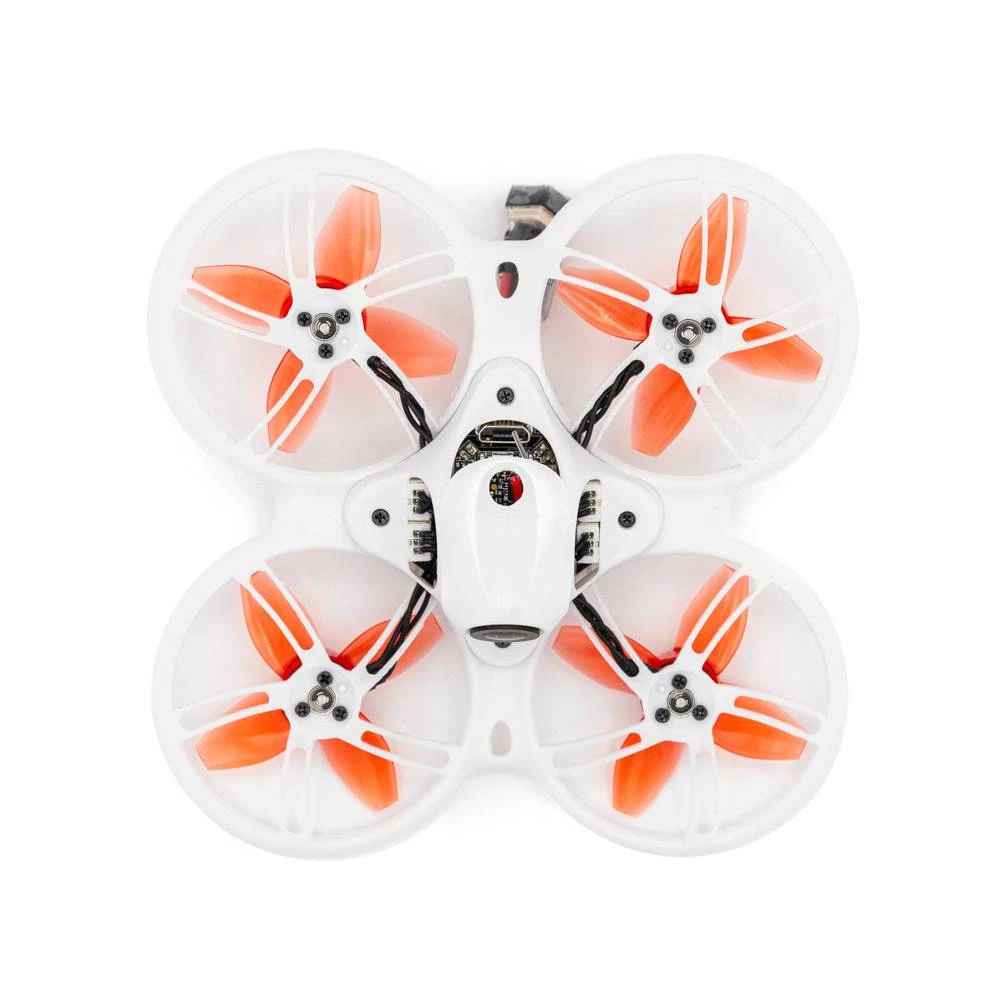

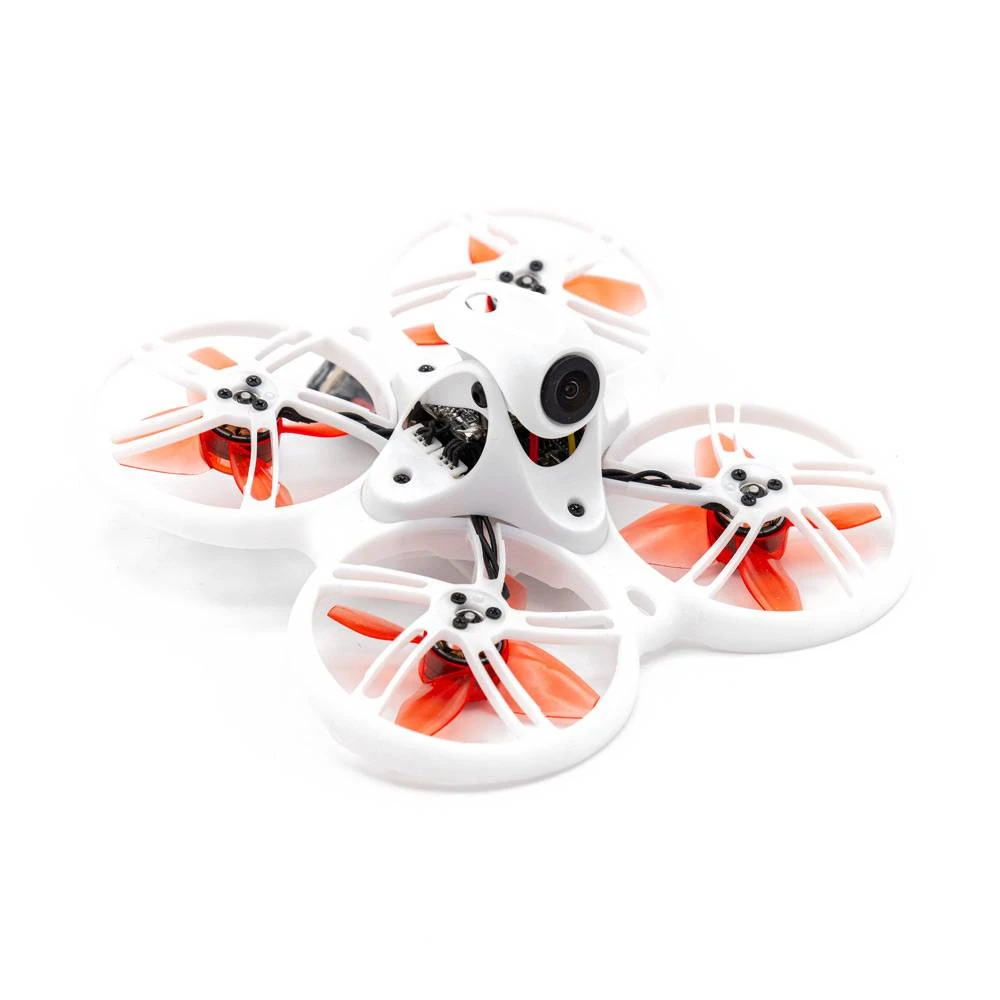

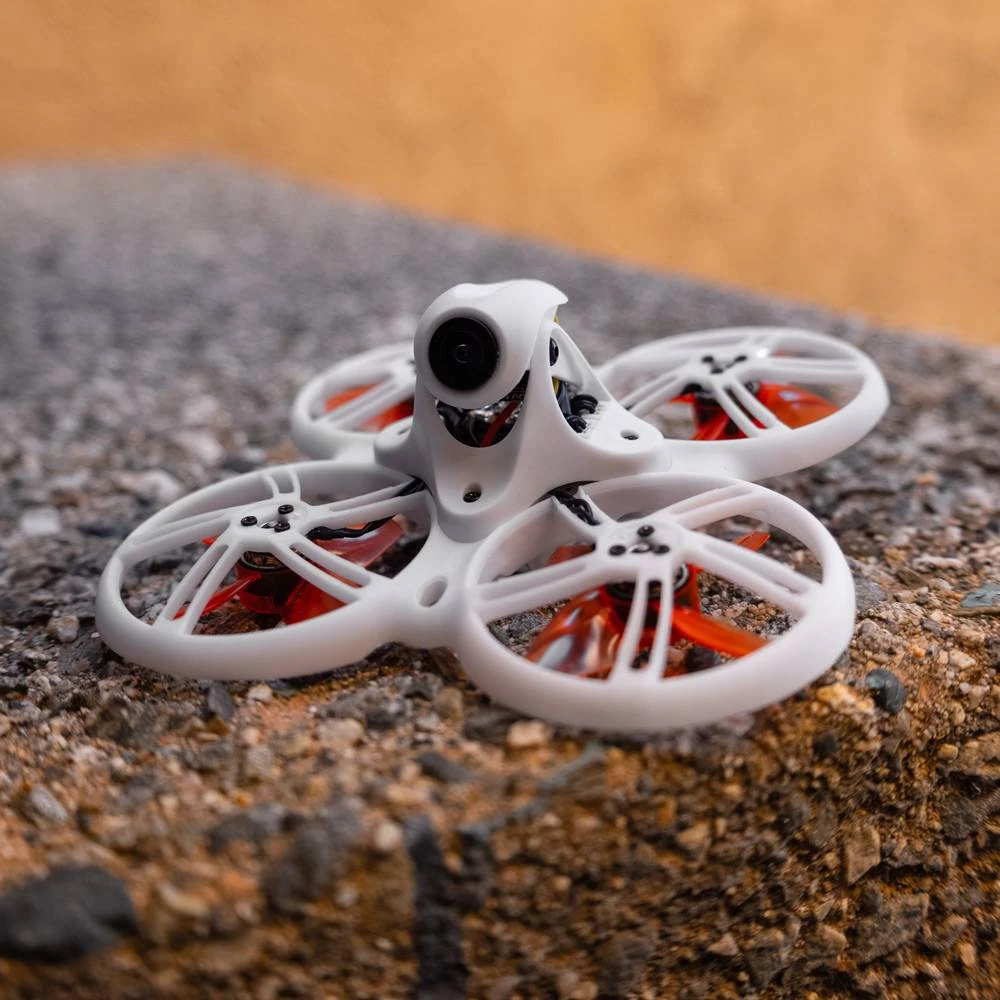

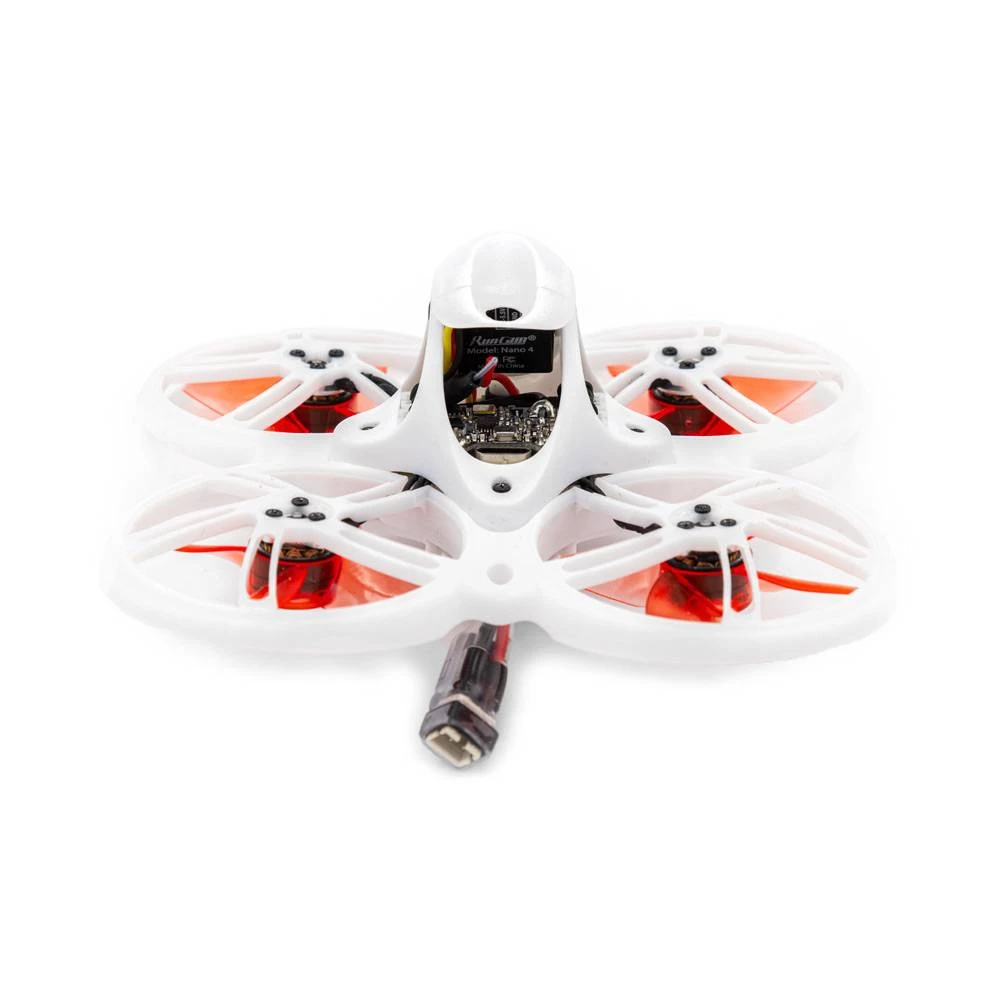

EMAX TinyHawk III FPV Racing Drone BNF

Introducing… the EMAX TinyHawk III BNF Quadcopter!!

By partnering with experts over at RunCam, EMAX was able to design the TinyHawk III! The TinyHawk III features the RunCam Nano 4 Camera, known for its higher resolution, realistic colors, low-light night vision, and ISP. Modifying the video transmitter with more filters and power has allowed the Tinyhawk III to have a cleaner video than ever.

This TinyHawk III BNF Quadcopter gives you the perfect solution for anyone wanting to learn the basics of FPV flying – for beginners and pros alike!

The included receiver is compatible with the SPI and FrSky D8 modes.

Features

Flight controller has an MCU (STM32F411CEU6) with an MPU6000 gyro

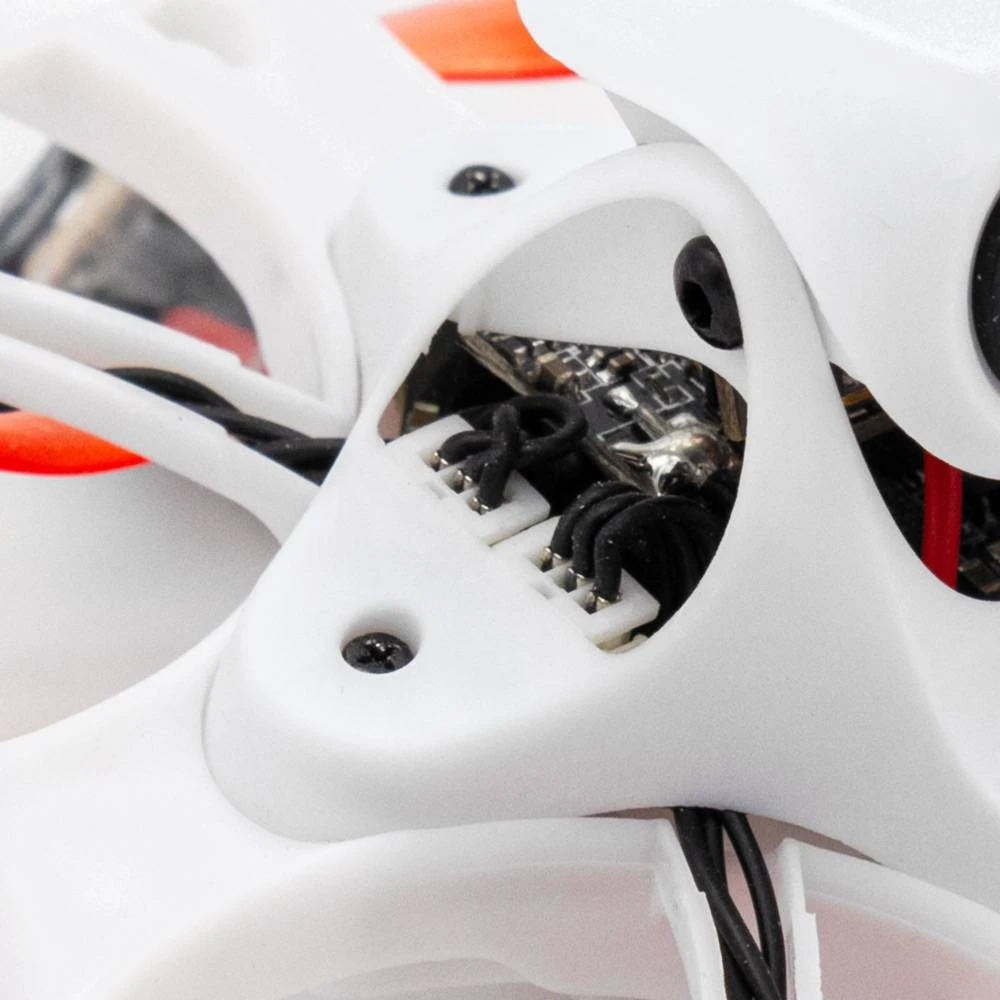

Simple Repairability with centralized mounts and improved motor plugs

Tinyhawk III Receiver with 8 Channels – SPI / FrSKy D8 Compatible

Smart Audio function to change VTX channel via your transmitter

1S High Voltage (HV) 450mah LiPo battery included

Beginner, Intermediate, and Advanced Flight Modes

Drastically redesigned frame with higher durability

Motors and electronics are highly protected

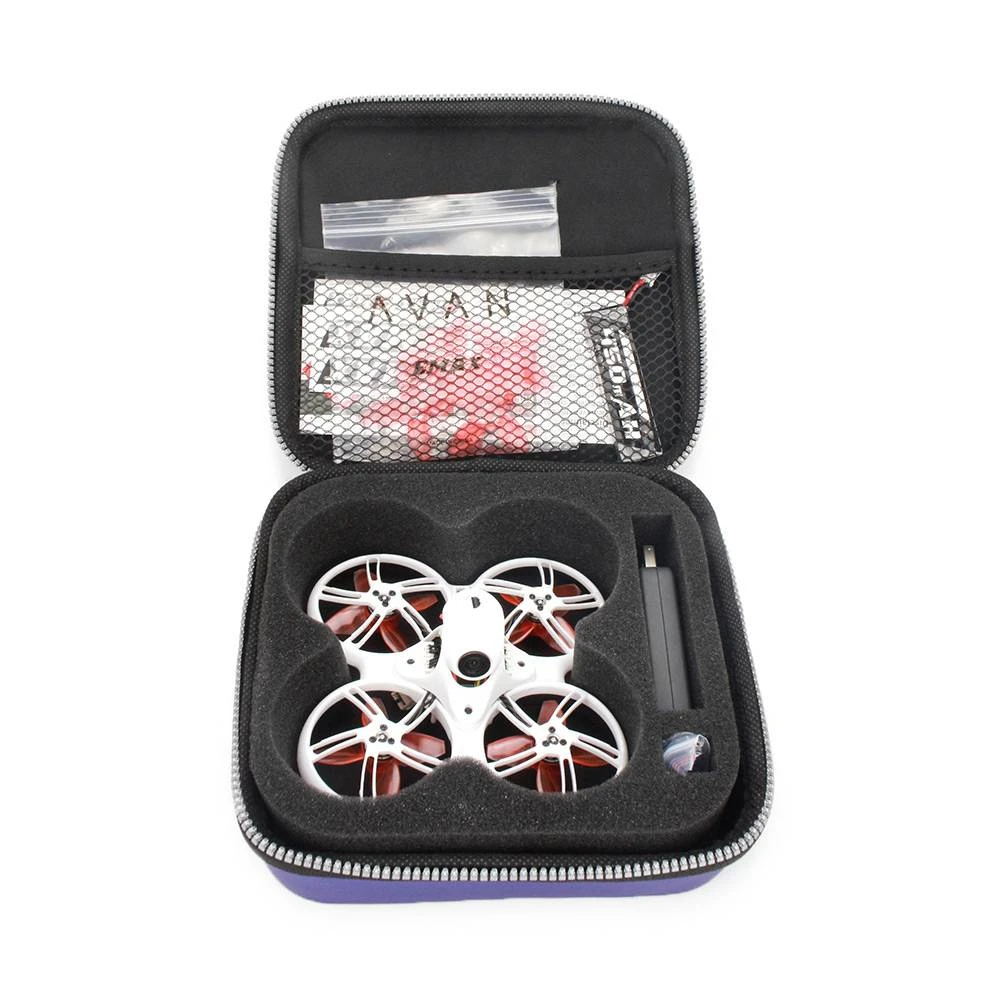

Sleek Carrying Case for easy transporting

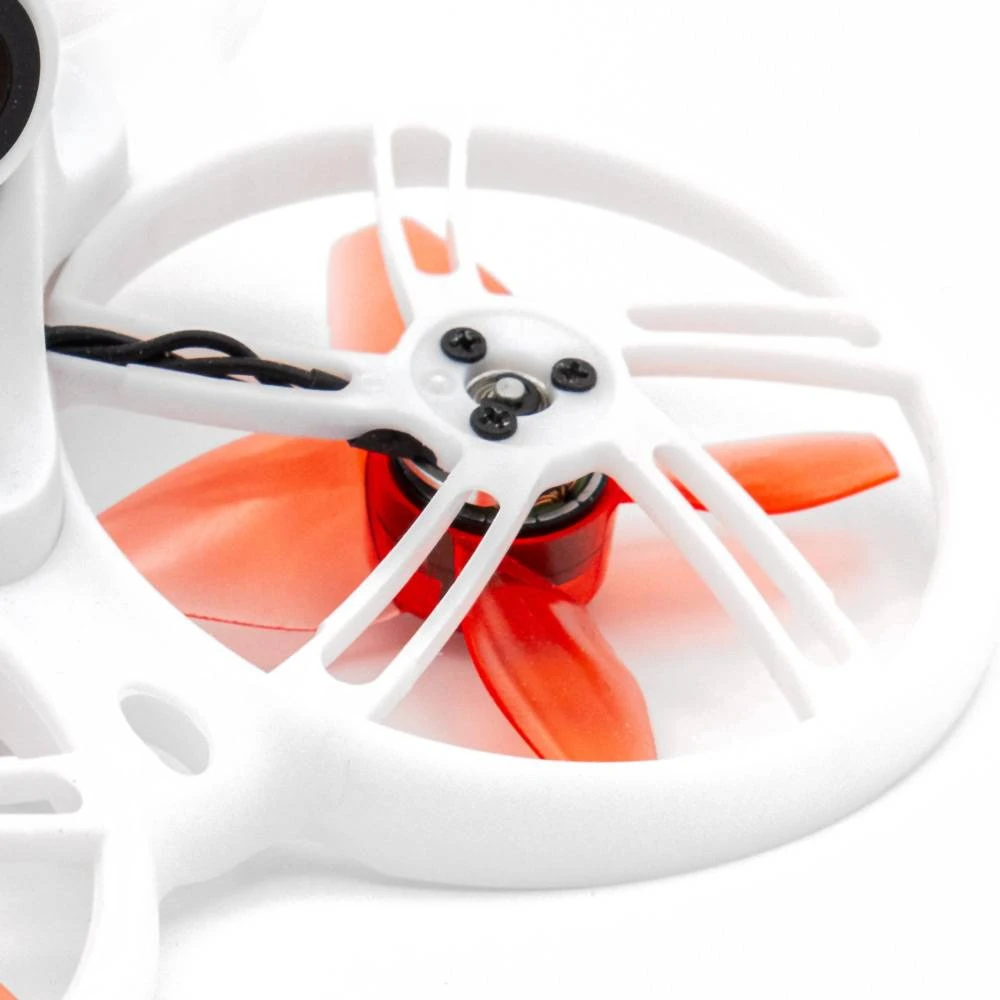

Quick Swap TH0802 II 15000KV Motors

New AVIA TH 4-Blade Propellers

Betaflight OSD VTX Settings

RunCam Nano 4 Camera

TinyHawk III VTX

TINYHAWK III MAIN CONTROL BOARD – TinyHawk III main control board contains four 5A electric regulators and an 8-channel receiver. The receiver is integrated into the main control board and set through betaflight.

TINYHAWK III FLIGHT CONTROLLER – This flight controller has an MCU(STM32F411CEU6) with an MPU6000 gyro. TinyHawk III flight controller comes pre-programmed and properly tuned for optimal flight. For a full tune and configuration setting file (CLI dump file) please visit https://emaxusa.com/ for the CLI dump file.

Specifications

VTX: 200-100-25mW 37CH (Adjustable frequency)

Receiver: EMAX Tiny Receiver (SPI/Frsky_D8)

Maximum Size: L*W*H=105x105x45mm

Camera: RunCam Nano 4 Camera

FC: F4 (STM32F411 firmware)

Weight (Without battery): 32g

Propeller: Avia TH Propeller

Motor: TH0802 II 15000KV

Battery: 1S HV 450mAh

Support: SmartAudio

ESC: 4in1 /5A ESC

Wheelbase: 76mm

RUNCAM NANO 4 CAMERA

Dimensions: L14mm*W14mm*H14mm

Current: 160mA@5V [email protected]

Min. Illumination: [email protected]

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Horizontal Resolution: 800TVL

Lens: 2.1mm(M8) FOV 155°

Image Sensor: 1/3″ CMOS

Model: RunCam Nano 4

Housing Material: ABS

Signal System: NTSC

Power DC: 3.3-5.5V

S/N Ratio: >50dB

Net Weight: 2.9g

Day/Night: Color

D-WDR: Auto

Manuals
EMAX TinyHawk III BNF Quadcopter

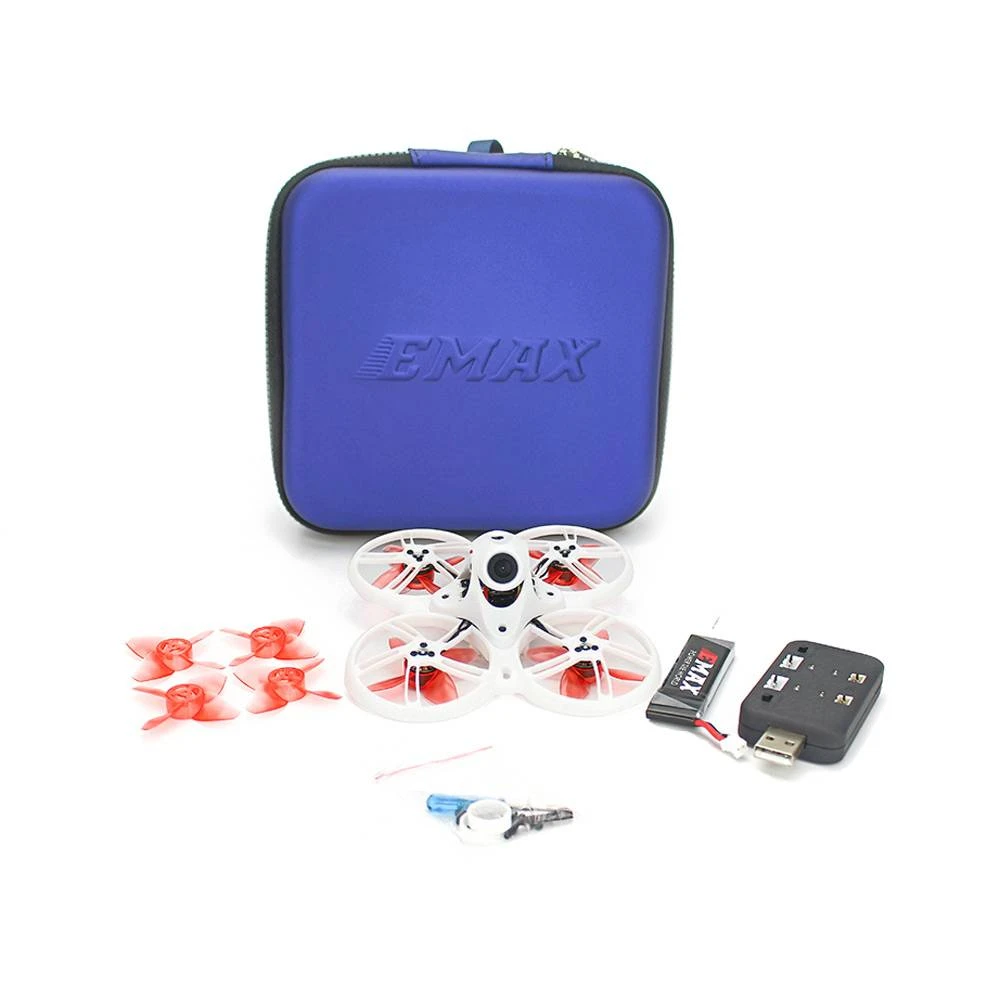

Includes

1x EMAX TinyHawk III BNF Quadcopter

1x Avia TH 4-Blade Propellers (Set of 4)

1x 1S HV 450mAh LiPo battery

1x USB 4-port USB Charger

1x Phillips screwdriver

1x Carrying Case
