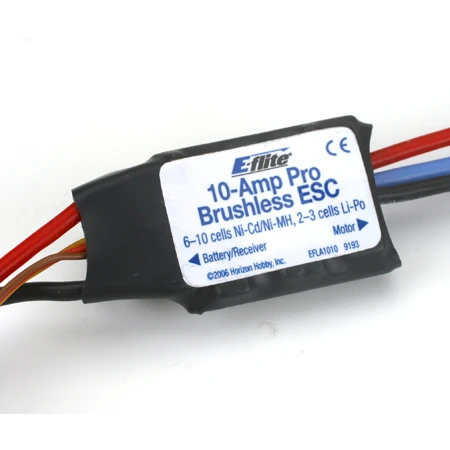

E-Flite 10-Amp Pro Brushless ESC

Original price was: $32.99.Current price is: $23.09.

SKU: C25OB 1176 Categories: Electronic Speed Controllers, Electronics

Get the Best for Less
Free Shipping Worldwide
Green products, guaranteed.
Your questions, our prompt answers.

Description
Reviews (0)

Key Features

Up to 10-amp continuous current with proper air flow

Programmable motor braking

Safe power-arm mode prevents accidental starts

Programmable low-voltage cutoff with settings for 2-cell Li-Po (6V), 3-cell Li-Po (9V) or 70% of battery starting voltage

Programmable throttle input range (1.1ms?1.9ms or Auto Select)

Auto motor shut down if signal is lost or there is interference

Programmable timing?2 user-selectable ranges for use with a large variety of brushless motors

Pre-wired connectors?JST on battery input and 2mm female gold bullets on motor output leads

Soft start

Overview

This controller has been designed for use in radio control aircraft and to support continuous currents of up to 10 amps when using 2?3 cell Li-Po battery packs and up to 4 sub-micro servos. Standard features include advance BEC and safe power-arming along with programmable features such as low-voltage cutoff, braking, timing and throttle input range.

Specs

Brake: Yes – Programmable

Continuous Maximum Current: 10A

Input Connector Types: 20AWG with JST connector

Output Connector Types: 20AWG with 2mm Female Gold Bullet

Connectors

Momentary Peak Current: 12A (15 sec)

Length: 1.2 in (30mm)

Width: 0.7 in (17.5mm)

Height: 0.4 in (10mm)

Weight: 0.35 oz (10g)

Cells w/BEC: 2-3S Li-Po or 6-10 Ni-MH/Ni-Cd
