Duratrax Onyx 1/10 80A/4420kV Brushless System

Original price was: $149.97.Current price is: $96.99.

SKU: C25OB 6160 Categories: Electronic Speed Controllers, Electronics

Get the Best for Less
Free Shipping Worldwide
Green products, guaranteed.
Your questions, our prompt answers.

Description
Reviews (0)

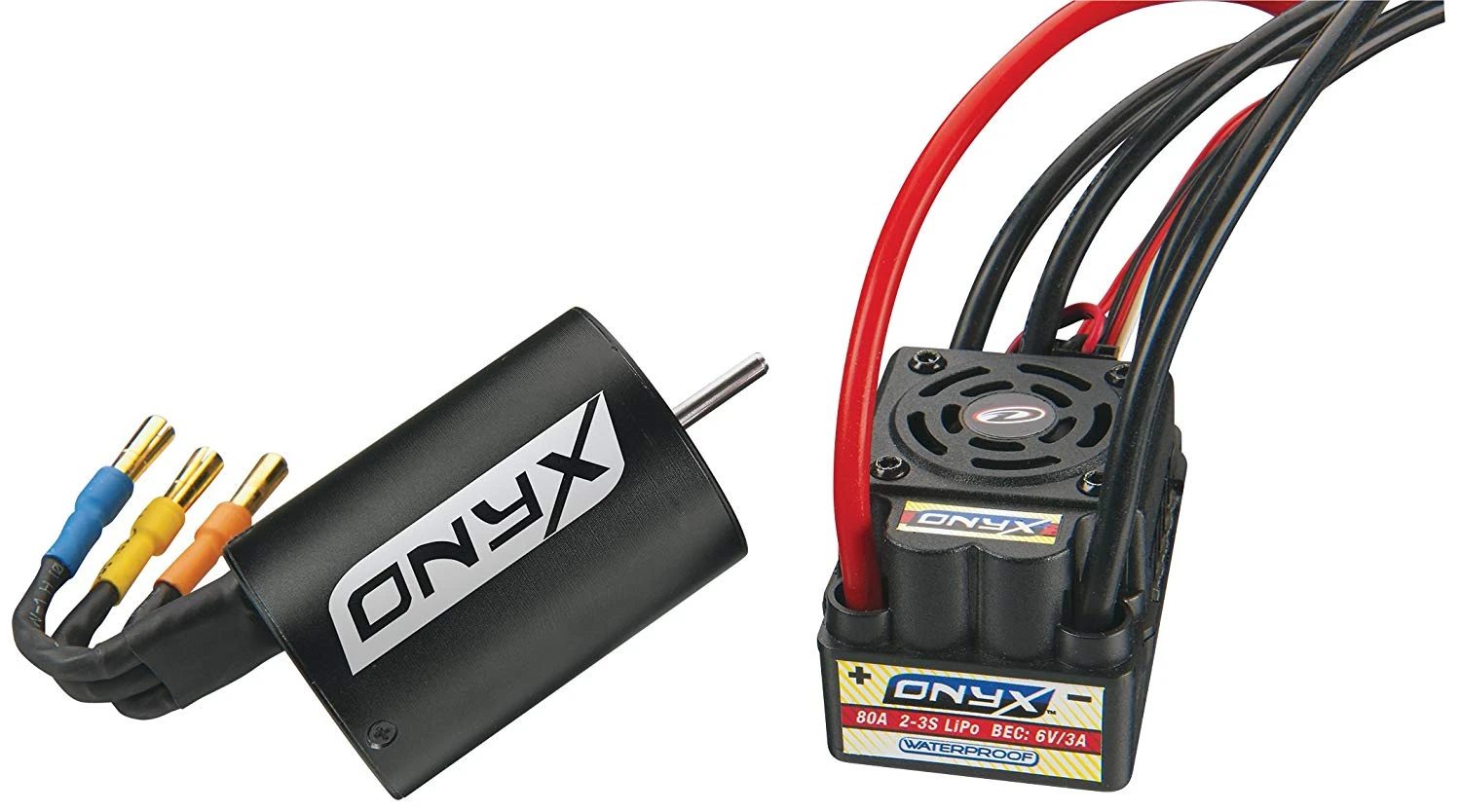

This is the Onyx 4420kV Brushless Motor and ESC System
for 1/10 scale RTR buggies, trucks, and short course trucks.

FEATURES:

Ideal upgrade for 1/10 scale RTR buggies and trucks

Two pole 4420kV brushless motor

Waterproof ESC for protection from the elements

Preinstalled bullet connectors-no soldering required

Fully programmable ESC with optional Onyx Programming Card (not
included, order DTXM1352)

180 day limited warranty through Hobby Services beginning at date of
purchase

INCLUDES:
Onyx 4420kV Brushless Motor and ESC System with Instructions, Deans
Ultra Male Battery Connector, Wire Lead for Programming Card
(programming card not included) five sections of Shrink Wrap

SPECS:

ESC;

Cont./Burst Current: 80A/520A

Suitable Motor: Sensorless, brushless

Motor Limitation: 2S LiPo 6000kV,
3S LiPo 4000kV

Resistance: 0.0007 ohms

Input: 6-9 NiMH/NiCd cells, 2-3S LiPo cells

BEC: 6V/3A Linear

Dimensions: 1.5 x 1.5 x 2.3″ (38.4 x 38.4 x 59.3mm)

Weight: 3.9oz (110g)

Connectors: 4mm bullet

Battery Connection: Deans Ultra Male

Motor;

Dimensions: 1.4 x 2.1″ (36 x 53mm)

Weight: 6.5oz (186g)

Connectors: 4mm bullet

Shaft Diameter: 3.175mm

COMMENTS: *If NiMH or NiCd packs are used, they must be capable of high
discharge rates or poor performance will result.
