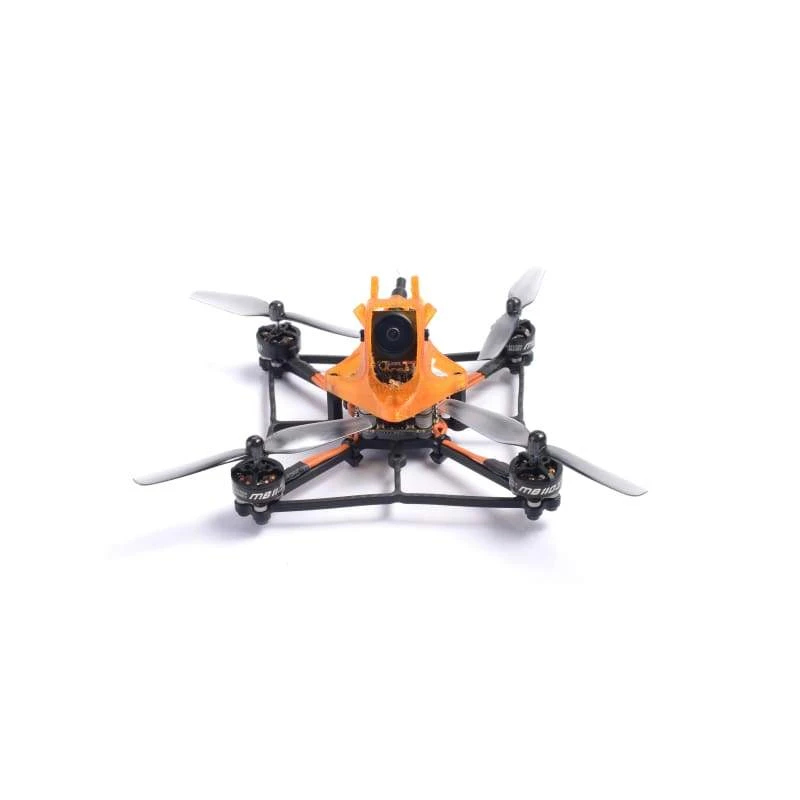

DIATONE CUBE 239 PNP VERSION

Universal Receiver plug port Standard – Frsky R-XSR JST1.25，XM+

1.Mamba F411 stack Diagram V1.1

2.Mamba F411 stack Diagram V1.2

3.Mamba F411 stack Diagram V1.0

Specification:

Brand name: Diatone

Item name: CUBE 239

Bottom Plate Thickness：4 mm

Motors: 1103 6500KV (3S)

Props：2.5inch

Weight about ：43g

FC Specifications

MCU: MAMBA F411 NANO

IMU: MPU6000

Baro: No

OSD: BF OSD

Blacbox: NO

ESC Soft: Dshot300/600/1200

Input: 2~4S Lipo (8.4~16.7V)

BEC: 5V 1.5A

Camera: RUNCAM NANO2 Camera

Antenna: Copper pipe antenna

VTX: TBS UNIFY PRO32 NANO

Motor: MAMBA Racing MB1103

Lipo:

2S version 300-450mah

3S version 300 mah
