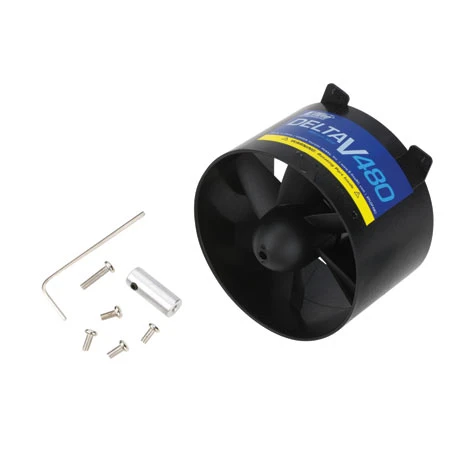

Delta-V 480 65mm EDF Unit

Original price was: $26.99.Current price is: $18.89.

SKU: C25OB 3633 Categories: Electric Motors, Electronics

Get the Best for Less
Free Shipping Worldwide
Green products, guaranteed.
Your questions, our prompt answers.

Description
Reviews (0)

Key Features

Ideal for airplanes requiring a 65mm EDF unit using 20mm diameter motor
Designed for 3S-4S Li-Po batteries
Factory-balanced 65mm 6-blade rotor design
Injection molded, fiberglass-filled nylon
High-performance, efficient design
Quick assembly time
Overview
Ideal for airplanes using 65mm EDF units requiring a 20mm diameter motor.

Specifications

Rotor Diameter: 65mm (2.5 in)

Shroud Outer Diameter: 68mm (2.7 in)

Shroud Length: 42mm (1.65 in)
Weight: 30g (1.05 oz)

Performance Data*

Static Thrust: .9 lbs on 3S (11.1V)
1.8 lbs on 4S (14.8V)
RPM: 39,000 on 3S (11.1V)
49,000 on 4S (14.8V)
Watts: 255 on 3S (11.1V)
590 on 4S (14.8V)
Current: 25A on 3S (11.1V)
43A on 4S (14.8V)

*Measured using BL480 DF Outrunner, 4000Kv

Needed to Complete
BL480 Ducted Fan Outrunner Motor, 4000Kv (EFLM1550DF)

40A Lite Pro Brushless ESC (EFLA1040L)

(Motor is included when you purchase the EFLDF480 which is the complete system)
