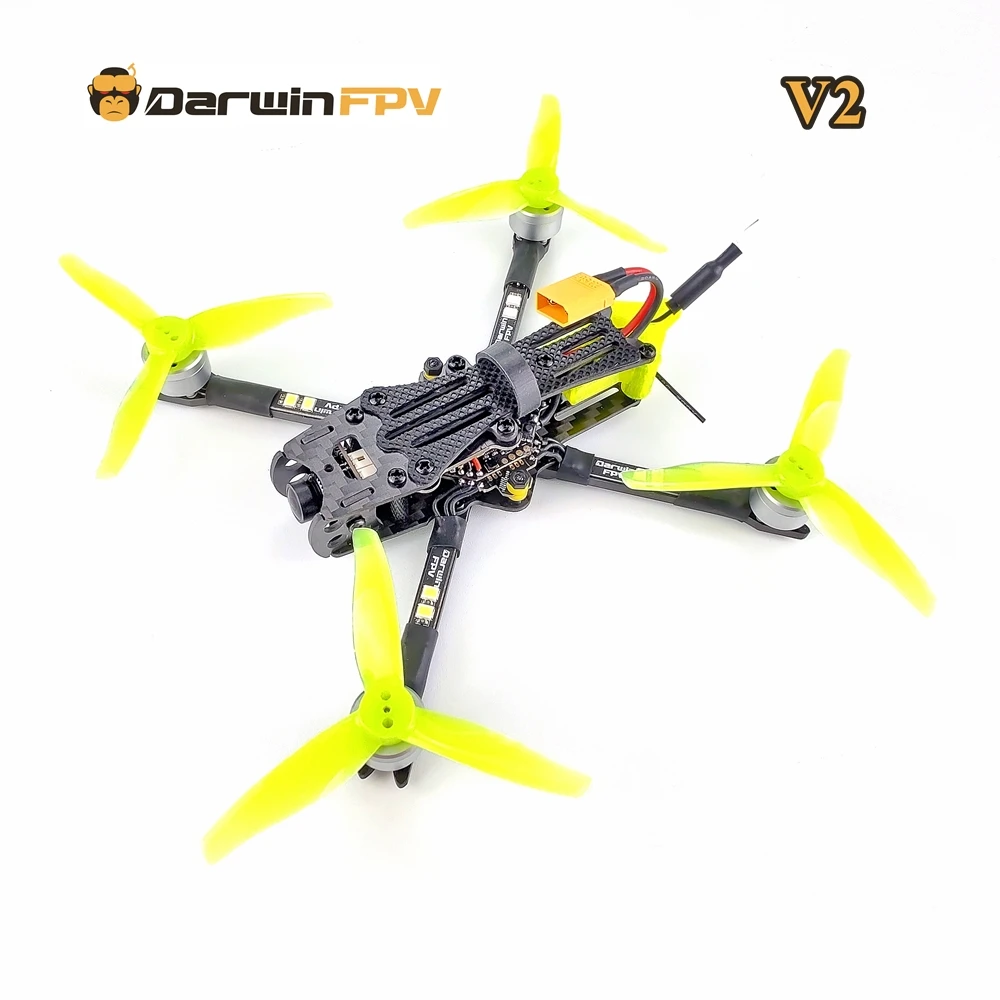

DarwinFPV Baby Ape Pro V2 BNF(ELRS Reciver)

Darwin Baby Ape has been loved by many pilots as soon as it was published. In order to design a better FPV drone, we have upgraded the Baby Ape based on the pilots’ feedback and launched the BabyApe Pro V2.

We made seveal upgrades from the frame. First of all, nylon standoffs is upgraded to aluminum alloy standoffs, which strengthens the frame and stables structure.

Second, We added the receiver fixing bracket.

Third, we upgraded the arms. The arms are upgraded from 4 individual arms(2.5mm thicness) to 2 integrated arms(3.0mm thickness). It is more easy to disassemble, sturdy and durable.

Last, the V2 version only needs 4 screws to fix, and the arm can be replaced by removing 2 screws without removing the whole drone.

Specifications:

CADDX ANT Camera

Resolution:1200TVL

Image Sensor: 1/3″ CMos Sensor

Input: DC 3.7-18V

TV System: PAL/NTSC

1104 4300KV 2-3S Brushless Motor

KV: 4300KV

Lipo cell: 2-3S

AIO 4 IN 1 15A BLHeli_S ESC

Input voltage: 1-3SLiPo

Continuous current: 15A

Pe ak current:17A (10S)

BEC output: no

Main control chip:EFM8BB21

Firmware upgrade: Supports Dshot600/Oneshot125

MOS: 3*3

F411 AIO Flight Controller

Main control chip: STM32F411

Integrated OSD

PPM/DSM/IBUS/UAR share: UART1-RX

IMU: MPU6500 (SPI)

Mounting holes distance: 25.5*25.5mm

Supports Betaflight firmware

5.8G 40CH 0mW/25mw/200mw switchable VTX

Supports TBS SmartAudio

Transmitting power: 0mW/25mW/100mW/200mW switchable

Channel: 40CH

Full video format: NTSC/PAL

Input voltage: 7V~24V

Power dissipation: +12V/600MW

Size: 25×20×6mm

Weight: ?3.2g (except antenna)

With copper pipe mini antenna (ipex antenna)

3016 3-blade propeller

Mounting hole: 1.5mm

Center thickness: 5.5mm

Quantity: 2 pairs

Weight: 1.18g a pair

Package:

Baby Ape Pro V2 BNF( ELRS Receiver)

1*Baby Ape Pro V2 Drone

2*3016 Propellers (pair)

1*Set of Screws

1*ELRS Receiver
