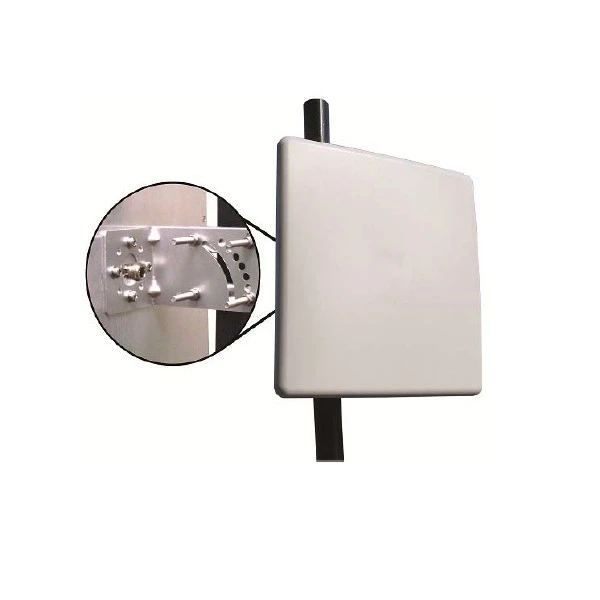

Correa 5.8GHz 23dBi Panel Antenna

23dBi High Gain 5.8GHz Panel Antenna for Long Range Video Transmission System

Features

* Light weight Superior Performance Broadband Antenna

* Compact flat panel design, heavy duty Radome

* All weather operation

Applications

* 5.8GHz UNII applications

* 5.8GHz ISM applications

* 5.8GHz Wireless LAN systems

* WiFi

* Wireless Vvdeo Systems

Electrical Specifications

Frequency: 5725-5850 MHz Gain: 23 dBi

Horizontal Beam Width: 22?

Vertical Beam Width: 16?

Polarization: Vertical / Horizontal

Impedance: 50 Ohm

Max. Input Power: 50 W VSWR: 1.5:1 avg.

Lightning Protection: DC Short

Connector: Integral N-Female

Mechanical Specifications

Net Weight: 0.85KG

Dimensions: 12 x 12 x .75 inches (30.5 x 30.5 x 1.9 cm)

Radome Material: UV-Stable Fiberglass

Operating Temperature: -40? C to 85? C (-40? F to 185? F)
