BETAFPV Nano HD Camera

BETAFPV Nano HD Camera is the Lightest HD camera at the current market!

Special customized for Beta65X HD, ultra definition with 1080p resolution, super-light weight with 6.71g, complete functions with OSD, audio and record. Also, it adopts a 1/2.7″ CMOS sensor and a 1.8mm lens for excellent latency. Best choice for all whoop drones like Beta65X HD, Beta75X HD, Beta85X HD and HX115 HD. Discover the beauty of the world and record the wonderful life! We also provide you a canopy for these Nano HD camera.

Bullet Point

Tiny and lightweight design which is suitable for weight-sensitive drone, weights only 6.71g. Offering you a chance to upgrade your drone to experience super clear visual enjoyment.

Global WDR camera, convenient operation with switchable TV system and aspect radito via OSD, it can shoot clear dynamic image even in low light condition.

1.8mm lens, FOV 170° beyond the wide-angle for recording more wide and beautiful scenes.

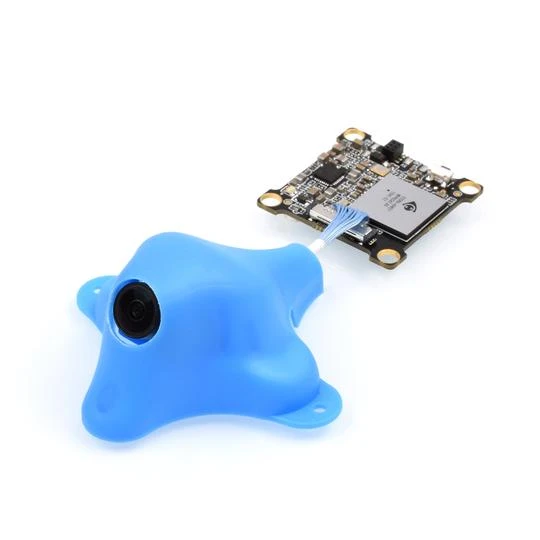

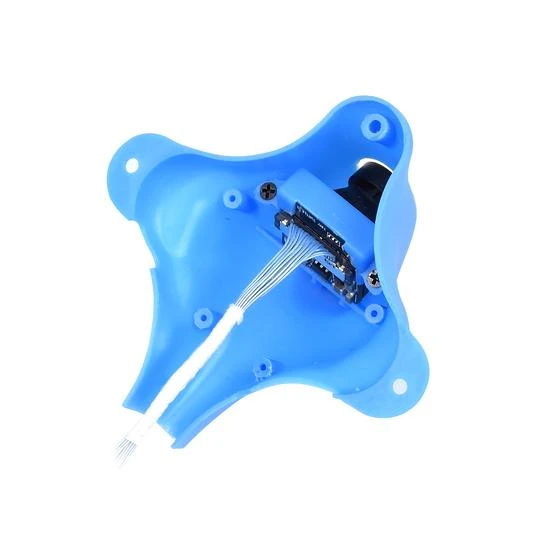

The package comes with a Nano HD Canopy, this canopy is with injection molding technique, durable and flexible, which is the best combination with Nano HD camera.

Packed with a extra canopy for this Betafpv HD camera, so you can change it if you need to replace the canopy.

Specification

Item: Betafpv Nano HD Camera

Image Sensor: 1/2.7″ CMOS Sensor

Resolution: 800TVL

Video resolution: 1080P @ 60fps / 1080P @ 30fps

TV system: NTSC / PAL (Switchable via OSD)

Aspect Radito: 16:9 or 4:3 (Switchable via OSD)

Lens: 1.8mm Lens

Recording field of view: 170°

Video file: MP4

Max micro sd card supported: 64G

Audio: Support

Mini lighting: 0.01LUX

DNR: 3DNR

WDR: Yes

OSD menu: Yes

Color: Black

Power input: DC 5-20V

Working current: 160mA @ 12V

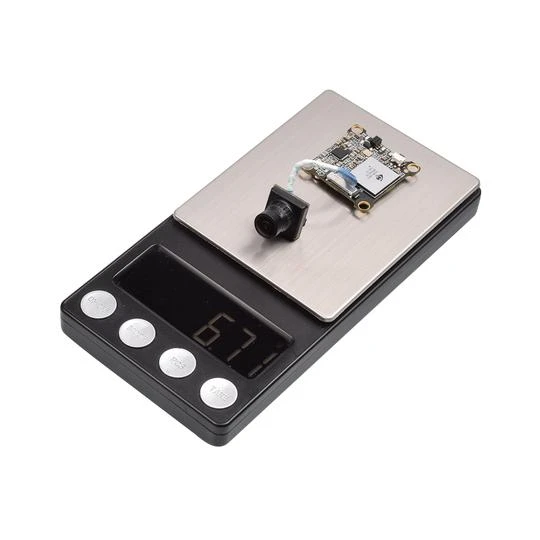

Net weight: 6.71g

Dimension: 14 * 14mm (25mm mounting holes)

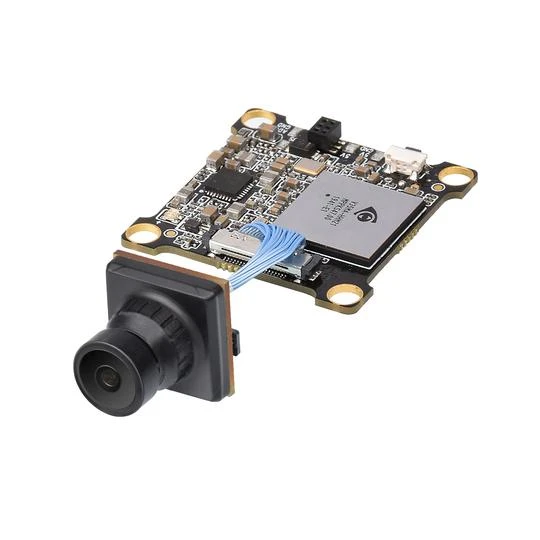

Diagram for DVR Board
As usual, we use the 5V, GND and CAM pads for most of the function. For option, if you want to change the configuration of the camera, there are some modification needed. Remove the 6-pins black connector and use the ADC pad.

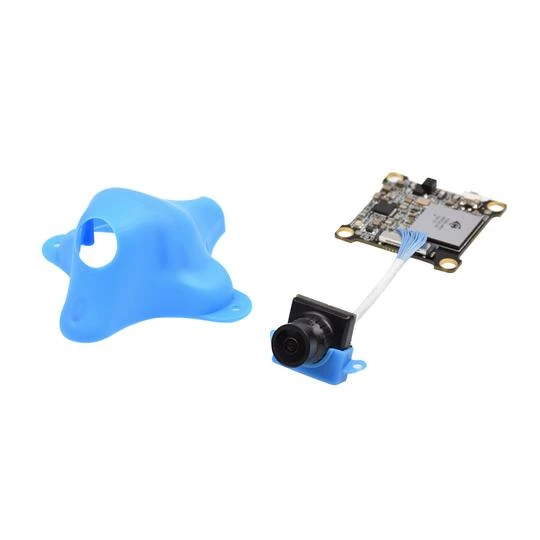

Package

1 * Betafpv Nano HD Camera

1 * Nano HD Canopy

1 * 1/3” Camera Mounting hardware

4 * M1.4 * 8 Screws

4 * M1.4 * 4 Screws

4 * M1.2 Anti-vibration rubber dampers
