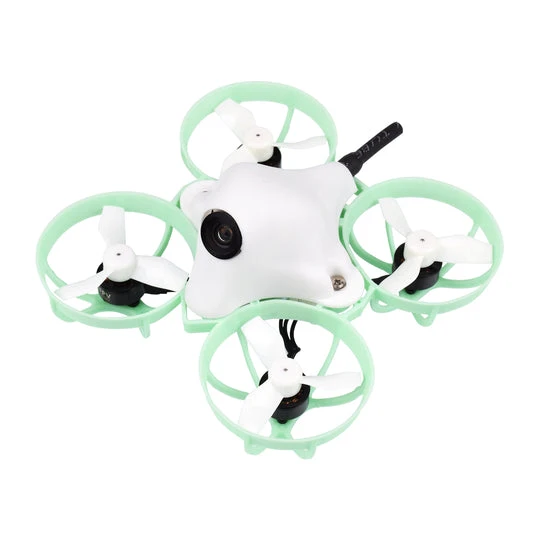

BETAFPV METEOR65 (0802SE 19500KV) BRUSHLESS WHOOP QUADCOPTER – ELRS 2.4G

Meteor65, a leading 1S whoop WINTER TIME drone. It’s equipped with the BT2.0 connector, lightest F4 1S FC and 0802SE 19500KV motors. With the stronger and powerful dynamical system, you’ll immediately notice how fantastic the 22.84g Meteor racer is at takeoff. It feels amazing as you hover around indoors, then let it rip and haul around the house!

ELRS 2.4G Version
ExpressLRS is the most popular radio link in 2021. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. Know more about the ExpressLRS project on Github or join the discussion in the Facebook Group.

In order to meet the FPV polit’s requirement for ELRS whoop drones, the ELRS 2.4G version Meteor65 is here. Comparison with the SPI Frsky version, what is the upgrade point on the new ELRS 2.4G version drone?

The FC board is the F4 1S 5A FC (ELRS 2.4G), which integrates BLHeli_S 5A ESC and SPI ExpressLRS 2.4G receiver.

5.8G VTX M03 could provide highest 350mW output power. So both the radio link and FPV video link could be long enough.

How to Bind with Betaflight FC with SPI ExpressLRS Receiver.

Bullet Point

Meteor65 is the first generation whoop drone powered by a brand-new BT2.0 1S battery. The BT2.0 connector effectively decreases internal connector resistance for a much better discharge performance compared with the initial PH2.0 connector.

Flight controller pre-soldered the BT2.0 cable, which can provide a more stable and powerful 9A continuous current and 15A burst.

For minimizing weight and optimal performance, it applies the perfect lightest combo with F4 1S AIO FC and C02 camera.

By using the latest 0802SE 19500KV motors and 31mm 3-blade props, this kit provides you a completely different experience of a powerful indoor flight.

Meteor65 lower profile frame is reduced 0.75g to 3.08g only. The battery slot is closer to the center of gravity for a smoother flying experience, and you will land on the motor screws instead of the battery.

The package comes with 2 lipo batteries, a BT2.0 charger & tester, an extra 1 set of props, 1 screwdriver, and a portable bag. Meanwhile, we have also released a BT2.0 Battery charger for your needs.

Specification

Item: Meteor65 1S Brushless Whoop

Weight: 22.84g (without battery)

FC&ESC: F4 1S AIO FC / F4 1S 5A FC (ELRS 2.4G)

Frame: Meteor65 65mm 1S Brushless Frame

Motors: 0802SE 19500KV Motor

Props: 31mm 3-blade props (1.0mm Shaft)

Camera: C02 Micro Camera

VTX: Integrates 25mW VTX / M03 25-350mW VTX (only for ELRS 2.4G version)

Canopy: Canopy for Micro Camera

Battery: BT2.0 300mah 1S Battery

Flight time: 3:30min-4min

BT2.0 Connector

BETAFPV exclusive designed BT2.0 connector has broken through the bottle-neck of PH2.0 connector. BT2.0 connector has decreased internal resistance of connector effectively allowing more current to be transferred, which means it supports 9A continuous current (15A burst). This means stronger power and longer flight time on 1S brushless drones while PH2.0 just supports 4.5A. You can enjoy more flight time without disturb of low voltage warning due to reducing voltage sag.

Flight Controller
F4 1S AIO FC(SPI Rx) integrates 4 components as F411 FC, 5A ESC, 25mW VTX and SPI receiver. It is ultralight only 3.92g and still maintains an amazing performance capability, which makes it become your best choice to run with a 1S brushless quad!

F4 1S AIO FC(No Rx) integrates 3 components as F411 FC, 5A ESC and 25mW VTX. It supports external receivers like TBS Crossfire, Frsky XM+ and Spectrum DSMX etc.

In this quad, the Frsky & Futaba Version is equipped with F4 1S AIO FC(SPI Rx), and the TBS & PNP Version is equipped with F4 1S AIO FC(No Rx) with an external Receiver.

Motors
0802SE 19500KV Motor is a lightweight 1S motor, compared with the 0802 series brushless motors, it is not only significantly reduced the weight which is only 1.83g/pc but also ensuring the awesome performance of power and thrust. Lead wire soldered to the PCB, which allows you to repair it easier once it disconnected.

And the Racing version of Meteor65 is using the 0802 22000KV motors, which uses a ball bearing instead of brass bushings, and PCB connector. More durable and easier to repair once disconnected.

Meteor65 Frame
The lightest lower profile 65mm frame- Meteor65 frame is reduced 0.75g
to 3.14g only. The battery slot is closer to the center of gravity for a
smoother flying experience, and you will land on the motor screws instead of the battery. There are more options for colorful frames such as Beta-blue, mint-green, sakura-pink, mango-orange, etc.

FAQ

1. Cli Dump of Meteor65 Whoop Quadcopter (Click here to find the details).

Package

1 * Meteor65 Brushless Whoop Quadcopter (1S)

2 * 300mAh 1S 30C Battery with BT2.0 connector

1 * BT2.0 Battery Charger and Voltage Tester

1 * TypeC USB cable

1 * Customized Carry Case

1 * Spare 31mm 3-blade props (1.0mm Shaft)

1 * Screwdriver
