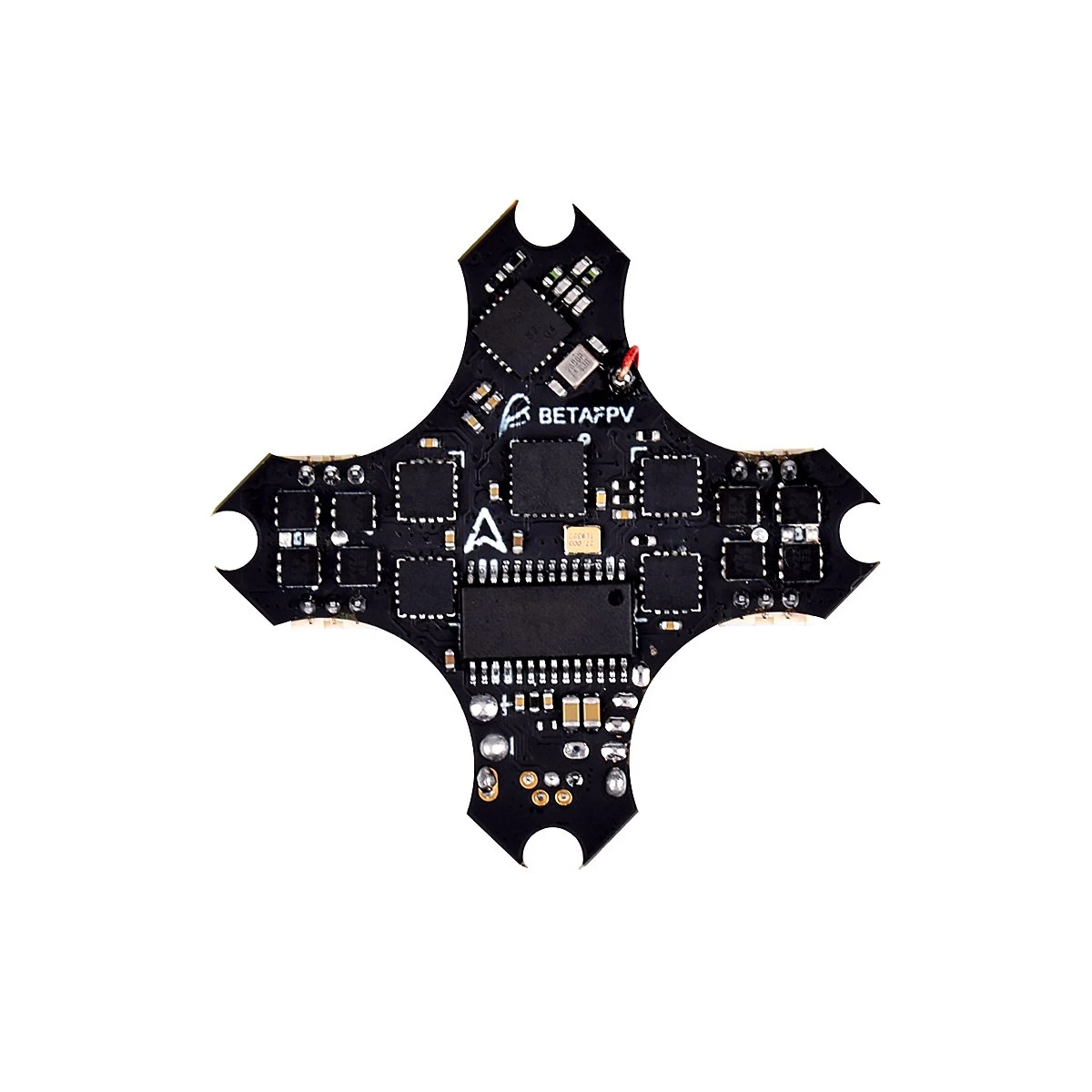

BETAFPV F4 1S V2.2 Brushless Flight Controller – SPEKTRUM

This is the lightest F4 1S brushless FC in the current market. Upgraded to V2.2, we have optimized the design of power supply for a stable flying experience. With BT2.0 connector, slim and sleek design, 2.69g in weight and better performance on function for maximum weight savings, power, and responsiveness.

Equips with BT2.0 connector, all 1S brushless drones will gain stronger powerful and perfect performance. Specially made for 1S brushless whoop with F411 chip. A great choice for building Beta65 Pro and Beta75 Pro.

SPECIFICATIONS OF FC

CPU: STM32F411CEU6 ( 100MHZ )

Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)

Size: 29mm x 29mm, fully compatible with the whoop frame in the current market, Beta65 Pro frame, Beta75 Pro frame, BWhoop B06 frame, and mounting pattern

Firmware version: Frsky / Futaba: Betaflight MATEKF411RX (MK41R) , DSMX: BETAFPVF411

Compatible with Z02, A01, M01 VTX

OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

Power Cable: 55mm, with BT2.0 connector

Weight: 2.69g

SPECIFICATIONS OF ESC

Power supply: 1S

Current: 5A continuous and peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_6.HEX

Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

DIAGRAM FOR F4 1S FC V2.2 (DSMX)

PACKAGE

1 * F4 1S brushless flight controller(BT2.0 Connector)

4 * M1.2x4mm screws

4 * M1.4x5mm screws

4 * Anti-vibration rubber dampers

Updated History:

Mar 10th,2020- Frsky FCC/ Frsky LBT/Futaba RX version has updated from V2.1 to V2.2, we optimized the design of power supply for a stable flying experience.
