BETAFPV C02 FPV Micro Camera

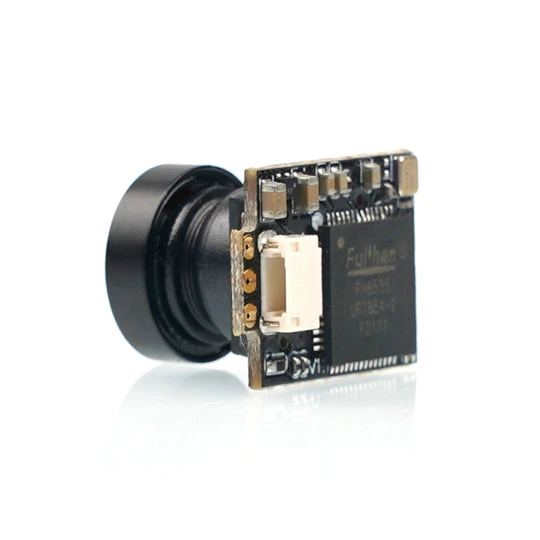

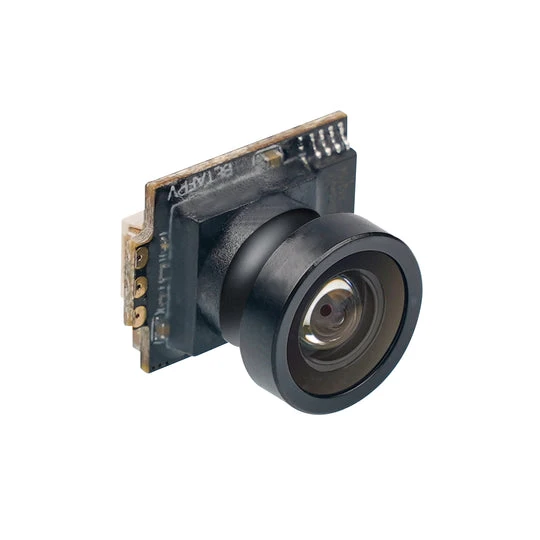

C02 Micro Camera is the lightweight camera customized for those weight sensitive micro whoop drones, like Meteor65, Beta65S, Beta85 pro2, HX100SE. Adapted a 1/4” CMOS sensor, 2.1mm lens for 1200TVL resolution and excellent latency while minimizing the weight to 1.4g. Packed with the micro canopy, protect your camera well in a hard crash.

Plug-N-Play Connector

C02 camera features a JST-0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for Cetus seris drones, BETAFPV F4 1S AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.

Bullet Points

Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.

1200TVL resolution and 1/4″ CMOS sensor ensure a high-quality and clear image

Global WDR camera, 16:9 aspect ratio, shoot clear dynamic image even in low light condition

2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes

The package comes with an injection molding canopy, more durable, which is the best combo with C02 camera

Specification

Item: C02 Camera

Image Sensor: 1/4″ CMOS Sensor

Horizontal: 1200TVL with Global WDR

Signal System: NTSC

Lens : 2.1mm(M8) FOV 160°

S/N Ratio: >50db

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: [email protected]

D-WDR: Auto

Day/Night: Color

Power: DC 3-5.5V

Current: 110mA@5V / [email protected]

Housing Material: ABS

Dimension: 13*11mm

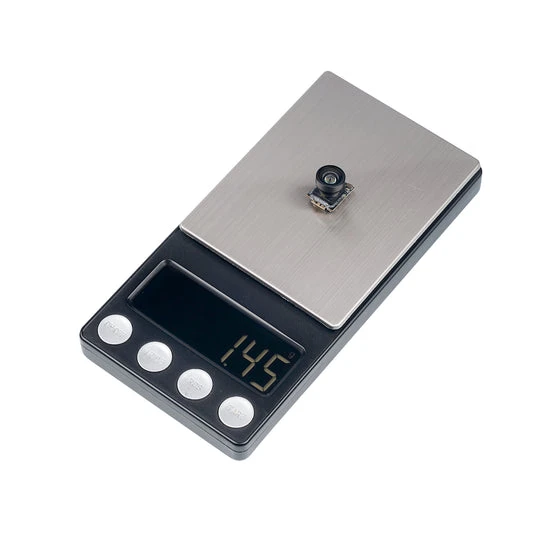

Net weight: 1.4g

Package

1 * C02 FPV Micro Camera

1 * Injection Molded Canopy

1 * 1/4” Camera Mounting hardware
