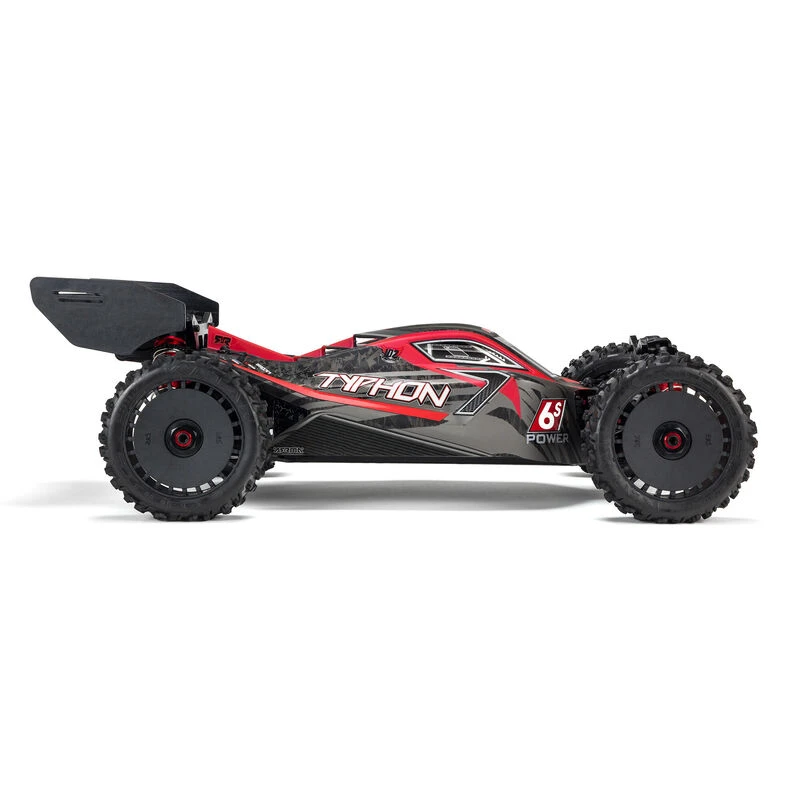

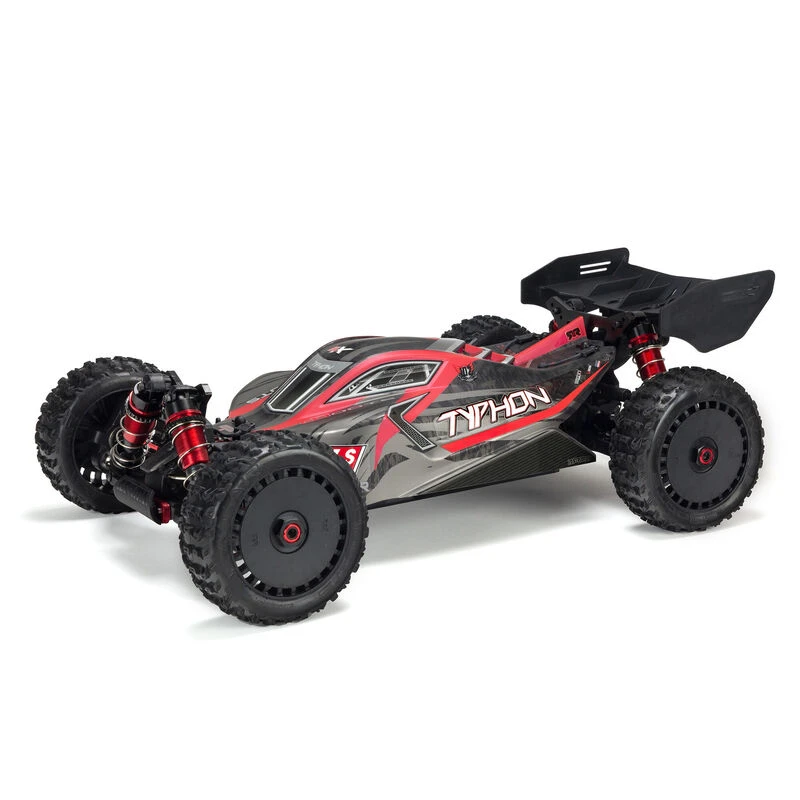

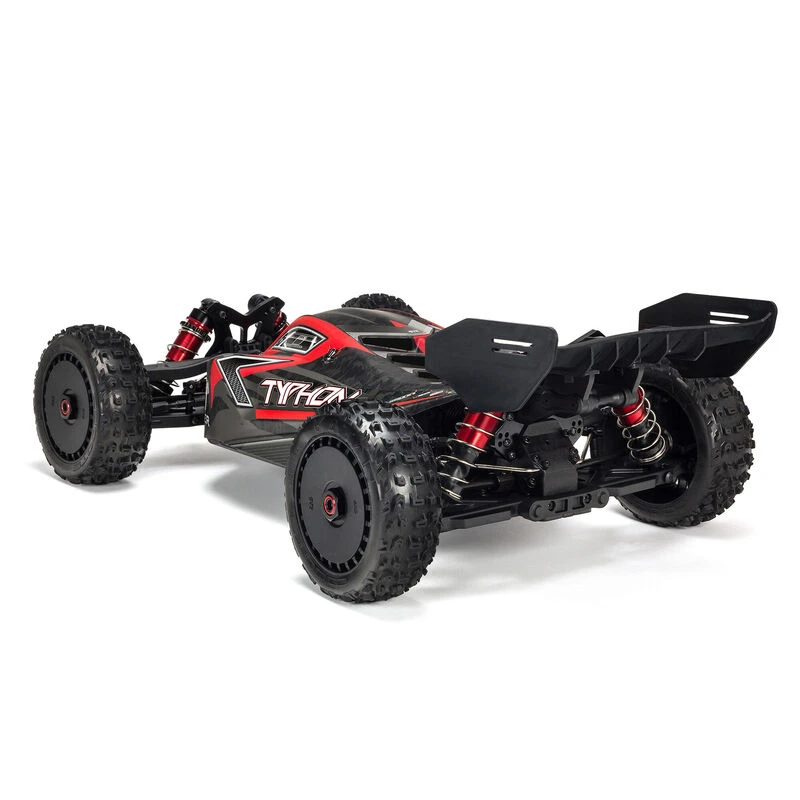

ARRMA 1/8 TYPHON 6S V5 4WD BLX Buggy With Spektrum Firma RTR, Black

Product Details
Designed fast and designed tough, the ARRMA® TYPHON™ 6S BLX 4WD RTR Speed Buggy is now equipped to deliver even bigger and better 1/8 scale bashing thrills — with a Spektrum™ SLT3™ radio, dual protocol receiver, Smart ESC, stronger servo and more.

Key Features

Updated with Spektrum™ components and Smart compatible

70+ MPH (113km/h) speeds achievable in optimum conditions using a 6S LiPo battery and optional pinion gear, not included

EXB compatible front brace

Large volume waterproof receiver box

Ready-to-run – just install a charged 4 cell or 6 cell LiPo battery of your choice

In The Box

ARRMA® TYPHON™ 6S BLX 1/8 Speed Buggy 4WD RTR

Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)

Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)

Spektrum ™ S652 Metal-Geared Digital Servo (installed)

Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)

Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio

Product Manual

Needed to Complete

4S or 6S LiPo Battery

LiPo Compatible Charger

LiPo Charging Bag

(4) AA Batteries

Introduction
Experience a thrilling new level of bashing performance with the 1/8 scale, ready-to-run ARRMA® TYPHON™ 6S BLX 4WD Speed Buggy. Designed fast, designed tough, and now outfitted with a versatile Spektrum™ 3-channel radio system and Firma™ brushless electronics, it’s all set for fast action on all terrain, in all conditions.

Features

Ready-to-run

Spektrum™ SLT3™ 2.4GHz 3-Channel Radio

Spektrum™ SR315 Dual Protocol 3-Channel Receiver

Spektrum™ S652 Digital Servo

Spektrum™ Firma™ 150A Smart ESC

Spektrum™ Firma™ 4074 2050Kv Brushless Motor

EXB compatible front brace

Stronger chassis design

Large volume waterproof* receiver box

+1mm wheel hexes

Anodized aluminum chassis

Strong composite chassis side pods

Strong front and rear composite chassis brace

High-speed low downforce wing and strong mounts

Oil-filled adjustable shocks

Aluminum shock caps and protectors

Black-anodized aluminum front and rear shock towers

Durable steel driveshafts throughout

Heavy-duty drivetrain

All-metal diff outdrives and gearbox internals

Never-loose red aluminum servo saver

Never-pop ball ends

4-Bolt center diff removal

Easy-access sliding motor mount for quick motor removal

Super-durable wheel hubs for increased strength

Low drag wheels

Multi-terrain dBoots® KATAR™ tires

Forged composite style matte paint scheme

IC5® connectors (EC5™ compatible)

2-year limited warranty (see manual for details)

*For details on waterproof standards, please refer to the product instruction manual

Overview
ARRMA® engineers have updated the TYPHON™ 6S BLX 4WD Speed Buggy with a brushless power system featuring the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version’s ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter’s ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you’re a new driver, you’ll be able to set throttle limits at 50% or 75% until you’re ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You’ll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

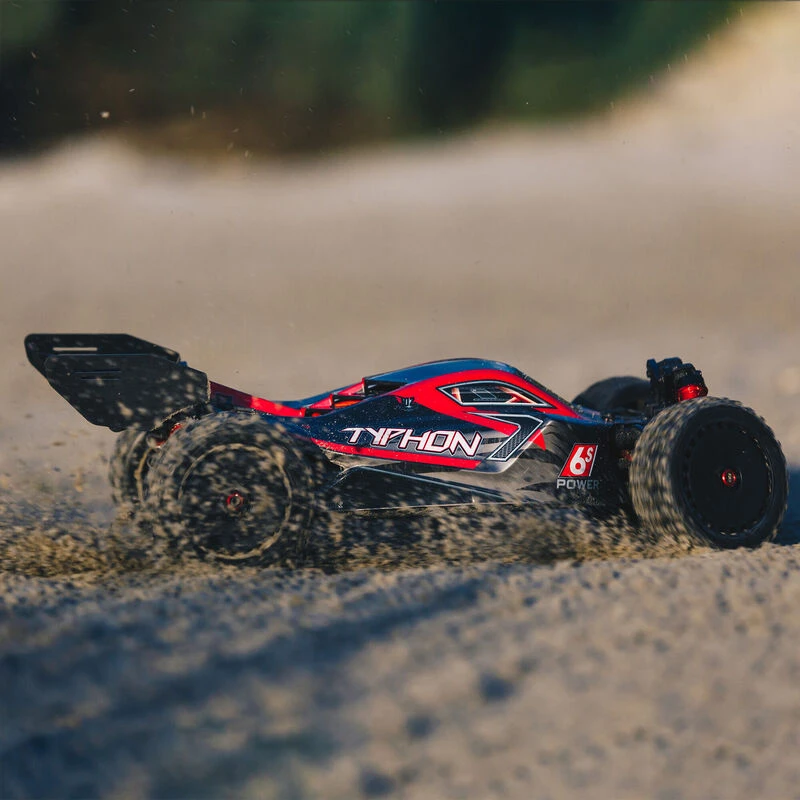

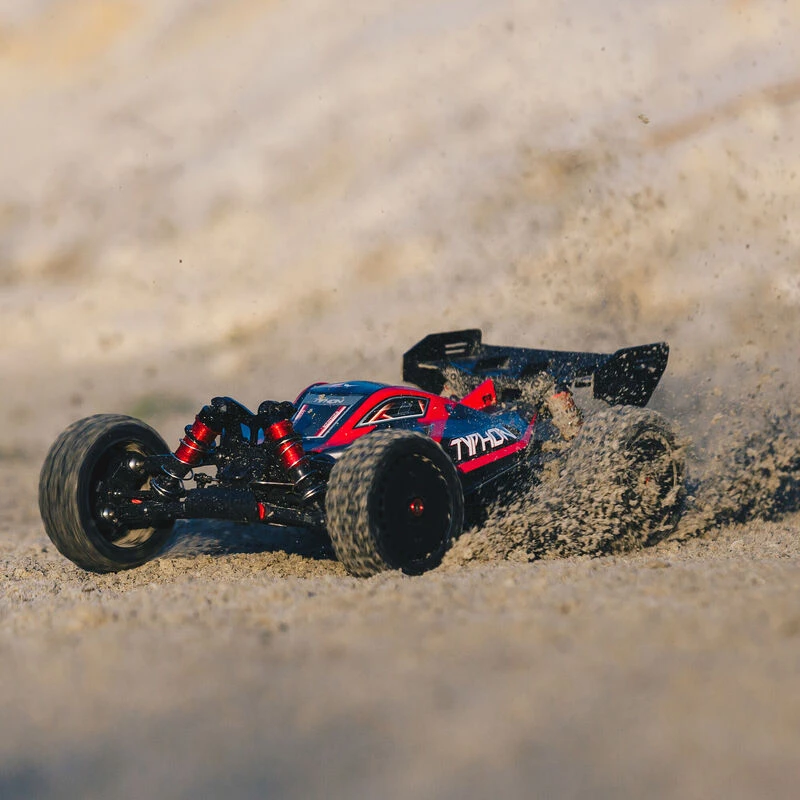

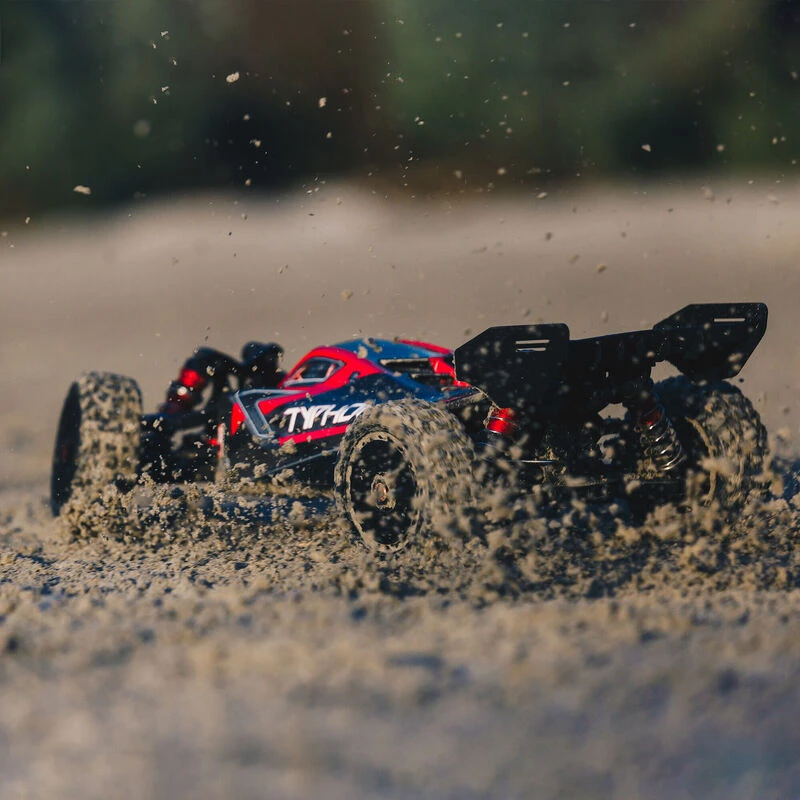

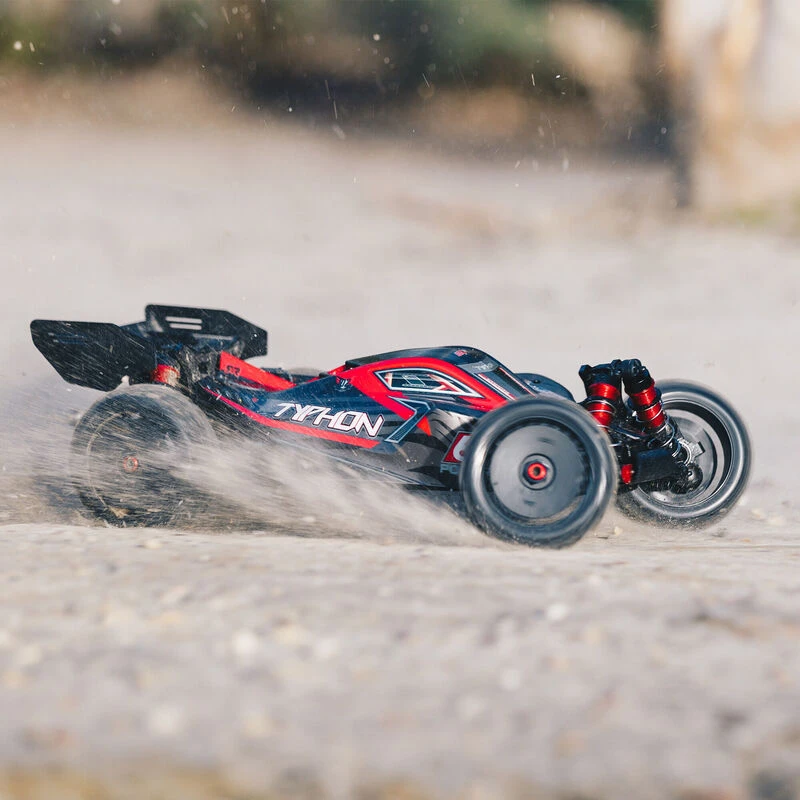

The TYPHON™ 6S BLX 4WD Speed Buggy blasts over dirt, asphalt and grass, with adjustable oil-filled shocks soaking up the bumps. The shocks are mounted on black-anodized aluminum towers and include aluminum shock caps and protectors to maintain their super-smooth damping.

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened, anodized aluminum chassis as its foundation. Front and rear composite chassis braces and composite chassis side pods add more toughness. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, all contribute to a reliable, heavy-duty drivetrain that holds up to extreme bashing. A “never loose” aluminum steering servo saver and “never pop” ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount gives you quick, hassle-free access to the motor. The center diff is easy to reach and can be removed by taking out just four bolts.

The low-drag buggy wheels, now with +1mm hexes, arrive outfitted with super-aggressive, multi-surface dBoots® KATAR™ tires. A low-drag wing helps keep the vehicle grounded. Both contribute to confident control and responsive handling at thrilling high speeds. Topping it all off is a sleek buggy body with streamlined good looks, featuring a matte black and red paint scheme with forged composite detail.

UPDATED CHASSIS DESIGN
Wider rear section and 3D form introduced in key areas to greatly improve strength.

SAFE-D FIRST
Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

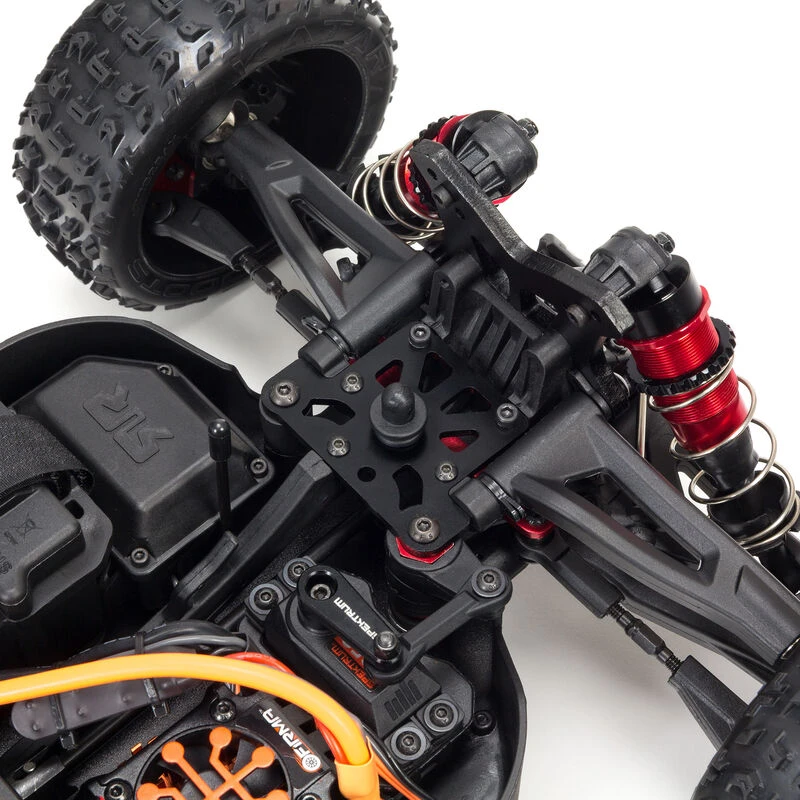

FRONT PIVOT BALL SUSPENSION
For precise handling at top speeds

QUICK MAINTENANCE
4 bolt center diff removal for easy access

SPEKTRUM® SMART TECHNOLOGY INCLUDED
FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor

GO LARGE
Large volume waterproof receiver box

RUBBER SHIELDED BEARINGS
Longer life, less maintenance

OPTIONAL SPEED PINION INCLUDED
Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

FIRMA™ 150A SMART Brushless ESC
Waterproof* and dustproof design

150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)

Spektrum® SMART Technology

Fitted with reliable IC5® connectors (EC5™ compatible)

Integrated fan for reduced heat during extreme running

High quality 10awg wires

Low voltage cut off and thermal overload protection

User programmable punch, brake, BEC, reverse speed and motor timing settings

*For details on waterproof standards, please refer to the product instruction manual

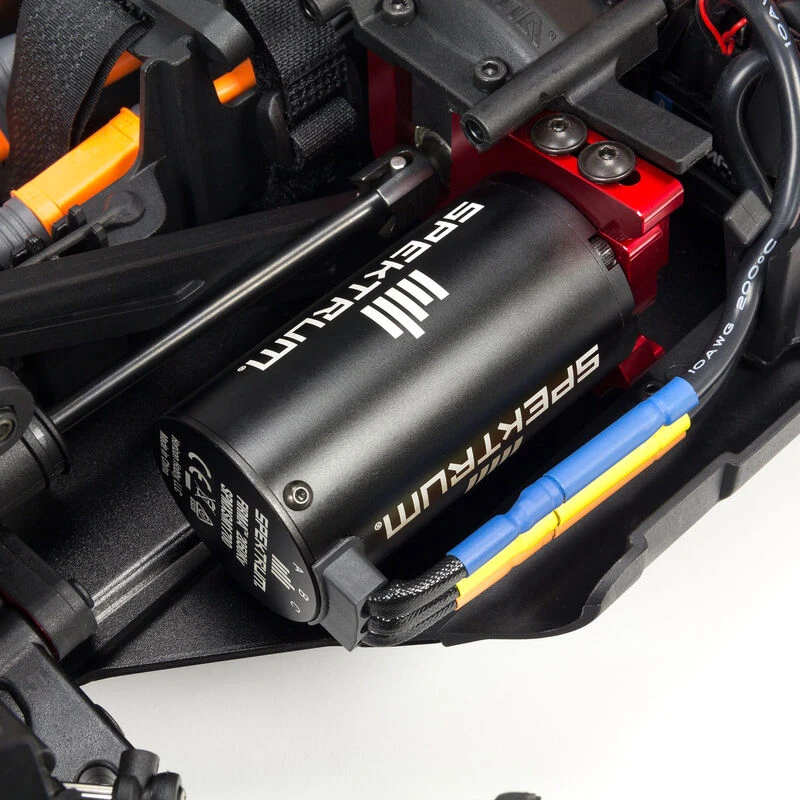

FIRMA™ 4074 2050Kv Brushless Motor
2050Kv 4074 size 6S brushless motor

Beautifully etched aluminum can

4-pole construction for smooth and consistent power

4mm gold bullet connectors for reliable and efficient connection

Black anodized aluminum motor can for increased heat dissipation

Super strong 5mm shaft

Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

SPEKTRUM® SLT3® RADIO
Superb SLT response rate

50% and 75% throttle limited switch – great for beginners

Steering & throttle rate & trim adjustments with throttle and steering reversing

Foam steering wheel grip

Compatible with Tactic Receivers

SPEKTRUM® SR315 RECEIVER
Dual Protocol – Compatible with SLT and DSMR® 2.4GHz protocol transmitters

Fast reponse rate and outstanding range

No tool binding and protocol switching

SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)

3-Channels

SPEKTRUM® SPMS652 DIGITAL SERVO
All Steel Gears

Waterproof*

19.08kg-cm/265oz-in Torque @7.4V

32% More Torque & 5% Faster than ADS-15M Servo

*For details on waterproof standards, please refer to the product instruction manual
