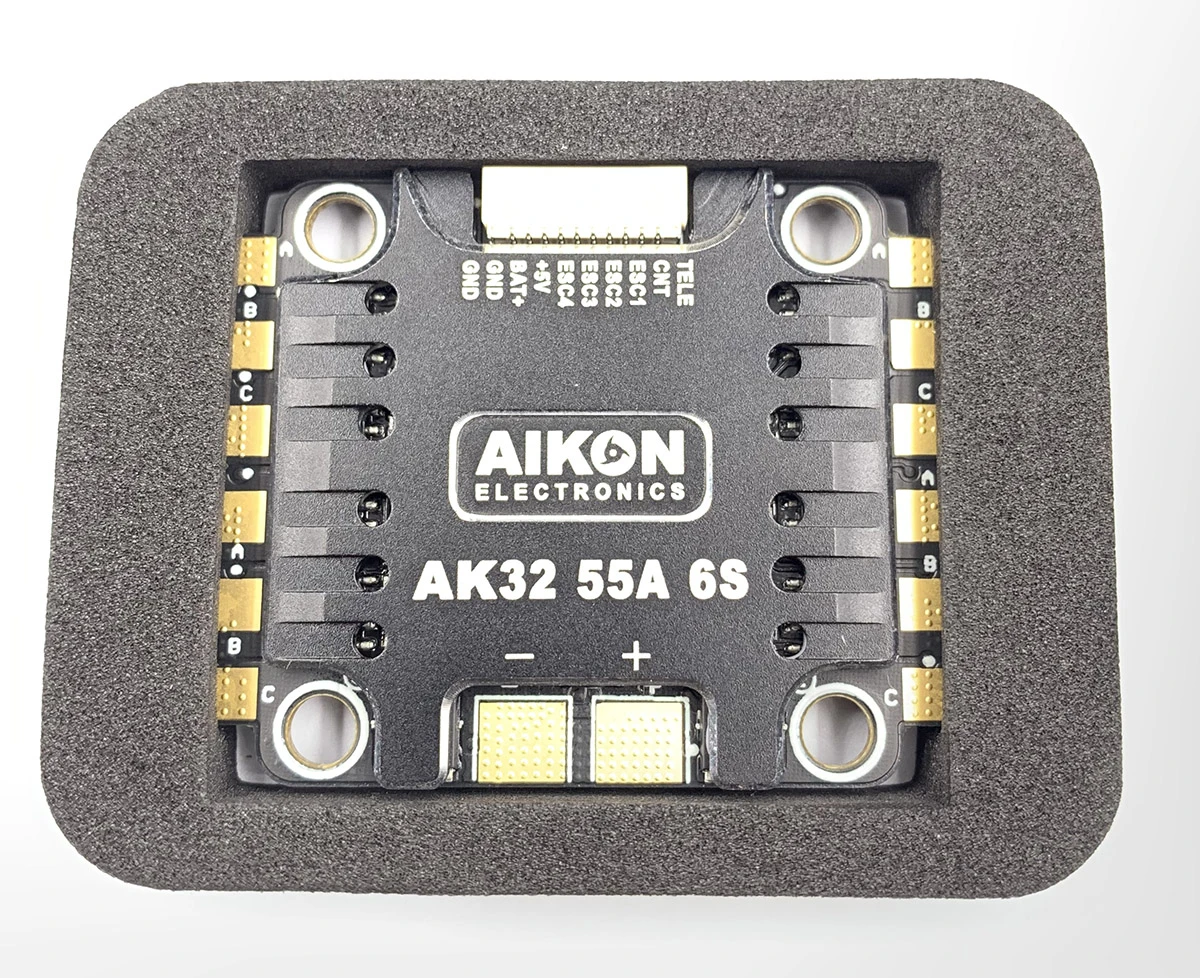

Aikon AK32 55A 6S 4-in-1 ESC

The Aikon AK32 4-in-1 55A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware.

What makes the AK32 different?

New BLHeli_32 code base

Programmable PWM frequency of up to 48KHz

Auto-timing for higher efficiency and reliability

Voltage/Current sensing

Adjustable “Brake on Stop” force

Improve direction change in Bidirectional mode

ESC Telemetry (Voltage and RPMs only, no current)

Configuring from FC using DShot commands

Specifications

Battery: 3-6s

Constant Current: 55A

Burst Current: 70A (10s)

BEC: 5v 2A

Telemetry: Yes

Current Sensory: Yes

Current Sensor Scale: 210

Mount Hole: 30.5*30.5mm

Firmware: BLHeli32

MCU: STM32 F0

Weight (with-out wire): 18.5g
